Instrument Cluster Control
Instrument panel illumination
When the vehicle's position lights or
headlights are on, press the illumina-
tion control button to adjust the
brightness of the instrument panel
illumination.
When pressing the illumination con-
trol button, the interior switch illumi-
nation intensity is also adjusted. The brightness of the instrument
panel illumination is displayed.
If the brightness reaches to the maximum or minimum level, a
chime will sound.
Gauges and Meters
Speedometer
Convenient features of your vehicle
Never adjust the instrument
cluster while driving. This could
result in loss of control and lead
to an accident that may cause
death, serious injury, or property
damage.
WARNING
OAE046401NOAE046102N
OAE046103N
■Type A
■Type B
■ Type A■Type B
OAE046167L/OAE046113L
3-120
Convenient features of your vehicle
Interior Lights
Do not use the interior lights for
extended periods when the vehi-
cle is turned off or the battery will
discharge.
Interior lamp AUTO cut
The interior lamps will automatically
go off approximately 20 minutes after
the vehicle is turned off and the
doors are closed. If a door is opened,
the lamp will go off 40 minutes after
the vehicle is turned off. If the doors
are locked by the smart key and the
vehicle enters the armed stage of the
theft alarm system, the lamps will go
off five seconds later.
Front lamps
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp ON
(4) Front Room Lamp OFF
Front Map Lamp :
Press either lenses to turn the map
lamp on or off. This light produces a
spot beam for convenient use as a
map lamp at night or as a personal
lamp for the driver and the front pas-
senger.
Front Door Lamp ( ):
The front or rear room lamps come on
when the front or rear doors are
opened. When doors are unlocked by
the smart key, the front and rear lamps
come on for approximately 30 seconds
as long as any door is not opened. The
front and rear room lamps go out grad-
ually after approximately 30 seconds
when the door is closed. However, if
the Engine Start/Stop button is in the
ON position or all doors are locked, the
front and rear lamps will turn off. If a
door is opened with the Engine
Start/Stop button in the ACC position
or the OFF position, the front and rear
lamps stay on for about 20 minutes.
Front room lamp
Press the button to turn ON the
room lamp for the front/rear seats.
Press the button to turn OFF the
room lamp for the front/rear seats
regardless of front or rear door open
position.
NOTICE
Do not use the interior lights
when driving in the dark. The inte-
rior lights may obscure your view
and cause an accident.
WARNING
OAD045405
5-4
Driving your vehicle
Before Entering the Vehicle
• Be sure all windows, outside mir-ror(s), and outside lights are clean
and unobstructed.
Remove frost, snow, or ice.
Visually check the tires for uneven wear and damage.
Check under the vehicle for any sign of leaks.
Be sure there are no obstacles behind you if you intend to back up.
Before Starting
Make sure the hood, the liftgate,and the doors are securely closed
and locked.
Adjust the position of the seat and steering wheel.
Adjust the inside and outside rearview mirrors.
Verify all the lights work.
Fasten your seatbelt. Check that all passengers have fastened their
seatbelts.
Check the gauges and indicators in the instrument panel and the mes-
sages on the instrument display
when the Engine Start/Stop button
is in the ON position.
Check that any items you are car- rying are stored properly or fas-
tened down securely.
CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
including components found in
the interior furnishings in a
vehicle, contain or emit harmful
chemicals known to the State of
California to cause cancer and
birth defects and reproductive
harm. In addition, certain fluids
contained in vehicles and cer-
tain products of components
contain or emit chemicals
known to the State of California
to cause cancer and birth
defects or other reproductive
harm.WARNING
B B
E
EF
FO
O R
RE
E
D
D R
RI
IV
V I
IN
N G
G
6-6
What to do in an emergency
The following items may need to be
reset after the battery has been dis-
charged or the battery has been dis-
connected. See chapter 3 or 4 for:
Power Windows
Trip Computer
Climate Control System
Clock
Audio System
Sunroof
Driver Position Memory System
External power source using 12V
battery
The use of external power acces-
sories may reduce performance
and function of the vehicle.
Especially, the use of dash cam-
eras may shut off the power of the
vehicle prior to the dash camera's
automatic shut-down.
If the power of the vehicle is shut
off, start the vehicle as explained.
(refer to "Using the 12V Battery
Switch")
Jump Starting
In the event vehicle still does not
have a functional 12V battery (check
if interior lights will not turn on) then
you can try a jump start to the engine
compartment jumper terminals using
a 12V booster pack or jumper cables
from another vehicle's 12V battery
according to the following instruc-
tions. 1. Position the vehicles close enough
that the jumper cables will reach,
but do not allow the vehicles to
touch.
2. Avoid fans or any moving parts in the engine compartment at all
times, even when the vehicles are
turned off.
3. Turn off all electrical devices such as radios, lights, air conditioning,
etc. Put the vehicles in P (Park)
and set the parking brake. Turn
both vehicles OFF.
NOTICEJump starting can be danger-
ous if done incorrectly. Follow
the jump starting procedure in
this section to avoid serious
injury or damage to your vehi-
cle. If in doubt about how to
properly jump start your vehi-
cle, we strongly recommend
that you have a service techni-
cian or towing service do it for
you.
CAUTION
7-66

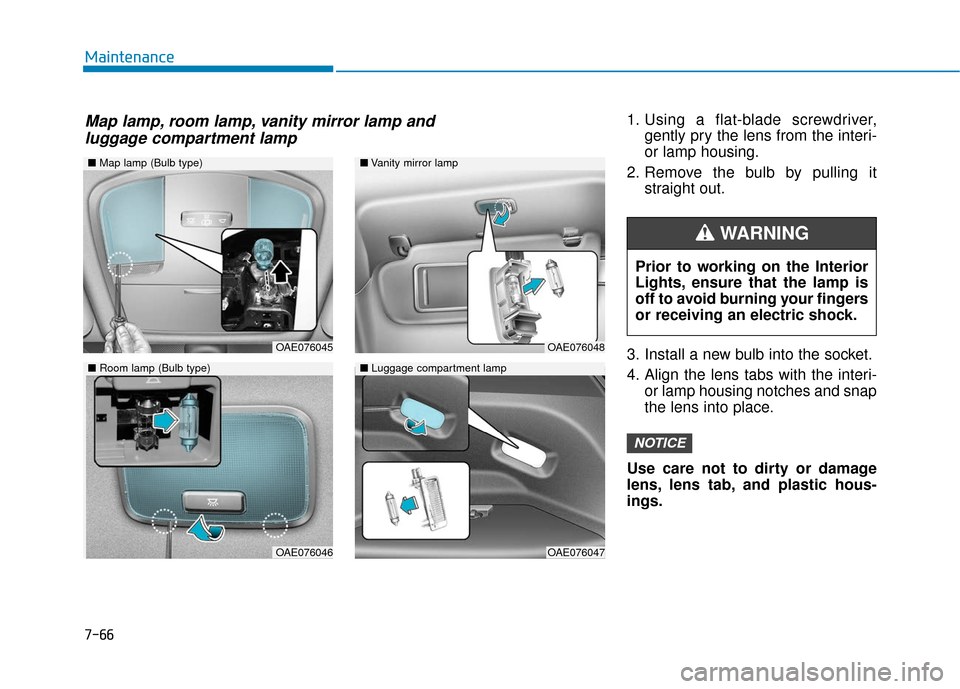

Maintenance1. Using a flat-blade screwdriver,gently pry the lens from the interi-
or lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interi- or lamp housing notches and snap
the lens into place.
Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.
NOTICE
Prior to working on the Interior
Lights, ensure that the lamp is
off to avoid burning your fingers
or receiving an electric shock.
WARNING
■ Map lamp (Bulb type)
OAE076045
OAE076046
■Vanity mirror lamp
■ Luggage compartment lamp
OAE076048
OAE076047
■Room lamp (Bulb type)
Map lamp, room lamp, vanity mirror lamp and
luggage compartment lamp
I-7
If the 12 volt battery is discharged (Hybrid vehicle) .......6-4Jump starting ................................................................6-6
Using the 12V battery reset switch ..............................6-5
If the 12 volt battery is discharged (Plug-in hybrid vehicle).................................................6-9
Jump starting ................................................................6-9
If the engine overheats ....................................................6-12
If the engine stalls while driving ......................................6-2
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle will not start Hybrid vehicle ..............................................................6-3
Plug-in hybrid vehicle ..................................................6-4
If you have a flat tire ......................................................6-20
If you have a flat tire while driving ..................................6-3
Impact sensing door unlock ............................................3-12
Improtant safety precautions.............................................2-2 Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-62
Inside rearview mirror ....................................................3-18 Instrument cluster ...........................................................3-54
Gauges and meters .....................................................3-56
Gear shift indicator .....................................................3-61
Icy road warning light ................................................3-75
Instrument panel illumination ....................................3-56
LCD display control ...................................................3-88
LCD display messages ...............................................3-73
LCD modes (for cluster type A).................................3-89
LCD modes (for cluster type B).................................3-97
Shift indicator pop-up ................................................3-62
Warning and indicator lights ......................................3-62
Instrument panel fuse replacement .................................7-50
Interior care .....................................................................7-7\
1
Interior features Bottle holder .............................................................3-148
Cargo security screen ...............................................3-154
Clock ........................................................................\
3-152
Clothes hanger ..........................................................3-153
Cup holder ................................................................3-148
Floor mat anchor(s) ..................................................3-153
Mobile phone charging system ................................3-151
Power outlet..............................................................3-149
Sunvisor ....................................................................3-14\
9
USB charger .............................................................3-150
Wireless cellular phone charging system .................3-151
Interior lamp AUTO cut................................................3-120
I
Index
I
I-8
Interior lights.................................................................3-120Door lamp.................................................................3-120
Interior lamp AUTO cut ...........................................3-120
Luggage compartment lamp .....................................3-121
Map lamp..................................................................3-120
Rear lamps ................................................................3-121
Room lamp ...............................................................3-120
Vanity mirror lamp ...................................................3-121
Inverter coolant ...............................................................7-18
Jump starting Hybrid vehicle ..............................................................6-6
Plug-in hybrid vehicle ..................................................6-9
Label Air bag warning labels ...............................................2-70
Regrigerent label location ..........................................8-10
Tire sidewall labeling .................................................7-40
Tire specification and pressure label location ............8-10
Vehicle certification label location ...............................8-9
Lane change signals ......................................................3-117
Lane Keeping Assist System (LKAS) ............................5-56
Lap/shoulder belt ............................................................2-25 LCD display control .......................................................3-88
LCD modes (for cluster type A).................................3-89
LCD modes (for cluster type B).................................3-97
LCD display messages AC Charger Error!......................................................3-84
Aux. Battery Saver+ was used while parked .............3-84
Check active air flap system ......................................3-78
Check BRAKE SWITCH fuse ...................................3-74
Check brakes ..............................................................3-81
Check fuel door ..........................................................3-83
Check headlight ..........................................................3-77
Check hybrid system ..................................................3-78
Check hybrid system. Do not start engine .................3-79
Check hybrid system. Turn engine off .......................3-79
Check regenerative brakes .........................................3-81
Check steering wheel lock system .............................3-73
Check virtual engine sound system............................3-81
Door, hood, liftgate open............................................3-74
Engine has overheated/Engine overheated.................3-76
Exit SPORT mode to switch to EV ............................3-87
Fuel door open............................................................3-83
Key not detected .........................................................3-73
Key not in vehicle ......................................................3-73
Lights mode ................................................................3-77
Low fuel .....................................................................3-7\
6
Low Key Battery ........................................................3-73
Index
J
L
