2018 Hyundai Ioniq Electric maintenance reset

7
Maintenance
7
Maintenance
Motor Compartment ..............................................7-3
Maintenance Services ...........................................7-4
Owner's Responsibility .....................................................7-4
Owner Maintenance Precautions..................................7-4
Owner Maintenance ..............................................7-5
Owner Maintenance Schedule .......................................7-6
Scheduled Maintenance Services........................7-7
Normal Maintenance Schedule ......................................7-8
Maintenance Under Severe Usage Conditions ........7-10
Explanation of Scheduled Maintenance Items..7-11
Coolant.................................................................\
..7-12
Checking the Coolant Level ..........................................7-12
Changing Coolant ............................................................7-15
Brake Fluid ............................................................7-16
Checking the Brake Fluid Level ...................................7-16
Washer Fluid .........................................................7-17
Checking the Washer Fluid Level................................7-17
Climate Control Air Filter ....................................7-18
Filter Inspection ...............................................................7-18
Wiper Blades.........................................................7-20
Blade Inspection ..............................................................7-20
Blade Replacement .........................................................7-20
12v Battery ...........................................................7-23
For Best Battery Service ..............................................7-24
Battery Recharging ........................................................7-24
Reset Features.................................................................7-25
Tires and Wheels .................................................7-26
Tire Care ........................................................................\
....7-26
Recommended Cold Tire Inflation Pressures ...........7-27
Check Tire Inflation Pressure ......................................7-28
Tire Rotation...................................................................\
..7-29
Wheel Alignment and Tire Balance ............................7-30
Tire Replacement ............................................................7-30
Wheel Replacement ........................................................7-31
Tire Traction .....................................................................7-3\
1
Tire Maintenance ............................................................7-31
Tire Sidewall Labeling ....................................................7-31
Tire Terminology and Definitions................................7-35
All Season Tires ...............................................................7-39
Summer Tires ...................................................................7-39
Snow Tires ........................................................................\
7-39
Radial-Ply Tires ...............................................................7-39
Low Aspect Ratio Tires..................................................7-40
7

7-25
7
Maintenance

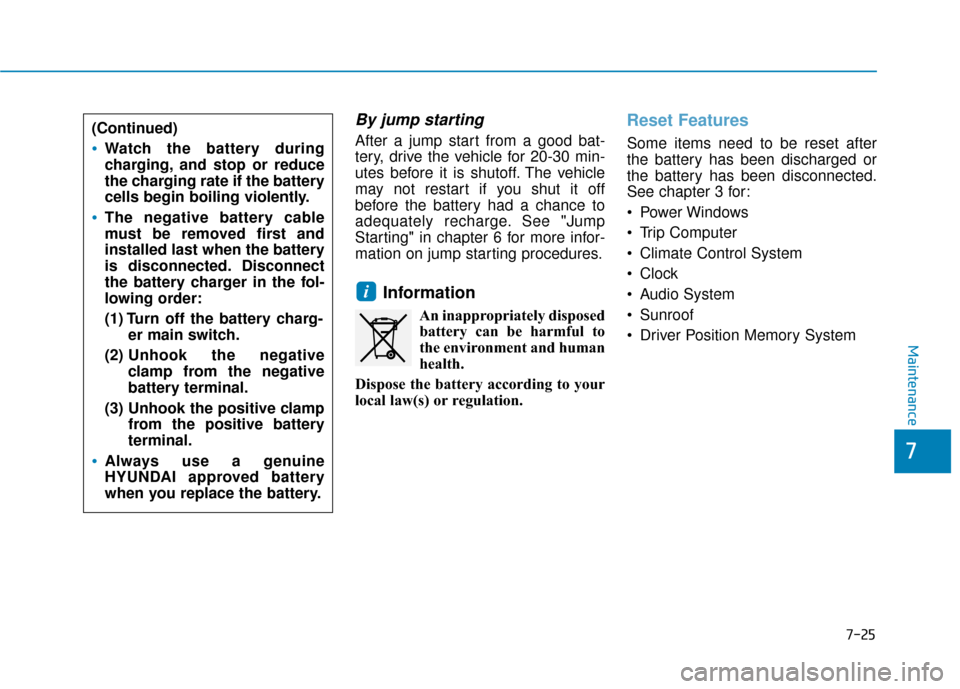

By jump starting
After a jump start from a good bat-
tery, drive the vehicle for 20-30 min-
utes before it is shutoff. The vehicle
may not restart if you shut it off
before the battery had a chance to
adequately recharge. See "Jump
Starting" in chapter 6 for more infor-
mation on jump starting procedures.
Information
An inappropriately disposedbattery can be harmful to
the environment and human
health.
Dispose the battery according to your
local law(s) or regulation.
Reset Features
Some items need to be reset after
the battery has been discharged or
the battery has been disconnected.
See chapter 3 for:
Power Windows
Trip Computer
Climate Control System
Clock
Audio System
Sunroof
Driver Position Memory System
i
(Continued)
Watch the battery during
charging, and stop or reduce
the charging rate if the battery
cells begin boiling violently.
The negative battery cable
must be removed first and
installed last when the battery
is disconnected. Disconnect
the battery charger in the fol-
lowing order:
(1) Turn off the battery charg- er main switch.
(2) Unhook the negative
clamp from the negative
battery terminal.
(3) Unhook the positive clamp from the positive battery
terminal.
Always use a genuine
HYUNDAI approved battery
when you replace the battery.

7-30
Maintenance

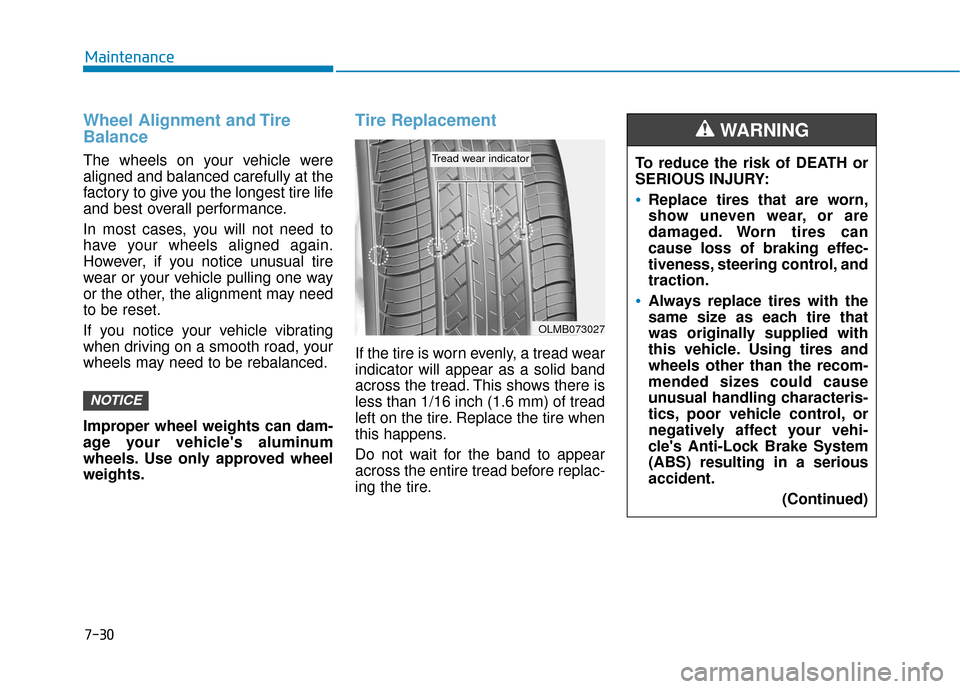

Wheel Alignment and Tire
Balance
The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.
Improper wheel weights can dam-
age your vehicle's aluminum
wheels. Use only approved wheel
weights.
Tire Replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1/16 inch (1.6 mm) of tread
left on the tire. Replace the tire when
this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tire.
NOTICE
OLMB073027
Tread wear indicatorTo reduce the risk of DEATH or
SERIOUS INJURY:
Replace tires that are worn,
show uneven wear, or are
damaged. Worn tires can
cause loss of braking effec-
tiveness, steering control, and
traction.
Always replace tires with the
same size as each tire that
was originally supplied with
this vehicle. Using tires and
wheels other than the recom-
mended sizes could cause
unusual handling characteris-
tics, poor vehicle control, or
negatively affect your vehi-
cle's Anti-Lock Brake System
(ABS) resulting in a serious
accident.(Continued)
WARNING

7-44
Maintenance

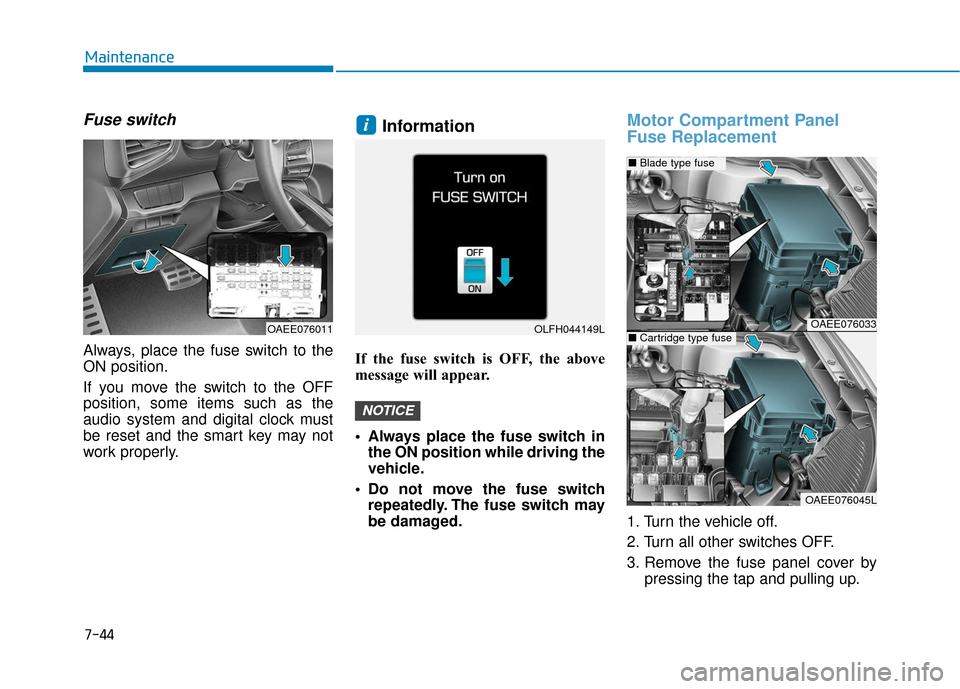

Fuse switch
Always, place the fuse switch to the
ON position.
If you move the switch to the OFF
position, some items such as the
audio system and digital clock must
be reset and the smart key may not
work properly.
Information
If the fuse switch is OFF, the above
message will appear.
Always place the fuse switch inthe ON position while driving the
vehicle.
Do not move the fuse switch repeatedly. The fuse switch may
be damaged.
Motor Compartment Panel
Fuse Replacement
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
NOTICE
i
OAEE076011OLFH044149LOAEE076033
OAEE076045L
■Blade type fuse
■Cartridge type fuse

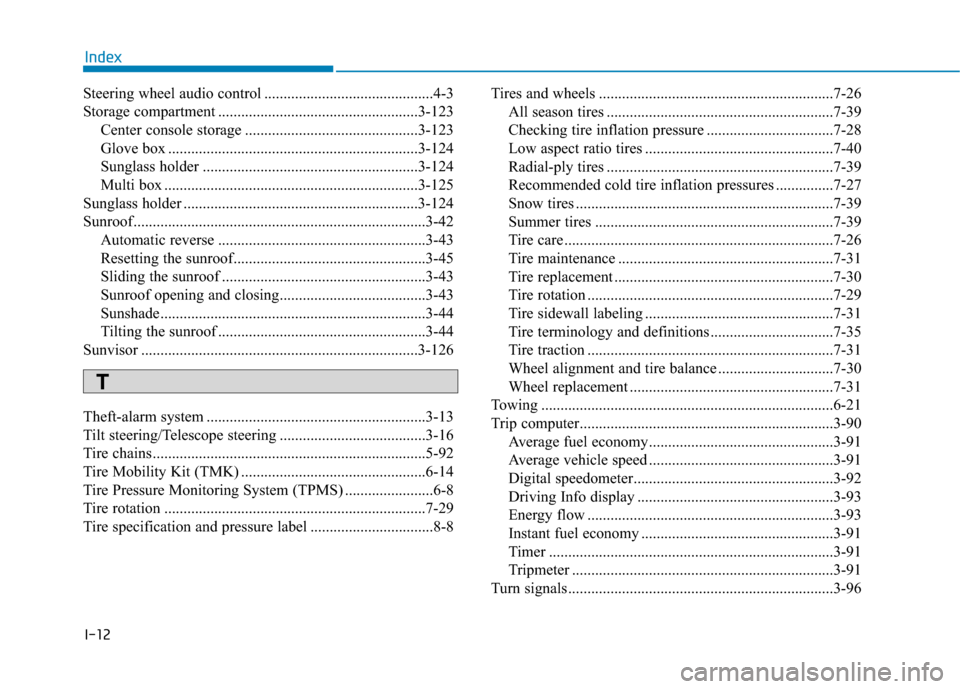

I-12
Steering wheel audio control ............................................4-3
Storage compartment ....................................................3-123Center console storage .............................................3-123
Glove box .................................................................3-124
Sunglass holder ........................................................3-124
Multi box ..................................................................3-125
Sunglass holder .............................................................3-124
Sunroof........................................................................\
....3-42 Automatic reverse ......................................................3-43
Resetting the sunroof..................................................3-45
Sliding the sunroof .....................................................3-43
Sunroof opening and closing......................................3-43
Sunshade.....................................................................3-4\
4
Tilting the sunroof ......................................................3-44
Sunvisor ........................................................................\
3-126
Theft-alarm system .........................................................3-13
Tilt steering/Telescope steering ......................................3-16
Tire chains .......................................................................5\
-92
Tire Mobility Kit (TMK) ................................................6-14
Tire Pressure Monitoring System (TPMS) .......................6-8
Tire rotation ....................................................................7-29\
Tire specification and pressure label ................................8-8 Tires and wheels .............................................................7-26
All season tires ...........................................................7-39
Checking tire inflation pressure .................................7-28
Low aspect ratio tires .................................................7-40
Radial-ply tires ...........................................................7-39
Recommended cold tire inflation pressures ...............7-27
Snow tires ...................................................................7-39
Summer tires ..............................................................7-39
Tire care ......................................................................7-\
26
Tire maintenance ........................................................7-31
Tire replacement .........................................................7-30
Tire rotation ................................................................7-29
Tire sidewall labeling .................................................7-31
Tire terminology and definitions ................................7-35
Tire traction ................................................................7-31
Wheel alignment and tire balance ..............................7-30
Wheel replacement .....................................................7-31
Towing ........................................................................\
....6-21
Trip computer..................................................................3-90 Average fuel economy................................................3-91
Average vehicle speed ................................................3-91
Digital speedometer....................................................3-92
Driving Info display ...................................................3-93
Energy flow ................................................................3-93
Instant fuel economy ..................................................3-91
Timer ........................................................................\
..3-91
Tripmeter ....................................................................3-91\
Turn signals.....................................................................3-9\
6
Index
T
