2018 HYUNDAI I30 oil dipstick

1-7
Your vehicle at a glance
1
E
E N
N G
G I
I N
N E
E
C
C O
O M
M P
P A
A R
R T
T M
M E
E N
N T
T
1. Engine coolant reservoir/
Engine coolant cap ..............................7-37
2. Brake/clutch fluid reservoir ..................7-40
3. Air cleaner ............................................7-42
4. Engine oil dipstick ................................7-35
5. Engine oil filler cap ..............................7-35
6. Windshield washer fluid reservoir ........7-41
7. Fuse box ..............................................7-64
8. Battery..................................................7-48
OPDE076088/OPD076001The actual engine room in the vehicle may differ from the illustration.
■
■Gasoline Engine (Kappa 1.0 T-GDI)
■
■Gasoline Engine (Kappa 1.4 T-GDI)

1-8
Your vehicle at a glance
1. Engine coolant reservoir ......................7-37
2. Radiator cap.........................................7-38
3. Brake/clutch fluid reservoir ..................7-40
4. Air cleaner ............................................7-42
5. Engine oil dipstick ................................7-35
6. Engine oil filler cap ..............................7-35
7. Windshield washer fluid reservoir ........7-41
8. Fuse box ..............................................7-64
9. Battery..................................................7-48
OPDE076089/OPDE076093The actual engine room in the vehicle may differ from the illustration.
■
■Gasoline Engine (Kappa 1.4 MPI)
■
■Gasoline Engine (Gamma 1.6 MPI)

1-9
Your vehicle at a glance
1
1. Engine coolant reservoir ......................7-37
2. Radiator cap.........................................7-38
3. Brake/clutch fluid reservoir ..................7-40
4. Air cleaner ............................................7-42
5. Engine oil dipstick ................................7-35
6. Engine oil filler cap ..............................7-35
7. Windshield washer fluid reservoir ........7-41
8. Fuse box ..............................................7-64
9. Battery..................................................7-48
OPD076003The actual engine room in the vehicle may differ from the illustration.
■
■Diesel Engine (U2 1.6 TCI)

7-3
7
Maintenance
E
E N
N G
G I
I N
N E
E
C
C O
O M
M P
P A
A R
R T
T M
M E
E N
N T
T
1. Engine coolant reservoir/
Engine coolant cap
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick
5. Engine oil filler cap
6. Windshield washer fluid reservoir
7. Fuse box
8. Battery
The actual engine room in the vehicle
may differ from the illustration.
OPDE076088/OPD076001
■
■Gasoline Engine (Kappa 1.0 T-GDI)
■
■Gasoline Engine (Kappa 1.4 T-GDI)

7-4
Maintenance
1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Battery
The actual engine room in the vehicle
may differ from the illustration.
OPDE076089/OPDE076093
■
■
Gasoline Engine (Kappa 1.4 MPI)
■
■Gasoline Engine (Gamma 1.6 MPI)

1. Engine coolant reservoir
2. Radiator cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Engine oil dipstick
6. Engine oil filler cap
7. Windshield washer fluid reservoir
8. Fuse box
9. Battery
The actual engine room in the vehicle
may differ from the illustration.
OPD076003
■
■Diesel Engine (U2 1.6 TCI)
7-5
7
Maintenance

7-35
7
Maintenance
E
E N
N G
G I
I N
N E
E
O
O I
I L
L

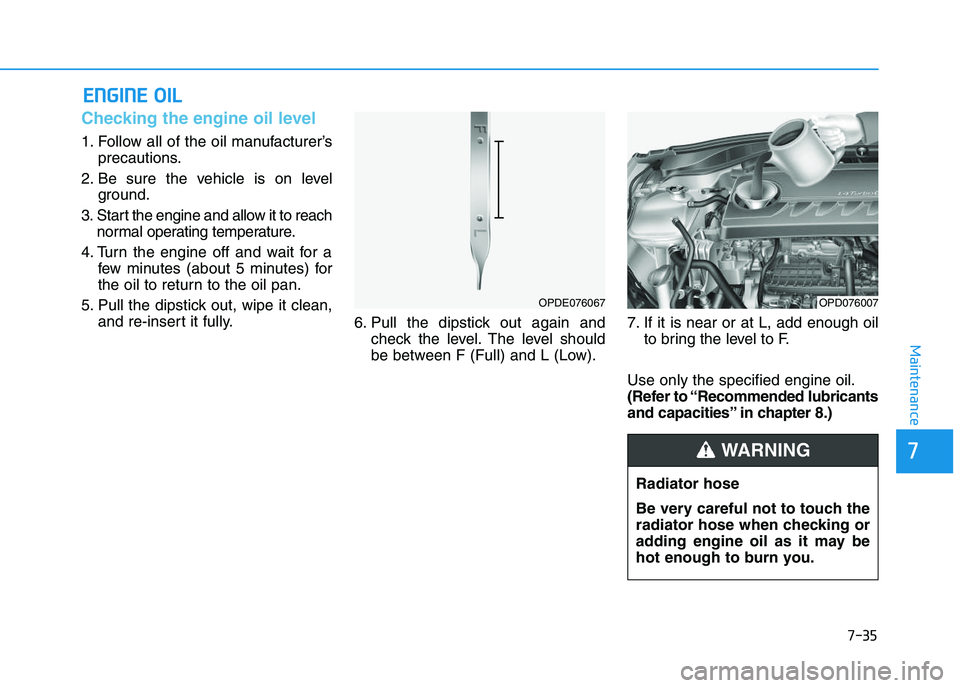

Checking the engine oil level
1. Follow all of the oil manufacturer’s
precautions.
2. Be sure the vehicle is on level ground.
3. Start the engine and allow it to reach normal operating temperature.
4. Turn the engine off and wait for a few minutes (about 5 minutes) for
the oil to return to the oil pan.
5. Pull the dipstick out, wipe it clean, and re-insert it fully. 6. Pull the dipstick out again and
check the level. The level should
be between F (Full) and L (Low). 7. If it is near or at L, add enough oil
to bring the level to F.
Use only the specified engine oil.
(Refer to “Recommended lubricants
and capacities” in chapter 8.)
OPDE076067OPD076007
Radiator hose
Be very careful not to touch the
radiator hose when checking or
adding engine oil as it may be
hot enough to burn you.
WARNING

8-9
8
Specifications & Consumer information
Recommended engine oil (For Europe)
Supplier ProductShell Gasoline Engine
HELIX ULTRA AH-E 5W-30
HELIX ULTRA 5W-40
Diesel Engine HELIX ULTRA AP 5W-30
HELIX ULTRA AP-L 5W-30
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining
any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved
roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
CAUTION
Recommended SAE viscosity number
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil
flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, high-
er viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than
those recommended could result in engine damage.
