Under "Auto Reset" mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling more
than 6 liters (1.6 gallons).
IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Consumption (3)
(if equipped)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (1)• The tripmeter is the total driving distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044158

)')
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
IInformation
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more than
10 seconds or 300 meters (0.19 miles)
since the ignition switch or the Engine
Start/Stop button is turned to ON.Instant Fuel Economy (3)• This mode displays the instant fuel
economy during the last few sec-
onds when the vehicle speed is
more than 10 km/h (6.2 MPH).
- Fuel economy range:0 ~ 30 L/100km, km/L
Tripmeter A/B (km or mile, km/h or MPH)Tripmeter (1)• The tripmeter is the total driving
distance since the last tripmeter
reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the [OK] button (or RESET button) on
the steering wheel for more than 1
second when the tripmeter is dis-
played.
Average Vehicle Speed (2)• The average vehicle speed is cal-culated by the total driving dis-
tance and driving time since the
last average vehicle speed reset.
- Speed range:0~220 km/h or 0~140 mph
• To reset the average vehicle speed, press the [OK] button (or RESET
button) on the steering wheel for
more than 1 second when the aver-
age vehicle speed is displayed.
Information
The average vehicle speed is not dis-played if the driving distance is less
than 300 meters (0.19 miles) or the
driving time is less than 10 seconds
since the ignition switch or the Engine
Start/Stop button is turned to ON.
Even if the vehicle is not in motion, the average vehicle speed keeps cal-
culating while the engine is running.i
i
OIB044119

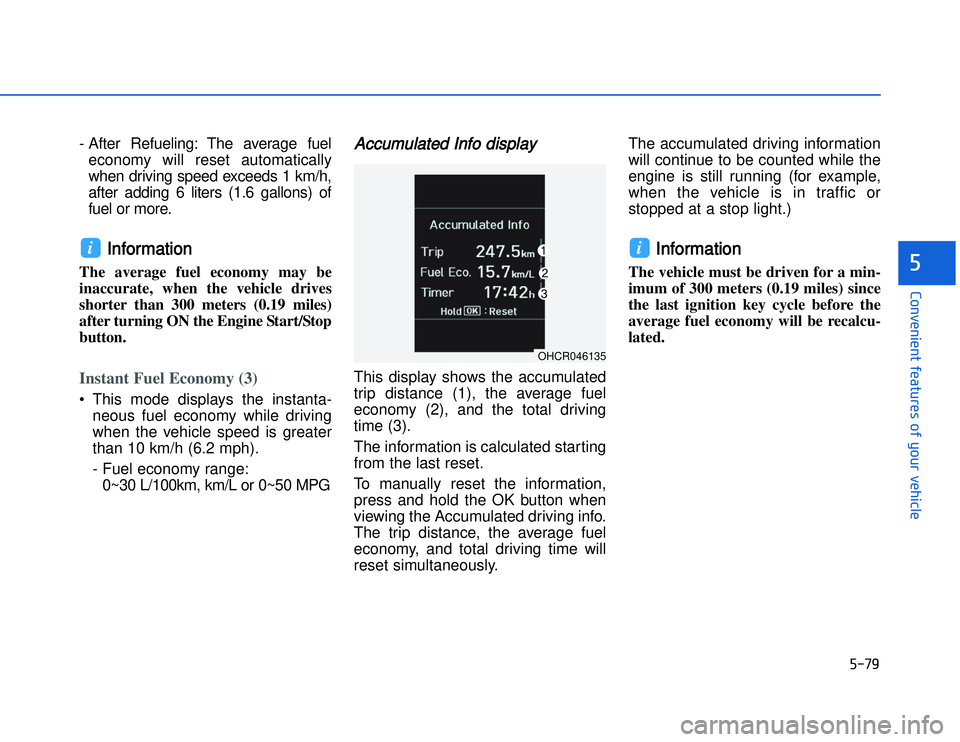

- After Refueling: The average fueleconomy will reset automatically
when driving speed exceeds 1 km/h,
after adding 6 liters (1.6 gallons) of
fuel or more.
IInformation
The average fuel economy may be
inaccurate, when the vehicle drives
shorter than 300 meters (0.19 miles)
after turning ON the Engine Start/Stop
button.Instant Fuel Economy (3)• This mode displays the instanta-
neous fuel economy while driving
when the vehicle speed is greater
than 10 km/h (6.2 mph).
- Fuel economy range: 0~30 L/100km, km/L or 0~50 MPG
Accumulated Info display This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is calculated starting
from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously. The accumulated driving information
will continue to be counted while the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light.)
Information
The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.i
i
)'
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
OHCR046135

UUSB charger (if equipped)The USB charger is designed to
recharge batteries of small size elec-
trical devices using a USB cable.
The electrical devices can be
recharged when the Engine Start/
Stop button is in the ACC, ON or
START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the
USB port after use. • A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging sys-
tem.
• A smart phone or a tablet PC, which adopts a different re-charg-
ing method, may not be properly
re-charged. In this case, use an
exclusive charger of your device.
• The charging terminal is only to recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
AV N .
Clothes hanger (if equipped)These hangers are not designed to
hold large or heavy items.
OIB044031
OIB047195R
#10*30-30.2+3%.,/3(21+2"1,/2*3!-$&3
)'

#
!'%$&%" '&$
IInformation- Using Bluetooth
®
(BT) Audio
(if equipped)
• Bluetooth
®Audio Mode can be used
only when a Bluetooth
®
phone has
been connected.
• Bluetooth
®
Audio Mode will not be
available when connecting mobile
phones that do not support this fea-
ture.
• If a Bluetooth
®
Phone is being used
to play music and receives an
incoming or outgoing phone call,
then the music will stop.
• Moving the Track up/down while playing Bluetooth®audio mode may
result in pop noises with some
mobile phones.
• Bluetooth
®
streaming audio may
not be supported in some mobile
phones.
• When returning to Bluetooth
®
Audio mode after ending a call, the
mode may not automatically restart
in some mobile phones.
• Receiving an incoming call or mak- ing an outgoing call while playing
Bluetooth
®
Audio may result in
audio interference.
Media ModeChange Mode:
[MEDIA]
button
• Each time the button is pressed, the media mode popup will be dis-
played or closed.
• The media mode popup will not be displayed when
[SETUP/CLOCK]
button [Display] [Mode popup]
is turned [Off].
You can select a menu in the mode
popup by using the
[1]
~
[6]
(Preset) buttons or
TUNE
knob.
• If media device(USB, AUX) is con- nected, then it will automatically
operate. Once it is disconnected,
the previous mode will be restored.
• The Audio/Bluetooth
®(BT) Audio*/
AUX volume can also be con-
trolled.
* if equipped
Information
When you connect an Apple device,
playback does not start automatically.
Repeat:
[1 RPT]
button
• Repeats the current song or repeats all songs within the current
folder.
•iPod
®
mode: Repeat Song ➟
Repeat Off
• USB mode: Repeat Song ➟
Repeat Folder ➟ Off
Shuffle:
[2 SHFL]
button
• Plays all songs within the current
folder(category) or play all songs in
random order.
•iPod
®
mode: Shuffle All ➟ Shuffle
Off
• USB mode: Shuffle Folder ➟
Shuffle All ➟ Off
i
i

+)
!-0,0*&."'$-.,/#0%(/

To prevent damage to the vehicle:
• Do not hold the ignition key in theSTART position for more than 1\f
seconds. Wait 5 to 1\f seconds
before trying again.
• Do not turn the ignition switch to the START position with the
engine running. It may damage the
starter.
• If traffic and road conditions per mit\b you may put the shift lever in
the N (Neutral) position while the
vehicle is still moving and turn the
ignition s
witch to the START posi
tion in an attempt to restart the
engine.
• Do not push or tow your vehicle to start the engine.
Engine Start/Stop button
(if equipped)
Whenever the front door is opened\b
the Engine Start/Stop button will illu
minate and will go off 3\f seconds
after the door is closed.
NOTICE
OIB\f57\f\f6R
To reduce risk of serious injury or
death\b NEVER allow children or
any person who is unfamiliar with
the vehicle to touch the Engine
Start/Stop button or related parts.
Unexpected and sudden vehicle
movement can occur.
WARNING

+)
!-0,0*&."'$-.,/#0%(/
•NEVER press the Engine
Start/Stop button while the vehi
cle is in motion except in an
emergency. This will result in the
engine turning off and loss of
power assist for the steering and
brake systems.
This may lead to loss of direc
tional control and braking func
tion\b which could cause an acci
dent.
•Before leaving the driver’s seat\b
always make sure the shift lever
is in neutral\b set the parking
brake\b press
the Engine
Start/Stop button to the OFF
position\b and take the Smart Key
with you.
Unexpected vehicle movement
may occur if these precautions
are not followed.
(Continued)
WARNING
To turn the engine off in an emer
gency:
Press and hold the Engine
Start/Stop button for more than
two seconds OR Rapidly press
and release the Engine Start/Stop
button three times (within three
seconds).
If the vehicle is still moving\b you
can restart the engine without
depressing the brake pedal by
pressing the Engine Start/Stop
button with the shift lever in the N
(Neutral) position.
(Continued)
•NEVER reach through the steer
ing wheel for the Engine
Start/Stop button or any other
control while the vehicle is in
motion. The presence of your
hand or arm in this area may
cause a loss of vehicle control
resulting in an accident.
WARNING

+)
!-0,0*&."'$-.,/#0%(/

Button PositionAction Notice
OFF
• To turn off the engine\b stop the vehicle and
then press the Engine Start/Stop button.
• The steering wheel locks to protect the vehicle from theft. If the steering wheel is not locked properly
when you open the driver's door\b the warning
chime will sound.
Not illuminated
ACC
• Press the Engine Start/Stop button when
the button is in the OFF position without
depressing the clutch pedal.
• Electrical accessories are usable.
• The steering wheel unlocks. • If you leave the Engine Start/Stop button in
the ACC position for more than one hour\b the
battery power will turn off automatically to
prevent the battery from discharging.
• If the steering wheel doesn't unlock properly\b the Engine Start/Stop button will not work.
Press the Engine Start/Stop button while
turning the steering wheel right and left to
release tension.
Amber indicator
Engine Stop/Start button positions
Vehicle with Manual Transaxle
