2018 Hyundai Creta relay

7-73
7
Maintenance

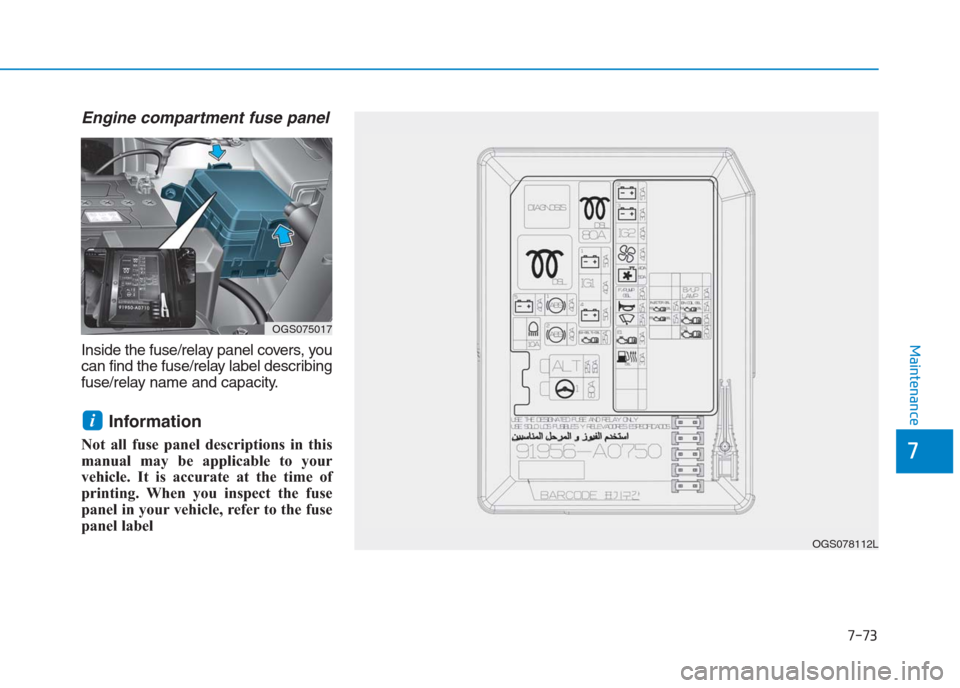

Engine compartment fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
panel in your vehicle, refer to the fuse
panel label
i
OGS075017
OGS078112L

7-74
Maintenance
Engine Compartment Fuse Panel
ItemNameSymbolFuse RatingCircuit Protected
MULTI
FUSEMDPS80AMDPS(Motor Power Steering)
ALTALT125A/150AG4FC(125A): Alternator, Battery, All Fuses connected to Alternator fuse
D4FC/D4FB(150A): Alternator, Battery, All Fuses connected to Alternator fuse
FUSE
ECU 515AG4FC(15A): ECU (M/T), PCU(A/T)
HEAD LAMP
HIGH BEAM10AHead Lamp High Solenoid Relay (Bi-Functional Type)
ABS 240AABS / ESC Control Module
ECU 4E425A/15AG4FC(25A): ECU (M/T), PCU(A/T)
D4FC(15A): Inlet Meter Valve,
D4FB(15A): Glow Plug Relay, Fuel Meter Unit
TCU 1T125AD4FB: TCU(A/T)
B+540AInstrument Panel Fuse Block Fuse: FS01
ABS 140AABS / ESC Control Module, Engine Room Diagnosis
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-75
7
Maintenance
ItemNameSymbolFuse RatingCircuit Protected
FUSE
B+440AW/o Button start: Ignition SW
With Button start: PDM Relay Block
IG150AInstrument Panel Fuse Block Fuse: FS14,FS05,FS13,FS17,FS10,FS02,FS09, IOD
relay(Leakage Current Auto cut)
B+180AD4FC/D4FB: Glow Relay, Glow Plug
Glow30AD4FC/D4FB: Fuel heater
FUEL
HEATER30A(Engine Control)Main Relay
ECU 1'25AWiper Motor(Front)
FRONT
WIPER15AHorn(Dual), Burglar Alarm Horn
HORN20AG4FC: Fuel Pump Relay, Fuel Pump Motor
FUEL PUMPFUEL
PUMP40A/50AG4FC(40A),Radiator Fan Motor
D4FC/D4FB(50A)-Radiator Fan Motor
C/FAN40ABlower Motor
BLOWER40AW/o Button Start : Start Relay, Start Solenoid, Ignition SW
With Button Start : Start Relay, Start Solenoid, PDM Relay Block
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-76
Maintenance
ItemNameSymbolFuse RatingCircuit Protected
FUSE
IG240AW/o Button Start : Start Relay, Start Solenoid, Ignition SW
With Button Start : Start Relay, Start Solenoid, PDM Relay Block
B+330AInstrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5
B+250AInstrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay
INJECTORINJECTOR15AG4FC: Injector(#1,#2,#3,#4)
BACK UP
LAMPB/UP LAMP10ABack up switch(MT Only), Rear Combination Lamp LH/RH
IGN COILIGN
COIL15AG4FC: Condenser, Ignition Coil Extn.
SENSOR 1610AG4FC: Variable Intake System Solenoid, Output Variable Cam(IN, EX),
Purge Control Solenoid Valve, Oxygen Sensor(UP, DN), IMMO
D4FB: Lambda Sensor, Stop SW, EGR Actuator, D4FC: Stop SW
ECU 3(20AD4FC/D4FB: ECU
G4FC: ECU(M/T),PCU(A/T)
RelayGlowD4FC/D4FB: Glow Plug
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)
