2018 Hyundai Accent ignition

7-28
Maintenance
B
BA
A T
TT
TE
ER
R Y
Y
To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working near or handling
the battery:
Always read and follow
instructions carefully
when handling a battery.Wear eye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks,
or smoking materials
away from the battery.
Hydrogen is always pres- ent in battery cells, is
highly combustible, and
may explode if ignited.
Keep batteries out of
reach of children.
(Continued)
WARNING (Continued)Batteries contain sulfu-
ric acid which is highly
corrosive. Do not allow
acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get imme-
diate medical attention. If acid
gets on your skin, thoroughly
wash the area. If you feel pain or
a burning sensation, get med-
ical attention immediately.
When lifting a plastic-cased
battery, excessive pressure
on the case may cause battery
acid to leak. Lift with a battery
carrier or with your hands on
opposite corners.
Do not attempt to jump start
your vehicle if your battery is
frozen. (Continued)
(Continued)
NEVER attempt to recharge
the battery when the vehicle’s
battery cables are connected
to the battery.
The electrical ignition system
works with high voltage.
NEVER touch these compo-
nents with the engine running
or when the ignition switch is
in the ON position.

7-29
7
Maintenance
When you do not use the vehiclefor a long time in a low tempera-
ture area, disconnect the battery
and keep it indoors.
Always charge the battery fully to prevent battery case damage
in low temperature areas.

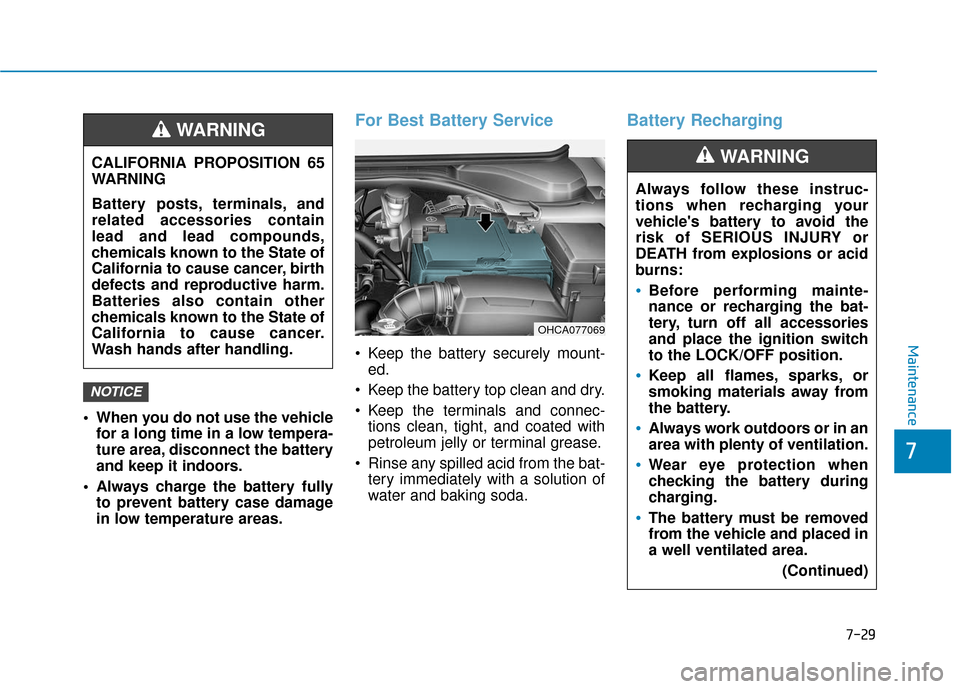

For Best Battery Service
Keep the battery securely mount-ed.
Keep the battery top clean and dry.
Keep the terminals and connec- tions clean, tight, and coated with
petroleum jelly or terminal grease.
Rinse any spilled acid from the bat- tery immediately with a solution of
water and baking soda.
Battery Recharging
NOTICE
CALIFORNIA PROPOSITION 65
WARNING
Battery posts, terminals, and
related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer, birth
defects and reproductive harm.
Batteries also contain other
chemicals known to the State of
California to cause cancer.
Wash hands after handling.
WARNING
Always follow these instruc-
tions when recharging your
vehicle's battery to avoid the
risk of SERIOUS INJURY or
DEATH from explosions or acid
burns:
Before performing mainte-
nance or recharging the bat-
tery, turn off all accessories
and place the ignition switch
to the LOCK/OFF position.
Keep all flames, sparks, or
smoking materials away from
the battery.
Always work outdoors or in an
area with plenty of ventilation.
Wear eye protection when
checking the battery during
charging.
The battery must be removed
from the vehicle and placed in
a well ventilated area.
(Continued)
WARNING
OHCA077069

7-51
7
Maintenance
Fuse NameFuse RatingCircuit Protected
DOOR LOCK20AI/P Junction Block (Tail Gate Unlock Relay, Door Lock/Unlock Relay, Two Turn Unlock Relay)
POWER OUTLET20APower Outlet
SAFETY P/WINDOW25ADriver Safety Power Window Module
STOP LAMP15AI/P Junction Block(Stop Signal Electronic Module)
T/SIGNAL LAMP15ABCM, SLM
C/LIGHTER20ACigarette Lighter
HEATED MIRROR10ADriver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
DRL10ABCM
P/WINDOW RH25APower Window Main Switch, Passenger Power Window Switch
S/HEATER20AFront Seat Warmer Control Module
SPARE110A-
START7.5AWith Smart Key : ECM/PCM, E/R Junction Block(Start Relay), Smart Key Control Module, Transaxle Range Switch, Ignition Lock & Clutch Switch
W/O Smart Key : Burglar Alarm Relay, Transaxle Range Switch, Ignition Lock & Clutch Switch

7-58
Maintenance
Fuse NameFuse RatingCircuit Protected
HEAD LAMP LH10AHead Lamp LH
IGN COIL20AIgnition Coil #1~#4, Condenser
ECU515AECM/PCM, E/R Junction Block (Fuel Pump Relay)
B/UP LAMP10ABack-Up Lamp Switch
B+140AI/P Junction Block (Fuse - DRL, FOGLAMP FRONT,
STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP))
B+250AI/P Junction Block (Fuse - IMMO, SMART KEY1, BRAKE SWITCH,
BCM, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay)
IG240AIgnition Switch, PDM Relay Box (IG2 Relay), E/R Junction Block (Start Relay)
COOLING FAN40AE/R Junction Block (Cooling Fan1/2 Relay)
ECU130AE/R Junction Block (Fuse - ECU3, ECU4, Main Relay)
B/ALARM HORN10AB/Alarm Horn Relay
HEAD LAMP20AE/R Junction Block (Head Lamp Relay)
H/LAMP HI20AW/O DRL : E/R Junction Block (H/Lamp HI Relay)
With DRL : SLM, BCM

7-59
7
Maintenance
Fuse NameFuse RatingCircuit Protected
FUEL PUMP20AE/R Junction Block (Fuel Pump Relay)
HORN10AE/R Junction Block (Horn Relay)
A/C10ASub Relay Block (A/C Relay)
AMS10ABattery Sensor
B+340AI/P Junction Block (Fuse - T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay)
IG140AIgnition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER OUTLET40AI/P Junction Block (Power Outlet Relay)

7-61
7
Maintenance
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
Information
After heavy driving, rain or washing,
headlamp and trunk lenses could
appear frosty. This condition is caused
by the temperature difference
between the lamp inside and the out-
side temperature. This is similar to the
condensation on your windows inside
your vehicle during the rain and does-
n’t indicate a problem with your vehi-
cle. If the water leaks into the lamp
bulb circuitry, have your vehicle
checked by an authorized HYUNDAI
dealer.
Headlamp, Position lamp, Fog
lamp, Daytime Running Light,
Turn Signal Lamp and Side
Marker
Ty p e A
(1) Headlamp (High/Low)
(2) Front turn signal lamp/
Position lamp
(3) Side marker
(4) Front fog lamp*
* : if equipped
i
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, place
the ignition switch to the
LOCK/OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
OHCA077030

I-4
