589Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the fuse
number and box cover number.
Located near the passenger’s side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse Box Type A
Tab
591
uuFuses uFuse Locations
Continued
Handling the Unexpected
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse
Box Type B
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
ST CUT140 A
4WD(20 A)
IG MAIN30 A
IG MAIN230 A
−−
F/B MAIN260 A
F/B MAIN60 A
EPS60 A
2−−
3TRL E-BRAKE(20 A)
4BMS 7.5 A
5H/L HI MAIN20 A
6 +B TRL HAZARD (7.5 A)
7+B TRL BACKUP(7.5 A)
8 CTR ACC SOCKET 20 A
9TRAILER SMALL(20 A)
10 ACC/IG2_MAIN 10 A
11TRL CHARGE(20 A)
12−−
13−−
14−−
15FR DE-ICER(15 A)
16RR _HTD SEAT(20 A)
17STRLD7.5 A
592
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DR P/W20 A
2DOOR LOCK20 A
3SMART7.5 A
4AS P/W20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9ABS/VSA7.5 A
10SRS10 A
11REAR LEFT P/W20 A
12BACK P/W(20 A)
13REAR RIGHT P/W20 A
14S/R FUEL LID20 A
15DR P/SEAT (REC)(20 A)
16CARGO LT7.5 A
17FR SEAT HEATER(20 A)
18INTR LT7.5 A
19DR REAR DOOR UNLOCK10 A
20AS SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT(7.5 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29METER7.5 A
30−−
31MISS SOL7.5 A
32SRS7.5 A
33AS SIDE DOOR LOCK10 A
34DR DOOR LOCK10 A
35DR DOOR UNLOCK10 A
36DR P/SEAT (SLIDE)(20 A)
37RIGHT H/L HI10 A
38LEFT H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DR REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps

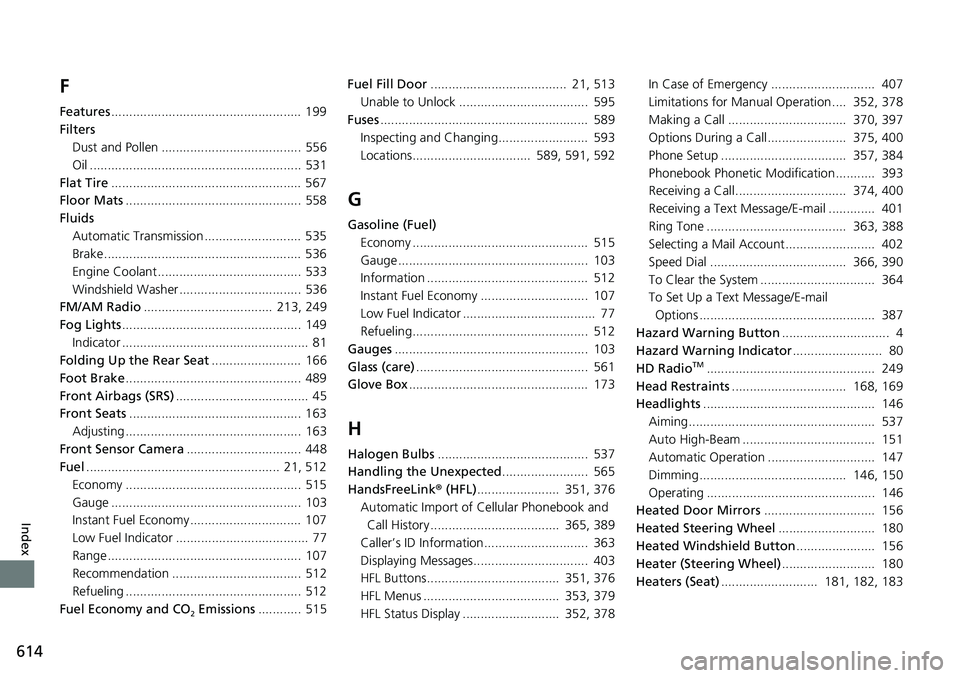

614
Index
F
Features..................................................... 199
Filters Dust and Pollen ....................................... 556
Oil ........................................................... 531
Flat Tire ..................................................... 567
Floor Mats ................................................. 558
Fluids
Automatic Transmission ........................... 535
Brake ....................................................... 536
Engine Coolant ........................................ 533
Windshield Washer .................................. 536
FM/AM Radio .................................... 213, 249
Fog Lights .................................................. 149
Indicator .................................................... 81
Folding Up the Rear Seat ......................... 166
Foot Brake ................................................. 489
Front Airbags (SRS) ..................................... 45
Front Seats ................................................ 163
Adjusting ................................................. 163
Front Sensor Camera ................................ 448
Fuel ...................................................... 21, 512
Economy ................................................. 515
Gauge ..................................................... 103
Instant Fuel Economy ............................... 107
Low Fuel Indicator ..................................... 77
Range ...................................................... 107
Recommendation .................................... 512
Refueling ................................................. 512
Fuel Economy and CO
2 Emissions ............ 515 Fuel Fill Door
...................................... 21, 513
Unable to Unlock .................................... 595
Fuses .......................................................... 589
Inspecting and Changing......................... 593
Locations................................. 589, 591, 592
G
Gasoline (Fuel) Economy ................................................. 515
Gauge ..................................................... 103
Information ............................................. 512
Instant Fuel Economy .............................. 107
Low Fuel Indicator ..................................... 77
Refueling................................................. 512
Gauges ...................................................... 103
Glass (care) ................................................ 561
Glove Box .................................................. 173
H
Halogen Bulbs .......................................... 537
Handling the Unexpected ........................ 565
HandsFreeLink ® (HFL) ....................... 351, 376
Automatic Import of Cellular Phonebook and Call History .................................... 365, 389
Caller’s ID Information............................. 363
Displaying Messages................................ 403
HFL Buttons..................................... 351, 376
HFL Menus ...................................... 353, 379
HFL Status Display ........................... 352, 378 In Case of Emergency ............................. 407
Limitations for Manual Operation .... 352, 378
Making a Call ................................. 370, 397
Options During a Call...................... 375, 400
Phone Setup ................................... 357, 384
Phonebook Phonetic M
odification........... 393
Receiving a Call............................... 374, 400
Receiving a Text Message/E-mail ............. 401
Ring Tone ....................................... 363, 388
Selecting a Mail Account......................... 402
Speed Dial ...................................... 366, 390
To Clear the System ................................ 364
To Set Up a Text Message/E-mail Options ................................................. 387
Hazard Warning Button .............................. 4
Hazard Warning Indicator ......................... 80
HD Radio
TM............................................... 249
Head Restraints ................................ 168, 169
Headlights ................................................ 146
Aiming.................................................... 537
Auto High-Beam ..................................... 151
Automatic Operation .............................. 147
Dimming......................................... 146, 150
Operating ............................................... 146
Heated Door Mirrors ............................... 156
Heated Steering Wheel ........................... 180
Heated Windshield Button ...................... 156
Heater (Steering Wheel) .......................... 180
Heaters (Seat) ........................... 181, 182, 183
