2018 HONDA ODYSSEY warning light

721
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 536
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the engine.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 729
18 US ODYSSEY-31THR6010.book 721 ページ ２０１８年１２月６日　木曜日　午後４時１８分

734
Handling the Unexpected

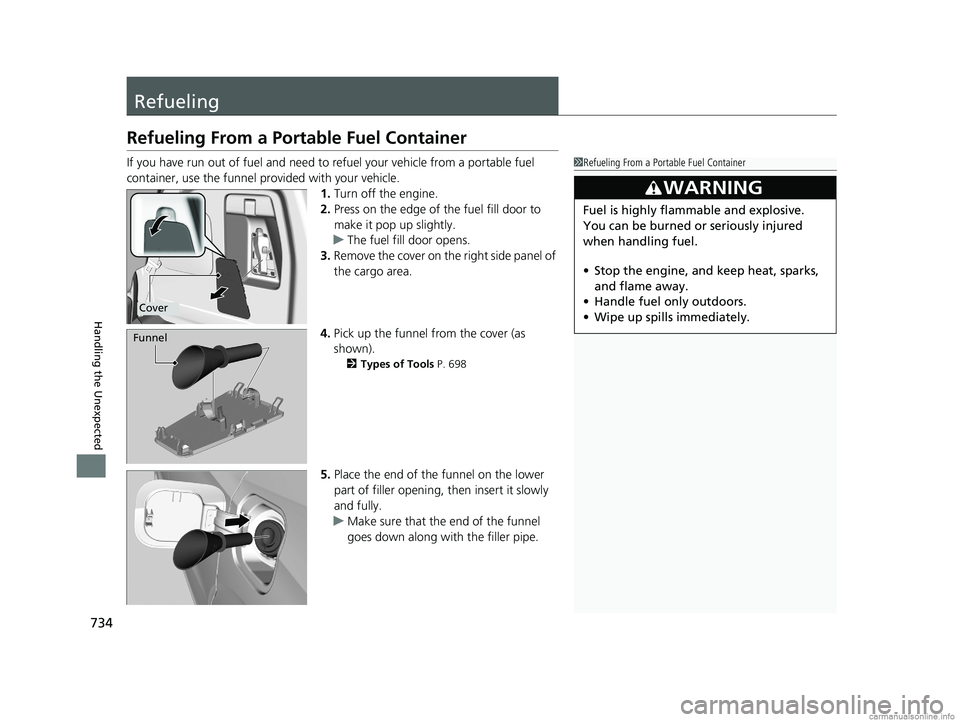

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Remove the cover on the right side panel of
the cargo area.
4. Pick up the funnel from the cover (as
shown).
2 Types of Tools P. 698
5.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
1Refueling From a Portable Fuel Container
3WARNING
Fuel is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Cover
Funnel
18 US ODYSSEY-31THR6010.book 734 ページ ２０１８年１２月６日　木曜日　午後４時１８分

752
Index
C
CabinTalkTM............................................... 522
CabinWatchTM........................................... 521
Car Wash Mode ........................................ 548
Carbon Monoxide Gas ................................ 80
Cargo Hooks .............................................. 239
Carrying Cargo .................................. 525, 527
CD Player ................................................... 332
Center Pocket ............................................ 230
Certification Label .................................... 740
Changing Bulbs ......................................... 658
Charging System Indicator ................. 87, 716
Child Safety ................................................. 62
Childproof Door Locks ............................. 157
Child Seat .................................................... 62
Booster Seats ............................................. 79
Child Seat for Infants ................................. 64
Child Seat for Small Children ..................... 65
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 72
Larger Children .......................................... 78
Rear-facing Child Seat ............................... 64
Selecting a Child Seat ................................ 66
Using a Tether ........................................... 74
Childproof Door Locks .............................. 157
Cleaning the Exterior ............................... 691
Cleaning the Interior ................................ 688
Climate Control System .................... 248, 252
Changing the Mode ........................ 248, 252
Defrosting the Windshield and Windows ....................................... 249, 253 Dust and Pollen Filter............................... 687
Recirculation/Fresh Air Mode ................... 248
Sensors ................................................... 257
Using Automatic Climate Control .... 248, 252
Clock .......................................................... 142
Coat Hooks ............................................... 238
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 699, 739
Console Box .............................................. 228
Console Compartment with Lid .............. 229
Controls ..................................................... 141
Coolant (Engine) ...................................... 653
Adding to the Radiator ............................ 654
Adding to the Reserve Tank..................... 653
Overheating ............................................ 713
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 543
Cruise Control ........................................... 559
Indicator.................................................... 95
Cup Holders .............................................. 231
Customer Service Information ................. 749
Customized Features ........................ 133, 442
D
Daytime Running Lights .......................... 193
Dead Battery ............................................. 711
Defaulting All the Settings ...................... 466
Defrosting the Windshield and
Windows ......................................... 249, 253 Detachable Anchor
.................................... 43
Devices that Emit Radio Waves ............... 741
Dimming Headlights .............................................. 189
Rearview Mirror ...................................... 206
Dipstick (Engine Oil) ................................ 649
Directional Signals (Turn Signal) ............. 189
Door Mirrors ............................................. 207
Doors ........................................................ 144
Auto Door Locking.................................. 158
Auto Door Unlocking .............................. 158
Door and Tailgate Open Message ............. 37
Keys........................................................ 144
Locking/Unlocking the Doors from
the Inside .............................................. 154
Locking/Unlocking the Doors from the Outside ........................................... 147
Lockout Prevention System ..................... 153
DOT Tire Quality Grading ........................ 676
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
Driving ...................................................... 523
Automatic Transmission .......................... 543
Braking ................................................... 600
Cruise Control ........................................ 559
Shifting Gear .......................................... 544
Starting the Engine ................................. 536
Driving Position Memory System ............ 203
Dust and Pollen Filter .............................. 687
18 US ODYSSEY-31THR6010.book 752 ページ ２０１８年１２月６日　木曜日　午後４時１８分

754
Index
H
Halogen Bulbs................................... 658, 661
Handling the Unexpected ........................ 697
HandsFreeLink® (HFL)....................... 470, 495
Automatic Import of Ce llular Phonebook and
Call History .................................... 484, 504
Automatic Transferring ............................ 503
Caller’s ID Information ............................. 482
Displaying Messages ................................ 514
Favorite Contacts ..................................... 505
HFL Buttons ..................................... 470, 495
HFL Menus ...................................... 472, 498
HFL Status Display............................ 471, 497
In Case of Emergency .............................. 518
Limitations fo r Manual Operation .... 471, 497
Making a Call .................................. 489, 507
Options During a Call ...................... 494, 510
Phone Setup .................................... 476, 500
Receiving a Call ............................... 493, 510
Receiving a Text Message ........................ 512
Ring Tone ........................................ 482, 503
Selecting a Phone .................................... 513
Speed Dial ............................................... 485
To Clear the System ................................. 483
To Set Up a Text Message Options ........... 511
Hazard Warning Button ............................... 4
HD Radio
TM................................................ 321
HDMITM Port .............................................. 399
Head Restraints ......................................... 212 Headlights
................................................. 189
Aiming .................................................... 658
Auto High-Beam ..................................... 194
Automatic Operation............................... 190
Dimming ......................................... 189, 193
Operating................................................ 189
Heated Steering Wheel ............................ 241
Heated Windshield Button ...................... 202
Heaters (Seat) ................................... 242, 243
HFL (HandsFreeLink ®)....................... 470, 495
High Beam Indicator .................................. 92
HomeLink ® Universal Transceiver ............ 467
Honda App License Agreement .............. 376
HondaLink ®............................................... 349
HondaVAC
TM............................................. 245
I
Identification Numbers Engine and Transmission ......................... 740
Vehicle Identification ............................... 740
Illumination Control Knob ....................................................... 200
Immobilizer System .................................. 179
Indicator.................................................... 93
Indicators .................................................... 84
Adaptive Cruise Control (ACC) (Amber)..... 98
Adaptive Cruise Control (ACC) (Green) .............................................. 98, 99 Anti-lock Brake System (ABS) .................... 90
Auto High-Beam ....................................... 90
Auto Idle Stop (Amber) ............................. 95
Auto Idle Stop (Green) .............................. 95
Automatic Brake Hold ............................... 86
Automatic Brake Hold System ................... 86
Blind spot information (BSI) ..................... 101
Charging System............................... 87, 716
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................ 99, 100
CRUISE CONTROL ............................. 95, 560
CRUISE MAIN.................................... 95, 559
Econ Mode ............................................... 94
Electric Power Steering (EPS)
System ............................................ 91, 720
Fog Light .................................................. 93
Gear Position ............................................ 87
Hazard Warning........................................ 92
High Beam ................................................ 92
Immobilizer System ................................... 93
Lane Keeping Assist System (LKAS) (Amber) .................................................. 96
Lane Keeping Assist System (LKAS) (Green) ................................................... 96
Lights On .................................................. 93
Low Fuel ................................................... 89
Low Oil Pressure Symbol ......................... 716
Low Tire Pressure/TPMS ............ 92, 594, 720
Maintenance Minder............................... 639
18 US ODYSSEY-31THR6010.book 754 ページ ２０１８年１２月６日　木曜日　午後４時１８分
