5
Quick Reference Guide
❙ (TRIP) Knob (P119, 123)
❙Brightness Control (P188)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice
Control Buttons
(P387, 410)
❙Cruise Control Buttons* (P472, 475)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P481)
❙Horn (Press an area around .)
❙(+ / (- / / Buttons* (P235)
❙SOURCE Button* (P235)
❙ / / / Buttons* (P122, 235)
❙ENTER Button* (P122, 235)
❙Wipers/Washers (P185)
❙Headlights/Turn Signals (P176, 177)
❙Fog Lights* (P180)
❙LaneWatchTM * (P515)
❙Km/Mile Change Knob* (P118)
❙Interval Button* (P491)
❙Heated Steering Wheel Button* (P222)
❙Lane Keeping Assist System (LKAS) Button*
(P501)
❙ (Display/Information) Button* (P122)
* Not available on all models
18 CR-V-31TLA6100.book 5 ページ ２０１７年９月７日　木曜日　午後３時５６分

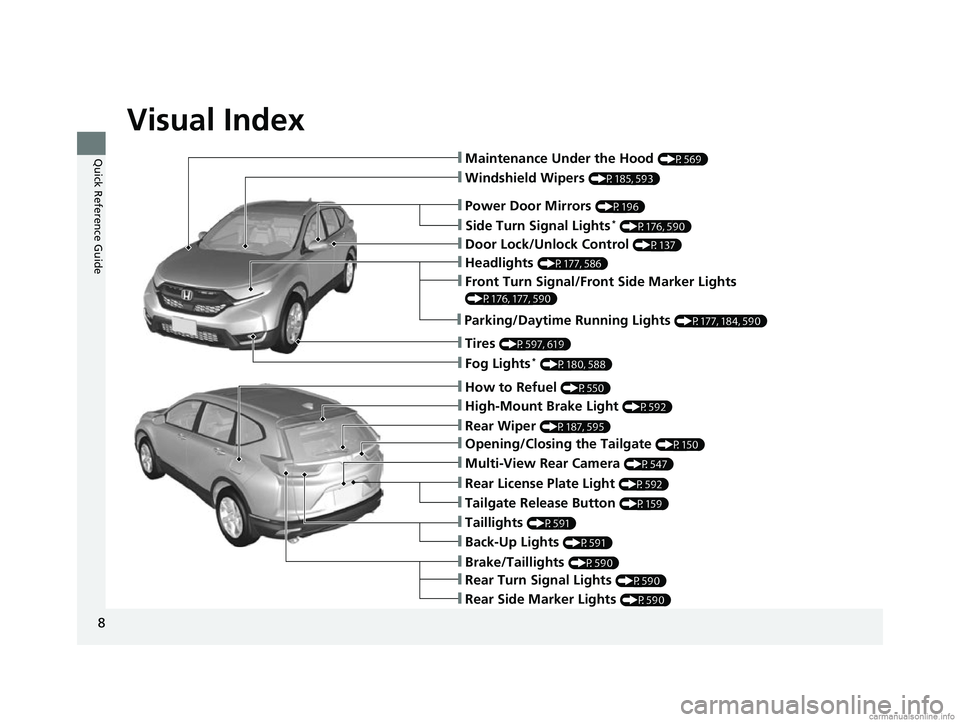

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P185, 593)
❙Door Lock/Unlock Control (P137)
❙How to Refuel (P550)
❙High-Mount Brake Light (P592)
❙Rear Wiper (P187, 595)
❙Brake/Taillights (P590)
❙Power Door Mirrors (P196)
❙Maintenance Under the Hood (P569)
❙Fog Lights* (P180, 588)
❙Multi-View Rear Camera (P547)
❙Front Turn Signal/Front Side Marker Lights
(P176, 177, 590)
❙Tires (P597, 619)
❙Opening/Closing the Tailgate (P150)
❙Side Turn Signal Lights* (P176, 590)
❙Headlights (P177, 586)
❙Tailgate Release Button (P159)
❙Taillights (P591)
❙Rear Turn Signal Lights (P590)
❙Rear Side Marker Lights (P590)
❙Back-Up Lights (P591)
❙Rear License Plate Light (P592)
❙Parking/Daytime Running Lights (P177, 184, 590)
18 CR-V-31TLA6100.book 8 ページ ２０１７年９月７日　木曜日　午後３時５６分

11
Quick Reference Guide

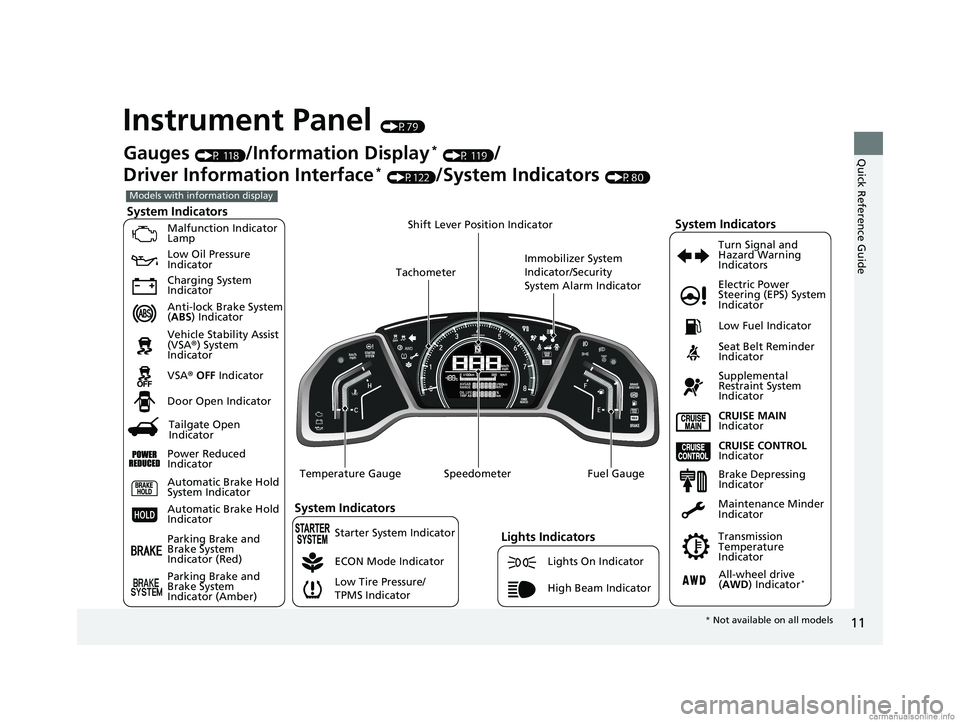

Instrument Panel (P79)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Door Open Indicator
CRUISE MAIN
Indicator
Immobilizer System
Indicator/Security
System Alarm Indicator
Speedometer Fuel Gauge
Tachometer
Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 118)/Information Display* (P 119)/
Driver Information Interface
* (P122)/System Indicators (P80)
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Maintenance Minder
Indicator
Transmission
Temperature
Indicator
Models with information display
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Temperature Gauge
Brake Depressing
Indicator
Tailgate Open
Indicator
Power Reduced
Indicator
All-wheel drive
( AWD ) Indicator*
Starter System Indicator
* Not available on all models
18 CR-V-31TLA6100.book 11 ページ ２０１７年９月７日　木曜日　午後３時５６分

12
Quick Reference GuideSystem Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Speedometer Fuel Gauge
Shift Lever Position
Indicator Immobilizer System Indicator/
Security System Alarm Indicator
Low Fuel Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with driver information interface
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada Temperature Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber/Green)
*
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System ( LKAS)
Indicator (Amber/
Green)
*
Tachometer
Auto High-beam
System Indicator*
CRUISE CONTROL
Indicator*
CRUISE MAIN
Indicator*
Blind Spot
Information (BSI)
Indicator
*
18 CR-V-31TLA6100.book 12 ページ ２０１７年９月７日　木曜日　午後３時５６分

14
Quick Reference Guide
Turn Signals (P176)
Lights (P177)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P185)
*1: Models with automatic intermittent
wipers
*2: Models without automatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P194)
● To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
18 CR-V-31TLA6100.book 14 ページ ２０１７年９月７日　木曜日　午後３時５６分

50
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
eAutomatic front seat belt tensioners. In
addition, the driver's and front
passenger's seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver's seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger's
seat. The front passenger's airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
lPressure sensors inside each front door
that control side airbag deployment.
*1: Models with the smart entry system
have an ENGINE START/STOP button
instead of an ignition switch.
18 CR-V-31TLA6100.book 50 ページ ２０１７年９月７日　木曜日　午後３時５６分

90
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
System Message
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
●While the indicator is on, press the
(display/information ) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blink when you op erate the turn
signal lever.
●Blinks along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 590—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Auto High-beam
System Indicator*
●Comes on when all the operating
conditions of the Auto high-beam
system are met.2 Auto High-Beam System* P. 181—
Lights On
Indicator
●Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
* Not available on all models
18 CR-V-31TLA6100.book 90 ページ ２０１７年９月７日　木曜日　午後３時５６分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors
Key Types and Functions .................. 134
Low Smart Entry Remote Signal Strength*...136Locking/Unlocking the Doors from the Outside .......................................... 137
Locking/Unlocking the Doors from the Inside ... 144Childproof Door Locks ..................... 145
Auto Door Locking/Unlocking .......... 146
Customizing the Auto Door Locking/Unlocking Setting ........................... 147
Opening and Closing the Tailgate ... 150
Security System Immobilizer System .......................... 161 Security System Alarm
*.................... 161Opening and Closing the Windows
.... 164Moonroof*.............................................. 167Panoramic Roof*1.................................... 168Operating the Switches Around the Steering WheelIgnition Switch*............................... 171
ENGINE START/STOP Button*........... 172
Ignition Switch and Power Mode
Comparison ................................... 175
Turn Signals ..................................... 176
Light Switches.................................. 177
Fog Lights
*...................................... 180
Auto High-Beam System*................ 181
Daytime Running Lights ................... 184 Wipers and Washers ........................ 185
Brightness Control ........................... 188
Defogger/Heated Door Mirror
*........ 190
Driving Position Memory System*.... 192
Adjusting the Steering Wheel .......... 194
Adjusting the Mirrors ....................... 195
Adjusting the Seats .......................... 197
Interior Lights/Interior Convenience Items.. 207Climate Control System
Using Automatic Climate Control .... 226
Synchronization Mode
*................... 229Automatic Climate Control Sensors ...... 230
(*1: Canadian models only, if equipped)
* Not available on all models
18 CR-V-31TLA6100.book 131 ページ ２０１７年９月７日　木曜日　午後３時５６分
