2018 HONDA CLARITY PLUG-IN MPG

uuGauges and Driver Information Interface uDriver Information Interface
126
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5° F or 3°C if the temperature reading seems
incorrect.
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Odometer
■Trip Meter
■Outside Temperature
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature.
2 Customized Features P. 306
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 306
18 CLARITY PHEV CSS-31TRW6000.book 126 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

Continued127
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

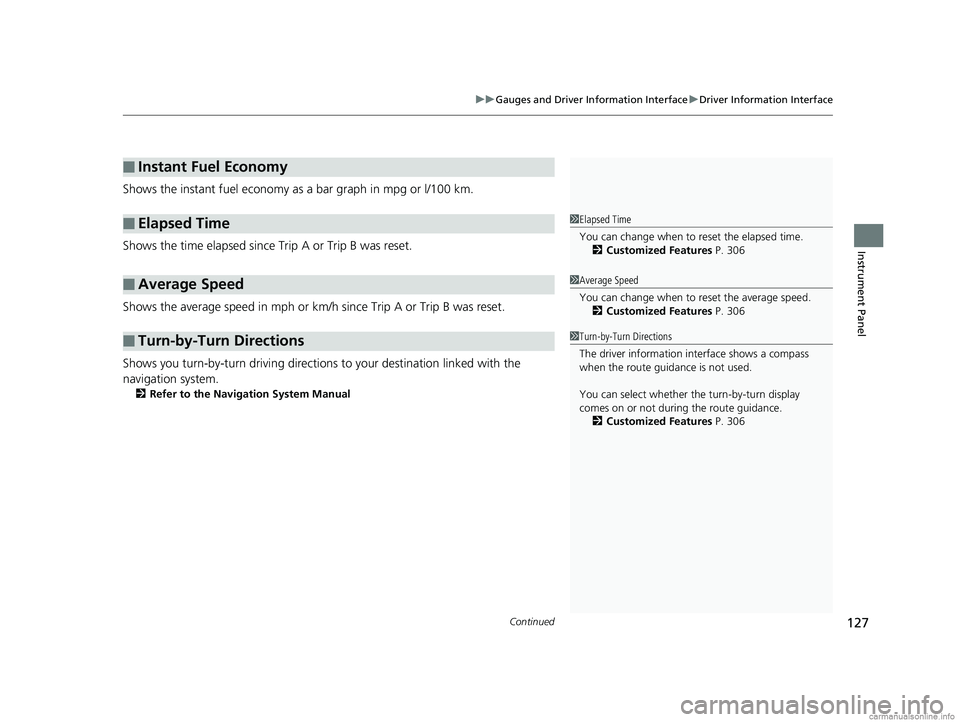

Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Elapsed Time
■Average Speed
■Turn-by-Turn Directions
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 306
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 306
1Turn-by-Turn Directions
The driver information in terface shows a compass
when the route guidance is not used.
You can select whether th e turn-by-turn display
comes on or not during the route guidance. 2 Customized Features P. 306
18 CLARITY PHEV CSS-31TRW6000.book 127 ページ ２０１７年１２月２５日　月曜日　午後２時２２分

Continued129
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel

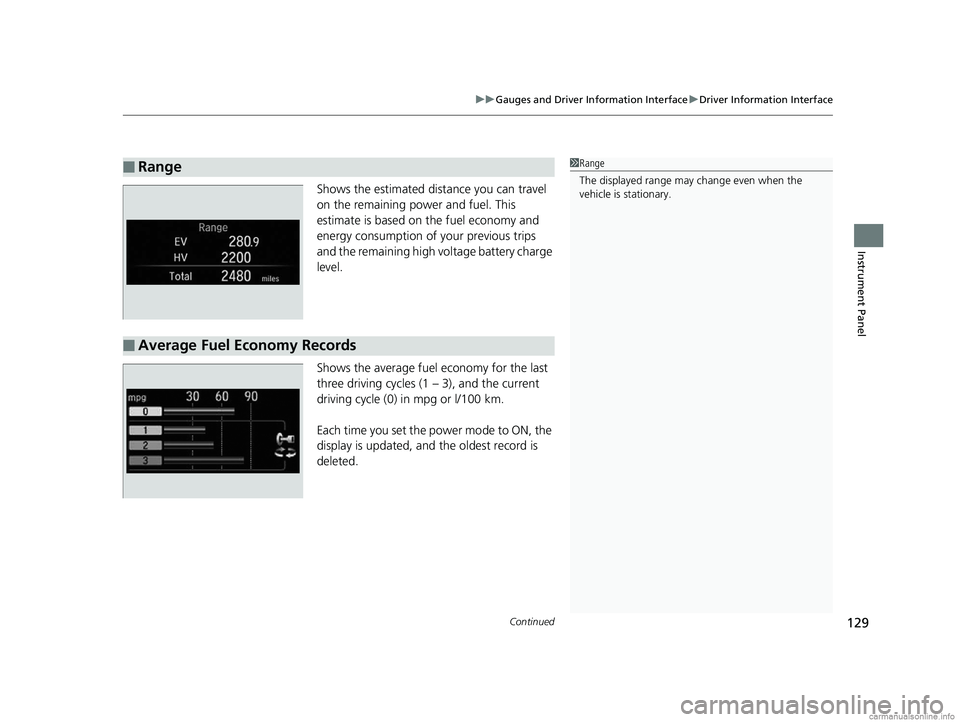

Shows the estimated distance you can travel
on the remaining power and fuel. This
estimate is based on the fuel economy and
energy consumption of your previous trips
and the remaining high voltage battery charge
level.
Shows the average fuel economy for the last
three driving cycles (1 – 3), and the current
driving cycle (0) in mpg or l/100 km.
Each time you set the power mode to ON, the
display is updated, and the oldest record is
deleted.
■Range1Range
The displayed ra nge may change even when the
vehicle is stationary.
■Average Fuel Economy Records
18 CLARITY PHEV CSS-31TRW6000.book 129 ページ ２０１７年１２月２５日　月曜日　午後２時２２分
