2018 HONDA CLARITY FUEL CELL window

481Continued
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the openings of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, cons ult an authorized Honda
Clarity Fuel Cell dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Opening
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor.
18 CLARITY FUEL CELL PPO-31TRT6100.book 481 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuCleaning uExterior Care
484
Maintenance
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. St anding too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water direct ly into the motor compartment. Instead,
use low pressure water.
• Do not spray high pressure water directly around the hydrogen fuel lid and
ventilation duct.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get inverter coolant or battery fluid on resin coated parts, they may be stained
or the coating may peel. Promptly wipe it away using a soft cloth and clean water.
Wipe using a glass cleaner.
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask an authorized Honda Cl arity Fuel Cell dealer
about the correct coating ma terial when you want to
repair the painted surface of the parts made of resin.
1Cleaning the Window
When you raise a wiper arm, you may inadvertently
alter the position of the arm by applying undue force.
If you notice that an arm is not in its proper return
position, active the wipers once and they will
automatically reset. 2 Wipers and Washers P. 162
18 CLARITY FUEL CELL PPO-31TRT6100.book 484 ページ ２０１７年１１月２１日　火曜日　午後３時３分

485
uuCleaning uExterior Care
Continued
Maintenance
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by an authorized Honda
Clarity Fuel Cell dealer.
■Maintaining Aluminum Wheels
■Fogged Exterior Light Lenses
18 CLARITY FUEL CELL PPO-31TRT6100.book 485 ページ ２０１７年１１月２１日　火曜日　午後３時３分

487
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows. Accessories
installed in these areas may interfere with proper operation of the vehicle’s
airbags or may be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 518
•Before installing any electronic accessory, have the installer contact an authorized
Honda Clarity Fuel Cell dealer for assist ance. If possible, have an authorized
Honda Clarity Fuel Cell dealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or it s equivalent, in your
vehicle.
18 CLARITY FUEL CELL PPO-31TRT6100.book 487 ページ ２０１７年１１月２１日　火曜日　午後３時３分

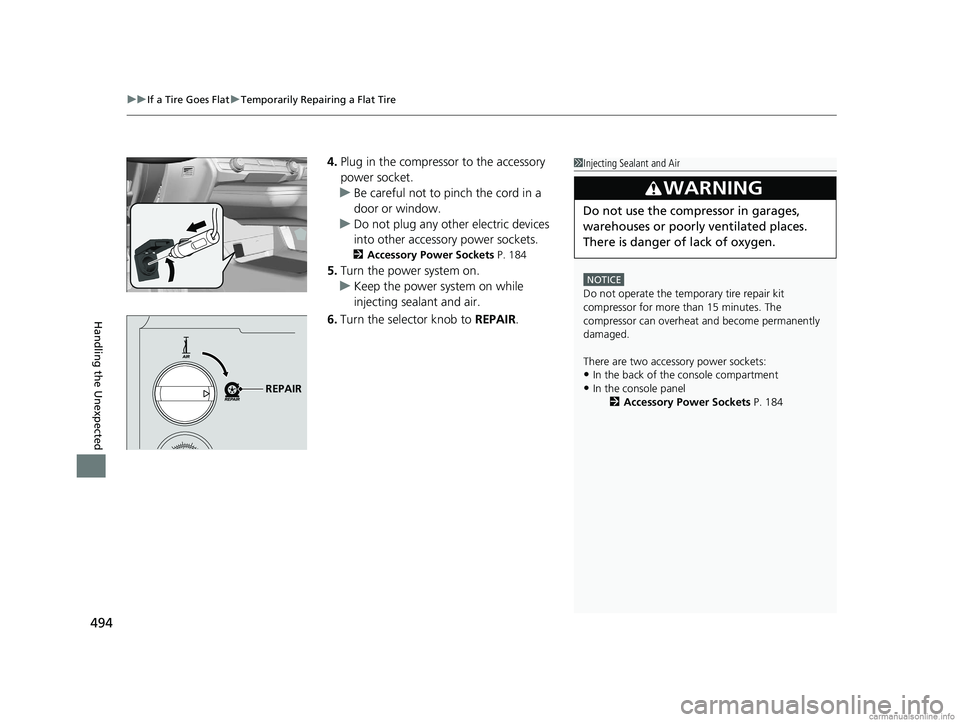

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
494
Handling the Unexpected
4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electric devices
into other accessory power sockets.
2 Accessory Power Sockets P. 184
5.Turn the power system on.
u Keep the power system on while
injecting sealant and air.
6. Turn the selector knob to REPAIR.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the back of the console compartment
•In the console panel
2Accessory Power Sockets P. 184
3WARNING
Do not use the compressor in garages,
warehouses or poorly ventilated places.
There is danger of lack of oxygen.
REPAIR
18 CLARITY FUEL CELL PPO-31TRT6100.book 494 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
500
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 184
8.Turn the power system on.
u Keep the power system on while
injecting air.
9. Turn the selector knob to AIR.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Do not use the compressor in garages,
warehouses or poorly ventilated places.
There is danger of lack of oxygen.
AIR
ON
18 CLARITY FUEL CELL PPO-31TRT6100.book 500 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Index
540
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 90
A
ABS (Anti-lock Brake System) ................... 430
Accessories and Modifications ................. 487
Accessory Power Sockets .......................... 184
Acoustic Vehicle Alerting System ............ 382
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 99, 389
Additives
Coolant ................................................... 459
Washer .................................................... 462
Adjusting
Armrest ................................................... 177
Front Seats .............................................. 172
Head Restraints........................................ 174
Mirrors .................................................... 170
Steering Wheel ........................................ 169
Temperature ............................................ 121
Agile Handling Assist ................................ 414
Air Conditioning System (Climate Control
System) .................................................... 188
Changing the Mode ................................ 190
Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter ............................... 480
Plasmacluster ........................................... 194
Sensors .................................................... 196 Synchronization Mode............................. 193
Using Automatic Climate Control ............ 188
Air Pressure ....................................... 469, 531
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
Airbag Care............................................... 69
Driver’s Knee Airbag.................................. 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator.............................................. 67, 93
Passenger Front Airbag Off Indicator ......... 68
Sensors ..................................................... 55
Side Airbags .............................................. 64
Side Curtain Airbags.................................. 66
AM/FM Radio ............................................ 236
Android Auto ........................................... 273
Anti-lock Brake System (ABS) .................. 430
Indicator.................................................... 92
Apple CarPlay ........................................... 270
Armrest ..................................................... 177
Audio Remote Controls ........................... 201
Audio System .................................... 198, 204
Adjusting the Sound................................ 229
Audio/Information Screen........................ 205
Changing the Home Screen Icon Layout .. 212
Changing the Screen Interface ................ 226
Closing Apps ........................................... 228
Customizing the Meter............................ 212
Display Setup .......................................... 230
Error Messages ........................................ 277
General Information ................................ 281 Home Screen .......................................... 218
Limitations for Manual Operation ............ 231
Menu Customize .................................... 227
MP3/WMA/AAC ..................................... 257
Reactivating ............................................ 200
Recommended Devices ........................... 283
Remote Controls ..................................... 201
Security Code ......................................... 200
Selecting an Audio Source ...................... 231
Status Area ............................................. 225
Theft Protection ...................................... 200
USB Flash Drives...................................... 283
USB Port ................................................. 199
Wallpaper Setup ..................................... 216
Audio/Information Screen ....................... 205
Authorized Manuals ................................ 537
Auto Door Locking/Unlocking ................ 145
Automatic Brake Hold ............................. 428
Indicator ........................................... 87, 428
Automatic Brake Hold System Indicator ........................................... 87, 428
Automatic Lighting .................................. 159
Average Fuel Economy ............................ 121
Average Fuel Economy Records .............. 124
Average Speed ......................................... 122
B
Battery
12-Volt ................................................... 477
18 CLARITY FUEL CELL PPO-31TRT6100.book 540 ページ ２０１７年１１月２１日　火曜日　午後３時３分

541
Index
12-Volt Battery Charging System
Indicator ......................................... 90, 513
Charging (12-Volt Battery) ...................... 478
High Voltage........................................... 419
Jump Starting ......................................... 506
Maintenance (Checking the 12-Volt Battery) ................................................. 477
Maintenance (Replacing) ......................... 479
Belts (Seat) .................................................. 48
Beverage Holders ..................................... 182
Bluetooth ® Audio ..................................... 260
Bluetooth ® HandsFreeLink ®.................... 329
Booster Seats (For Children) ...................... 82
Brake System ............................................ 424
Anti-lock Brake System (ABS) .................. 430
Automatic Brake Hold ............................. 428
Brake Assist System................................. 431
Fluid ....................................................... 461
Foot Brake .............................................. 427
Indicator (Red) ........................................ 515
Parking Brake.......................................... 424
Brake System (Amber)
Indicator ................................................... 88
Brake System (Red) Indicator ..................................... 86, 87, 514
Brightness Control (Head-Up Display) .... 165
Brightness Control (Instrument Panel) ... 164
Bulb Replacement .................................... 463
Brake/Taillights and Rear Side Marker
Lights .................................................... 464 Front Turn Signal and
Front Side Marker
Lights .................................................... 463
Headlights ............................................... 463
High-Mount Brake Light .......................... 464
Parking/Daytime Running Lights .............. 463
Rear License Plate Lights .......................... 464
Taillights and Back-Up Lights ................... 464
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 464
Bulb Specifications ................................... 530
C
Carrying Cargo.................................. 365, 367
Certification Label .................................... 532
Changing Bulbs ......................................... 463
Characteristics of Fuel Cell Vehicles .......... 11
Charging System Indicator ....................... 513
Child Safety ................................................. 70
Childproof Door Locks ............................. 144
Child Seat .................................................... 70
Booster Seats ............................................. 82
Child Seat for Infants ................................. 72
Child Seat for Small Children ..................... 73
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 77
Larger Children .......................................... 81
Rear-facing Child Seat ............................... 72
Selecting a Child Seat ................................ 74
Using a Tether ........................................... 79
Childproof Door Locks ............................. 144 Cleaning the Exterior
............................... 483
Cleaning the Interior ................................ 481
Climate Control System ............................ 188
Changing the Mode ................................ 190
Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter............................... 480
Sensors ................................................... 196
Using Automatic Climate Control ............ 188
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 432
Coat Hook ................................................. 185
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 432
Console Compartment ............................. 181
Controls ..................................................... 131
Coolant ..................................................... 459
Adding to the Radiator ............................ 460
Adding to the Reserve Tank..................... 459
Overheating ............................................ 509
Creeping (Transmission) ........................... 374
Cup Holders .............................................. 182
Customer Service Information ................. 538
Customized Features ........................ 126, 300
D
Daytime Running Lights .......................... 161
Dead Battery (12-Volt) ............................. 506
18 CLARITY FUEL CELL PPO-31TRT6100.book 541 ページ ２０１７年１１月２１日　火曜日　午後３時３分
