2018 HONDA CLARITY FUEL CELL remote control

319

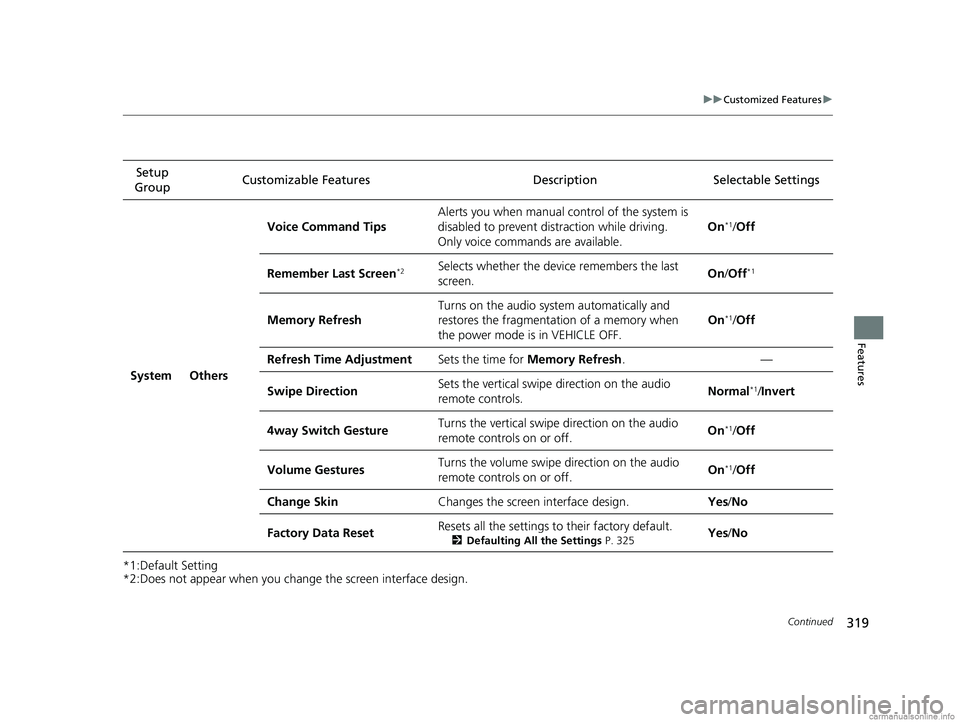

uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Does not appear when you chan ge the screen interface design.
Setup
Group Customizable Features Description
Selectable Settings
System Others Voice Command Tips
Alerts you when manual c
ontrol of the system is
disabled to prevent distraction while driving.
Only voice comman ds are available. On
*1/
Off
Remember Last Screen
*2Selects whether the device remembers the last
screen. On
/Off*1
Memory Refresh Turns on the audio system automatically and
restores the fragmentation of a memory when
the power mode is in VEHICLE OFF. On*1/
Off
Refresh Time Adjustment Sets the time for Memory Refresh . —
Swipe Direction Sets the vertical swipe
direction on the audio
remote controls. Normal
*1/
Invert
4way Switch Gesture Turns the vertical swipe direction on the audio
remote controls on or off. On
*1/
Off
Volume Gestures Turns the volume swipe
direction on the audio
remote controls on or off. On
*1/
Off
Change Skin Changes the screen interface design. Yes/No
Factory Data Reset Resets all the settings to their factory default.
2
Defaulting All the Settings P. 325Yes/No
18 CLARITY FUEL CELL PPO-31TRT6100.book 319 ページ ２０１７年１１月２１日　火曜日　午後３時３分

326
Features

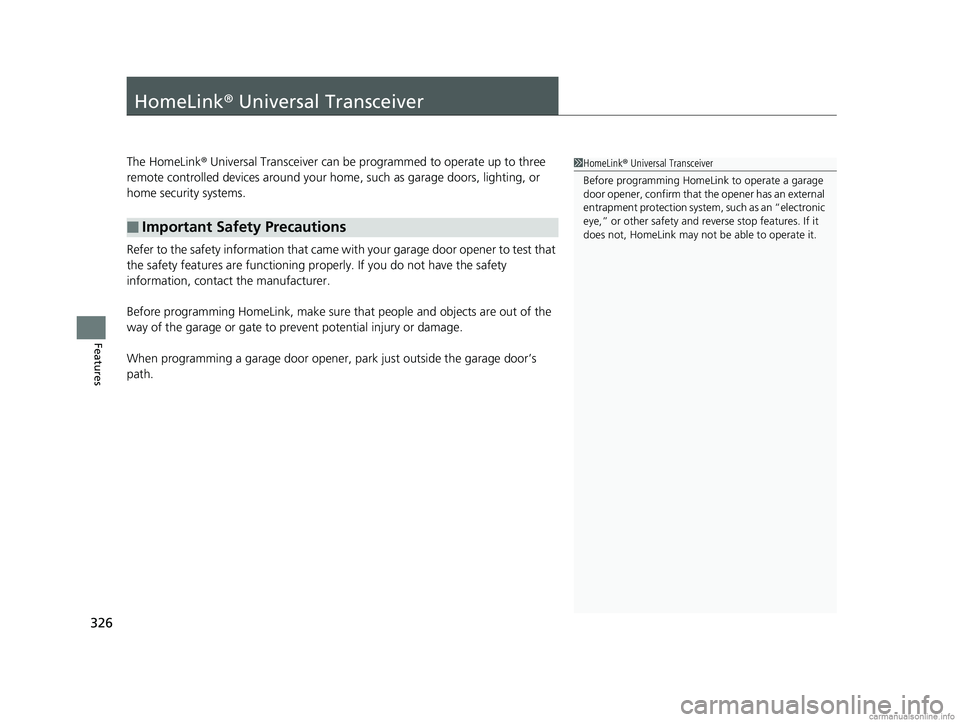

HomeLink® Universal Transceiver
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your home , such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contac t the manufacturer.
Before programming HomeLink, make sure th at people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.
■Important Safety Precautions
1 HomeLink ® Universal Transceiver
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.
18 CLARITY FUEL CELL PPO-31TRT6100.book 326 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuHomeLink ® Universal Transceiver uTraining HomeLink
328
Features

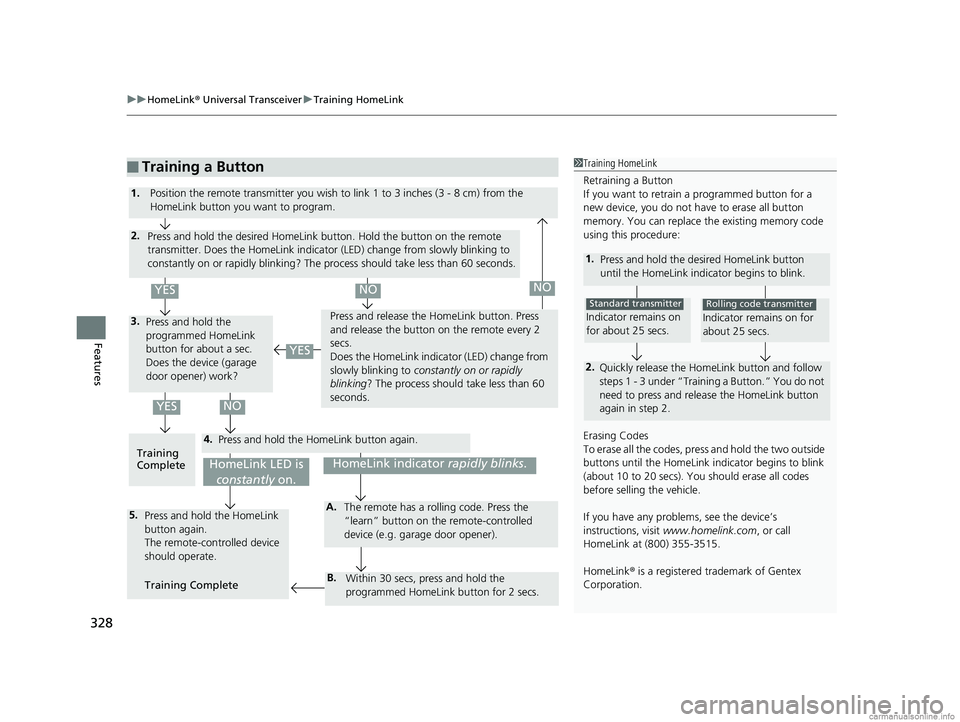

■Training a Button1Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1. Press and hold the de sired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Quickly release the Home Link button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and rele ase the HomeLink button
again in step 2.
Indicator remains on
for about 25 secs.
Standard transmitter
Indicator remains on for
about 25 secs.
Rolling code transmitter
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
HomeLink® is a registered tra demark of Gentex
Corporation.4.
3.
2.
5.A.
B.
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and hold the desired HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicato r (LED) change from slowly blinking to
constantly on or rapidly blinking? The process should take less than 60 seconds.
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and release the Ho
meLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking ? The process should take less than 60
seconds.
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro
lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.
HomeLink indicator rapidly blinks.HomeLink LED is
constantly on.
YESNO
YES
YESNONO
18 CLARITY FUEL CELL PPO-31TRT6100.book 328 ページ ２０１７年１１月２１日　火曜日　午後３時３分

329Continued
Features

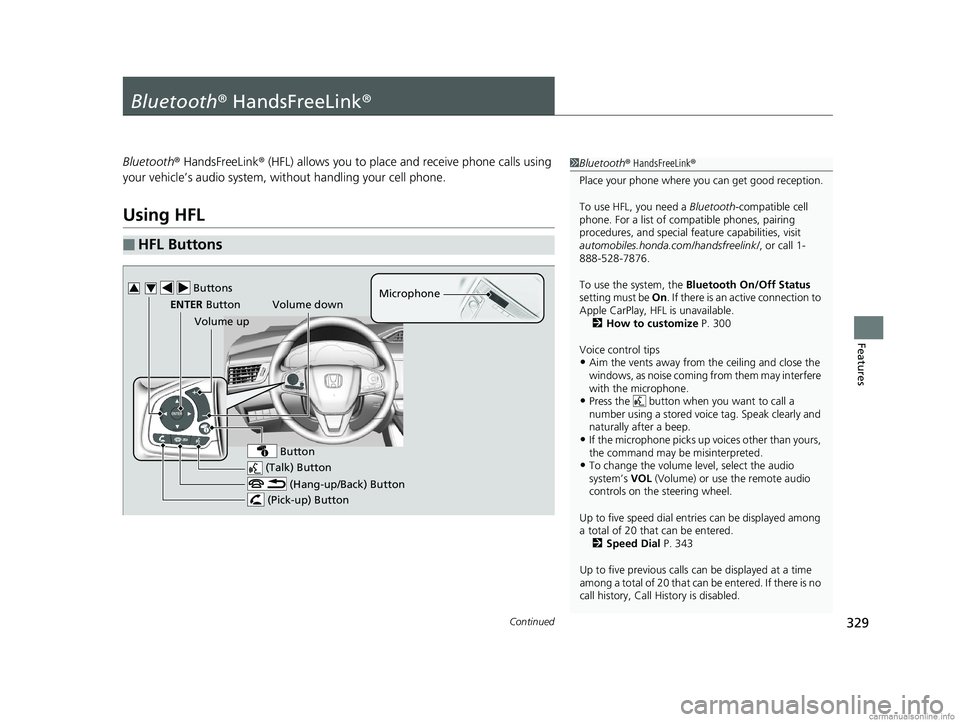

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special fe ature capabilities, visit
automobiles.honda.com /handsfreelink/, or call 1-
888-528-7876.
To use the system, the Bluetooth On/Off Status
setting must be On . If there is an active connection to
Apple CarPlay, H FL is unavailable.
2 How to customize P. 300
Voice control tips
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial entries can be displayed among
a total of 20 that can be entered. 2 Speed Dial P. 343
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled. (Talk) Button
Volume up Microphone
(Hang-up/Back) Button
(Pick-up) Button
ENTER Button
Button
Buttons34
Volume down
18 CLARITY FUEL CELL PPO-31TRT6100.book 329 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Continued351
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

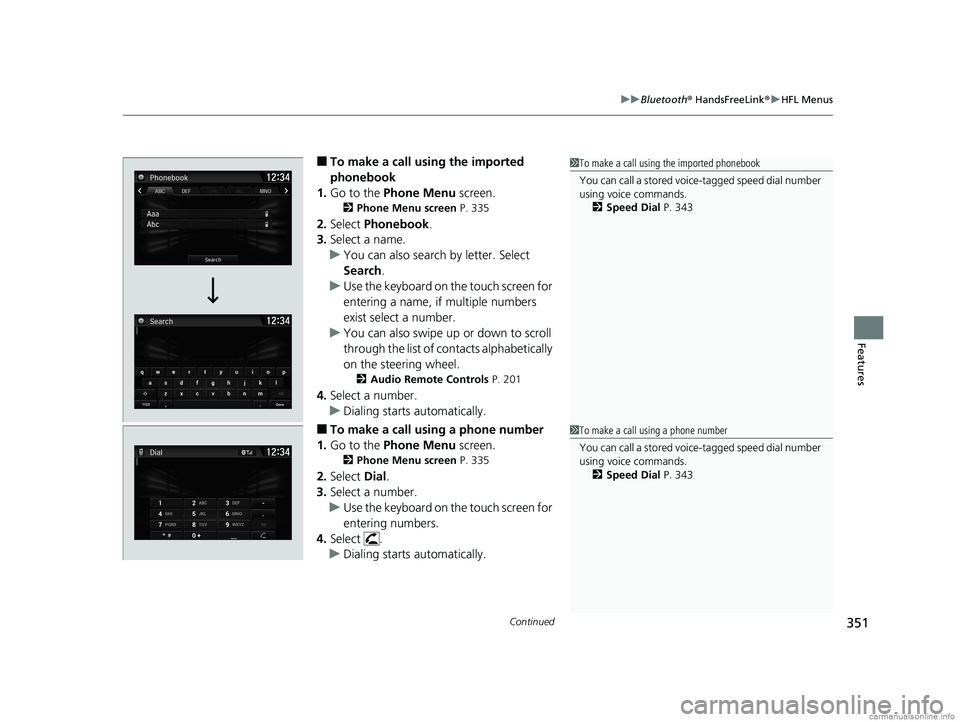

■To make a call us ing the imported
phonebook
1. Go to the Phone Menu screen.
2Phone Menu screen P. 335
2.Select Phonebook .
3. Select a name.
u You can also search by letter. Select
Search .
u Use the keyboard on the touch screen for
entering a name, if multiple numbers
exist select a number.
u You can also swipe up or down to scroll
through the list of contacts alphabetically
on the steering wheel.
2 Audio Remote Controls P. 201
4.Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the Phone Menu screen.
2Phone Menu screen P. 335
2.Select Dial.
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select .
u Dialing starts automatically.
1To make a call using the imported phonebook
You can call a stored voic e-tagged speed dial number
using voice commands.
2 Speed Dial P. 343
1To make a call using a phone number
You can call a stored voic e-tagged speed dial number
using voice commands.
2 Speed Dial P. 343
18 CLARITY FUEL CELL PPO-31TRT6100.book 351 ページ ２０１７年１１月２１日　火曜日　午後３時３分

449
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 450
Safety When Performing Maintenance...451
Parts and Fluids Used in Maintenance Service ........................................... 452
Maintenance Minder
TM..................... 453
Maintenance Under the Hood Maintenance Items Under the Hood .. 457
Opening the Hood ........................... 458
Inverter Coolant ............................... 459
Transmission Fluid ............................ 461
Brake Fluid ....................................... 461 Refilling Window Wa
sher Fluid......... 462
Replacing Light Bulbs ....................... 463
Checking and Maintaining Wiper
Blades .......................................... 465
Checking and Maintaining Tires
Checking Tires ................................. 468
Tire and Loading Information Label .. 469
Tire Labeling .................................... 469
DOT Tire Quality Grading (U.S. Vehicles).. 471
Wear Indicators................................ 473
Tire Service Life ................................ 473
Tire and Wheel Replacement............ 474 Tire Rotation .................................... 475
Winter Tires ..................................... 476
12-Volt Battery ................................. 477
Remote Transmitter Care Replacing the Button Battery ........... 479
Climate Control System Maintenance.. 480
CleaningInterior Care .................................... 481
Exterior Care.................................... 483
Accessories and Modifications ........ 487
18 CLARITY FUEL CELL PPO-31TRT6100.book 449 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Index
540
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 90
A
ABS (Anti-lock Brake System) ................... 430
Accessories and Modifications ................. 487
Accessory Power Sockets .......................... 184
Acoustic Vehicle Alerting System ............ 382
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 99, 389
Additives
Coolant ................................................... 459
Washer .................................................... 462
Adjusting
Armrest ................................................... 177
Front Seats .............................................. 172
Head Restraints........................................ 174
Mirrors .................................................... 170
Steering Wheel ........................................ 169
Temperature ............................................ 121
Agile Handling Assist ................................ 414
Air Conditioning System (Climate Control
System) .................................................... 188
Changing the Mode ................................ 190
Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter ............................... 480
Plasmacluster ........................................... 194
Sensors .................................................... 196 Synchronization Mode............................. 193
Using Automatic Climate Control ............ 188
Air Pressure ....................................... 469, 531
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
Airbag Care............................................... 69
Driver’s Knee Airbag.................................. 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator.............................................. 67, 93
Passenger Front Airbag Off Indicator ......... 68
Sensors ..................................................... 55
Side Airbags .............................................. 64
Side Curtain Airbags.................................. 66
AM/FM Radio ............................................ 236
Android Auto ........................................... 273
Anti-lock Brake System (ABS) .................. 430
Indicator.................................................... 92
Apple CarPlay ........................................... 270
Armrest ..................................................... 177
Audio Remote Controls ........................... 201
Audio System .................................... 198, 204
Adjusting the Sound................................ 229
Audio/Information Screen........................ 205
Changing the Home Screen Icon Layout .. 212
Changing the Screen Interface ................ 226
Closing Apps ........................................... 228
Customizing the Meter............................ 212
Display Setup .......................................... 230
Error Messages ........................................ 277
General Information ................................ 281 Home Screen .......................................... 218
Limitations for Manual Operation ............ 231
Menu Customize .................................... 227
MP3/WMA/AAC ..................................... 257
Reactivating ............................................ 200
Recommended Devices ........................... 283
Remote Controls ..................................... 201
Security Code ......................................... 200
Selecting an Audio Source ...................... 231
Status Area ............................................. 225
Theft Protection ...................................... 200
USB Flash Drives...................................... 283
USB Port ................................................. 199
Wallpaper Setup ..................................... 216
Audio/Information Screen ....................... 205
Authorized Manuals ................................ 537
Auto Door Locking/Unlocking ................ 145
Automatic Brake Hold ............................. 428
Indicator ........................................... 87, 428
Automatic Brake Hold System Indicator ........................................... 87, 428
Automatic Lighting .................................. 159
Average Fuel Economy ............................ 121
Average Fuel Economy Records .............. 124
Average Speed ......................................... 122
B
Battery
12-Volt ................................................... 477
18 CLARITY FUEL CELL PPO-31TRT6100.book 540 ページ ２０１７年１１月２１日　火曜日　午後３時３分

544
Index
Inverter Coolant........................................ 459
Adding to the Radiator ............................ 460
Adding to the Reserve Tank ..................... 459
Overheating............................................. 509
iPod ............................................................ 248
J
Jacking Points ........................................... 502
Jump Starting ............................................ 506
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 133
Lockout Prevention .................................. 141
Number Tag ............................................ 134
Rear Door Won’t Open ............................ 144
Remote Transmitter ................................. 139
Types and Functions ................................ 133
L
Lane Keeping Assist System (LKAS) ......... 405
LaneWatchTM............................................. 422
Language (HFL) ......................................... 331
LATCH (Child Seats) .................................... 75
Lights ................................................. 158, 463
Automatic ............................................... 159
Bulb Replacement .................................... 463
Daytime Running Lights ........................... 161 High Beam Indicator .................................. 96
Interior .................................................... 178
Light Switches ......................................... 158
Lights On Indicator .................................... 96
Turn Signals ............................................ 157
Load Limits ................................................ 367
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking.................. 145
Childproof Door Locks............................. 144
From Inside ............................................. 142
From Outside .......................................... 135
Keys ........................................................ 133
Using a Key ............................................. 140
Lockout Prevention System ..................... 141
Low Battery Charge (12-Volt) .................. 513
Low Smart Entry Remote Signal Strength .................................................. 134
Lower Anchors ............................................ 75
Luggage (Maximum Load Limit) ............. 367
M
Maintenance............................................. 449
12-Volt Battery ........................................ 477
Brake Fluid .............................................. 461
Cleaning ................................................. 481
Climate Control System ........................... 480
Coolant ................................................... 459
Maintenance Minder
TM............................ 453
Precautions ............................................. 450
Radiator .................................................. 460 Remote Transmitter ................................ 479
Replacing Light Bulbs .............................. 463
Safety ..................................................... 451
Service Items ........................................... 455
Tires........................................................ 468
Transmission Fluid ................................... 461
Under the Hood ...................................... 457
Map Lights ................................................ 179
Maximum Load Limit ............................... 367
Meters, Gauges ........................................ 116
Mirrors ...................................................... 170
Adjusting ................................................ 170
Door ....................................................... 171
Exterior ................................................... 171
Interior Rearview ..................................... 170
Modifications (and Accessories) .............. 487
Motor ........................................................ 532
Coolant .................................................. 459
Jump Starting ......................................... 506
MP3 ........................................................... 257
Multi-View Rear Camera ......................... 442
N
Numbers (Identification)......................... 532
O
Odometer................................................. 121
Open Source Licences .............................. 298
18 CLARITY FUEL CELL PPO-31TRT6100.book 544 ページ ２０１７年１１月２１日　火曜日　午後３時３分
