2018 HONDA CLARITY FUEL CELL tow

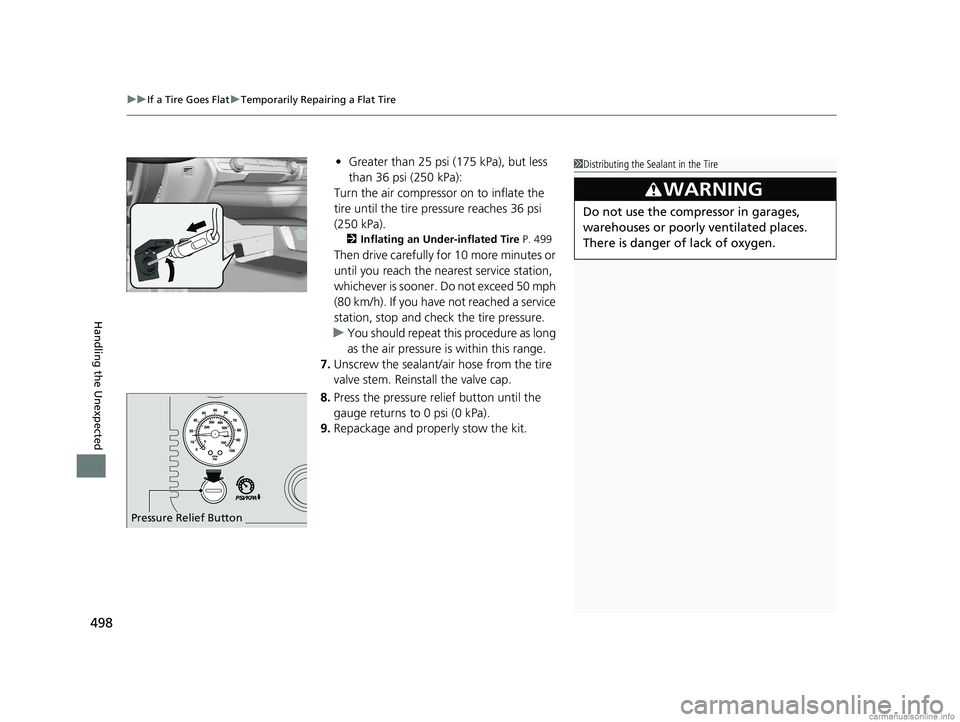

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
498
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than 36 psi (250 kPa):
Turn the air compressor on to inflate the
tire until the tire pressure reaches 36 psi
(250 kPa).
2 Inflating an Under-inflated Tire P. 499
Then drive carefully for 10 more minutes or
until you reach the nearest service station,
whichever is sooner. Do not exceed 50 mph
(80 km/h). If you have not reached a service
station, stop and check the tire pressure.
u You should repeat this procedure as long
as the air pressure is within this range.
7. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
8. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
9. Repackage and properly stow the kit.
Pressure Relief Button
1Distributing the Sealant in the Tire
3WARNING
Do not use the compressor in garages,
warehouses or poorly ventilated places.
There is danger of lack of oxygen.
18 CLARITY FUEL CELL PPO-31TRT6100.book 498 ページ ２０１７年１１月２１日　火曜日　午後３時３分

501

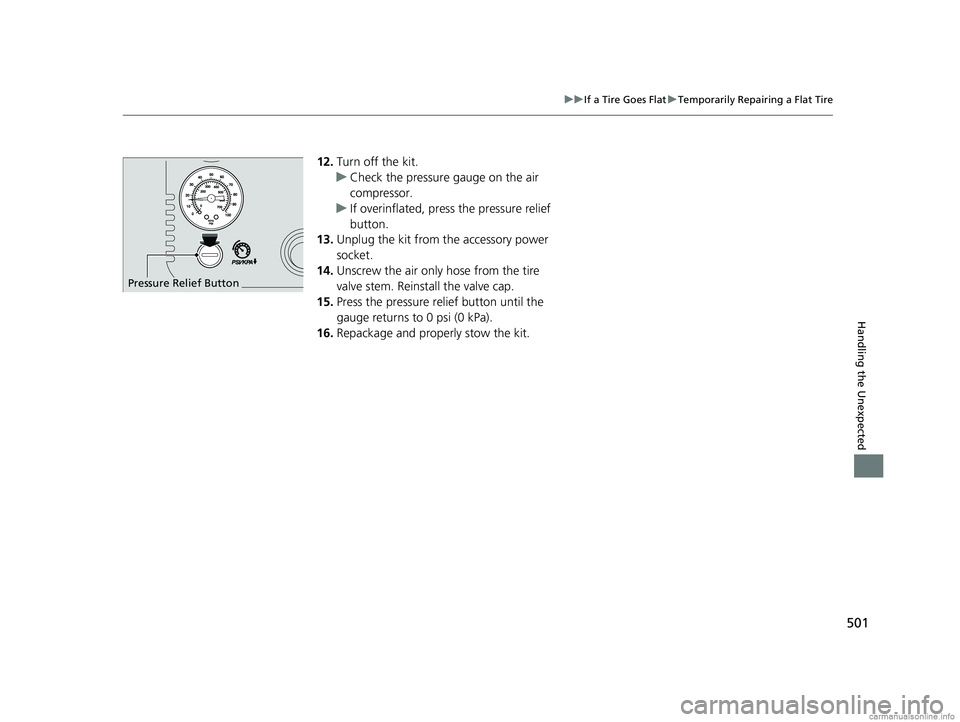

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
18 CLARITY FUEL CELL PPO-31TRT6100.book 501 ページ ２０１７年１１月２１日　火曜日　午後３時３分

517
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Fuel Cell
dealer.
• Change the gear position to
(N after
turning the power system on.
u Check if the
(N position on the
instrument panel is lit and if the indicator
on the
(N button is lit or blinking.
u The power system cannot be turned on
unless the parking brake is set.
2 Turning on the Power P. 370
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 526
18 CLARITY FUEL CELL PPO-31TRT6100.book 517 ページ ２０１７年１１月２１日　火曜日　午後３時３分

526
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Fuel Cell dealer or a
professional towing service.
Hook
18 CLARITY FUEL CELL PPO-31TRT6100.book 526 ページ ２０１７年１１月２１日　火曜日　午後３時３分

527
Handling the Unexpected

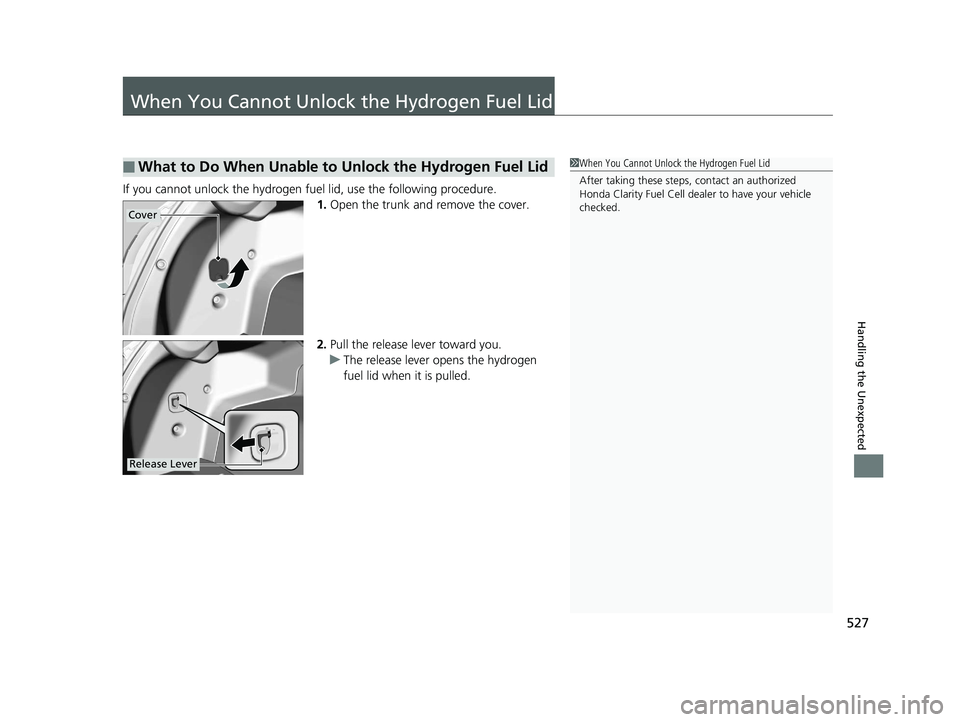

When You Cannot Unlock the Hydrogen Fuel Lid
If you cannot unlock the hydrogen fuel lid, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever opens the hydrogen
fuel lid when it is pulled.
■What to Do When Unable to Unlock the Hydrogen Fuel Lid1When You Cannot Unlock the Hydrogen Fuel Lid
After taking these steps, contact an authorized
Honda Clarity Fuel Cell dealer to have your vehicle
checked.
Cover
Release Lever
18 CLARITY FUEL CELL PPO-31TRT6100.book 527 ページ ２０１７年１１月２１日　火曜日　午後３時３分

546
Index
Siri Eyes Free............................................. 269
SiriusXM ® Radio ........................................ 240
Smart Entry System ................................... 135
Snow Tires ................................................. 476
Song By Voice
TM (SBV) .............................. 251
Spare Tire (Optional) ................................ 531
Specifications ............................................ 530
Specified Fuel .................................... 444, 530
SPORT Mode ............................................. 381
SPORT Mode Indicator ....................... 97, 381
SRS Airbags (Airbags) ................................. 58
Steering Wheel Adjusting ................................................. 169
Stopping .................................................... 440
Summer Tires ............................................ 476
Supplemental Restraint System (SRS) ........ 58
Switches (Around the Steering
Wheel) ............................................. 6, 7, 154
Synchronization Mode ............................. 193
System Message Indicator .......................... 95
T
Temperature Sensor................................. 196
Temporary Tire Repair Kit ........................ 491
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ...................................................... 415
Indicator ............................................ 94, 516
Tires ........................................................... 468
Air Pressure ..................................... 469, 531 Chains..................................................... 476
Checking and Maintaining ...................... 468
Flat Tire (Puncture) .................................. 490
Inspection ............................................... 468
Labeling .................................................. 469
Regulations ............................................. 471
Rotation .................................................. 475
Spare (Optional) ...................................... 531
Summer .................................................. 476
Temporary Tire Re
pair Kit ........................ 491
Wear Indicators ....................................... 473
Winter..................................................... 476
Towing a Trailer ....................................... 369
Towing Your Vehicle ................................ 369
Emergency .............................................. 526
TPMS (Tire Pressure Monitoring System) .................................................... 415
Transmission ............................... 34, 374, 375
Creeping ................................................. 374
Fluid ........................................................ 461
Gear Position Indicator ...................... 91, 377
Number................................................... 532
Operating the Shift Button ................ 34, 377
Shifting ................................................... 375
Trip Meter ................................................. 121
Troubleshooting ....................................... 489
Blown Fuse...................................... 518, 520
Brake Pedal Vibrates .................................. 39
Buzzer Sounds When Opening Door.......... 39
Emergency Towing .................................. 526
Flat Tire/Puncture .................................... 490 Noise When Braking ................................. 41
Overheating ............................................ 509
Power System Won’t Start ...................... 503
Rear Door Won’t Open ..................... 39, 144
Warning Indicators.................................... 86
Trunk ........................................................ 146
Lid .......................................................... 146
Light Bulbs .............................................. 530
Unable to Open ...................................... 528
Turn Signals .............................................. 157
Indicators (Instru ment Panel) ..................... 96
Turn-by-Turn Directions .................. 122, 129
Turning on the Power ............................. 370
Does Not Activate ................................... 503
Jump Starting ......................................... 506
U
Under-Floor Storage Area ....................... 185
Unlocking the Doors ................................ 135
Unlocking the Fron t Doors from the
Inside ................................................. 28, 142
USB Flash Drives ............................... 257, 283
USB Ports .................................................. 199
Using the Smart Entr y with Push Button
Start System ............................................ 135
V
Vanity Mirrors .............................................. 9
Vehicle Identification Number ................ 532
