2018 HONDA CLARITY FUEL CELL display

447
Driving
Fuel Economy
Improving Fuel Economy
Achieving fuel economy is dependent on several factors, including driving
conditions, load weight, standby time, driving habits, and vehicle condition.
Depending on these and other factors, you may not achieve the rated fuel economy
of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accord ance with the messages displayed on the
driver information interface.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
Miles driven Kilogram
of fuel Miles per
Kilogram
Kilogram of fuel Kilometers per
Kilogram
Kilometers
driven
18 CLARITY FUEL CELL PPO-31TRT6100.book 447 ページ ２０１７年１１月２１日　火曜日　午後３時３分

453Continued
Maintenance
Maintenance MinderTM
If the vehicle has maintenance items due within 30 days, you will see the
Maintenance Minder messages appear on the driver information interface every
time you set the power mode to ON. The messages notify you when to bring your
vehicle to an authorized Honda Clarity Fuel Cell dealer for indicated maintenance
services.

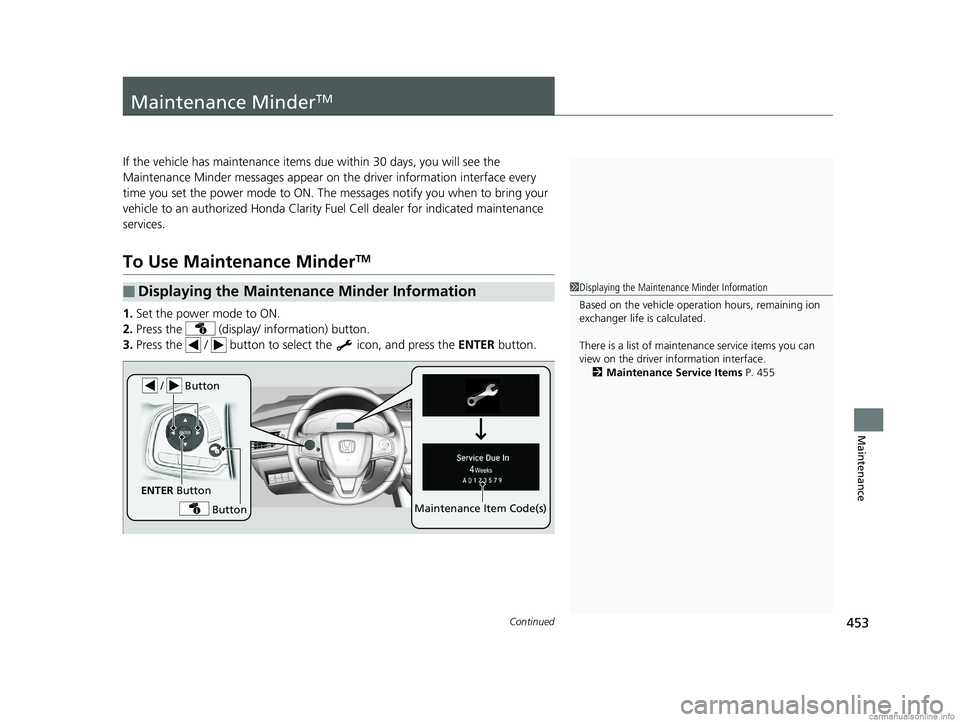

To Use Maintenance MinderTM
1. Set the power mode to ON.
2. Press the (display/ information) button.
3. Press the / button to select the icon, and press the ENTER button.
■Displaying the Maintenance Minder Information1Displaying the Maintena nce Minder Information
Based on the vehicle operati on hours, remaining ion
exchanger life is calculated.
There is a list of maintenance service items you can
view on the driver in formation interface.
2 Maintenance Service Items P. 455
/ Button
Maintenance Item Code(s)
Button
ENTER Button
18 CLARITY FUEL CELL PPO-31TRT6100.book 453 ページ ２０１７年１１月２１日　火曜日　午後３時３分

454
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
The system message indicator ( ) comes on al ong with the Maintenance Minder message.
*1 : The power system indicator comes on when an ion exchanger replacement is past due.
*2 : The messages appear alternately when an ion exchanger replacement is past due.
■Indicator, Warning Message and Maintenance Minder
Information on the Driver Information Interface
IndicatorWarning MessageMaintenance Minder
InformationExplanationInformation
—
Service Due SoonOne or more of the service
items are required in less than
30 days. Press the button
to switch to another display.The remaining days will
be counted down per
day.
—
Service Due NowOne or more of the service
items are required in less than
10 days. Press the button
to switch to another display.Have the indicated
service performed as
soon as possible.
Service Past DueThe indicated maintenance
service is still not done after the
remaining time reaches 0. Press
the button to switch to
another display.Your vehicle has passed
the service required
point.
Immediately have the
service performed and
make sure to reset the
Maintenance Minder
TM.*1
—*2
18 CLARITY FUEL CELL PPO-31TRT6100.book 454 ページ ２０１７年１１月２１日　火曜日　午後３時３分

455
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•At each maintenance interval, check Fuel Cell
Insulating Fluid level and top up (to “Max” fill line)
with “Fuel Cell Insulati ng Fluid - 20% prediluted
formulation”
•Replace hydrogen ventil ation duct and drain,
hydrogen tank every 15 years without the
maintenance minder.
Maintenance Minder Message
System Message
Indicator
Maintenance Item Code(s)
CODEMaintenance Items
A
●Replace ion exchange filter
0●Inspect front and rear brakes●Check expiry date for Temporary Tire Repair Kit●Inspect these items: • Tie rod ends, steering gear box, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Stay RR, RR Subframe
• Exhaust Diluter
1
●Rotate tires
2●Replace dust and pollen filter*1
3●Replace transmission fluid*2
5●Replace Fuel Cell Insulating Fluid - 50% prediluted
formulation*3
*1: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles.
*2: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 31,250 miles.
*3: If a Maintenance Minder message does not appear more than 12 year after the display for item 5 is reset, change Fuel Cell Insulating Fluid with “Fuel Cell Insulating Fluid - 50% prediluted formulation”
every 12 years.
*4: If a Maintenance Minder message does not appear more than 3 years after the display for item 7 is reset, change the brake fluid and replace air cleaner element every 3 years.
CODEMaintenance Items
7
●Replace brake fluid*4
●Replace air cleaner element*4
9●Inspect these items: • Hydrogen tank
• Hydrogen ventilation duct and drain
• Exhaust system
• Fuel lines and connections
18 CLARITY FUEL CELL PPO-31TRT6100.book 455 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuMaintenance MinderTMuTo Use Maintenance MinderTM
456
Maintenance

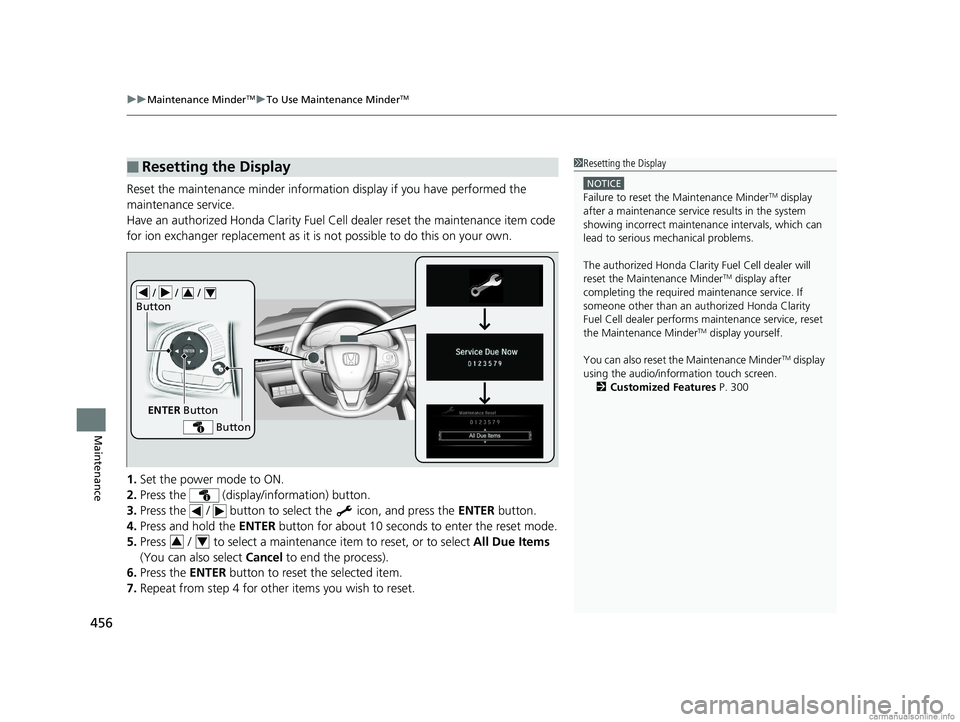

Reset the maintenance minder informat ion display if you have performed the
maintenance service.
Have an authorized Honda Clarity Fuel Ce ll dealer reset the maintenance item code
for ion exchanger replacement as it is not possible to do this on your own.
1. Set the power mode to ON.
2. Press the (display/information) button.
3. Press the / button to sele ct the icon, and press the ENTER button.
4. Press and hold the ENTER button for about 10 seconds to enter the reset mode.
5. Press / to select a maintenance item to reset, or to select All Due Items
(You can also select Cancel to end the process).
6. Press the ENTER button to reset the selected item.
7. Repeat from step 4 for other items you wish to reset.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the Maintenance MinderTM display
after a maintenance servic e results in the system
showing incorrect maintenance intervals, which can
lead to serious mechanical problems.
The authorized Honda Clarity Fuel Cell dealer will
reset the Maintenance Minder
TM display after
completing the required ma intenance service. If
someone other than an authorized Honda Clarity
Fuel Cell dealer performs maintenance service, reset
the Maintenance Minder
TM display yourself.
You can also reset the Maintenance Minder
TM display
using the audio/information touch screen. 2 Customized Features P. 300
/ / /
Button34
ENTER Button
Button
34
18 CLARITY FUEL CELL PPO-31TRT6100.book 456 ページ ２０１７年１１月２１日　火曜日　午後３時３分

511Continued
Handling the Unexpected
If Hydrogen Gas is Leaking
How to Handle Leaked Hydrogen Gas
When the hydrogen leak indicator comes on,
hydrogen gas is leaking.
When a hydrogen gas leak is detected, the
warning buzzer sounds, and warning
indicator comes on. Follow the message
displayed on the driver information interface
and contact an authorized Honda Clarity Fuel
Cell dealer.
2 Hydrogen Leak Indicator P. 90
Even when the warning indicator does not
come on, if you notice gas leaking noises or
any other malfunction, immediately stop the
vehicle in a safe, well-ventilated place, turn
the power system off, and immediately
contact an authorized Honda Clarity Fuel Cell
dealer.
■When Hydrogen Gas Leak or Other Malfunction is Detected1 How to Handle Leaked Hydrogen Gas
3WARNING
Since hydrogen gas is highly flammable, a
hydrogen gas leak is extremely dangerous
as the leaked gas, which is dispersed into
the atmosphere, can ignite, resulting in a
fire in which you or someone else can be
serious injured or killed. Keep flammable
materials and liquids away from the vehicle
at all times, especially if a hydrogen gas
leak is detected.
In the case of a hydrogen gas leak, a buzzer
will sound and the hydrogen gas leak
indicator will come on. If you are driving
the vehicle, sto p in a safe, well-ventilated
place. Then turn th e power mode to OFF
and contact an author ized Honda Clarity
Fuel Cell dealer at once. You should also
display signs warning of the danger and be
aware of and keep aw ay anything that
could ignite the gas.
The system is designed so that in the event
that the vehicle catche s fire, the gas inside
the tanks will be released through the tank
valves, thereby ensuring that pressure (due
to heat from the fire) within the tanks does
not build up.
