2018 HONDA CIVIC SEDAN lever

600
Handling the Unexpected

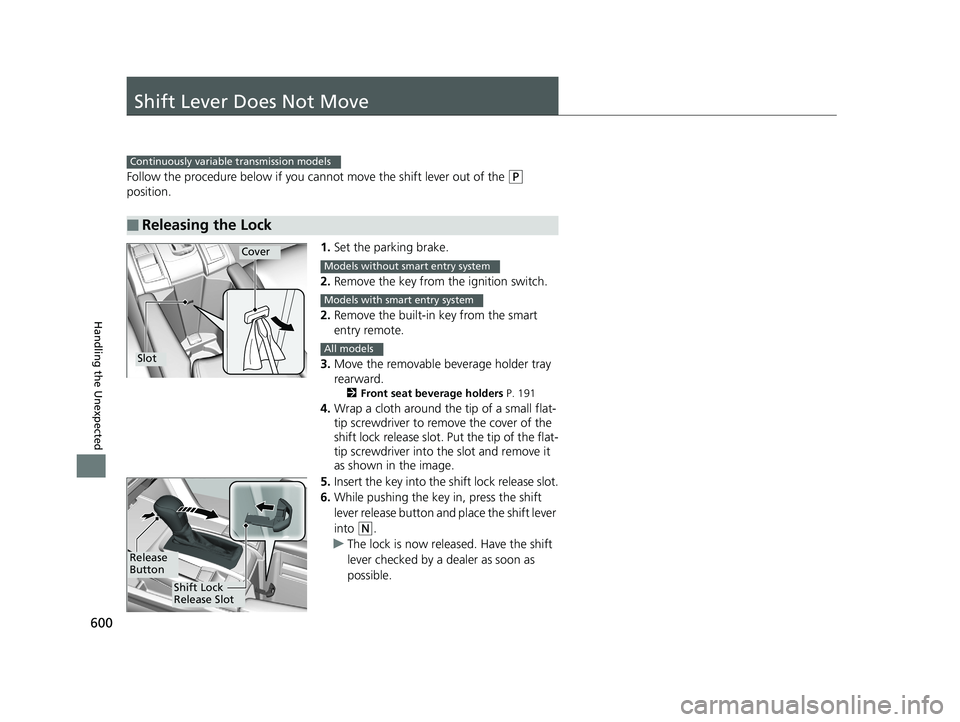

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the key from the ignition switch.
2. Remove the built-in key from the smart
entry remote.
3. Move the removable beverage holder tray
rearward.
2 Front seat beverage holders P. 191
4.Wrap a cloth around the tip of a small flat-
tip screwdriver to remove the cover of the
shift lock release slot. Put the tip of the flat-
tip screwdriver into th e slot and remove it
as shown in the image.
5. Insert the key into the sh ift lock release slot.
6. While pushing the key in, press the shift
lever release button and place the shift lever
into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Continuously variable transmission models
Slot
Cover
Models without smart entry system
Models with smart entry system
All models
Release
Button
Shift Lock
Release Slot
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 600 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

606
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected

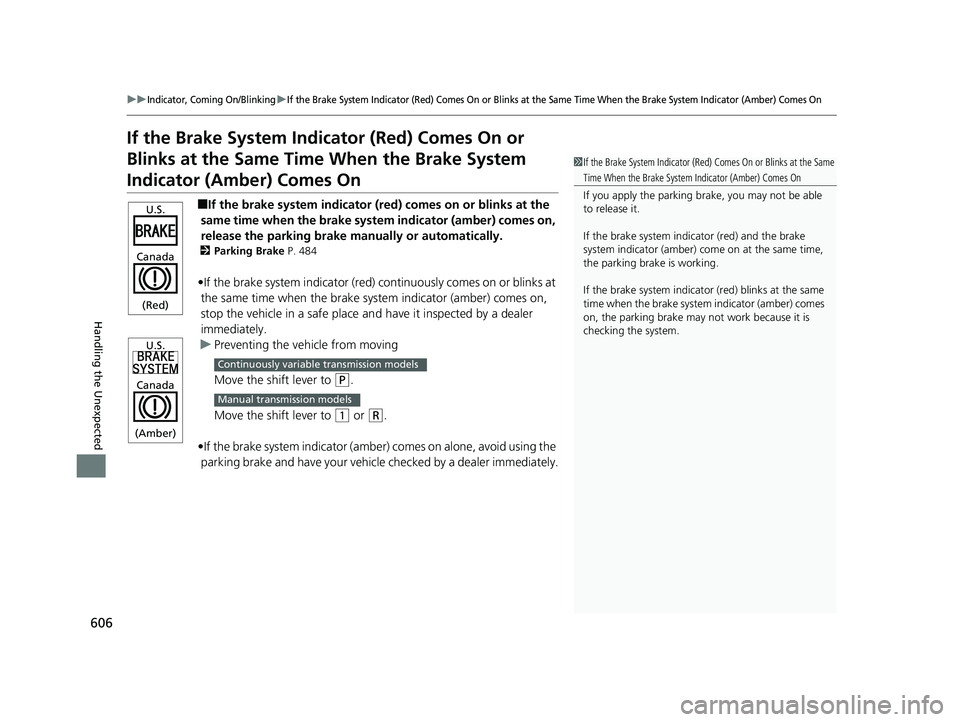

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake manually or automatically.
2 Parking Brake P. 484
•If the brake system indicator (red) co ntinuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u Preventing the vehicle from moving
Move the shift lever to
(P.
Move the shift lever to
(1 or (R.
•If the brake system indicator (amber) comes on alone, avoid using the parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
Continuously variable transmission models
Manual transmission models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 606 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

615
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 615 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

632
Index
B
Battery....................................................... 560
Charging System Indicator ................. 79, 603
Jump Starting .......................................... 597
Maintenance (Checking the Battery) ........ 560
Maintenance (Replacing).......................... 562
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 191
Bluetooth ® Audio ............................. 234, 290
Bluetooth ® HandsFreeLink ®............. 361, 385
Booster Seats (For Children) ....................... 72
Brake System ............................................. 484
Anti-lock Brake System (ABS) ................... 490
Automatic Brake Hold.............................. 487
Brake Assist System ................................. 491
Fluid ........................................................ 536
Foot Brake ............................................... 486
Indicator (Red) ........................... 76, 605, 606
Parking Brake .......................................... 484
Braking Pressure Meter ............................ 120
Brightness Control (Instrument Panel) .... 174
Bulb Replacement ..................................... 538
Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Lights and Back-Up Lights .... 545
Fog Lights ................................................ 540
Front Side Marker Lights .......................... 543
Front Turn Signal Lights ........................... 542
Headlights ............................................... 538
High-Mount Brake Light .......................... 546 Parking/Daytime Running Lights .............. 544
Rear License Plate Light ........................... 546
Side Turn Signal/Emergency Indicator
Lights .................................................... 544
Taillights.................................................. 546
Bulb Specifications ........................... 618, 620
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 421, 423
Certification Label .................................... 622
Changing Bulbs ........................................ 538
Charging System Indicator ................. 79, 603
Child Safety ................................................. 60
Childproof Door Locks............................. 148
Emergency Trunk Opener ........................ 155
Child Seat .................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................................................... 67
Larger Children ......................................... 71
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 567
Cleaning the Interior ................................ 565 Climate Control System
........................... 202
Changing the Mode................................ 202
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 205
Sensors ................................................... 209
Synchronized Mode ................................ 208
Using Automatic Climate Control............ 202
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 492
Coat Hooks ............................................... 196
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 492
Compact Spare Tire .................. 575, 619, 621
Console Compartment ............................. 190
Continuously Variable Transmission
Creeping................................................. 435
Fluid ....................................................... 535
Kickdown ............................................... 435
Operating the Shift Lever .................. 24, 437
Shift Lever Does Not Move ...................... 600
Shifting ................................................... 436
Controls .................................................... 133
Coolant (Engine) ...................................... 533
Adding the Coolant ................................ 534
Overheating ............................................ 601
Creeping (Continuously Variable
Transmission) .......................................... 435
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 632 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

634
Index
F
Features..................................................... 211
Filters Dust and Pollen ....................................... 564
Oil ........................................................... 530
Flat Tire ..................................................... 575
Floor Mats ................................................. 566
Fluids
Brake/Clutch ............................................ 536
Continuously Variable Transmission (CVT) ..................................................... 535
Engine Coolant ........................................ 533
Manual Transmission ............................... 535
Windshield Washer .................................. 537
FM/AM Radio .................................... 226, 266
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 185
Foot Brake ................................................. 486
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 182
Front Seat Heaters .................................... 197
Front Seats
Adjusting ................................................. 179
Front Sensor Camera ................................ 446 Fuel
...................................................... 25, 503
Economy ................................................. 506
Gauge ..................................................... 109
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Range ............................................. 111, 117
Recommendation .................................... 503
Refueling......................................... 503, 616
Fuel Economy ........................................... 506
Fuel Fill Door ...................................... 25, 504
Fuses .......................................................... 609
Inspecting and Changing......................... 612
Locations......................................... 609, 610
G
Gasoline (Fuel) Economy ................................................. 506
Gauge ..................................................... 109
Information ............................................. 503
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Refueling......................................... 503, 616
Gauges ...................................................... 108
Gear Shift Lever Positions Manual Transmission ............................... 439
Glass (care) ........................................ 565, 568
Glove Box .................................................. 189
G-Meter ..................................................... 120
H
Halogen Bulbs .................................. 538, 541
Handling the Unexpected ....................... 573
HandsFreeLink® (HFL)...................... 361, 385
Automatic Import of Cellular Phonebook and
Call History ................................... 374, 398
Displaying Messages ............................... 412
HFL Buttons .................................... 361, 385
HFL Menus...................................... 364, 388
HFL Status Display ........................... 363, 387
In Case of Emergency ............................. 416
Limitations for Manual Operation .... 363, 387
Making a Call ................................. 379, 406
Options During a Call...................... 384, 409
Phone Setup ................................... 368, 393
Phonebook Phonetic M odification........... 402
Receiving a Call............................... 383, 409
Receiving a Text/E-mail Message ............. 410
Ring Tone ....................................... 372, 397
Selecting a Mail Account......................... 411
Speed Dial ...................................... 375, 399
To Set Up Text/E-mail Message Options .. 396
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 267
Headlights ................................................ 168
Aiming.................................................... 538
Automatic Operation .............................. 169
Dimming......................................... 168, 171
Operating ............................................... 168
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 634 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

635
Index
Heaters (Front Seat)................................. 197
Heaters (Rear Seat) .................................. 198
Heating System ........................................ 199
Changing the Mode................................ 199
Defrosting the Windshield and
Windows .............................................. 200
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 200
Sensors ................................................... 201
Using Automatic Heating ........................ 199
HFL (HandsFreeLink ®) ...................... 361, 385
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 428, 433
Honda App License Agreement .............. 312
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 292
I
Identification Numbers
Vehicle Identification............................... 622
Ignition Switch ......................................... 163
Illumination Control Knob ...................................................... 174
Immobilizer System .................................. 156
Immobilizer System Indicator............... 86, 87 Indicators
.................................................... 76
Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) ..................................... 91, 448
Anti-lock Brake System (ABS) ..................... 81
Automatic Brake Hold ....................... 78, 487
Automatic Brake Hold System ............ 78, 487
Brake Depressing ....................................... 89
Charging System ............................... 79, 603
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 88, 444
CRUISE MAIN .................................... 88, 443
Door and Trunk Open .......................... 37, 83
ECON Mode ...................................... 88, 442
Electric Power Steering (EPS) System .. 83, 607
Fog Light ................................................... 85
High Beam ................................................ 85
Immobilizer System .............................. 86, 87
Lane Keeping Assist System (LKAS) .... 92, 468
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ................................ 78, 603
Low Tire Pressure/TPMS ..... 84, 479, 482, 608
Maintenance Minder ......................... 88, 513
Malfunction Indicator Lamp ............... 79, 604
Parking Brake and Brake System (Amber) ........................................... 77, 606 Parking Brake and Brake System
(Red) ....................................... 76, 605, 606
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder .............................. 40, 80
Security System Alarm ............................... 87
Shift Lever Position .................................... 79
SPORT Mode ..................................... 83, 441
Supplemental Restraint System ............ 57, 81
System Message ........................................ 85
Transmission System.................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA® )
System ............................................ 82, 473
VSA ® OFF .......................................... 82, 474
Washer Level ............................................. 88
Information .............................................. 617
Information Display ................................. 110
Warning and Information Messages .......... 95
Instant Fuel Economy ....................... 111, 118
Instrument Panel ........................................ 75
Brightness Control................................... 174
Interior Lights ........................................... 187
Interior Rearview Mirror .......................... 177
iPod ................................................... 228, 278
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 635 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

638
Index
S
Safe Driving................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 80
Seat Heaters ...................................... 197, 198
Seats .......................................................... 179
Adjusting ................................................. 179
Front Seat Heaters ................................... 197
Front Seats .............................................. 179
Rear Seat Heaters .................................... 198
Rear Seats................................................ 185
Security System ......................................... 156
Security System Alarm Indicator ................. 87
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 219
Setting the Clock ...................................... 134
Shift Lever ................................... 24, 436, 438
Releasing ................................................. 600
Won’t Move ............................................ 600 Shift Lever Position Indicator
............ 79, 437
Shift Up Backlight .................................... 109
Shifting (Transmission) ..................... 436, 438
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 299
SiriusXM ® Radio ........................................ 270
Smart Entry with Push Button Start System ..................................................... 139
Snow Tires ................................................. 558
Song By Voice
TM (SBV) .............................. 281
Spare Tire .................................. 575, 619, 621
Spark Plugs ....................................... 618, 620
Specifications ............................................ 618
Specified Fuel ........................... 503, 618, 620
Speedometer ............................................ 108
SPORT Mode ............................................. 441
SPORT Mode Indicator ............................. 441
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 426, 429
Does Not Start......................................... 594
Engine Switch Buzzer .............................. 163
Jump Starting .......................................... 597
Steering Wheel
Adjusting ................................................ 176
Stopping ................................................... 500
Stopwatch ................................................. 122
Summer Tires ............................................ 559
Supplemental Restraint System (SRS) ........ 49Switches (Around the Steering
Wheel) ............................................ 4, 5, 163
System Message Indicator ......................... 85
T
Tachometer.............................................. 108
Temperature Gauge .................................................... 109
Outside Temperature Display .......... 112, 118
Temperature Sensor ........................ 112, 118
Temporary Repair Kit (TRK) .................... 582
Time (Setting) ........................................... 134
Tire Pressure Monitoring System (TPMS) ..................................................... 479
Indicator ........................................... 84, 608
Tires .......................................................... 550
Air Pressure............................. 551, 619, 621
Checking and Maintaining ...................... 550
Inspection ............................................... 550
Labeling .................................................. 551
Puncture (Flat Tire) .................................. 575
Regulations ............................................. 553
Rotation.................................................. 557
Spare Tire ............................... 575, 619, 621
Summer .................................................. 559
Temporary Repair Kit (TRK) ..................... 582
Tire Chains.............................................. 558
Wear Indicators....................................... 555
Winter .................................................... 558
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 638 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

639
Index
Tools......................................................... 574
Towing Your Vehicle ............................... 425
Emergency .............................................. 613
TPMS (Tire Pressure Monitoring System) .................................................... 479
Indicator ........................................... 84, 608
Transmission ..................................... 436, 438
Continuously Variable Transmission ........ 436
Fluid ....................................................... 535
Manual ................................................... 438
Shift Lever Position Indicator ............. 79, 437
TRIP Knob ......................................... 110, 116
Trip Meter ........................................ 110, 116
TRK (Temporary Repair Kit) .................... 582
Troubleshooting ...................................... 573
Blown Fuse ..................................... 609, 610
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 613
Engine Won’t Start ................................. 594
Noise When Braking ........................... 30, 31
Overheating ............................................ 601
Puncture/Flat Tire .................................... 575
Rear Door Won’t Open ..................... 30, 148
Shift Lever Won’t Move .......................... 600
Warning Indicators.................................... 76 Trunk
......................................................... 153
Lid ........................................................... 153
Light Bulb ........................................ 618, 620
Release Lever ........................................... 615
Unable to Open ....................................... 615
Turbo Engine Vehicle ............................... 507
Turbo Meter .............................................. 118
Turn Signals .............................................. 168
Indicators (Instrument Panel) ...................... 85
U
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the Inside ................................................. 146
USB Adapter Cable ................................... 212
USB Flash Drives ........................ 231, 287, 311
USB Port(s) ................................................ 213
Using the Smart Entry wi th Push Button Start
System ..................................................... 139
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 622
Vehicle Stability Assist (VSA ®).................. 473
Off Button............................................... 474
Off Indicator.............................................. 82
System Indicator ........................................ 82
Viscosity (Oil) ............................ 526, 619, 621
Voice Control Operation .......................... 262
Audio Commands ................................... 264
Climate Control Commands .................... 265
General Commands ................................ 265
Music Search Commands ........................ 265
On Screen Commands............................. 265
Phone Commands ................................... 264
Useful Commands ................................... 264
Voice Portal Screen.................................. 263
Voice Recognition ................................... 262
VSA ® (Vehicle Stability Assist) .................. 473
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 639 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
