2018 HONDA CIVIC SEDAN USB

303
uuAudio System Basic Operation uAndroid Auto
Continued
Features
Android Auto
When you connect an Android phone to the audio system via the front USB,
Android Auto is automatically initiated. When connected via Android Auto, you can
use the audio/information screen to access the Phone, Google Maps (Navigation),
Google Play Music, and Google Now functions. When you first use Android Auto, a
tutorial will appear on the screen.
We recommend that you comple te this tutorial while safely parked before using
Android Auto.
2 USB Port(s) P. 213
2 Auto Pairing Connection P. 305
1Android Auto
To use Android Auto, you need to download the
Android Auto app from Google Play to your
smartphone.
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used with Android Auto
phone.
Park in a safe place befo re connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
front USB port. The USB port in the center console
storage will not enable Android Auto operation.
2 USB Port(s) P. 213
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth® Audio.
However, other previously paired phones can stream
audio via Bluetooth ® while Android Auto is
connected.
2 Phone Setup P. 393
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 303 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

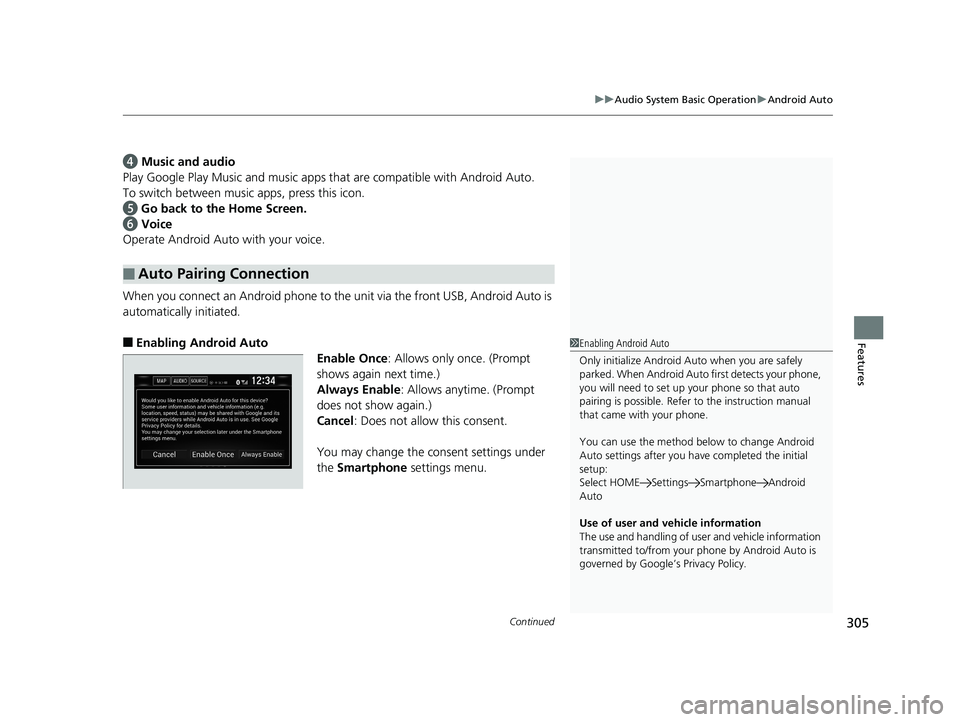

Continued305
uuAudio System Basic Operation uAndroid Auto
Features
d Music and audio
Play Google Play Music an d music apps that are compatible with Android Auto.
To switch between music apps, press this icon.
e Go back to the Home Screen.
f Voice
Operate Android Auto with your voice.
When you connect an Android phone to the unit via the front USB, Android Auto is
automatically initiated.
■Enabling Android Auto
Enable Once: Allows only once. (Prompt
shows again next time.)
Always Enable: Allows anytime. (Prompt
does not show again.)
Cancel : Does not allow this consent.
You may change the consent settings under
the Smartphone settings menu.
■Auto Pairing Connection
1Enabling Android Auto
Only initialize Android Au to when you are safely
parked. When Android Auto first detects your phone,
you will need to set up your phone so that auto
pairing is possibl e. Refer to the instruction manual
that came with your phone.
You can use the method below to change Android
Auto settings after you have completed the initial
setup:
Select HOME Settings Smartphone Android
Auto
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by Google’s Privacy Policy.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 305 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

307
Features
Audio Error Messages
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
*1:Models with color audio system
*2:Models with Display Audio
Error MessageSolution
USB Error*1, *2Appears when there is a problem with th e audio system. Check if the device is
compatible with the audio system.
Bad USB Device
Please Check Owners Manual*1
The connected USB device has a problem.
See Owner’s Manual*2
Appears when an incomp atible device is connected. Disconnect the device. Then turn
the audio system off, and turn it on again. Do not reconnect the device that caused the
error.
Unsupported Ver*1
Unsupported Version*2Appears when an unsupported iPod is connecte d. If it appears when a supported iPod
is connected, update the iPod software to the newer version.
Retry Connection*1
Connect Retry*2Appears when the system does not ackn owledge the iPod. Reconnect the iPod.
Unplayable File*1, *2Appears when the files in the USB flash driv e are copyright protected or an unsupported
format. This error message appears for about three seconds, then plays the next song.
USB No Song*1
iPod No Song*1
No Data*2
Appears when the iPod is empty.
Appears when the USB flash drive is empty or there are no MP3, WMA, or AAC files in
the USB flash drive.
Check that compatible files are stored on the device.
Unsupported*1, *2Appears when an unsupported device is co nnected. If it appears when a supported
device is connected, reconnect the device.
iPod
USB flash drive
iPod and USB flash drive
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 307 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

311
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone , and USB Flash Drives
*1:Models with Display Audio
•A USB flash drive of 256 MB or higher is recommended.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5/iPhone 5c*1/iPhone 5s*1/
iPhone 6*1/iPhone 6 Plus*1
■USB Flash Drives
1 iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 311 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

350
uuCustomized Features u
Features
*1:Default Setting
*2:Appears only when you change the screen interface design.Setup
Group Customizable Features Description Selectable Settings
Audio
BluetoothBluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone.
2
Phone Setup P. 393
—
Other
[Your selected media]
Cover ArtTurns the cover art display on and off.On*1/Off
Audio Source Pop-Up
Selects whether the list of selectable audio
sources comes on when Audio is selected on the
home screen.
On /Off*1
DefaultCancels/Resets all cust omized items in the Audio
settings group as default.Yes /No
System Home Home Screen Edit Order
Changes the HOME screen icon layout. —
Menu icon position
*2Changes the position of the menu icons on the
Audio , Phone , and Info screen. —
Configuration of
Instrument Panel Changes the
Instrument Panel screen icon
layout. —
Tachometer Setting Turns on and off the tachometer display. On
*1/Off
Bluetooth® mode
iPod or USB mode
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 350 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

Index
631
Index
Index
A
ABS (Anti-lock Brake System).................. 490
Accelerator Position Meter ..................... 120
Accessories and Modifications ................ 570
Accessory Power Socket ........................... 193
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 448
Adding the Coolant ................................. 534
Additives Coolant .................................................. 533
Engine Oil ............................................... 526
Washer ................................................... 537
Additives, Engine Oil ............................... 526
Adjusting
Armrest .................................................. 186
Clock ...................................................... 134
Front Head Restraints .............................. 182
Front Seats.............................................. 179
Mirrors.................................................... 177
Rear Seats ............................................... 185
Steering Wheel ....................................... 176
Temperature ................................... 112, 118
Adjusting the Clock ................................. 134
Adjusting the Sound ........................ 224, 259
Agile Handling Assist ............................... 475
Air Conditioning System (Climate Control System) .................................................... 202
Changing the Mode................................ 205
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564 Recirculation/Fresh Air Mode ................... 205
Sensor ..................................................... 209
Synchronized Mode ................................. 208
Using Automatic Climate Control ............ 202
Air Pressure ............................... 551, 619, 621
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 226, 266
Android Auto ............................................ 303
Anti-lock Brake System (ABS) .................. 490
Indicator .................................................... 81
Apple CarPlay ........................................... 300
Armrest ..................................................... 186
Audio Remote Controls ............................ 215
Audio System ............................ 212, 219, 237
Adjusting the Sound ........................ 224, 259
Audio/Information Screen ................ 220, 238
Changing the Home Screen Icon Layout .. 242
Changing the Screen Interface ................. 256
Closing Apps ........................................... 258
Customizing the Meter ............................ 243
Display Setup ................................... 225, 260 Error Messages ........................................ 307
General Information ................................ 310
Home Screen........................................... 249
iPod ................................................ 228, 278
Limitations for Manual Operation ............ 261
Menu Customize ..................................... 257
MP3/WMA/AAC .............................. 231, 287
Reactivating ............................................ 214
Recommended Devices............................ 311
Remote Controls ..................................... 215
Security Code .......................................... 214
Selecting an Audio Source ....................... 261
Status Area ............................................. 255
Theft Protection ...................................... 214
USB Flash Drives ...................................... 311
USB Port(s) .............................................. 213
Wallpaper Setup.............................. 222, 247
Audio/Information Screen ............... 220, 238
Authorized Manuals ................................ 629
Auto Door Locking/Unlocking ................. 149
Customize ............................... 130, 150, 359
Automatic Brake Hold ............................. 487
Indicator............................................ 78, 487
Automatic Brake Hold System Indicator............................................ 78, 487
Automatic Lighting .................................. 169
Average Fuel Economy .................... 111, 117
Average Speed ..
....................................... 117
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 631 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

639
Index
Tools......................................................... 574
Towing Your Vehicle ............................... 425
Emergency .............................................. 613
TPMS (Tire Pressure Monitoring System) .................................................... 479
Indicator ........................................... 84, 608
Transmission ..................................... 436, 438
Continuously Variable Transmission ........ 436
Fluid ....................................................... 535
Manual ................................................... 438
Shift Lever Position Indicator ............. 79, 437
TRIP Knob ......................................... 110, 116
Trip Meter ........................................ 110, 116
TRK (Temporary Repair Kit) .................... 582
Troubleshooting ...................................... 573
Blown Fuse ..................................... 609, 610
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 613
Engine Won’t Start ................................. 594
Noise When Braking ........................... 30, 31
Overheating ............................................ 601
Puncture/Flat Tire .................................... 575
Rear Door Won’t Open ..................... 30, 148
Shift Lever Won’t Move .......................... 600
Warning Indicators.................................... 76 Trunk
......................................................... 153
Lid ........................................................... 153
Light Bulb ........................................ 618, 620
Release Lever ........................................... 615
Unable to Open ....................................... 615
Turbo Engine Vehicle ............................... 507
Turbo Meter .............................................. 118
Turn Signals .............................................. 168
Indicators (Instrument Panel) ...................... 85
U
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the Inside ................................................. 146
USB Adapter Cable ................................... 212
USB Flash Drives ........................ 231, 287, 311
USB Port(s) ................................................ 213
Using the Smart Entry wi th Push Button Start
System ..................................................... 139
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 622
Vehicle Stability Assist (VSA ®).................. 473
Off Button............................................... 474
Off Indicator.............................................. 82
System Indicator ........................................ 82
Viscosity (Oil) ............................ 526, 619, 621
Voice Control Operation .......................... 262
Audio Commands ................................... 264
Climate Control Commands .................... 265
General Commands ................................ 265
Music Search Commands ........................ 265
On Screen Commands............................. 265
Phone Commands ................................... 264
Useful Commands ................................... 264
Voice Portal Screen.................................. 263
Voice Recognition ................................... 262
VSA ® (Vehicle Stability Assist) .................. 473
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 639 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
