2018 HONDA CIVIC SEDAN warning light

601Continued
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge pointer is at th e mark or the engine suddenly loses
power.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
pointer at the mark may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 601 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

603
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for about three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 527
3.Start the engine and check th e low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off with in 10 seconds: Stop the engine
and contact a dealer for repairs immediately.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the heating system*/climate control system*, rear defogger, and
other electrical systems, and immedi ately contact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 603 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

616
Handling the Unexpected

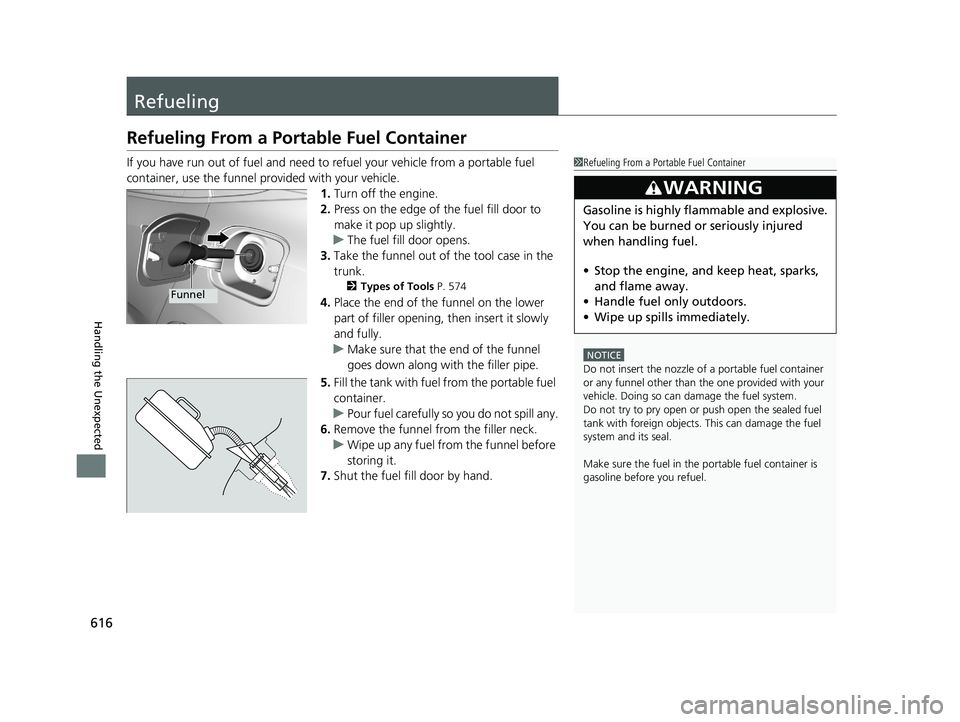

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 574
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 616 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

633
Index
Cruise Control.......................................... 443
Indicator ................................................... 88
Cup Holders .............................................. 191
Customer Service Information ................ 630
Customized Features ....................... 124, 328
D
Daytime Running Lights .......................... 171
Dead Battery ............................................ 597
Defaulting All the Settings ...................... 360
Defrosting the Windshield and Windows ......................................... 200, 206
Devices that Emit Radio Waves ............... 623
Dimming Headlights .............................................. 168
Rearview Mirror ...................................... 177
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 168
Display Button .......................................... 238
Display Setup .................................... 225, 260
Display/Information Button .................... 114
Door Mirrors ............................................. 178
Doors ........................................................ 136
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door and Trunk Open Indicator........... 37, 83
Door Open Message ........................... 37, 96 Keys ........................................................ 136
Locking/Unlocking the Doors from
the Inside............................................... 146
Locking/Unlocking the Doors from the Outside............................................ 139
DOT Tire Quality Grading ........................ 553
Driver Information Interface ................... 113
Warning and Information Messages .......... 96
Driving ....................................................... 419
Braking .................................................... 484
Continuously Variable Transmission ......... 435
Cruise Control ......................................... 443
Shifting Gear ........................................... 438
Shifting Position ...................................... 436
Starting the Engine .......................... 426, 429
Dust and Pollen Filter ............................... 564
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 442
Elapsed Time ............................................. 117
Electric Power Steering (EPS) System ........ 83
Indicator ............................................ 83, 607
Electronic Stability Control (ESC) ............. 473
Emergency ................................................ 613
Emergency Engine Stop ........................... 596
Emergency Trunk Opener ................ 155, 615Emissions Testing (Readiness Codes)
....... 625
Engine
Coolant ................................................... 533
Jump Starting .......................................... 597
Oil ........................................................... 526
Starting ........................................... 426, 429
Switch Buzzer.......................................... 163
Engine Coolant ......................................... 533
Adding the Coolant................................. 534
Overheating ............................................ 601
Temperature Gauge ................................ 109
Engine Oil ................................................. 526
Adding .................................................... 529
Checking................................................. 527
Displaying Maintenance Minder Information ................................... 513, 518
Low Oil Pressure Indicator ................. 78, 603
Recommended Engine Oil ....................... 526
ENGINE START/STOP Button .................... 164
EPS (Electric Power Steering) System ...... 607
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 567
Exterior Mirrors ........................................ 178
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 633 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

634
Index
F
Features..................................................... 211
Filters Dust and Pollen ....................................... 564
Oil ........................................................... 530
Flat Tire ..................................................... 575
Floor Mats ................................................. 566
Fluids
Brake/Clutch ............................................ 536
Continuously Variable Transmission (CVT) ..................................................... 535
Engine Coolant ........................................ 533
Manual Transmission ............................... 535
Windshield Washer .................................. 537
FM/AM Radio .................................... 226, 266
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 185
Foot Brake ................................................. 486
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 182
Front Seat Heaters .................................... 197
Front Seats
Adjusting ................................................. 179
Front Sensor Camera ................................ 446 Fuel
...................................................... 25, 503
Economy ................................................. 506
Gauge ..................................................... 109
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Range ............................................. 111, 117
Recommendation .................................... 503
Refueling......................................... 503, 616
Fuel Economy ........................................... 506
Fuel Fill Door ...................................... 25, 504
Fuses .......................................................... 609
Inspecting and Changing......................... 612
Locations......................................... 609, 610
G
Gasoline (Fuel) Economy ................................................. 506
Gauge ..................................................... 109
Information ............................................. 503
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Refueling......................................... 503, 616
Gauges ...................................................... 108
Gear Shift Lever Positions Manual Transmission ............................... 439
Glass (care) ........................................ 565, 568
Glove Box .................................................. 189
G-Meter ..................................................... 120
H
Halogen Bulbs .................................. 538, 541
Handling the Unexpected ....................... 573
HandsFreeLink® (HFL)...................... 361, 385
Automatic Import of Cellular Phonebook and
Call History ................................... 374, 398
Displaying Messages ............................... 412
HFL Buttons .................................... 361, 385
HFL Menus...................................... 364, 388
HFL Status Display ........................... 363, 387
In Case of Emergency ............................. 416
Limitations for Manual Operation .... 363, 387
Making a Call ................................. 379, 406
Options During a Call...................... 384, 409
Phone Setup ................................... 368, 393
Phonebook Phonetic M odification........... 402
Receiving a Call............................... 383, 409
Receiving a Text/E-mail Message ............. 410
Ring Tone ....................................... 372, 397
Selecting a Mail Account......................... 411
Speed Dial ...................................... 375, 399
To Set Up Text/E-mail Message Options .. 396
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 267
Headlights ................................................ 168
Aiming.................................................... 538
Automatic Operation .............................. 169
Dimming......................................... 168, 171
Operating ............................................... 168
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 634 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

635
Index
Heaters (Front Seat)................................. 197
Heaters (Rear Seat) .................................. 198
Heating System ........................................ 199
Changing the Mode................................ 199
Defrosting the Windshield and
Windows .............................................. 200
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 200
Sensors ................................................... 201
Using Automatic Heating ........................ 199
HFL (HandsFreeLink ®) ...................... 361, 385
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 428, 433
Honda App License Agreement .............. 312
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 292
I
Identification Numbers
Vehicle Identification............................... 622
Ignition Switch ......................................... 163
Illumination Control Knob ...................................................... 174
Immobilizer System .................................. 156
Immobilizer System Indicator............... 86, 87 Indicators
.................................................... 76
Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) ..................................... 91, 448
Anti-lock Brake System (ABS) ..................... 81
Automatic Brake Hold ....................... 78, 487
Automatic Brake Hold System ............ 78, 487
Brake Depressing ....................................... 89
Charging System ............................... 79, 603
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 88, 444
CRUISE MAIN .................................... 88, 443
Door and Trunk Open .......................... 37, 83
ECON Mode ...................................... 88, 442
Electric Power Steering (EPS) System .. 83, 607
Fog Light ................................................... 85
High Beam ................................................ 85
Immobilizer System .............................. 86, 87
Lane Keeping Assist System (LKAS) .... 92, 468
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ................................ 78, 603
Low Tire Pressure/TPMS ..... 84, 479, 482, 608
Maintenance Minder ......................... 88, 513
Malfunction Indicator Lamp ............... 79, 604
Parking Brake and Brake System (Amber) ........................................... 77, 606 Parking Brake and Brake System
(Red) ....................................... 76, 605, 606
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder .............................. 40, 80
Security System Alarm ............................... 87
Shift Lever Position .................................... 79
SPORT Mode ..................................... 83, 441
Supplemental Restraint System ............ 57, 81
System Message ........................................ 85
Transmission System.................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA® )
System ............................................ 82, 473
VSA ® OFF .......................................... 82, 474
Washer Level ............................................. 88
Information .............................................. 617
Information Display ................................. 110
Warning and Information Messages .......... 95
Instant Fuel Economy ....................... 111, 118
Instrument Panel ........................................ 75
Brightness Control................................... 174
Interior Lights ........................................... 187
Interior Rearview Mirror .......................... 177
iPod ................................................... 228, 278
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 635 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

638
Index
S
Safe Driving................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 80
Seat Heaters ...................................... 197, 198
Seats .......................................................... 179
Adjusting ................................................. 179
Front Seat Heaters ................................... 197
Front Seats .............................................. 179
Rear Seat Heaters .................................... 198
Rear Seats................................................ 185
Security System ......................................... 156
Security System Alarm Indicator ................. 87
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 219
Setting the Clock ...................................... 134
Shift Lever ................................... 24, 436, 438
Releasing ................................................. 600
Won’t Move ............................................ 600 Shift Lever Position Indicator
............ 79, 437
Shift Up Backlight .................................... 109
Shifting (Transmission) ..................... 436, 438
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 299
SiriusXM ® Radio ........................................ 270
Smart Entry with Push Button Start System ..................................................... 139
Snow Tires ................................................. 558
Song By Voice
TM (SBV) .............................. 281
Spare Tire .................................. 575, 619, 621
Spark Plugs ....................................... 618, 620
Specifications ............................................ 618
Specified Fuel ........................... 503, 618, 620
Speedometer ............................................ 108
SPORT Mode ............................................. 441
SPORT Mode Indicator ............................. 441
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 426, 429
Does Not Start......................................... 594
Engine Switch Buzzer .............................. 163
Jump Starting .......................................... 597
Steering Wheel
Adjusting ................................................ 176
Stopping ................................................... 500
Stopwatch ................................................. 122
Summer Tires ............................................ 559
Supplemental Restraint System (SRS) ........ 49Switches (Around the Steering
Wheel) ............................................ 4, 5, 163
System Message Indicator ......................... 85
T
Tachometer.............................................. 108
Temperature Gauge .................................................... 109
Outside Temperature Display .......... 112, 118
Temperature Sensor ........................ 112, 118
Temporary Repair Kit (TRK) .................... 582
Time (Setting) ........................................... 134
Tire Pressure Monitoring System (TPMS) ..................................................... 479
Indicator ........................................... 84, 608
Tires .......................................................... 550
Air Pressure............................. 551, 619, 621
Checking and Maintaining ...................... 550
Inspection ............................................... 550
Labeling .................................................. 551
Puncture (Flat Tire) .................................. 575
Regulations ............................................. 553
Rotation.................................................. 557
Spare Tire ............................... 575, 619, 621
Summer .................................................. 559
Temporary Repair Kit (TRK) ..................... 582
Tire Chains.............................................. 558
Wear Indicators....................................... 555
Winter .................................................... 558
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 638 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

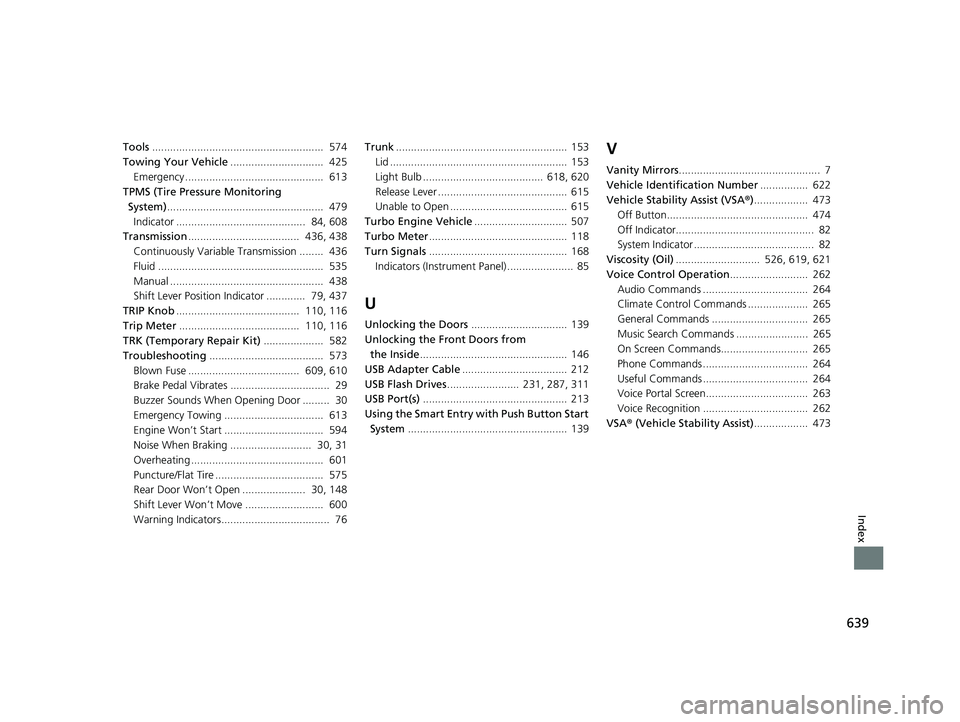

639
Index
Tools......................................................... 574
Towing Your Vehicle ............................... 425
Emergency .............................................. 613
TPMS (Tire Pressure Monitoring System) .................................................... 479
Indicator ........................................... 84, 608
Transmission ..................................... 436, 438
Continuously Variable Transmission ........ 436
Fluid ....................................................... 535
Manual ................................................... 438
Shift Lever Position Indicator ............. 79, 437
TRIP Knob ......................................... 110, 116
Trip Meter ........................................ 110, 116
TRK (Temporary Repair Kit) .................... 582
Troubleshooting ...................................... 573
Blown Fuse ..................................... 609, 610
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 613
Engine Won’t Start ................................. 594
Noise When Braking ........................... 30, 31
Overheating ............................................ 601
Puncture/Flat Tire .................................... 575
Rear Door Won’t Open ..................... 30, 148
Shift Lever Won’t Move .......................... 600
Warning Indicators.................................... 76 Trunk
......................................................... 153
Lid ........................................................... 153
Light Bulb ........................................ 618, 620
Release Lever ........................................... 615
Unable to Open ....................................... 615
Turbo Engine Vehicle ............................... 507
Turbo Meter .............................................. 118
Turn Signals .............................................. 168
Indicators (Instrument Panel) ...................... 85
U
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the Inside ................................................. 146
USB Adapter Cable ................................... 212
USB Flash Drives ........................ 231, 287, 311
USB Port(s) ................................................ 213
Using the Smart Entry wi th Push Button Start
System ..................................................... 139
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 622
Vehicle Stability Assist (VSA ®).................. 473
Off Button............................................... 474
Off Indicator.............................................. 82
System Indicator ........................................ 82
Viscosity (Oil) ............................ 526, 619, 621
Voice Control Operation .......................... 262
Audio Commands ................................... 264
Climate Control Commands .................... 265
General Commands ................................ 265
Music Search Commands ........................ 265
On Screen Commands............................. 265
Phone Commands ................................... 264
Useful Commands ................................... 264
Voice Portal Screen.................................. 263
Voice Recognition ................................... 262
VSA ® (Vehicle Stability Assist) .................. 473
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 639 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
