2018 HONDA CIVIC SEDAN engine oil

524
uuMaintenance Under the Hood uMaintenance Items Under the Hood
Maintenance
2.0 L engine models
Brake/Clutch* Fluid
(Black Cap)
Reserve Tank Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap Battery
Reserve Tank Cap
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 524 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

526
uuMaintenance Under the Hood uRecommended Engine Oil
Maintenance

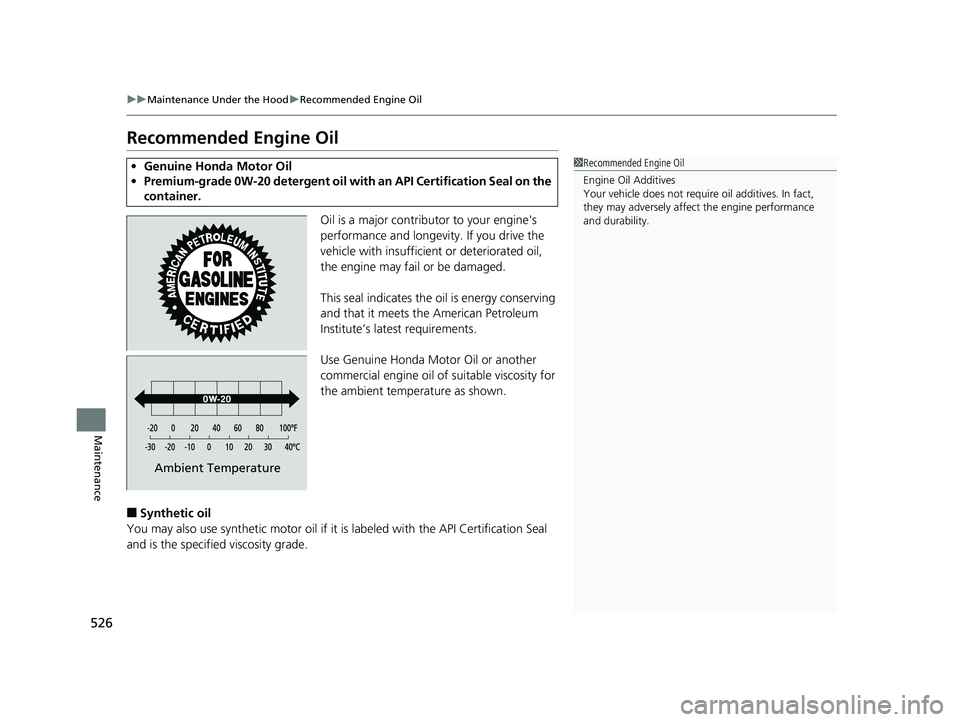

Recommended Engine Oil
Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.
This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.
Use Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.
■Synthetic oil
You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.
• Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container.1 Recommended Engine Oil
Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Ambient Temperature
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 526 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

527
uuMaintenance Under the Hood uOil Check
Continued
Maintenance
Oil Check
We recommend that you check the engi ne oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turn ing the engine off before you check the
oil. 1.Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.1Oil Check
If the oil level is near or below the lower mark, slowly
add oil being careful not to overfill.
1.5 L engine models
2.0 L engine models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 527 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

uuMaintenance Under the Hood uOil Check
528
Maintenance
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
Upper Mark
Lower Mark
1.5 L engine models
Upper Mark
Lower Mark
2.0 L engine models
1Oil Check
Under certain driving conditions, it is normal for the
engine oil level to rise above the upper mark. If you
have a concern, consult a dealer for details.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 528 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

529
uuMaintenance Under the Hood uAdding Engine Oil
Maintenance
Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.1Adding Engine Oil
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
Engine Oil
Fill Cap
1.5 L engine models
Engine Oil
Fill Cap
2.0 L engine models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 529 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

530
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the
information display
*/driver information interface*.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the Phillips-head screws and
slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under Cover
Screw
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 530 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

531
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Continued
Maintenance
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1.5 L engine models
Drain Bolt
Washer
2.0 L engine models
Drain Bolt
Washer
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 531 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
532
Maintenance
5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter ga sket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the oil filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
3.7 US qt (3.5 L)
4.4 US qt (4.2 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that ther e is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.
Oil Filter
1.5 L engine models
2.0 L engine models
Oil Filter1.5 L engine models
2.0 L engine models
