2018 HONDA CIVIC SEDAN display

113
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel
Driver Information Interface*
The driver information interface displa ys the odometer, trip meter, outside
temperature, and other gauges.
It also displays important messages such as warnings and other helpful information.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 113 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

114
uuGauges and Displays uDriver Information Interface*
Instrument Panel
■Main displays
Press the (display/information) butto n and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents usin g the audio/information screen.
■Switching the Display1Switching the Display
You can edit, add, and de lete the meter contents
using the audio/information screen.
2 Customizing the Meter P. 243
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel Turbo Meter*Navigation* &
Compass*Maintenance
MinderTMCustomize*Audio*
Phone*
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed
* &
Elapsed Time*
Mail*
Optional contents*1:
Models without SPORT mode
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 114 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

115
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel
*1:You can add the contents using the audio/information screen.
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel
Turbo Meter
Navigation* &
Compass*
Maintenance
MinderTM
Rev Indicators
Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed &
Elapsed Time
Mail
Optional contents
*1:
Models with SPORT mode
G-Meter Stopwatch
Accelerator
Position/Braking
Pressure Meter
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 115 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

uuGauges and Displays uDriver Information Interface*
116
Instrument Panel
■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0 .
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 116 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

Continued117
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 513
■Average Fuel Economy
■Range
■Elapsed Time*
■Average Speed*
■Engine Oil Life
1Average Fuel Economy
You can change when the average fuel economy is
reset.
2 Customized Features P. 124, 328
1Elapsed Time*
You can change when the elapsed time is reset.
2 Customized Features P. 124, 328
1Average Speed*
You can change when the average speed is reset.
2 Customized Features P. 124, 328
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 117 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

uuGauges and Displays uDriver Information Interface*
118
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature readi ng by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Use the customized features in the driver information interface or audio/information
screen to correct the temperature.
2 Customized Features P. 124, 328
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
When the turbo charger is producing boost,
this meter shows th e boost pressure.
■Outside Temperature
■Instant Fuel Economy
■Turbo Meter*
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Models without SPORT mode
Models with SPORT mode
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 118 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

Continued119
uuGauges and Displays uDriver Information Interface*
Instrument Panel
The navigation system shows you turn-by-turn directions to your destination.
2 Refer to the Navigation System Manual
Shows the current audio information.
2Audio System Basic Operation P. 219, 237
Shows the current mail information.
2Bluetooth ® HandsFreeLink ®* P. 385
Shows the current phone information.
2Bluetooth ® HandsFreeLink ®* P. 361, 385
■Turn-by-Turn Directions*
■Audio*
■Mail*
■Phone*
1Turn-by-Turn Directions*
You can select whether to have the turn-by-turn
display come on or not dur ing the route guidance.
2 Customized Features P. 328
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 119 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

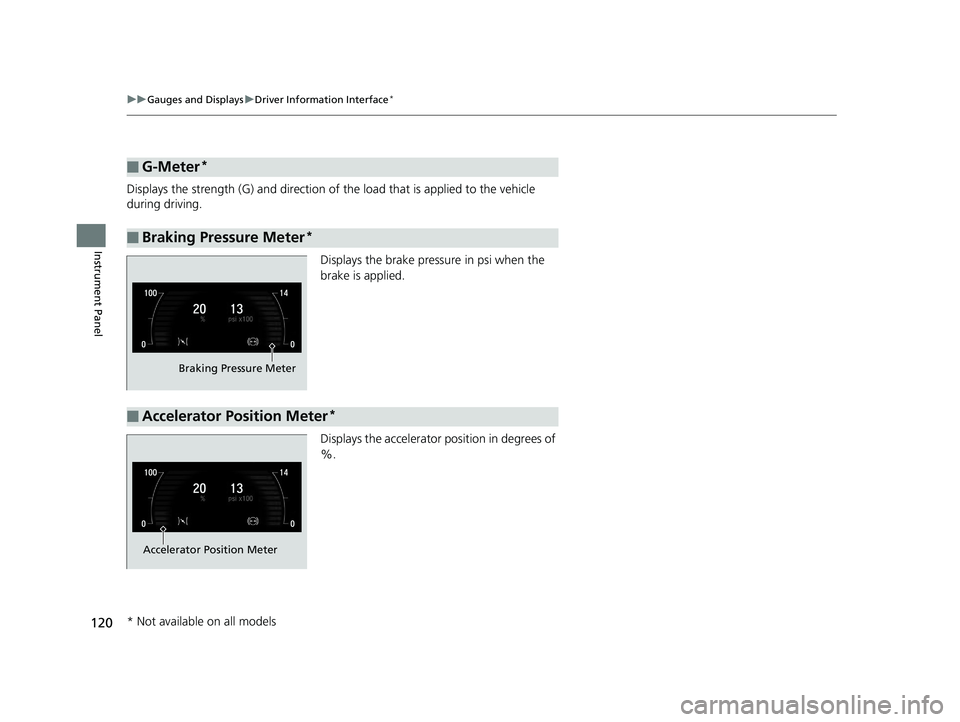

120
uuGauges and Displays uDriver Information Interface*
Instrument Panel
Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in psi when the
brake is applied.
Displays the accelerator position in degrees of
%.
■G-Meter*
■Braking Pressure Meter*
Braking Pressure Meter
■Accelerator Position Meter*
Accelerator Position Meter
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 120 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
