2018 HONDA CIVIC SEDAN washer fluid

537

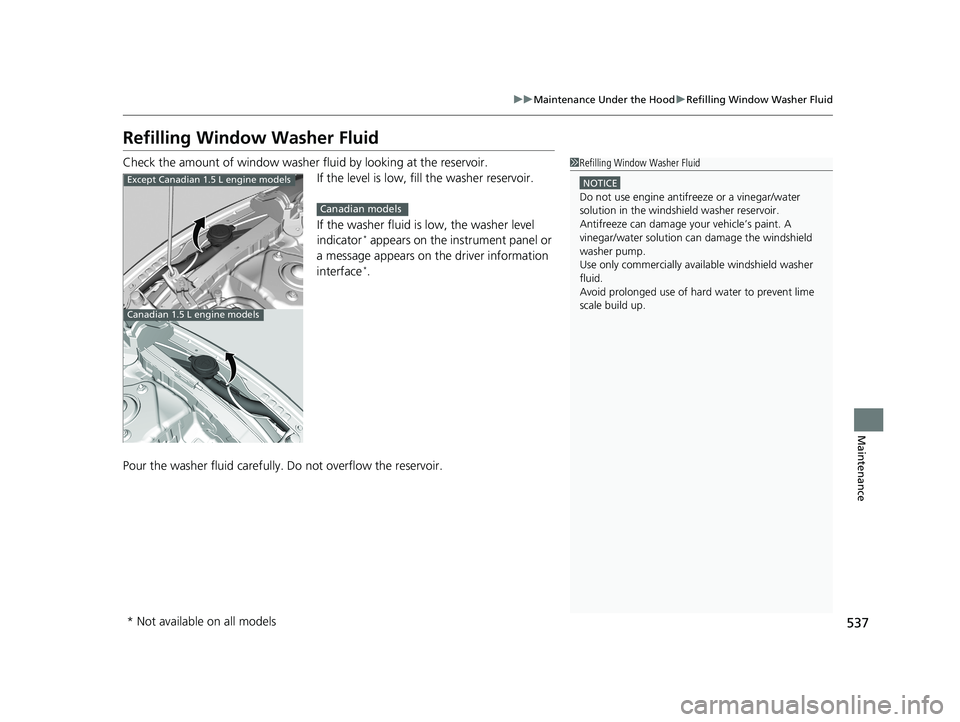

uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, the washer level
indicator
* appears on the instrument panel or
a message appears on the driver information
interface
*.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.
Except Canadian 1.5 L engine models
Canadian 1.5 L engine models
Canadian models
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 537 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

618
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
*
ModelCivic Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3 W
Front Turn Signal Lights21 W (Amber)
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WTrunk Light5 W
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 618 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

620
uuSpecifications u
Information
■Vehicle Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Air Conditioning
ModelCivic Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingU.S.: 3,902 lbs (1,770 kg)*1
Canada: 1,770 kg*1
U.S.: 3,858 lbs (1,750 kg)*2
Canada: 1,750 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,105 lbs (955 kg)*1
Canada: 955 kg*1
U.S.: 2,017 lbs (915 kg)*2
Canada: 915 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg)*1
Canada: 820 kg*1
U.S.: 1,841 lbs (835 kg)*2
Canada: 835 kg*2
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
*3: Models without detachable towing hook
*4: Models with detachable towing hook
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity
12.39 US gal (46.9 L)*3
12.4 US gal (47.0 L)*4
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models without SPORT mode
*4: Models with SPORT mode
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W*3
LED*4
Rear License Plate Light LEDInterior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WTrunk Light5 W
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 620 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

634
Index
F
Features..................................................... 211
Filters Dust and Pollen ....................................... 564
Oil ........................................................... 530
Flat Tire ..................................................... 575
Floor Mats ................................................. 566
Fluids
Brake/Clutch ............................................ 536
Continuously Variable Transmission (CVT) ..................................................... 535
Engine Coolant ........................................ 533
Manual Transmission ............................... 535
Windshield Washer .................................. 537
FM/AM Radio .................................... 226, 266
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 185
Foot Brake ................................................. 486
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 182
Front Seat Heaters .................................... 197
Front Seats
Adjusting ................................................. 179
Front Sensor Camera ................................ 446 Fuel
...................................................... 25, 503
Economy ................................................. 506
Gauge ..................................................... 109
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Range ............................................. 111, 117
Recommendation .................................... 503
Refueling......................................... 503, 616
Fuel Economy ........................................... 506
Fuel Fill Door ...................................... 25, 504
Fuses .......................................................... 609
Inspecting and Changing......................... 612
Locations......................................... 609, 610
G
Gasoline (Fuel) Economy ................................................. 506
Gauge ..................................................... 109
Information ............................................. 503
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Refueling......................................... 503, 616
Gauges ...................................................... 108
Gear Shift Lever Positions Manual Transmission ............................... 439
Glass (care) ........................................ 565, 568
Glove Box .................................................. 189
G-Meter ..................................................... 120
H
Halogen Bulbs .................................. 538, 541
Handling the Unexpected ....................... 573
HandsFreeLink® (HFL)...................... 361, 385
Automatic Import of Cellular Phonebook and
Call History ................................... 374, 398
Displaying Messages ............................... 412
HFL Buttons .................................... 361, 385
HFL Menus...................................... 364, 388
HFL Status Display ........................... 363, 387
In Case of Emergency ............................. 416
Limitations for Manual Operation .... 363, 387
Making a Call ................................. 379, 406
Options During a Call...................... 384, 409
Phone Setup ................................... 368, 393
Phonebook Phonetic M odification........... 402
Receiving a Call............................... 383, 409
Receiving a Text/E-mail Message ............. 410
Ring Tone ....................................... 372, 397
Selecting a Mail Account......................... 411
Speed Dial ...................................... 375, 399
To Set Up Text/E-mail Message Options .. 396
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 267
Headlights ................................................ 168
Aiming.................................................... 538
Automatic Operation .............................. 169
Dimming......................................... 168, 171
Operating ............................................... 168
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 634 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

640
Index
W
Wallpaper.......................................... 222, 247
Warning and Information Messages ... 95, 96
Warning Indicator On/Blinking ................ 603
Warning Labels ........................................... 74
Warranties (Warranty Manual provided separately) ............................................... 627
Watts ................................................. 618, 620
Wear Indicators (Tire) ............................... 555
Wheel Nut Wrench (Jack Handle) ............ 578
Wi-Fi Connection ...................................... 297
Window Washers ...................................... 172
Adding/Refilling Fluid ............................... 537
Switch ..................................................... 172
Windows (Opening and Closing) ............. 159
Windshield ................................................ 172
Cleaning .......................................... 565, 568
Defrosting/Defogging ...................... 200, 206
Washer Fluid............................................ 537
Wiper Blades ........................................... 547
Wipers and Washers ................................ 172
Winter Tires
Snow Tires ............................................... 558
Tire Chains .............................................. 558
Wipers and Washers ................................. 172
Checking and Replacing Wiper Blades ..... 547
Wireless Charger ....................................... 194
WMA ................................................. 231, 287
Worn Tires ................................................. 550
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 640 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
