2018 HONDA CIVIC SEDAN trunk release

Continued157
uuSecurity System uSecurity System Alarm
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood and trunk are closed.
• All doors are locked with the key, the remote transmitter, or smart entry system
*.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, smart entry system
*, or the ignition swit ch is turned to ON (w*1. The
security system indicator go es off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener on the
driver’s door or the emergency trunk opener.
•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may activate
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
smart entry system
*.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Continuously variable transmission models
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 157 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

185
uuAdjusting the Seats uRear Seats
Controls
Rear Seats
1. Pull the release lever in the trunk to release
the lock.
2. Fold the seat-back down.
■Folding Down the Rear Seats1Folding Down the Rear Seats
The rear seat-back(s
*) can be folded down to
accommodate bulkier items in the trunk.
Never drive with the seat-back folded down and the
trunk lid open. 2 Exhaust Gas Hazard P. 73
To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, m ake sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Front Airbag Off Indicator P. 58
Make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Release
Lever*
Release Lever
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 185 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

614
Handling the Unexpected

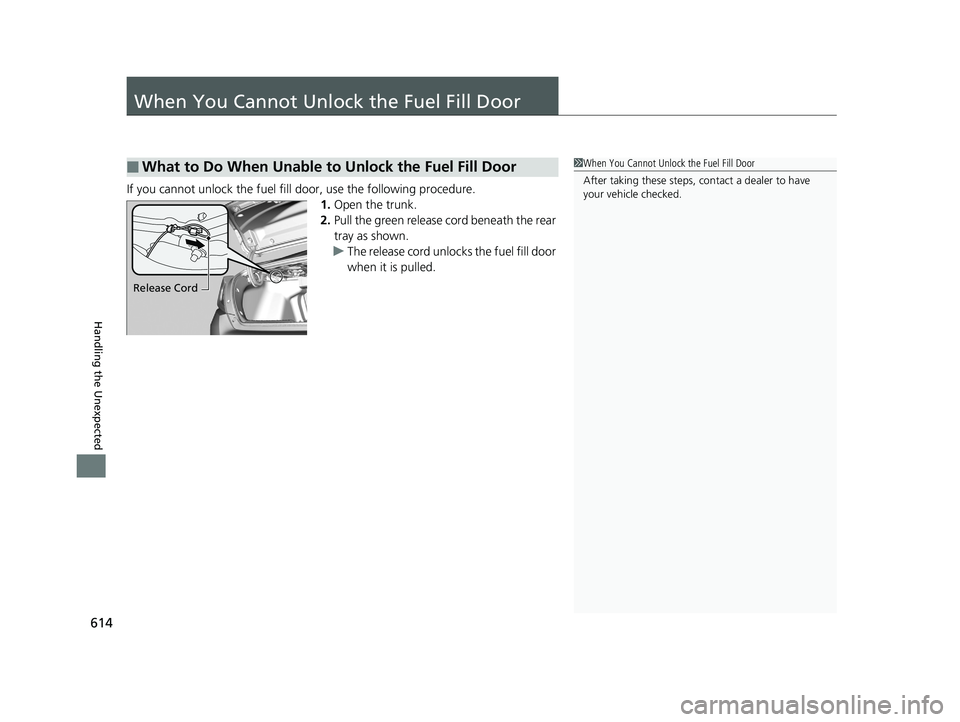

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the green release cord beneath the rear
tray as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 614 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

615
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 615 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

639
Index
Tools......................................................... 574
Towing Your Vehicle ............................... 425
Emergency .............................................. 613
TPMS (Tire Pressure Monitoring System) .................................................... 479
Indicator ........................................... 84, 608
Transmission ..................................... 436, 438
Continuously Variable Transmission ........ 436
Fluid ....................................................... 535
Manual ................................................... 438
Shift Lever Position Indicator ............. 79, 437
TRIP Knob ......................................... 110, 116
Trip Meter ........................................ 110, 116
TRK (Temporary Repair Kit) .................... 582
Troubleshooting ...................................... 573
Blown Fuse ..................................... 609, 610
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 613
Engine Won’t Start ................................. 594
Noise When Braking ........................... 30, 31
Overheating ............................................ 601
Puncture/Flat Tire .................................... 575
Rear Door Won’t Open ..................... 30, 148
Shift Lever Won’t Move .......................... 600
Warning Indicators.................................... 76 Trunk
......................................................... 153
Lid ........................................................... 153
Light Bulb ........................................ 618, 620
Release Lever ........................................... 615
Unable to Open ....................................... 615
Turbo Engine Vehicle ............................... 507
Turbo Meter .............................................. 118
Turn Signals .............................................. 168
Indicators (Instrument Panel) ...................... 85
U
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the Inside ................................................. 146
USB Adapter Cable ................................... 212
USB Flash Drives ........................ 231, 287, 311
USB Port(s) ................................................ 213
Using the Smart Entry wi th Push Button Start
System ..................................................... 139
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 622
Vehicle Stability Assist (VSA ®).................. 473
Off Button............................................... 474
Off Indicator.............................................. 82
System Indicator ........................................ 82
Viscosity (Oil) ............................ 526, 619, 621
Voice Control Operation .......................... 262
Audio Commands ................................... 264
Climate Control Commands .................... 265
General Commands ................................ 265
Music Search Commands ........................ 265
On Screen Commands............................. 265
Phone Commands ................................... 264
Useful Commands ................................... 264
Voice Portal Screen.................................. 263
Voice Recognition ................................... 262
VSA ® (Vehicle Stability Assist) .................. 473
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 639 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
