2018 HONDA CIVIC SEDAN lock

544
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket clockwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
Socket
Passenger side
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 544 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

545
uuReplacing Light Bulbs uBrake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance
Brake Light, Tail/Rear Side Marker Light, Rear Turn
Signal Light and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake Light: 21 W
Tail/Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
1Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Light
and Back-Up Light Bulbs
Tail/rear side marker lights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Bolt
BulbSocket
Bulb
Socket
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 545 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

546
uuReplacing Light Bulbs uTaillights
Maintenance
Taillights
Taillights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light Bulb
When replacing, use the following bulb.
1.Open the trunk.
2. Turn the socket counter-clockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
High-Mount Brake Light: 21 W
1High-Mount Brake Light Bulb
High-mount brake light is LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with SPORT modeModels without SPORT mode
Bulb
Socket
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 546 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

547Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Turn the ignition switch to LOCK (0*1.
2. While holding the wiper switch in the MIST
position, turn the ignition switch to ON
(w*1, then to LOCK (0*1.
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 547 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

549
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the holder onto the wiper arm until it
locks.
10. Lower both wiper arms.
11. Turn the ignition switch to ON
(w*1 and
hold the wiper switch in the MIST position
until both wiper arms return to the
standard position.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Holder Blade
Cap
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 549 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

560
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the information display
*/driver information
interface* will display a warning message. If
this happens, have your vehicle inspected by a
dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock* resets.
2 Adjusting the Clock P. 134
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 86
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 560 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

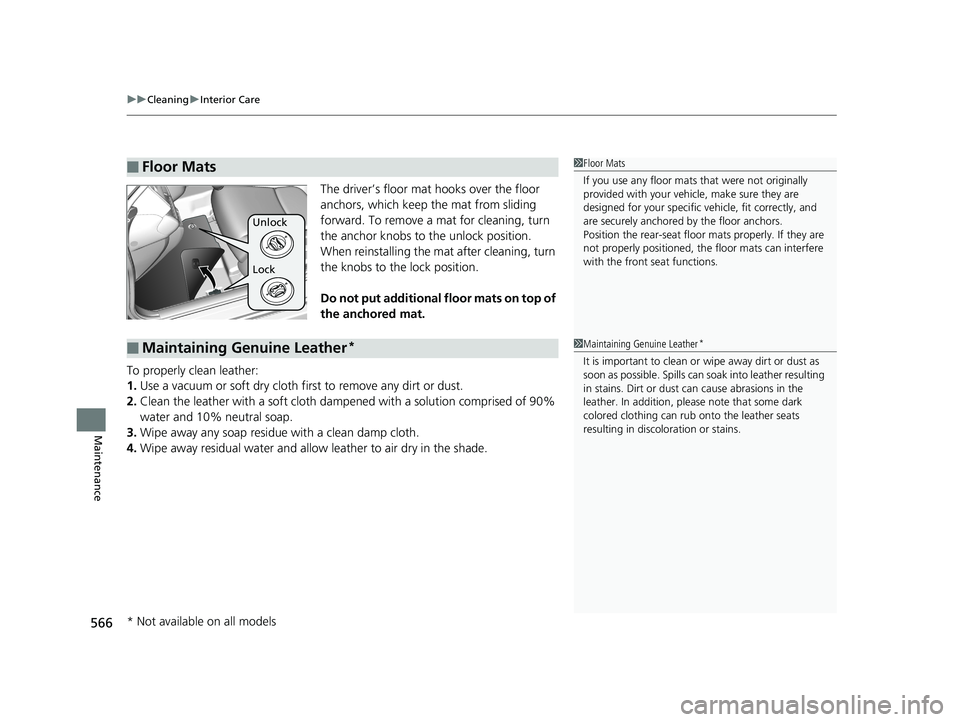

uuCleaning uInterior Care
566
Maintenance
The driver’s floor mat hooks over the floor
anchors, which keep the mat from sliding
forward. To remove a mat for cleaning, turn
the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.
Do not put additional floor mats on top of
the anchored mat.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.
■Floor Mats1Floor Mats
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific ve hicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear-seat floor ma ts properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
Lock Unlock
■Maintaining Genuine Leather*1 Maintaining Genuine Leather*
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 566 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

573
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 574
If a Tire Goes Flat
Changing a Flat Tire
*....................... 575
Temporarily Repair ing a Flat Tire*..... 582
Engine Does Not Start
Checking the Engine ........................ 594
If the Smart Entry Remote Battery is Weak .. 595Emergency Engine Stop ................... 596
Jump Starting .................................... 597
Shift Lever Does Not Move .............. 600
Overheating
How to Handle Overheating ............. 601 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On....603
If the Charging System Indicator Comes
On ................................................. 603
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 604
If the Brake System Indicator (Red) Comes On or Blinks ................................... 605
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 606 If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 607
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 608
Fuses Fuse Locations ................................. 609
Inspecting and Changing Fuses ........ 612
Emergency Towing ........................... 613
When You Cannot Unlock the Fuel Fill Door ................................................. 614
When You Cannot Open the Trunk.....615
Refueling ........................................... 616
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 573 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
