2018 HONDA CIVIC HATCHBACK bluetooth

435
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features
■Displaying e-mail messages
1. Go to the Phone Menu screen.
2Phone Menu screen P. 413
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.
Folder List
Message List
E-mail
Message
18 CIVIC 5D (KA KC KL)-31TGG6100.book 435 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
436
Features
■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 434
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 434
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Message sent appears on the screen
when the reply message was successfully
sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
Only certain phones receiv e and send messages when
paired and connected. For a list of compatible
phones:
•U.S.: Visit automobiles.honda.com/handsfreelink/ ,
or call 1-888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 436 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

437
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Continued
Features

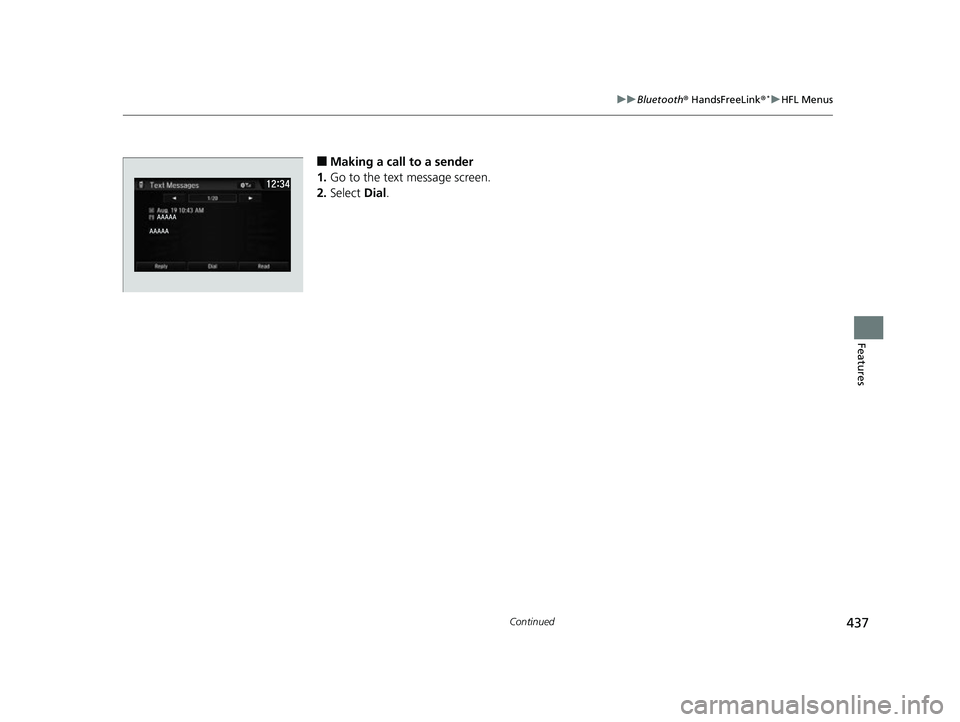

■Making a call to a sender
1. Go to the text message screen.
2. Select Dial.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 437 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

uuBluetooth ® HandsFreeLink ®*uHFL Menus
438
Features
■Automatic collisi on notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition can be sent to the
operator
*1; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to co llect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
*1: Depending on your phone and ad equate cellular coverage, your vehicle’s location may not
be sent to the operator.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency service when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 438 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

439
uuBluetooth ® HandsFreeLink ®*uHFL Menus
Features
■To enable notification
1.Go to the Phone Settings screen.
2Phone Settings screen P. 410
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
18 CIVIC 5D (KA KC KL)-31TGG6100.book 439 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

681
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM *
Immobilizer System
Keyless Access System*
Remote Transmitter
Wireless charger*
Wi-Fi*
* Not available on all models
18 CIVIC 5D (KA KC KL)-31TGG6100.book 681 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

692
Index
Automatic Lighting.................................. 182
Average Fuel Economy ..................... 121, 127
Average Speed .......................................... 127
B
Battery....................................................... 613
Charging System Indicator ................. 82, 661
Jump Starting .......................................... 655
Maintenance (Checking the Battery) ........ 613
Maintenance (Replacing).......................... 615
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 208
Bluetooth ® Audio ..................................... 308
Bluetooth ® HandsFreeLink ®............. 381, 407
Booster Seats (For Children) ....................... 73
Brake System ............................................. 532
Anti-lock Brake System (ABS) ................... 539
Automatic Brake Hold.............................. 536
Brake Assist System ................................. 540
Fluid ........................................................ 585
Foot Brake ............................................... 535
Indicator (Red) ........................... 78, 663, 664
Parking Brake .......................................... 532
Braking Pressure Meter ............................ 130
Brightness Control (Instrument Panel) .... 191
Bulb Replacement ..................................... 587
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 595
Fog Lights ................................................ 589
Front Side Marker Lights .......................... 592 Front Turn Signal Lights ........................... 591
Headlights ............................................... 587
High-Mount Brake Light .......................... 596
Parking/Daytime Running Lights .............. 594
Rear License Plate Light ........................... 596
Side Turn Signal/Emergency Indicator
Lights .................................................... 594
Taillights.................................................. 596
Taillights/Rear Side Marker Lights ............ 596
Bulb Specifications ................................... 678
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 216
Cargo Hook ............................................... 215
Carrying Cargo ................................. 443, 445
Certification Label .................................... 680
Changing Bulbs ........................................ 587
Charging System Indicator ................. 82, 661
Child Safety ................................................. 60
Childproof Door Locks............................. 160
Child Seat .................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64 Using a Tether .......................................... 69
Childproof Door Locks ............................. 160
Cleaning the Exterior ............................... 621
Cleaning the Interior ............................... 618
Climate Control System ........................... 220
Changing the Mode................................ 220
Defrosting the Windshield and Windows .............................................. 224
Dust and Pollen Filter .............................. 617
Recirculation/Fresh Air Mode................... 223
Sensors ................................................... 227
Using Automatic Climate Control............ 220
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 541
Coat Hooks ............................................... 214
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 541
Compact Spare Tire .......................... 642, 679
Console Compartment ............................. 207
Continuously Variable Transmission Creeping................................................. 458
Fluid ....................................................... 584
Kickdown ............................................... 458
Operating the Shift Lever .................. 23, 460
Shift Lever Does Not Move ...................... 658
Shifting ................................................... 459
Controls .................................................... 145
Coolant (Engine) ...................................... 582
Adding the Coolant ................................ 583
Overheating ............................................ 659
18 CIVIC 5D (KA KC KL)-31TGG6100.book 692 ページ ２０１７年１２月２７日　水曜日　午前１１時２分

697
Index
Parking Brake........................................... 532
Parking Brake and Brake System Indicator
(Amber) ..................................................... 79
Parking Brake and Brake System Indicator (Red) .......................... 78, 663, 664
Passenger Front Airb ag Off Indicator....... 58
Passing Indicators ..................................... 181
Playing Bluetooth ® Audio ............... 252, 308
Power Windows ....................................... 172
Precautions While Driving ....................... 457
Rain ........................................................ 457
Pregnant Women ....................................... 44
Puncture (Tire) ......................................... 629
R
Radio (FM/AM)................................. 244, 284
Radio (SiriusXM ®)..................................... 288
Radio Data System (RDS) ................. 245, 286
Range ................................................ 121, 127
RDS (Radio Data System) ................. 245, 286
Readiness Codes (Emissions Testing) ...... 683
Rear Defogger/Heated Door Mirror Button ..................................................... 192
Rear Seat Heaters ..................................... 219
Rear Seats (Folding Down) ...................... 202
Rearview Mirror ....................................... 194
Refueling .................................................. 553
Fuel Gauge ............................................. 118
Gasoline ......................................... 553, 678
Low Fuel Indicator..................................... 85 Regulations
............................... 530, 605, 681
Remote Engine Start with Vehicle
Feedback ................................................. 454
Remote Transmitter ................................. 154
Replacement
Battery .................................................... 615
Bulbs ....................................................... 587
Fuses ............................................... 668, 669
Tires ........................................................ 608
Wiper Blade Rubber ......................... 597, 600
Reporting Safety Defects ......................... 682
Resetting a Trip Meter ..................... 120, 126
Rev Indicators ........................................... 130
Rev Match System ..................................... 467
Road Departure Mitigation (RDM) .......... 509
On and Off .............................................. 510
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 75
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 67
Pregnant Women ...................................... 44 Reminder .................................................. 40
Warning Indicator ............................... 40, 85
Seat Heaters .............................................. 219
Seats .......................................................... 196
Adjusting ................................................ 196
Front Seat Heaters ................................... 218
Front Seats .............................................. 196
Rear Seats ............................................... 202
Seat Heaters ............................................ 219
Security System ......................................... 168
Security System Alarm Indicator................. 93
Select Lever ................................. 23, 459, 466
Operation.................................. 23, 460, 466
Releasing................................................. 658
Won’t Move ............................................ 658
Select/Reset Knob ............................. 120, 126
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 237
Setting the Clock ...................................... 146
Shift Lever ................................... 23, 459, 466
Shift Lever Position Indicator .................... 83
Shift Position Indicator ............................ 460
Shifting (Transmission) ..................... 459, 466
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 317
SiriusXM ® Radio ........................................ 288
Smart Entry with Push Button Start System ..................................................... 149
Snow Tires ................................................. 610
18 CIVIC 5D (KA KC KL)-31TGG6100.book 697 ページ ２０１７年１２月２７日　水曜日　午前１１時２分
