2018 HONDA CIVIC COUPE sensor

487
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng size, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the lower bumper gets dirty.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or und ulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicl e suddenly slows down.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 487 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

489
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
The CMBSTM may activate even when you are aware of a vehicle ahead of you, or
when there is no vehicle ahead. Some examples of this are:
■When Passing
Your vehicle approaches another vehicle ah ead of you and you change lanes to pass.
■At an intersection
Your vehicle approaches or passes another ve hicle that is making a left or right turn.
■On a curve
When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
■Through a low bridge at high speed
You drive under a low or na rrow bridge at high speed.
■Speed bumps, road work sites, train tracks, roadside objects, etc.
You drive over speed bumps, st eel road plates, etc., or your vehicle approaches train
tracks or roadside objects (such as a traffi c sign and guard rail) on a curve or, when
parking, stationary vehicles and walls.
■With Little Chance of a Collision1 Collision Mitigation Braking SystemTM (CMBSTM)*
For the CMBSTM to work properly:
Always keep the radar sensor cover clean.
Never use chemical solvents or polishing powder for
cleaning the sensor cover. Clean it with water or a
mild detergent.
Do not paint, or apply any coverings or paint to the
radar sensor area. This can impact CMBS
TM operation.
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the
CMBS
TM off button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
If the front of the vehicle is impacted in any of the
following situations, the ra dar sensor may not work
properly. Have your vehi cle checked by a dealer:
•The vehicle mounted onto a bump, curb, chock,
embankment, etc.
•You drive the vehicle where the water is deep.
•Your vehicle has a frontal collision.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 489 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

549
Maintenance

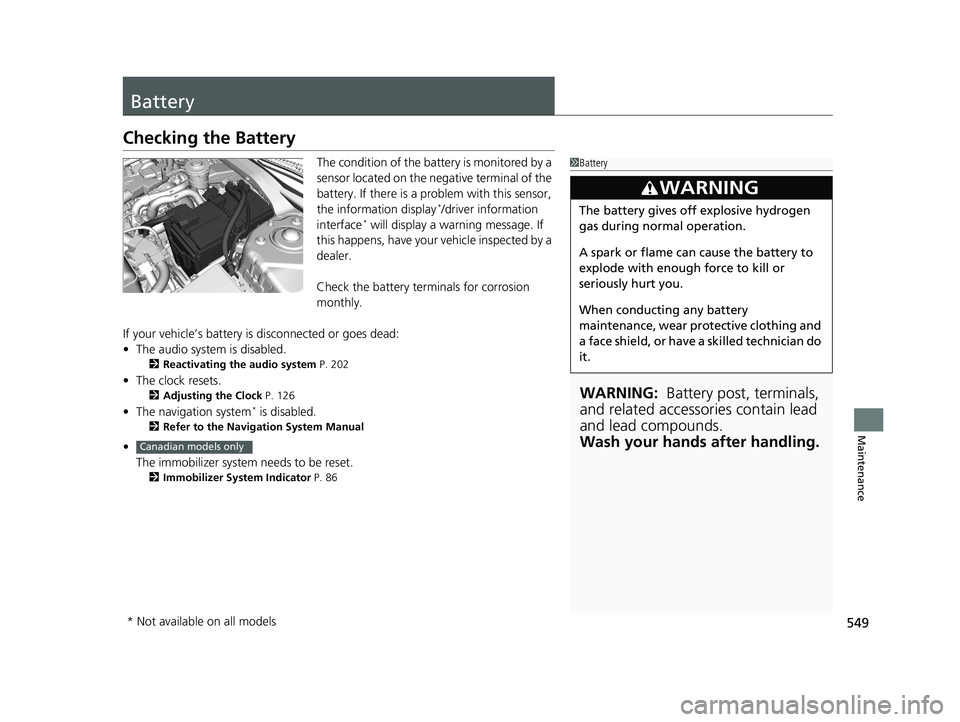

Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the information display
*/driver information
interface* will display a warning message. If
this happens, have your vehicle inspected by a
dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 202
•The clock resets.
2 Adjusting the Clock P. 126
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 86
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 549 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

554
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
Models with Front Sensor Camera
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 554 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

598
uuFuses uFuse Locations
Handling the Unexpected
*2:Models without SPORT mode
*3:Models with SPORT mode
*5:1.5L engine models
Circuit ProtectedAmps
17Daytime Running Lights10 A
18 Back Up 10 A
19Audio15 A
20 Audio AMP*(30 A)
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor(10 A)
24 Horn 10 A
25Left Headlight Low Beam10 A
26 Right Headlight Low Beam 10 A
27VB ACT*5(10 A)
28 Left Headlight High Beam 10 A
29Right Headlight High Beam10 A
30 − −
31−(15 A)
32 − (20 A)*2
−*3
33−*2
Adaptive Damper System*3(20 A)
15 A
34 − −
35−−
36 − −
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock*2−
(5 A)
3−−
4Front Sensor Camera*1, *3
Transmission*2, *4(5 A)
(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Models with CMBS
TM
*4:Continuously variable transmission models
9AIRCON10 A
10−−
11Engine Control5A
12Passenger Side Door Lock10 A
13−(10 A)
14−(20 A)
15Passenger’s Side Power
Window20 A
16Door Lock20 A
17Transmission*1, *4
Front Sensor Camera*2, *3(10 A)(5 A)
18−−
19Moonroof*(20 A)
20−−
21ACG10 A
22Daytime Running Lights10 A
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock10 A
26Passenger Side Door Unlock10 A
27−(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 598 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

Index
619
Index
Index
Numbers
7-Speed Manual Shift Mode................... 426
Operation ............................................... 427
A
ABS (Anti-lock Brake System) .................. 480
Accelerator Position Meter ..................... 121
Accessories and Modifications ................ 559
Accessory Power Socket ........................... 186
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 438
Adding the Coolant ................................. 523
Additives Coolant .................................................. 522
Engine Oil ............................................... 515
Washer ................................................... 526
Additives, Engine Oil ............................... 515
Adjusting Armrest .................................................. 179
Clock ...................................................... 126
Front Head Restraints .............................. 174
Front Seats.............................................. 172
Mirrors.................................................... 169
Rear Seats ............................................... 178
Steering Wheel ....................................... 168
Temperature ................................... 113, 119
Adjusting the Clock ................................. 126
Adjusting the Sound ........................ 212, 247
Agile Handling Assist ............................... 465 Air Conditioning System (Climate Control
System) .................................................... 191
Changing the Mode ................ 191, 192, 193
Defrosting the Windshield and Windows ............................................... 195
Dust and Pollen Filter ............................... 553
Recirculation/Fresh Air Mode ................... 194
Sensors .................................................... 198
Synchronization Mode ............................. 197
Using Automatic Climate Control ............ 191
Air Pressure ............................... 540, 607, 609
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 214, 254
Android Auto ............................................ 291
Anti-lock Brake System (ABS) .................. 480
Indicator .................................................... 81
Apple CarPlay ........................................... 288
Armrest ..................................................... 179
Audio Remote Controls ............................ 203
Audio System ............................ 200, 207, 225
Adjusting the Sound ........................ 212, 247 Audio/Information Screen................ 208, 226
Changing the Home Screen Icon Layout .. 230
Changing the Screen Interface ................ 244
Closing Apps ........................................... 246
Customizing the Meter............................ 231
Display Setup .................................. 213, 248
Error Messages ........................................ 295
General Information ................................ 298
Home Screen........................................... 237
iPod ................................................ 216, 266
Limitations for Manual Operation ............ 249
Menu Customize ..................................... 245
MP3/WMA/AAC .............................. 219, 275
Reactivating ............................................ 202
Recommended Devices............................ 299
Remote Controls ..................................... 203
Security Code .......................................... 202
Selecting an Audio Source ....................... 249
Status Area ............................................. 243
Theft Protection ...................................... 202
USB Flash Drives ...................................... 299
USB Port(s) .............................................. 201
Wallpaper Setup.............................. 210, 235
Audio/Information Screen ............... 208, 226
Authorized Manuals ................................ 617
Auto Door Locking/Unlocking ................. 141
Customize ....................................... 142, 347
Automatic Brake Hold ............................. 477
Indicator............................................ 78, 477
Automatic Brake Hold System Indicator............................................ 78, 477
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 619 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

620
Index
Automatic Lighting.................................. 161
Average Fuel Economy ..................... 112, 118
Average Speed .......................................... 118
B
Battery....................................................... 549
Charging System Indicator ................. 79, 591
Jump Starting .......................................... 585
Maintenance (Checking the Battery) ........ 549
Maintenance (Replacing).......................... 551
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 184
Bluetooth ® Audio ............................. 222, 278
Bluetooth ® HandsFreeLink ®............. 349, 372
Booster Seats (For Children) ....................... 72
Brake System ............................................. 474
Anti-lock Brake System (ABS) ................... 480
Automatic Brake Hold.............................. 477
Brake Assist System ................................. 481
Fluid ........................................................ 525
Foot Brake ............................................... 476
Indicator (Red) ........................... 76, 593, 594
Parking Brake .......................................... 474
Braking Pressure Meter ............................ 121
Brightness Control (Instrument Panel) .... 166
Bulb Replacement ..................................... 527
Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Lights and Back-Up Lights .... 534
Fog Lights ................................................ 529
Front Side Marker Lights .......................... 532 Front Turn Signal Lights ........................... 531
Headlights ............................................... 527
High-Mount Brake Light .......................... 535
Parking/Daytime Running Lights .............. 533
Rear License Plate Light ........................... 535
Side Turn Signal/Emergency Indicator
Lights .................................................... 533
Taillight ................................................... 535
Bulb Specifications ........................... 606, 608
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 407, 409
Certification Label .................................... 610
Changing Bulbs ........................................ 527
Charging System Indicator ................. 79, 591
Child Safety ................................................. 60
Emergency Trunk Opener ........................ 147
Child Seat .................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Larger Children ......................................... 71
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Cleaning the Exterior ............................... 556
Cleaning the Interior ................................ 554 Climate Control System
........................... 191
Changing the Mode................ 191, 192, 193
Defrosting the Windshield and Windows .............................................. 195
Dust and Pollen Filter .............................. 553
Recirculation/Fresh Air Mode................... 194
Sensors ................................................... 198
Synchronization Mode ............................ 197
Using Automatic Climate Control............ 191
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................ 482
Coat Hooks ............................................... 189
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 482
Compact Spare Tire .................. 563, 607, 609
Console Compartment ............................. 183
Continuously Variable Transmission
Creeping................................................. 421
Fluid ....................................................... 524
Kickdown ............................................... 421
Operating the Shift Lever ................ 423, 425
Shift Lever Does Not Move ...................... 588
Shifting ........................................... 422, 424
Controls .................................................... 125
Coolant (Engine) ...................................... 522
Adding the Coolant ................................ 523
Overheating ............................................ 589
Creeping (Continuously Variable
Transmission) .......................................... 421
Cruise Control .......................................... 433
Indicator ................................................... 87
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 620 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

622
Index
FM/AM Radio.................................... 214, 254
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 178
Foot Brake ................................................. 476
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 174
Front Seats ................................................ 171
Adjusting ................................................. 172
Front Sensor Camera ................................ 436
Fuel ...................................................... 25, 493
Economy ................................................. 496
Gauge ..................................................... 110
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81
Range .............................................. 112, 118
Recommendation .................................... 493
Refueling ......................................... 493, 604
Fuel Economy ............................................ 496
Fuel Fill Door ............................... 25, 494, 602
Fuses .......................................................... 597
Inspecting and Changing ......................... 600
Locations ......................................... 597, 598
G
Gasoline (Fuel) Economy ................................................. 496
Gauge ..................................................... 110
Information ............................................. 493
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81 Refueling......................................... 493, 604
Gauges ...................................................... 109
Gear Shift Lever Positions Manual Transmission ............................... 429
Glass (care) ........................................ 554, 557
Glove Box .................................................. 182
G-Meter ..................................................... 121
H
Halogen Bulbs .................................. 527, 530
Handling the Unexpected ........................ 561
HandsFreeLink ® (HFL) ....................... 349, 372
Automatic Import of Cellular Phonebook
and Call History ............................. 361, 385
Displaying Messages................................ 399
HFL Buttons..................................... 349, 372
HFL Menus ...................................... 351, 375
HFL Status Display ........................... 350, 374
In Case of Emergency .............................. 403
Limitations for Manual Operation .... 350, 374
Making a Call .................................. 366, 393
Options During a Call ...................... 371, 396
Phone Setup.................................... 355, 380
Phonebook Phonetic Modification ........... 389
Receiving a Call ............................... 370, 396
Receiving a Text/E-mail Message.............. 397
Ring Tone........................................ 359, 384
Selecting a Mail Account ......................... 398
Speed Dial ....................................... 362, 386
To Set Up Text/E-mail Message Options ... 383 Hazard Warning Button
.............................. 4
HD Radio
TM............................................... 255
Headlights ................................................ 160
Aiming.................................................... 527
Automatic Operation .............................. 161
Dimming......................................... 160, 163
Operating ............................................... 160
Heaters (Seat) ........................................... 190
HFL (HandsFreeLink ®) ...................... 349, 372
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 414, 419
Honda App License Agreement .............. 300
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 280
I
Identification Numbers
Vehicle Identification............................... 610
Ignition Switch ......................................... 155
Illumination Control
Knob ...................................................... 166
Immobilizer System .................................. 148
Immobilizer System Indicator............... 86, 87
Indicators .................................................... 76
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .......................... 91, 438
Anti-lock Brake System (ABS) .................... 81
Automatic Brake Hold ....................... 78, 477
Automatic Brake Hold System ........... 78, 477
Brake Depressing ...................................... 89
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 622 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分
