2018 HONDA CIVIC COUPE display

546
uuChecking and Maintaining Tires uTire Rotation
Maintenance

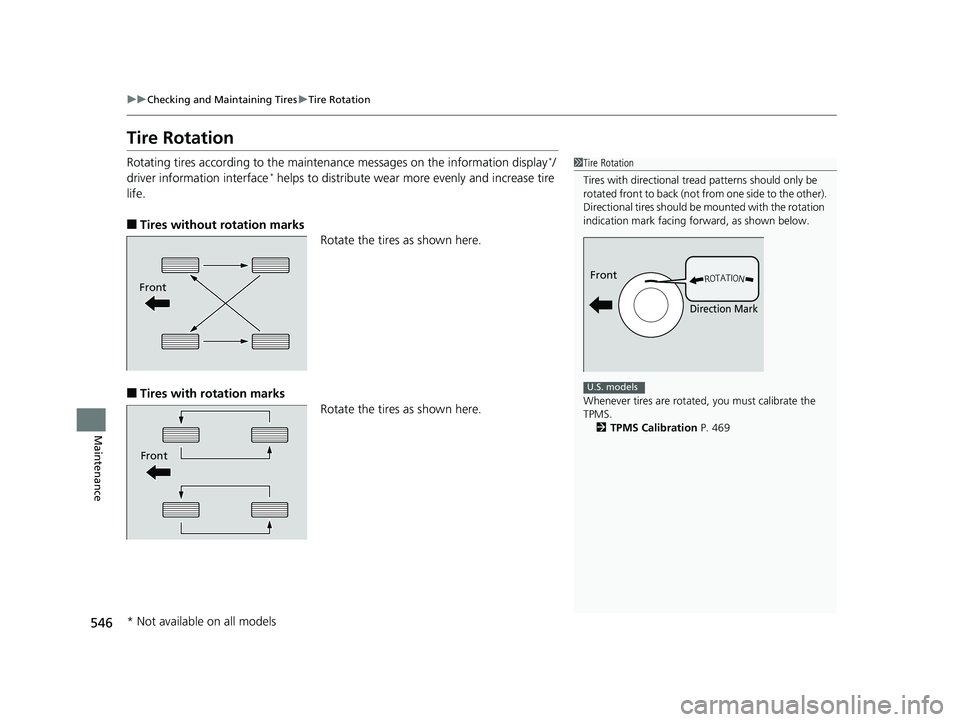

Tire Rotation
Rotating tires according to the maintena nce messages on the information display*/
driver information interface* helps to distribute wear mo re evenly and increase tire
life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 469
Front
Direction Mark
U.S. models
Front
Front
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 546 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

549
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the information display
*/driver information
interface* will display a warning message. If
this happens, have your vehicle inspected by a
dealer.
Check the battery term inals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 202
•The clock resets.
2 Adjusting the Clock P. 126
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 86
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 549 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

Index
619
Index
Index
Numbers
7-Speed Manual Shift Mode................... 426
Operation ............................................... 427
A
ABS (Anti-lock Brake System) .................. 480
Accelerator Position Meter ..................... 121
Accessories and Modifications ................ 559
Accessory Power Socket ........................... 186
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 438
Adding the Coolant ................................. 523
Additives Coolant .................................................. 522
Engine Oil ............................................... 515
Washer ................................................... 526
Additives, Engine Oil ............................... 515
Adjusting Armrest .................................................. 179
Clock ...................................................... 126
Front Head Restraints .............................. 174
Front Seats.............................................. 172
Mirrors.................................................... 169
Rear Seats ............................................... 178
Steering Wheel ....................................... 168
Temperature ................................... 113, 119
Adjusting the Clock ................................. 126
Adjusting the Sound ........................ 212, 247
Agile Handling Assist ............................... 465 Air Conditioning System (Climate Control
System) .................................................... 191
Changing the Mode ................ 191, 192, 193
Defrosting the Windshield and Windows ............................................... 195
Dust and Pollen Filter ............................... 553
Recirculation/Fresh Air Mode ................... 194
Sensors .................................................... 198
Synchronization Mode ............................. 197
Using Automatic Climate Control ............ 191
Air Pressure ............................... 540, 607, 609
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 214, 254
Android Auto ............................................ 291
Anti-lock Brake System (ABS) .................. 480
Indicator .................................................... 81
Apple CarPlay ........................................... 288
Armrest ..................................................... 179
Audio Remote Controls ............................ 203
Audio System ............................ 200, 207, 225
Adjusting the Sound ........................ 212, 247 Audio/Information Screen................ 208, 226
Changing the Home Screen Icon Layout .. 230
Changing the Screen Interface ................ 244
Closing Apps ........................................... 246
Customizing the Meter............................ 231
Display Setup .................................. 213, 248
Error Messages ........................................ 295
General Information ................................ 298
Home Screen........................................... 237
iPod ................................................ 216, 266
Limitations for Manual Operation ............ 249
Menu Customize ..................................... 245
MP3/WMA/AAC .............................. 219, 275
Reactivating ............................................ 202
Recommended Devices............................ 299
Remote Controls ..................................... 203
Security Code .......................................... 202
Selecting an Audio Source ....................... 249
Status Area ............................................. 243
Theft Protection ...................................... 202
USB Flash Drives ...................................... 299
USB Port(s) .............................................. 201
Wallpaper Setup.............................. 210, 235
Audio/Information Screen ............... 208, 226
Authorized Manuals ................................ 617
Auto Door Locking/Unlocking ................. 141
Customize ....................................... 142, 347
Automatic Brake Hold ............................. 477
Indicator............................................ 78, 477
Automatic Brake Hold System Indicator............................................ 78, 477
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 619 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

621
Index
Cup Holders.............................................. 184
Customer Service Information ................ 618
Customized Features ............................... 316
D
Daytime Running Lights .......................... 163
Dead Battery ............................................ 585
Defaulting All the Settings ...................... 348
Defrosting the Windshield and
Windows ................................................. 195
Devices that Emit Radio Waves ............... 611
Dimming
Headlights .............................................. 160
Rearview Mirror ...................................... 169
Dipstick (Engine Oil) ................................ 516
Directional Signals (Turn Signal) ............. 160
Display Button .......................................... 226
Display Setup .................................... 213, 248
Display/Information Button .................... 115
Door Mirrors ............................................. 170
Doors ........................................................ 128
Auto Door Locking.................................. 141
Auto Door Unlocking .............................. 141
Door and Trunk Open Indicator........... 37, 83
Door Open Message ........................... 37, 97
Keys........................................................ 128
Locking/Unlocking the Doors from the Inside .................................................... 138
Locking/Unlocking the Doors from the
Outside ................................................. 131 DOT Tire Quality Grading
........................ 542
Driver Information Interface ................... 114
Warning and Information Messages .......... 97
Driving ....................................................... 405
Braking .................................................... 474
Continuously Variable Transmission ......... 421
Cruise Control ......................................... 433
Shifting Gear ........................................... 428
Shifting Position .............................. 422, 424
Starting the Engine .......................... 412, 415
Dust and Pollen Filter ............................... 553
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 432
Elapsed Time ............................................. 118
Electric Power Steering (EPS) System ........ 83
Indicator ............................................ 83, 595
Electronic Stability Control (ESC) ............. 463
Emergency ................................................ 601
Emergency Engine Stop ........................... 584
Emergency Trunk Opener ................ 147, 603
Emissions Testing (Readiness Codes) ....... 613
Engine Coolant ................................................... 522
Jump Starting .......................................... 585
Oil ........................................................... 515
Starting ........................................... 412, 415
Switch Buzzer .......................................... 155
Engine Coolant ......................................... 522 Adding the Coolant................................. 523
Overheating ............................................ 589
Temperature Gauge ................................ 110
Engine Oil ................................................. 515
Adding .................................................... 518
Checking................................................. 516
Displaying Maintenance Minder Information ................................... 503, 507
Low Oil Pressure Indicator ................. 78, 591
Recommended Engine Oil ....................... 515
ENGINE START/STOP Button .................... 156
EPS (Electric Power Steering) System ...... 595
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 556
Exterior Mirrors ........................................ 170
F
Features.................................................... 199
Filters Dust and Pollen ....................................... 553
Oil ........................................................... 519
Flat Tire ..................................................... 563
Floor Mats ................................................. 555
Fluids Brake/Clutch ........................................... 525
Continuously Variable Transmission
(CVT) ..................................................... 524
Engine Coolant ....................................... 522
Manual Transmission ............................... 524
Windshield Washer ................................. 526
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 621 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

622
Index
FM/AM Radio.................................... 214, 254
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 178
Foot Brake ................................................. 476
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 174
Front Seats ................................................ 171
Adjusting ................................................. 172
Front Sensor Camera ................................ 436
Fuel ...................................................... 25, 493
Economy ................................................. 496
Gauge ..................................................... 110
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81
Range .............................................. 112, 118
Recommendation .................................... 493
Refueling ......................................... 493, 604
Fuel Economy ............................................ 496
Fuel Fill Door ............................... 25, 494, 602
Fuses .......................................................... 597
Inspecting and Changing ......................... 600
Locations ......................................... 597, 598
G
Gasoline (Fuel) Economy ................................................. 496
Gauge ..................................................... 110
Information ............................................. 493
Instant Fuel Economy ....................... 112, 119
Low Fuel Indicator ..................................... 81 Refueling......................................... 493, 604
Gauges ...................................................... 109
Gear Shift Lever Positions Manual Transmission ............................... 429
Glass (care) ........................................ 554, 557
Glove Box .................................................. 182
G-Meter ..................................................... 121
H
Halogen Bulbs .................................. 527, 530
Handling the Unexpected ........................ 561
HandsFreeLink ® (HFL) ....................... 349, 372
Automatic Import of Cellular Phonebook
and Call History ............................. 361, 385
Displaying Messages................................ 399
HFL Buttons..................................... 349, 372
HFL Menus ...................................... 351, 375
HFL Status Display ........................... 350, 374
In Case of Emergency .............................. 403
Limitations for Manual Operation .... 350, 374
Making a Call .................................. 366, 393
Options During a Call ...................... 371, 396
Phone Setup.................................... 355, 380
Phonebook Phonetic Modification ........... 389
Receiving a Call ............................... 370, 396
Receiving a Text/E-mail Message.............. 397
Ring Tone........................................ 359, 384
Selecting a Mail Account ......................... 398
Speed Dial ....................................... 362, 386
To Set Up Text/E-mail Message Options ... 383 Hazard Warning Button
.............................. 4
HD Radio
TM............................................... 255
Headlights ................................................ 160
Aiming.................................................... 527
Automatic Operation .............................. 161
Dimming......................................... 160, 163
Operating ............................................... 160
Heaters (Seat) ........................................... 190
HFL (HandsFreeLink ®) ...................... 349, 372
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 414, 419
Honda App License Agreement .............. 300
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 280
I
Identification Numbers
Vehicle Identification............................... 610
Ignition Switch ......................................... 155
Illumination Control
Knob ...................................................... 166
Immobilizer System .................................. 148
Immobilizer System Indicator............... 86, 87
Indicators .................................................... 76
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .......................... 91, 438
Anti-lock Brake System (ABS) .................... 81
Automatic Brake Hold ....................... 78, 477
Automatic Brake Hold System ........... 78, 477
Brake Depressing ...................................... 89
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 622 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

623
Index
Charging System............................... 79, 591
Collision Mitigation Braking SystemTM
(CMBSTM) .......................................... 93, 94
CRUISE CONTROL ............................. 87, 434
CRUISE MAIN.................................... 87, 433
Door and Trunk Open ......................... 37, 83
ECON Mode ..................................... 87, 432
Electric Power Steering (EPS)
System ............................................ 83, 595
Fog Light .................................................. 85
High Beam ................................................ 85
Immobilizer System ............................. 86, 87
Lane Keeping Assist System (LKAS) ... 92, 458
Lights On .................................................. 85
Low Fuel ................................................... 81
Low Oil Pressure ............................... 78, 591
Low Tire Pressure/TPMS .... 84, 469, 472, 596
Maintenance Minder......................... 88, 503
Malfunction Indicator Lamp .............. 79, 592
Parking Brake and Brake System (Amber) .......................................... 77, 594
Parking Brake and Brake System
(Red) ....................................... 76, 593, 594
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder.............................. 40, 80
Security System Alarm............................... 87
Shift Lever Position.................................... 79
Smart Entry System ................................... 88
SPORT Mode..................................... 83, 431
Starter System........................................... 88
Supplemental Restraint System ........... 57, 81 System Message ........................................ 85
Transmission System .................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA
®)
System............................................. 82, 463
VSA ® OFF .......................................... 82, 464
Information ............................................... 605
Information Display .................................. 111
Warning and Information Messages .......... 95
Instant Fuel Economy ....................... 112, 119
Instrument Panel ........................................ 75
Brightness Control ................................... 166
Interior Lights ........................................... 180
Interior Rearview Mirror .......................... 169
iPod ................................................... 216, 266
J
Jack (Wheel Nut Wrench) ........................ 566
Jump Starting ........................................... 585
K
Key Number Tag ....................................... 129
Keys ........................................................... 128
Keys ........................................................ 128
Number Tag ............................................ 129
Remote Transmitter ................................. 135
Types and Functions ................................ 128
Won’t Turn ................................................ 29 Kickdown (Continuously Variable
Transmission) .......................................... 421
L
Lane Keeping Assist System (LKAS) ......... 456
LaneWatchTM............................................ 467
Language (HFL) ................................ 350, 374
LATCH (Child Seats) .................................... 65
Lights ................................................. 160, 527
Automatic ............................................... 161
Bulb Replacement ................................... 527
Daytime Running Lights........................... 163
Fog Lights ............................................... 163
High Beam Indicator .................................. 85
Interior .................................................... 180
Light Switches ......................................... 160
Lights On Indicator .................................... 85
Turn Signals ............................................ 160
Limited Slip Differential (LSD) ................. 466
Load Limits ................................................ 409
Locking/Unlocking .................................... 128
Auto Door Locking/Unlocking.................. 141
From Inside ............................................. 138
From Outside .......................................... 131
Keys ........................................................ 128
Using a Key ............................................. 136
Low Battery Charge ................................. 591
Low Fuel Indicator ...................................... 81
Low Oil Pressure Indicator ................. 78, 591
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 623 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

624
Index
Low Smart Entry Remote Signal Strength ................................................... 130
Lower Anchors ............................................ 65
Lubricant Specifications Chart ......... 606, 608
Luggage (Maximum Load Limit) .............. 409
M
Maintenance............................................. 499
Adding the Coolant ................................. 523
Battery..................................................... 549
Brake/Clutch Fluid.................................... 525
Cleaning .................................................. 554
Climate Control System ........................... 553
Coolant ................................................... 522
Maintenance Minder
TM............................ 503
Oil ........................................................... 516
Precautions .............................................. 500
Remote Transmitter ................................. 551
Replacing Light Bulbs ............................... 527
Safety ...................................................... 501
Service Items.................................... 505, 509
Tires ........................................................ 539
Transmission Fluid.................................... 524
Under the Hood....................................... 512
Malfunction Indicator Lamp .............. 79, 592
Manual Transmission ................................ 428
Map Lights ................................................ 181
Maximum Load Limit ................................ 409
Meters, Gauges ......................................... 109
Mirrors ....................................................... 169 Adjusting ................................................ 169
Door ....................................................... 170
Exterior ................................................... 170
Interior Rearview ..................................... 169
Modifications (and Accessories) .............. 559
Moonroof ................................................. 154
MP3 ................................................... 219, 275
Multi-View Rear Camera .......................... 491
N
Numbers (Identification).......................... 610
O
Odometer......................................... 111, 117
Oil (Engine) ............................................... 515
Adding .................................................... 518
Checking................................................. 516
Displaying Maintenance Minder Information ................................... 503, 507
Low Oil Pressure Indicator ................. 78, 591
Recommended Engine Oil ....................... 515
Viscosity .................................................. 515
Open Source Licenses ............................... 314
Opening
Trunk ...................................................... 603
Opening/Closing Hood....................................................... 514
Moonroof ............................................... 154
Power Windows ...................................... 151 Trunk ...................................................... 145
Outside Temperature Display ......... 113, 119
Overheating ............................................. 589
P
Paddle Shifters (7-Speed Manual Shift
Mode) ..................................................... 426
Pandora® .................................................. 273
Panic Mode ............................................... 150
Parking ..................................................... 490
Parking Brake ........................................... 474
Parking Brake and Brake System Indicator
(Amber) ............................................. 77, 594
Parking Brake and Brake System Indicator (Red) .......................................... 76, 593, 594
Passenger Front Airbag Off Indicator ....... 58
Passing Indicators ..................................... 160
Playing Bluetooth ® Audio ............... 222, 278
Power Windows ....................................... 151
Precautions While Driving
Rain ........................................................ 420
Pregnant Women ....................................... 44
Puncture (Tire) ......................................... 563
R
Radio (FM/AM)................................. 214, 254
Radio (SiriusXM ®)..................................... 258
Radio Data System (RDS) ................. 215, 256
Range ................................................ 112, 118
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 624 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

626
Index
Outside Temperature Display ........... 113, 119
Temperature Sensor ......................... 113, 119
Temporary Repair Kit (TRK) ..................... 570
Time (Setting) ........................................... 126
Tire Pressure Monitoring System
(TPMS) ...................................................... 469
Indicator ............................................ 84, 596
Tires ........................................................... 539
Air Pressure ............................. 540, 607, 609
Checking and Maintaining ....................... 539
Inspection ................................................ 539
Labeling................................................... 540
Puncture (Flat Tire) ................................... 563
Regulations.............................................. 542
Rotation .................................................. 546
Spare Tire ................................ 563, 607, 609
Summer................................................... 548
Temporary Repair Kit (TRK) ...................... 570
Tire Chains .............................................. 547
Wear Indicators ....................................... 544
Winter ..................................................... 547
Tools .......................................................... 562
Towing Your Vehicle ................................ 411
Emergency............................................... 601
TPMS (Tire Pressure Monitoring
System) .................................................... 469
Indicator ............................................ 84, 596
Transmission .............................. 422, 424, 428
Continuously Variable Transmission .................................. 422, 424
Fluid ........................................................ 524 Manual ................................................... 428
Shift Lever Position Indicator...... 79, 423, 425
TRIP Knob ......................................... 111, 117
Trip Meter ......................................... 111, 117
TRK (Temporary Repair Kit) ..................... 570
Troubleshooting ....................................... 561
Blown Fuse...................................... 597, 598
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 601
Engine Won’t Start .................................. 582
Noise When Braking .................................. 30
Overheating ............................................ 589
Puncture/Flat Tire .................................... 563
Shift Lever Won’t Move ........................... 588
Warning Indicators .................................... 76
Trunk ......................................................... 145
Lid........................................................... 145
Light Bulb........................................ 606, 608
Release Lever........................................... 603
Unable to Open....................................... 603
Turbo Engine Vehicle ............................... 497
Turbo Meter ............................................. 119
Turn Signals .............................................. 160
Indicators (Instrument Panel) ..................... 85
U
Unlocking the Doors ................................ 131
Unlocking the Doo rs from the Inside...... 138
USB Adapter Cable ................................... 200 USB Flash Drives
....................... 219, 275, 299
USB Port(s) ................................................ 201
Using the Smart Entr y with Push Button
Start System ............................................ 131
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 610
Vehicle Stability Assist (VSA ®) ................. 463
Off Button .............................................. 464
Off Indicator ............................................. 82
System Indicator ....................................... 82
Viscosity (Oil) ............................ 515, 607, 609
Voice Control Operation ......................... 250
Audio Commands ................................... 252
Climate Control Commands.................... 253
General Commands ................................ 253
Music Search Commands ........................ 253
On Screen Commands ............................ 253
Phone Commands .................................. 252
Useful Commands .................................. 252
Voice Portal Screen ................................. 251
Voice Recognition ................................... 250
VSA ® (Vehicle Stability Assist) ................. 463
W
Wallpaper......................................... 210, 235
Warning and Information Messages .. 95, 97
Warning Indicator On/Blinking ............... 591
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 626 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分
