7-54
Maintenance
Instrument Panel Fuse
Replacement
1. Turn the engine off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside ofthe fuse panel cover to locate the
suspected fuse location.
5. Pull the suspected fuse straight out. Use the removal tool provided
in the engine compartment fuse
panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are
provided in the instrument panel
fuse panels (or in the engine com-
partment fuse panel). 7. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized retailer of Genesis
Branded products.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not
need for operating the vehicle.
If the headlamps or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced with the
same rating.
Fuse switch
Always, place the fuse switch to the
ON position.
If you move the switch to the OFF
position, some items such as the
audio system and clock must be
reset and the smart key may not
work properly.
OHI076022
OHI076023
OHI076024

7-59
07
Instrument panel fuse panel
Fuse name Fuse rating Circuit protected
MODULE5 10AStop Lamp Switch, Driver/Passenger Door Module
MODULE7 10A
Electro Chromic Mirror, A/V & Navigation Head Unit, AMP,
A/C Control Module, Front A/C Controller, Air Quality
Sensor, Rear Seat Warmer Control Module LH/RH Head
Lamp LH/RH Driver/Passenger CCS Module
Rear CCS Module LH/RH, Driver/Passenger IMS Control
Module, Rear IMS Control Module LH/RH, Rear Seat
Console Switch
IBU3 10AIBU Control Module
E-SHIFTER2 10AElectronic ATM Shift Lever
MEMORY1 10A
Security Indicator, A/C Control Module, Front A/C Controller,
Instrument Cluster, Driver/Passenger IMS Control Module,
Rear IMS Control Module LH/RH, Head-Up Display, Analog
Clock
Driver/Passenger Seat Control Switch, Power Trunk Module,
Rear Seat Control Switch LH/RHM Driver/Passenger Smart
Key, Outside Handle Rear Smart Key Outside Handle
LH/RH
RR LH2P/SEAT25ARear IMS Control Module LH
DRIVER
P/SEAT225ADriver IMS Control Module
P/WINDOW RH30APassenger Power Window Module
Rear Power Window Module RH
MODULE 610A
Crash Pad Switch, Blind Spot Detection Radar LH/RH ECS
Unit, Electric Parking Brake Module, Lane Keeping Assist
Module, Front Console Switch, Steering Tilt & Telescopic
Module
MODULE 10 10ACooling Fan Controller (BLDC), Rear Seat Console Switch,
Around View Unit, Parking Guide Unit
MODULE3 10AGATEWAY (B+ (MCU)), Data Link Connector, Hazard
Switch
SUNROOF 25ASunroof Motor
PASSENGER P/SEAT2 25APassenger IMS Control Module

7-60
Maintenance
Fuse name Fuse rating Circuit protected
RR LH1P/SEAT 30ARear IMS Control Module LH
Rear Electronic Power Seat Relay LH
MODULE8 15AHead Lamp LH/RH, Adaptive Front Lighting Module
MEMORY2 10ADriver Power Outside Mirror
POWER
HANDLE 15ASteering Tilt & Telescopic Module
PASSENGER P/SEAT1 30APassenger IMS Control Module
Passenger Lumbar Support Unit
P/WINDOW LH30ADriver Power Window Module
Rear Power Window Module LH
AIR BAG IND.10AInstrument Cluster, Front A/C Controller
MEMORY3 10APassenger Power Outside Mirror
CURTAIN 15AIBU Control Module
MODULE4 10A
Metal Core Block (PCB #1 - Power Outlet Relay), Analog
Clock, IBU Control Module, Overhead Console Lamp, AUX
& USB Jack AMP, Electronic ATM Shift Lever, Front/Rear
Wireless Charger Front Tray Mood Lamp LH/RH, Front/Rear
Console Lamp, A/V & Navigation Head Unit, Rear Console
Holder Lamp, Around View Unit, Parking Guide Unit, Rear
USB Jack, Rear USB Jack (N/A), Power Outlet Relay
ROOM LAMP 10A
Overhead Console Lamp, Front/Rear Vanity Lamp LH/RH,
Room Lamp, Rear Personal Lamp LH/RH, Glove Box Lamp,
Front Foot Lamp LH/RH, Front/Center Mood Lamp LH/RH
Luggage Lamp LH/RH, Driver/Passenger Seat Foot Lamp,
Driver/Passenger Door Inside Handle Lamp,
Driver/Passenger Door Garnish Lamp, Rear Door Garnish
Lamp, LH/RH, Rear Door Inside Handle Lamp LH/RH
DRIVER
P/SEAT1 30ADriver IMS Control Module, Driver Lumbar Support Unit
CLUSTER 10AInstrument Cluster, Head-Up Display

Changing a Tire with TPMS ........................................................................\
........6-14
Checking tire inflation pressure ........................................................................\
...7-39
Child restraint system (CRS) ........................................................................\
.......2-45Booster seats........................................................................\
........................2-48
Children always in the rear ........................................................................\
.2-45
Forward-facing child restraint system ........................................................2-48
Installing a child restraint system (CRS) ....................................................2-48
Lower Anchors and tether for children .......................................................2-49
Rearward-facing child restraint system..................................\
.....................2-47
Securing a child restraint system seat with "Tether Anchor" system .........3-52
Securing a child restraint system with a lap/shoulder belt .........................3-53
Securing a child restraint with the the LATCH anchors system.................2-51
Selecting a child restraint system (CRS) ....................................................2-46
Child-protector rear door lock........................................................................\
......3-13
Clean air ........................................................................\
.....................................3-140
Climate control air filter........................................................................\
...............7-30
Clock ........................................................................\
..........................................3-149
Clothes hanger ........................................................................\
............................3-150
Combined instrument, see instrument cluster ......................................................3-60
Compact spare tire replacement ........................................................................\
...7-42
Consumer information........................................................................\
..................8-10
Coolant ........................................................................\
.........................................7-24
Cooling fluid, see engine coolant........................................................................\
.7-24
Crankcase emission control system .....................................................................7-8\
3
Cruise control system ........................................................................\
...................5-80
Cup holder ........................................................................\
..................................3-146
Curtain air bags ........................................................................\
............................2-62
Dashboard illumination, see instrument panel illumination ................................3-61
Dashboard, see instrument cluster .......................................................................3\
-60
Daytime running light (DRL) ........................................................................\
....3-107
Defogging (Windshield) ........................................................................\
.............3-137
Defroster ........................................................................\
.....................................3-121 Rear window defroster ........................................................................\
......3-121
Side view mirror defroster ........................................................................\
3-121
Defrosting (Windshield) ........................................................................\
.............3-137
Dimensions ........................................................................\
.....................................8-2
DIS navigation system ........................................................................\
...................4-4
Display illumination, see instrument panel illumination .....................................3-61
I-5

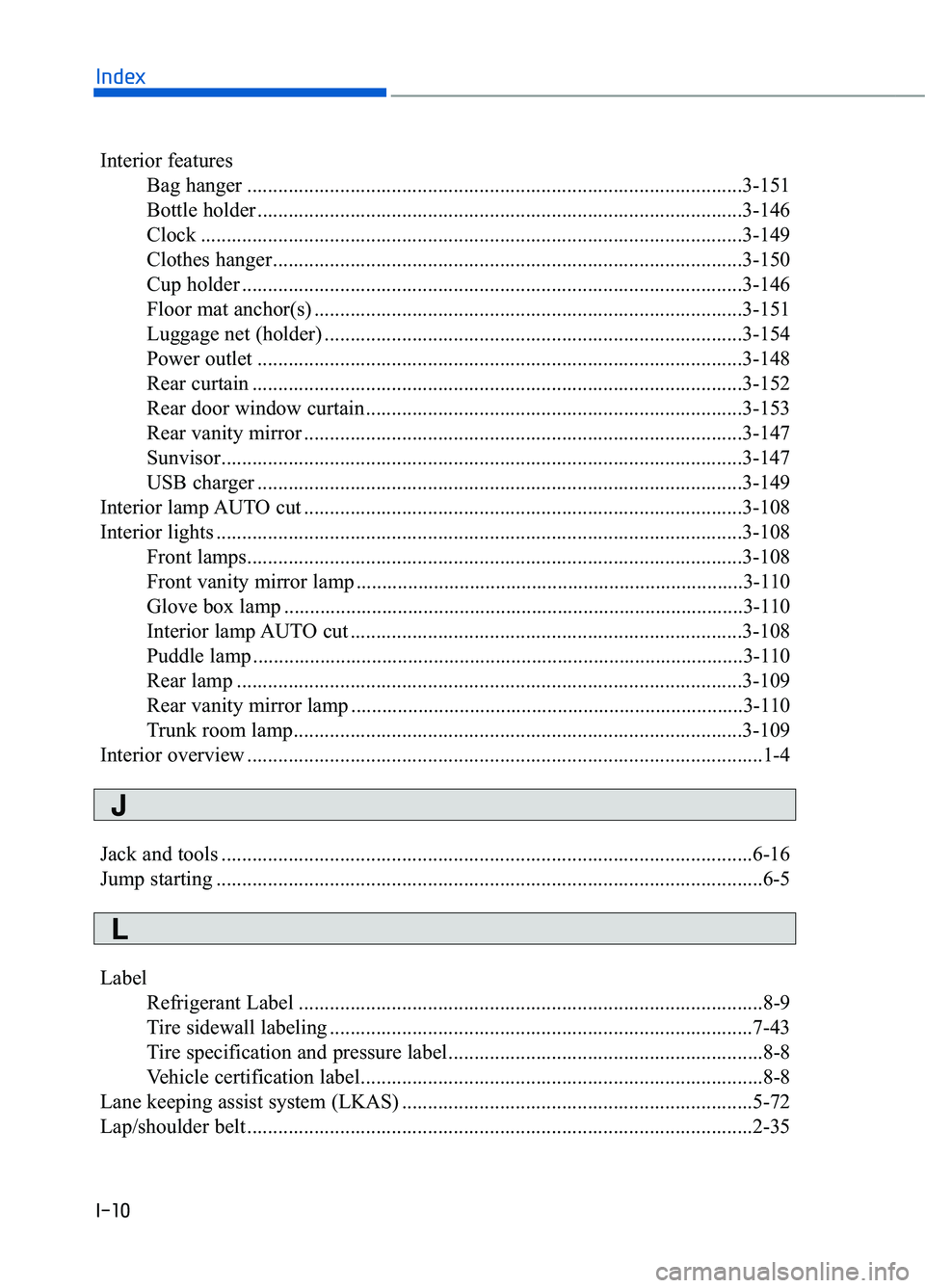

I
D

Interior featuresBag hanger ........................................................................\
........................3-151
Bottle holder ........................................................................\
......................3-146
Clock ........................................................................\
.................................3-149
Clothes hanger........................................................................\
...................3-150
Cup holder ........................................................................\
.........................3-146
Floor mat anchor(s) ........................................................................\
...........3-151
Luggage net (holder) ........................................................................\
.........3-154
Power outlet ........................................................................\
......................3-148
Rear curtain ........................................................................\
.......................3-152
Rear door window curtain ........................................................................\
.3-153
Rear vanity mirror ........................................................................\
.............3-147
Sunvisor........................................................................\
.............................3-147
USB charger ........................................................................\
......................3-149
Interior lamp AUTO cut ........................................................................\
.............3-108
Interior lights ........................................................................\
..............................3-108 Front lamps........................................................................\
........................3-108
Front vanity mirror lamp ........................................................................\
...3-110
Glove box lamp ........................................................................\
.................3-110
Interior lamp AUTO cut ........................................................................\
....3-108
Puddle lamp ........................................................................\
.......................3-110
Rear lamp ........................................................................\
..........................3-109
Rear vanity mirror lamp ........................................................................\
....3-110
Trunk room lamp........................................................................\
...............3-109
Interior overview ........................................................................\
............................1-4
Jack and tools ........................................................................\
...............................6-16
Jump starting ........................................................................\
..................................6-5
Label Refrigerant Label ........................................................................\
..................8-9
Tire sidewall labeling ........................................................................\
..........7-43
Tire specification and pressure label.............................................................8-8
Vehicle certification label........................................................................\
......8-8
Lane keeping assist system (LKAS) ....................................................................5-72\
Lap/shoulder belt ........................................................................\
..........................2-35
I-10
Index
J
L
