2018 GENESIS G80 sensor

5-87
Driving your vehicle
5
In traffic situation
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if
the vehicle ahead of you starts mov-
ing, your vehicle will start as well.
However, if the vehicle stops for
more than 3 seconds, you must
depress the accelerator pedal or
push up the toggle switch (RES+) to
start driving.
If you push the advanced smart
cruise control toggle switch (RES+
or SET-) while Auto Hold and
advanced smart cruise control is
operating (The green AUTO HOLD
indicator), Auto Hold will be released
regardless of accelerator pedal
operation and the vehicle will start to
move.
Sensor to detect distance to
the vehicle ahead
The Smart Cruise Control uses a
sensor to detect distance to the vehi-
cle ahead.
ODH057028
ODH047493L
If the vehicle ahead (vehicle
speed: less than 20 mph
(30km/h)) disappears to the next
lane, the warning chime will
sound and a message will
appear. Adjust your vehicle
speed for vehicles or objects
that can suddenly appear in
front of you by depressing the
brake pedal.
Always pay attention to the road
condition ahead.
CAUTION
ODH057242L

5-88
Driving your vehicle
Warning messages
Smart Cruise Control disabled.
Radar blocked
When the sensor lens cover is
blocked with dirt, snow, or debris, the
Smart Cruise Control System opera-
tion may stop temporarily. If this
occurs, a warning message will
appear on the LCD display. Remove
any dirt, snow, or debris and clean
the radar sensor lens cover before
operating the Smart Cruise Control
System. The Smart Cruise Control
system may not properly activate, if
the radar is totally contaminated, or if
any substance is not detected after
turning on the engine (e.g. in an
open terrain).
Check Smart Cruise Control
System
The message will appear when the
vehicle to vehicle distance control
system is not functioning normally.
Take your vehicle to an authorized
retailer of Genesis Branded products
and have the system checked.
Do not install accessories
around the sensor and do not
replace the bumper by your-
self. It may interfere with the
sensor performance.
Always keep the sensor and
bumper clean.
To prevent sensor cover dam-
age from occurring, wash the
car with a soft cloth. Do not
spray pressurized water
directly on the sensor or sen-
sor cover.
Do not paint the sensor cover.
Do not damage the sensor or
sensor area by a strong
impact. If the sensor moves
slightly off position, the Smart
Cruise Control System will
not operate correctly. If this
occurs, have your vehicle
checked by an authorized
retailer of Genesis Branded
products.
Use only a Genesis/Hyundai
sensor cover for your vehicle.
CAUTION
ODH047497L
ODH047495L

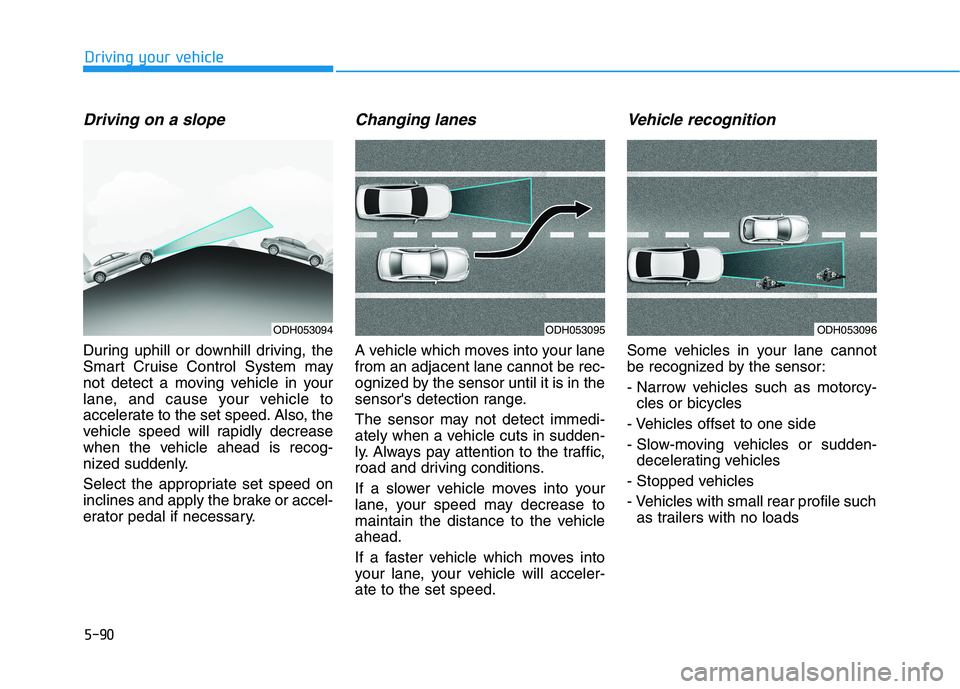

5-90
Driving your vehicle
Driving on a slope
During uphill or downhill driving, the
Smart Cruise Control System may
not detect a moving vehicle in your
lane, and cause your vehicle to
accelerate to the set speed. Also, the
vehicle speed will rapidly decrease
when the vehicle ahead is recog-
nized suddenly.
Select the appropriate set speed on
inclines and apply the brake or accel-
erator pedal if necessary.
Changing lanes
A vehicle which moves into your lane
from an adjacent lane cannot be rec-
ognized by the sensor until it is in the
sensor's detection range.
The sensor may not detect immedi-
ately when a vehicle cuts in sudden-
ly. Always pay attention to the traffic,
road and driving conditions.
If a slower vehicle moves into your
lane, your speed may decrease to
maintain the distance to the vehicle
ahead.
If a faster vehicle which moves into
your lane, your vehicle will acceler-
ate to the set speed.
Vehicle recognition
Some vehicles in your lane cannot
be recognized by the sensor:
- Narrow vehicles such as motorcy-
cles or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Stopped vehicles
- Vehicles with small rear profile such
as trailers with no loads
ODH053096ODH053095ODH053094

5-91
Driving your vehicle
5
A vehicle ahead cannot be recog-
nized correctly by the sensor if any of
following occurs:
- When the vehicle is pointing
upwards due to overloading in the
trunk
- While the steering wheel is operat-
ing
- When driving to one side of the lane
- When driving on narrow lanes or on
curves
Apply the brake or accelerator pedal
if necessary.Your vehicle may accelerate when a
vehicle ahead of you disappears.
When you are warned that the vehi-
cle ahead of you is not detected,
drive with caution.When vehicles are at a standstill and
the vehicle in front of you changes to
the next lane, be careful when your
vehicle starts to move because it
may not recognize the stopped vehi-
cle in front of you.
In this case, you must maintain a
safe braking distance, and if neces-
sary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
ODH053098ODH053097

5-96
Driving your vehicle
If you press the LKAS button again,
the indicator on the cluster display
will go off.
The color of indicator will
change depend on the
condition of LKAS.
- White : Sensor does not detect the
lane marker or vehicle speed is
less than 40 mph (64 km/h).
- Green : Sensor detects the lane
marker and system is able to con-
trol the steering.
LKAS activation
To see the LKAS screen on the
LCD display in the cluster, Tab to
the ASSIST mode ( ). For more
details, refer to "LCD Display" in
chapter 3.
After LKAS is activated, if both lane
markers are detected, vehicle
speed is over 40 mph (64 km/h)
and all the activation conditions are
satisfied, a green steering wheel
indicator will illuminate and the
steering wheel will be controlled.
The Lane Keeping Assist
System is a system to help pre-
vent the driver from leaving the
lane. However, the driver should
not solely rely on the system
but always check the road con-
ditions when driving.
WARNING
ODH057219L

5-102
Limitations of the System
The driver must be cautious in the
below situations may not work prop-
erly when :
It is difficult to distinguish the lane
marker from road when the lane
marker is covered with dust.
It is difficult to distinguish the color
of the lane marker from road.
There is something looks like a
lane marker.
The lane marker is indistinct or
damaged.
The number of lanes increases/
decreases or the lane lines are
crossing (Driving through a toll
plaza/toll gate, merged/divided
lane).
There are more than two lane
markers.
The lane marker is very thick or
thin.
The lane marker is not visible due
to snow, rain, stain, a puddle or
other factors. A shadow is on the lane marker
because of a median strip,
guardrail, noise barriers and oth-
ers.
When the lane markers are compli-
cated or a structure substitutes for
the lines such as a construction
area.
There are crosswalk signs or other
symbols on the road.
The lane marker in a tunnel is cov-
ered with dirt or oil.
The brightness of outside changes
suddenly when entering or existing
a tunnel.
The headlamps are not on at night
or in a tunnel, or light level is low.
There is a boundary structure in
the roadway.
The light of street, sun, oncoming
vehicle and so on reflects from the
water on the road.
When light shines brightly in the
reverse direction you drive.
The lane suddenly disappears
such as at the intersection. The distance from the vehicle
ahead is very short or the vehicle
ahead drives hiding the lane line.
You drive on a steep grade or a
sharp curve.
The vehicle vibrates heavily.
The temperature near inside mirror
is very high due to direct sun light.
The lens or windshield is covered
by strange materials.
The sensor cannot detect the lane
because of fog, heavy rain or snow.
The windshield is fogged by humid
air in the vehicle.
Putting something on the crash
pad.
Driving your vehicle

5-106
Driving your vehicle
Resetting the system
The last break time is set to 00:00
and the driver's attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Alert system.
The Driver Attention Alert system
resets in the following situations.
- The engine is turned OFF.
- The driver unfastens the seat belt
and then opens the driver’s door.
- Stop lasting more than 10 min-
utes.
The Driver attention Alert system
operates again, when the driver
restarts driving.
System standby
The Driver Attention Alert system
enters the ready status and displays
the 'Standby' screen in the following
situations.
- The camera sensor keeps failing to
detect the lanes.
- Driving speed remains under 40
mph (60 km/h) or over 110 mph
(180 km/h).
System malfunction
When the "Check Driver Attention
Alert" warning message appears, the
system is not working properly. In
this case, we recommend you to
have the vehicle inspected by an
authorized retailer of Genesis
Branded products.
ODH047597LODH047602LODH057176L

5-107
Driving your vehicle
5
✽ ✽
NOTICE
The Driver Attention Alert system
utilizes the camera sensor on the
front windshield for its operation.
To keep the camera sensor in the
best condition, you should observe
the followings:
• Do not disassemble camera tem-
porarily for tinted window or
attaching any types of coatings and
accessories. If you disassemble a
camera and assemble it again, take
your vehicle to an authorized
retailer of Genesis Branded prod-
ucts and have the system checked
to need a calibration.
• Do not locate any reflective
objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a mal-func-
tion of the Driver Attention Alert
(DAA) system.
• Pay extreme caution to keep the
camera sensor out of water.
(Continued)(Continued)
• Do not arbitrarily disassemble the
camera assembly, nor apply any
impact on the camera assembly.
• Playing the vehicle audio system
at high volume may offset the
Driver Attention Alert system
warning sounds.
The Driver Attention Alert
system is not a substitute for
safe driving practices, but a
convenience function only. It
is the responsibility of the
driver to always drive cau-
tiously to prevent unexpected
and sudden situations from
occurring. Pay attention to the
road conditions at all times.
It may suggest a break
according to the driver's driv-
ing pattern or habits even if
the driver doesn't feel
fatigued.
The driver, who feels fatigued,
should take a break, even
though there is no break sug-
gestion by the Driver Attention
Alert system.
WARNING
