2018 FORD TAURUS headlamp

Adjusting the Steering Wheel - Vehicles
With: Power Adjustable Steering
Column .........................................................66
Audio Control ..................................................
67
Voice Control ..................................................
68
Cruise Control ................................................
68
Information Display Control .....................
68
Heated Steering Wheel ..............................
68
Pedals
Adjusting the Pedals ....................................
70
Wipers and Washers
Windshield Wipers .........................................
71
Autowipers ........................................................
71
Windshield Washers .....................................
72
Lighting
General Information .....................................
73
Lighting Control ..............................................
73
Autolamps .......................................................
74
Instrument Lighting Dimmer .....................
74

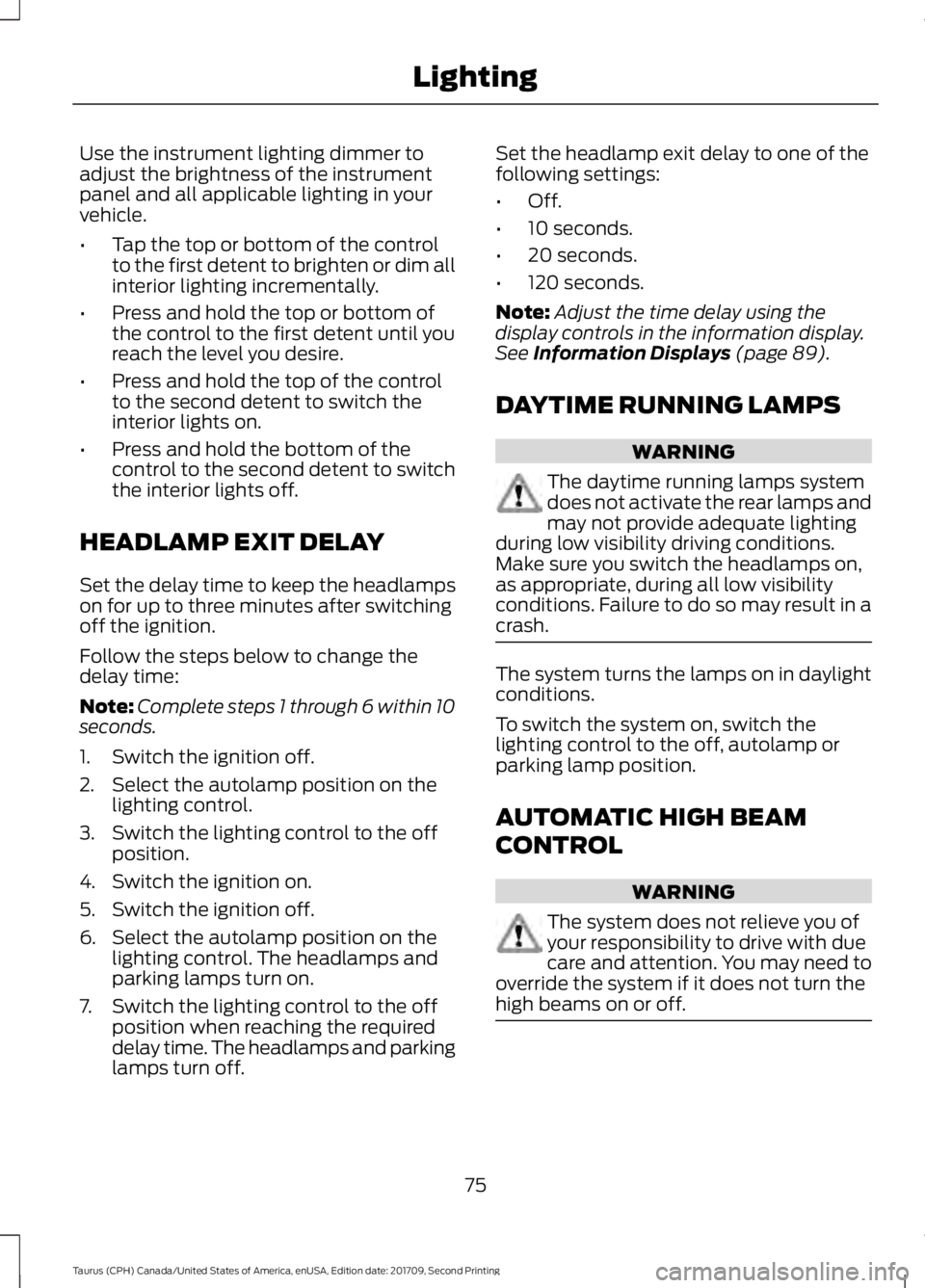

Headlamp Exit Delay ....................................
75
Daytime Running Lamps ............................
75
Automatic High Beam Control .................
75
Direction Indicators .......................................
76
Interior Lamps .................................................
77
Windows and Mirrors
Power Windows .............................................
78
Global Opening ..............................................
79
Exterior Mirrors ...............................................
79
Interior Mirror ...................................................
81
Sun Visors .........................................................
81
Sun Shades ......................................................
81
Moonroof ..........................................................
82
Instrument Cluster
Gauges ..............................................................
83
Warning Lamps and Indicators ...............
85Audible Warnings and Indicators
............
88
Information Displays
General Information ....................................
89
Information Messages ................................
98
Climate Control
Manual Climate Control ...........................
109
Automatic Climate Control - Vehicles With: AM/FM/CD ......................................
110
Automatic Climate Control - Vehicles With: Premium AM/FM/CD ..................
112
Automatic Climate Control - Vehicles With: Sony Audio System ......................
113
Hints on Controlling the Interior Climate ........................................................................\
..
115
Heated Windows and Mirrors ...................
117
Cabin Air Filter ...............................................
118
Remote Start .................................................
118
Seats
Sitting in the Correct Position ..................
119
Head Restraints ............................................
119
Power Seats ....................................................
121
Memory Function ........................................
124
Rear Seats ......................................................
125
Heated Seats .................................................
126
Climate Controlled Seats ..........................
127
Rear Seat Armrest ........................................
127
Universal Garage Door Opener
Universal Garage Door Opener ..............
129
Auxiliary Power Points
Auxiliary Power Points ...............................
133
Storage Compartments
Center Console .............................................
134
Overhead Console .......................................
134
2
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing Table of Contents

Roadside Emergencies
Roadside Assistance
..................................213
Hazard Flashers ............................................
214
Fuel Shutoff ...................................................
214
Jump Starting the Vehicle ........................
215
Post-Crash Alert System ...........................
217
Transporting the Vehicle ...........................
217
Customer Assistance
Getting the Services You Need ...............
219
In California (U.S. Only) ...........................
220
The Better Business Bureau (BBB) Auto Line Program (U.S. Only) ......................
221
Utilizing the Mediation/Arbitration Program (Canada Only) .......................
222
Getting Assistance Outside the U.S. and Canada .......................................................
222
Ordering Additional Owner's Literature ........................................................................\
223
Reporting Safety Defects (U.S. Only) ........................................................................\
224
Reporting Safety Defects (Canada Only) ........................................................................\
224
Fuses
Fuse Specification Chart .........................
226
Changing a Fuse ..........................................
235
Maintenance
General Information ...................................
237
Opening and Closing the Hood ..............
237
Under Hood Overview - 2.0L EcoBoost™ ........................................................................\
238
Under Hood Overview - 3.5L Duratec ........................................................................\
239
Under Hood Overview - 3.5L Ecoboost™ ........................................................................\
.
241
Engine Oil Dipstick - 2.0L EcoBoost™ ........................................................................\
242
Engine Oil Dipstick - 3.5L Duratec/3.5L Ecoboost™ ...............................................
242
Engine Oil Check .........................................
242Oil Change Indicator Reset
.....................
243
Engine Coolant Check ..............................
244
Automatic Transmission Fluid Check - 2.0L EcoBoost™ .....................................
248
Automatic Transmission Fluid Check - 3.5L Duratec/3.5L Ecoboost™ .........
248
Brake Fluid Check ........................................
251
Power Steering Fluid Check ....................
252
Washer Fluid Check ...................................
252
Fuel Filter .......................................................
252
Changing the 12V Battery ........................
252
Checking the Wiper Blades .....................
254
Changing the Wiper Blades ....................
255
Adjusting the Headlamps ........................
255
Changing a Bulb ..........................................
256
Bulb Specification Chart ..........................
257
Changing the Engine Air Filter ...............
259
Vehicle Care
General Information ..................................
260
Cleaning Products .....................................
260
Cleaning the Exterior ................................
260
Waxing .............................................................
261
Cleaning the Engine ...................................
262
Cleaning the Windows and Wiper Blades ........................................................................\
262
Cleaning the Interior ..................................
263
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
263
Cleaning Leather Seats ............................
264
Repairing Minor Paint Damage .............
264
Cleaning the Wheels .................................
264
Vehicle Storage ...........................................
265
Wheels and Tires
General Information ..................................
267
Tire Sealant and Inflator Kit ....................
267
Tire Care ..........................................................
273
Using Summer Tires ..................................
286
Using Snow Chains ....................................
286
4
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing Table of Contents

Autounlock
Autounlock unlocks all the doors when:
•
The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than 12 mph
(20 km/h).
• Your vehicle comes to a stop and you
switch the ignition off or to the
accessory position.
• You open the driver door within 10
minutes of switching the ignition off or
to accessory.
Note: The doors will not autounlock if you
electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.
Enabling or Disabling Autounlock
You can enable or disable the autounlock
feature in the information display or an
authorized dealer can do it for you. See
General Information
(page 89).
Illuminated Entry
(If Equipped)
The interior lamps and some exterior
lamps illuminate when you unlock the
doors with the remote control.
The lamps turn off if:
• The ignition is on.
• You press the remote control lock
button.
• 25 seconds have elapsed.
The lamps do not turn off if:
• You switch them on with the lighting
control.
• Any door is open.
Illuminated Exit
(If Equipped)
The interior lamps and some exterior
lamps illuminate when all doors are closed
and you switch the ignition off. The lamps turn off if all the doors remain
closed and:
•
25 seconds have elapsed.
• You lock your vehicle from the outside.
Battery Saver
If you leave the courtesy lamps, interior
lamps or headlamps on, the battery saver
shuts them off 10 minutes after you switch
the ignition off.
Battery Saver for Intelligent Access
Keys (If Equipped)
If you leave the ignition switched on and
the engine is not running, the battery saver
will turn the ignition off when it detects a
certain amount of battery drain, or after
45 minutes have elapsed.
KEYLESS ENTRY
SECURICODE™ Keyless Entry
Keypad
The keypad is near the driver window. It
illuminates when touched.
Note: If you enter your entry code too fast
on the keypad, the unlock function may not
work. Enter your entry code again more
slowly.
60
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing Doors and Locks

WINDSHIELD WIPERS
Note:
Fully defrost the windshield before
you switch the windshield wipers on.
Note: Make sure you switch the windshield
wipers off before entering a car wash.
Note: If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: Do not operate the wipers on a dry
windshield. This may scratch the glass,
damage the wiper blades or cause the wiper
motor to burn out. Always use the
windshield washers before wiping a dry
windshield. •
Rotate away from you for a long wipe
interval.
• Rotate toward you for a short wipe
interval.
Speed Dependent Wipers
When your vehicle speed increases, the
interval between wipes decreases.
AUTOWIPERS (If Equipped)
Note: Fully defrost the windshield before
you switch the windshield wipers on.
Note: Make sure you switch the windshield
wipers off before entering a car wash. Note:
If streaks or smears appear on the
windshield, clean the windshield and the
wiper blades. If that does not resolve the
issue, install new wiper blades.
Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
Wet or winter driving conditions with ice,
snow or salty road mist can cause
inconsistent and unexpected wiping or
smearing. Use the rotary control to adjust the
sensitivity of the autowipers. When you
select low sensitivity, the wipers operate
when the sensor detects a large amount
of water on the windshield. When you
select high sensitivity, the wipers operate
when the sensor detects a small amount
of water on the windshield.
Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.
In these conditions, you can do the
following:
•
Lower the sensitivity of the autowipers
to reduce the amount of smearing on
the windshield.
• Switch to normal or high-speed wipe.
• Switch autowipers off.
71
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing Wipers and WashersE213986 E256816

GENERAL INFORMATION
Condensation in the Exterior Front
Lamps and Rear Lamps
Exterior front lamps and rear lamps have
vents to accommodate normal changes
in air pressure.
Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is
a possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine mist
can form on the interior of the lens. The
fine mist eventually clears and exits
through the vents during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
•
The presence of a fine mist (no streaks,
drip marks or large droplets).
• A fine mist covers less than 50% of the
lens.
Examples of unacceptable condensation
are:
• A water puddle inside the lamp.
• Streaks, drip marks or large droplets
present on the interior of the lens.
If you see any unacceptable condensation,
have your vehicle checked by an authorized
dealer. LIGHTING CONTROL Off.A
Parking lamps, instrument panel
lamps, license plate lamps and
tail lamps.
B
Headlamps.
C
High Beams Push the lever away from you to switch
the high beam on.
Push the lever away from you again or pull
the lever toward you to switch the high
beam off.
73
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing LightingE224599
A E167827

Headlamp Flasher
Slightly pull the lever toward you and
release it to flash the headlamps.
AUTOLAMPS (If Equipped)
WARNING
The system does not relieve you of
your responsibility to drive with due
care and attention. You may need to
override the system if it does not turn the
headlamps on in low visibility conditions,
for example daytime fog. When the lighting control is in the
autolamps position, the headlamps turn
on in low light situations, or when the
wipers turn on. The headlamps remain on for a period of
time after you switch the ignition off. Use
the information display controls to adjust
the period of time that the headlamps
remain on.
Note:
If you switch the autolamps on, you
cannot switch the high beams on until the
system turns the low beams on.
Windshield Wiper Activated
Headlamps
When you switch the autolamps on, the
headlamps turn on within 10 seconds of
switching the wipers on. They turn off
approximately 60 seconds after you switch
the windshield wipers off.
The headlamps do not turn on with the
wipers:
• During a single wipe.
• When using the windshield washers.
• If the wipers are in intermittent mode.
Note: If you switch autolamps and
autowipers on, the headlamps turn on when
the windshield wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note: If you disconnect and connect the
battery, or fully discharge and charge the
battery, the illuminated components turn
to the maximum setting. 74
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing LightingE163268 E224686
A E173259

Use the instrument lighting dimmer to
adjust the brightness of the instrument
panel and all applicable lighting in your
vehicle.
•
Tap the top or bottom of the control
to the first detent to brighten or dim all
interior lighting incrementally.
• Press and hold the top or bottom of
the control to the first detent until you
reach the level you desire.
• Press and hold the top of the control
to the second detent to switch the
interior lights on.
• Press and hold the bottom of the
control to the second detent to switch
the interior lights off.
HEADLAMP EXIT DELAY
Set the delay time to keep the headlamps
on for up to three minutes after switching
off the ignition.
Follow the steps below to change the
delay time:
Note: Complete steps 1 through 6 within 10
seconds.
1. Switch the ignition off.
2. Select the autolamp position on the lighting control.
3. Switch the lighting control to the off position.
4. Switch the ignition on.
5. Switch the ignition off.
6. Select the autolamp position on the lighting control. The headlamps and
parking lamps turn on.
7. Switch the lighting control to the off position when reaching the required
delay time. The headlamps and parking
lamps turn off. Set the headlamp exit delay to one of the
following settings:
•
Off.
• 10 seconds.
• 20 seconds.
• 120 seconds.
Note: Adjust the time delay using the
display controls in the information display.
See Information Displays (page 89).
DAYTIME RUNNING LAMPS WARNING
The daytime running lamps system
does not activate the rear lamps and
may not provide adequate lighting
during low visibility driving conditions.
Make sure you switch the headlamps on,
as appropriate, during all low visibility
conditions. Failure to do so may result in a
crash. The system turns the lamps on in daylight
conditions.
To switch the system on, switch the
lighting control to the off, autolamp or
parking lamp position.
AUTOMATIC HIGH BEAM
CONTROL
WARNING
The system does not relieve you of
your responsibility to drive with due
care and attention. You may need to
override the system if it does not turn the
high beams on or off. 75
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing Lighting

The system turns on high beams if it is dark
enough and no other traffic is present. If it
detects an approaching vehicle
’s
headlamps or tail lamps, or street lighting
ahead, the system turns off high beams
before they can distract other road users.
Low beams remain on.
Note: The system may not operate properly
if the sensor is blocked. Keep the windshield
free from obstruction or damage.
Note: The system may not operate properly
in cold or inclement conditions. You can
switch on the high beams by overriding the
system.
Note: If the system detects a blockage, for
example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. A message may
appear in the information display if the
camera is blocked.
Note: Using much larger tires or equipping
vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.
A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.
Once the system is active, the high beams
turn on if:
• The ambient light level is low enough.
• There is no traffic in front of your
vehicle.
• The vehicle speed is greater than
approximately 32 mph (51 km/h).
The high beams turn off if:
• The ambient light level is high enough
that high beams are not required.
• The system detects an approaching
vehicle's headlamps or tail lamps.
• The vehicle speed falls below
approximately
27 mph (43 km/h). •
The system detects severe rain, snow
or fog.
• The camera is blocked.
Switching the System On and Off
Switch the system on using the information
display. See Information Displays (page
89
). Switch the lighting control to the
autolamps position. See
Autolamps
(page 74).
Overriding the System
When you switch on the high beams,
pushing or pulling the stalk provides a
temporary override to low beam.
DIRECTION INDICATORS 76
Taurus (CPH) Canada/United States of America, enUSA, Edition date: 201709, Second Printing LightingE224686
A E163272
