2018 FORD POLICE INTERCEPTOR display

Extended Hot and Cold Climate Operation
Change engine oil and filter. 1
5,000 mi (8,000 km)
1 Hot Climates only Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter.1
Every 5,000 mi (8,000 km)
or six months
Perform multi-point inspection.
Change automatic transmission fluid.
30,000 mi (48,000 km)
1 Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See Oil Change
Indicator Reset
(page 180). Exclusive Use of E85 (Flex Fuel Vehicles Only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change
Engine Idle Hour Meter
Your vehicle may been fitted with an idle
meter to indicate how much time the
vehicle has been sitting in park (P) or
neutral (N). The meter is incorporated with
the vehicle odometer. Depressing the
odometer-reset button once displays the
trip odometer (miles [kilometers]
following by a "T" for trip odometer);
depressing the odometer-reset button a
second time displays the idle meter (hours
following by an "H" for hours). The idle meter only accumulates time when the
vehicle is in park (P) or neutral (N).
Displayed time is cumulative for the vehicle
and cannot be reset to zero. Police vehicles
often experience long periods of idling,
during which engine oil continues to break
down but distance is not accumulated on
the odometer.
Engine idle hour meter calculation:
Idle hours x 33 = miles (kilometers)
equivalency
313
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Scheduled Maintenance

Miles (kilometers) driven + miles
(kilometers) equivalency = oil change
interval
Example: When the odometer has
accumulated 3,000 mi (4,800 km) and
the idle meter shows 61 hours, a 5,000 mi
(8,000 km) oil change interval has been
reached: 3,000 mi (4,800 km) + (61 idle
hours x 33 miles [53 km]/idle hour) =
5,015 mi (8,067 km)
.
Exceptions
There are several exceptions to the Normal
Schedule:
Axle and PTU maintenance
: The Power
Transfer Unit (PTU) and rear axle (all
wheel drive only) in your vehicle does not
require any normal scheduled
maintenance. Vehicles are electronically
monitored and notify the driver required
service by displaying a message in the
information display. The PTU lube will be
more likely to require a fluid change if the
vehicle has experienced extended periods
of extreme/severe duty cycle driving.
Changing or checking the PTU lubricant is
not necessary unless the unit has been
submerged in water, shows signs of
leakage or a message indicating required
service is displayed. Contact your
authorized dealer for service. California fuel filter replacement: If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot climate oil change intervals
:
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 5,000 mi (8,000 km)
.
If the available API SM or SN oils are not
available, then the oil change interval is
3,000 mi (4,800 km)
.
Engine air filter and cabin air filter
replacement
: The life of the engine air
filter and cabin air filter is dependent on
exposure to dusty and dirty conditions.
Vehicles operated in these conditions
require frequent inspection and
replacement of the engine air filter and
cabin air filter.
SCHEDULED MAINTENANCE
RECORD
314
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Scheduled Maintenance

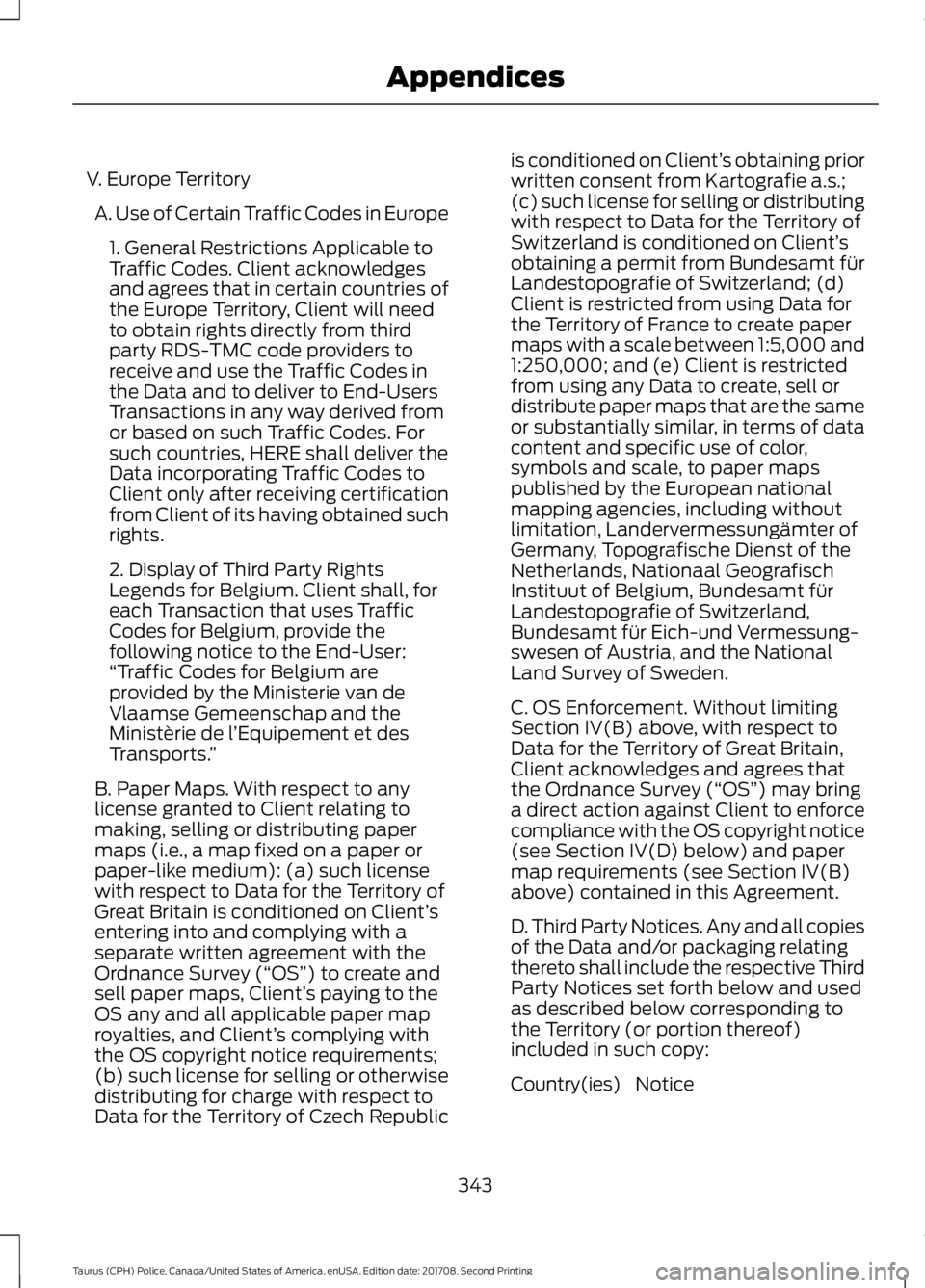

V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic is conditioned on Client’
s obtaining prior
written consent from Kartografie a.s.;
(c) such license for selling or distributing
with respect to Data for the Territory of
Switzerland is conditioned on Client’ s
obtaining a permit from Bundesamt für
Landestopografie of Switzerland; (d)
Client is restricted from using Data for
the Territory of France to create paper
maps with a scale between 1:5,000 and
1:250,000; and (e) Client is restricted
from using any Data to create, sell or
distribute paper maps that are the same
or substantially similar, in terms of data
content and specific use of color,
symbols and scale, to paper maps
published by the European national
mapping agencies, including without
limitation, Landervermessungämter of
Germany, Topografische Dienst of the
Netherlands, Nationaal Geografisch
Instituut of Belgium, Bundesamt für
Landestopografie of Switzerland,
Bundesamt für Eich-und Vermessung-
swesen of Austria, and the National
Land Survey of Sweden.
C. OS Enforcement. Without limiting
Section IV(B) above, with respect to
Data for the Territory of Great Britain,
Client acknowledges and agrees that
the Ordnance Survey (“OS ”) may bring
a direct action against Client to enforce
compliance with the OS copyright notice
(see Section IV(D) below) and paper
map requirements (see Section IV(B)
above) contained in this Agreement.
D. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country(ies)
343
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Appendices

Front Passenger Sensing System............39
Fuel and Refueling.........................................97
Fuel Consumption.......................................103
Calculating Fuel Economy.............................. 104
Filling the Fuel Tank.......................................... 104
Fuel Filler Funnel Location.........................99
Fuel Filter
.........................................................189
Fuel Quality - E85..........................................97 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................... 97
Switching Between E85 and Gasoline........98
Fuel Quality - Gasoline................................99 Choosing the Right Fuel.................................... 99
Fuel Shutoff
.....................................................151
Fuses.................................................................163
Fuse Specification Chart...........................163 Passenger Compartment Fuse Panel........168
Power Distribution Box..................................... 163
G
Gauges...............................................................69 Fuel Gauge............................................................. 69
Information Display............................................. 69
Speedometer........................................................ 69
Gearbox See: Transmission.............................................. 109
General Information on Radio Frequencies...................................................50
General Maintenance Information
.......306
Multi-Point Inspection.................................... 308
Owner Checks and Services.......................... 307
Protecting Your Investment.......................... 306
Why Maintain Your Vehicle?......................... 306
Why Maintain Your Vehicle at Your Dealership?.................................................... 306
Getting Assistance Outside the U.S. and Canada..........................................................159
Getting the Services You Need
...............156
Away From Home............................................... 156
H
Handbrake See: Parking Brake............................................. 120
Hazard Flashers
..............................................151
Headlamp Adjusting See: Adjusting the Headlamps...................... 192Headlamp Exit Delay....................................62
Headrest
See: Head Restraints.......................................... 86
Head Restraints
..............................................86
Adjusting the Head Restraint........................... 87
Tilting Head Restraints ...................................... 87
Heated Windows and Mirrors....................85 Heated Exterior Mirror........................................ 85
Heated Rear Window......................................... 85
Heating See: Climate Control........................................... 83
Hill Start Assist..............................................120 Switching the System On and Off.................121
Using Hill Start Assist......................................... 121
Hints on Controlling the Interior Climate...........................................................84
Defogging the Side Windows in Cold Weather.............................................................. 85
General Hints......................................................... 84
Quickly Cooling the Interior.............................. 84
Quickly Heating the Interior............................. 84
Recommended Settings for Cooling............84
Recommended Settings for Heating...........84
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 84
Hints on Driving With Anti-Lock Brakes
............................................................120
Hood Lock See: Opening and Closing the Hood............174
I
Ignition Switch.................................................92
In California (U.S. Only)
..............................157
Information Display Control.......................57
Information Displays.....................................74 General Information............................................ 74
Information Messages
..................................77
AdvanceTrac ™....................................................... 77
Alarm........................................................................\
. 77
AWD........................................................................\
.. 78
Battery and Charging System.......................... 78
Blind Spot Information and Cross Traffic Alert System...................................................... 79
Brake System......................................................... 79
Doors and Locks................................................... 79
Fuel........................................................................\
... 80
356
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index

Maintenance..........................................................80
Park Aid...................................................................
80
Police Engine Idle feature.................................. 81
Power Steering....................................................... 81
Reminder Messages............................................. 81
Seats........................................................................\
. 82
Tire Pressure Monitoring System................... 82
Traction Control.................................................... 82
Installing Child Restraints............................19 Child Seats............................................................... 19
Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 22
Using Tether Straps............................................. 24
Instrument Cluster........................................69
Instrument Lighting Dimmer.....................62
Instrument Panel Overview........................16
Interior Lamps
.................................................63
Dome Task Lamp................................................. 63
Front Map Lamps................................................. 63
Interior Luggage Compartment Release............................................................54
Interior Mirror....................................................67 Automatic Dimming Mirror............................... 67
Manual Dimming Mirror..................................... 67
Introduction.........................................................7
J
Jump Starting the Vehicle.........................152 Connecting the Jumper Cables..................... 152
Jump Starting....................................................... 153
Preparing Your Vehicle...................................... 152
Removing the Jumper Cables........................ 153
K
Keys and Remote Controls........................50
L
Lighting Control
..............................................60
Headlamp Flasher................................................ 61
High Beams............................................................ 60
Spot Lamp Control............................................... 61
Lighting..............................................................60 General Information........................................... 60
Load Carrying
.................................................136 Load Limit.......................................................136
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................. 141
Vehicle Loading - with and without a Trailer.................................................................. 136
Locking and Unlocking.................................52 Battery Saver......................................................... 53
Hidden Rear Door Locks.................................... 52
Illuminated Entry.................................................. 53
Illuminated Exit..................................................... 53
Locking and Unlocking the Doors with the Key Blade............................................................ 53
Opening a Rear Door From the Inside..........53
Opening the Luggage Compartment...........53
Power Door Locks................................................ 52
Remote Control..................................................... 52
Lug Nuts See: Changing a Road Wheel........................ 223
M
Maintenance...................................................174 General Information........................................... 174
Manual Climate Control
..............................83
Manual Seats..................................................88 Lumbar Adjustment........................................... 89
Moving the Seat Backward and Forward.............................................................. 88
Recline Adjustment............................................ 88
Media Hub......................................................263
Message Center See: Information Displays................................. 74
Mirrors See: Heated Windows and Mirrors................85
See: Windows and Mirrors................................ 65
Mobile Communications Equipment.......13
Motorcraft Parts - 2.0L EcoBoost™..................................................231
Motorcraft Parts - 3.5L Duratec.............233
Motorcraft Parts - 3.5L Ecoboost™.................................................234
Motorcraft Parts - 3.7L...............................235
N
Normal Scheduled Maintenance
..........309
Intelligent Oil-Life Monitor™........................ 309
357
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index

Towing the Vehicle on Four
Wheels..........................................................146
Emergency Towing............................................. 146
Recreational Towing.......................................... 146
Towing...............................................................142
Traction Control.............................................122 Principle of Operation....................................... 122
Transmission Code Designation.............237
Transmission..................................................109
Transporting the Vehicle............................154
U
Under Hood Overview - 2.0L EcoBoost™..................................................175
Under Hood Overview - 3.5L Duratec/ 3.7L..................................................................176
Engine Shield........................................................ 177
Under Hood Overview - 3.5L Ecoboost™..................................................178
USB Port
.........................................................263
Using All-Wheel Drive..................................112 Driving In Special Conditions With
All-Wheel Drive (AWD)................................ 114
Operating AWD Vehicles With Mismatched Tires..................................................................... 114
Operating AWD Vehicles With Spare Tires...................................................................... 113
Using Cruise Control....................................129 Switching Cruise Control Off.......................... 129
Switching Cruise Control On.......................... 129
Using Snow Chains......................................219
Using Stability Control................................124
Using SYNC™ With Your Media Player............................................................285
Accessing Your Play Menu............................. 290
Connecting Your Digital Media Player to the USB Port.......................................................... 285
Media Menu Features...................................... 288
Media Voice Commands................................. 287
System Settings................................................. 292
What's Playing?................................................. 287
Using SYNC™ With Your Phone............269 Accessing Features Through the Phone
Menu.................................................................. 273
Accessing Your Phone Settings.................... 278
Making a Call........................................................ 272
Pairing Subsequent Cell Phones.................270 Pairing Your Cell Phone for the First Time
........................................................................\
..... 269
Phone Options during an Active Call..........272
Phone Voice Commands................................ 270
Receiving Calls.................................................... 272
System Settings................................................. 279
Text Messaging................................................... 276
Using Traction Control................................122 Switching the System Off................................ 122
System Indicator Lights and Messages.......................................................... 122
Using a Switch...................................................... 122
Using the Information Display Controls............................................................. 122
Using Voice Recognition...........................266 Initiating a Voice Session................................ 266
System Interaction and Feedback..............267
Utilizing the Mediation/Arbitration Program (Canada Only).........................159
V
Vehicle Care
....................................................197
General Information........................................... 197
Vehicle Certification Label........................237
Vehicle Identification Number................236
Vehicle Storage............................................202 Battery................................................................... 203
Body........................................................................\
202
Brakes.................................................................... 203
Cooling system................................................... 203
Engine.................................................................... 203
Fuel system.......................................................... 203
General.................................................................. 202
Miscellaneous..................................................... 203
Removing Vehicle From Storage.................203
Tires........................................................................\
203
Ventilation See: Climate Control........................................... 83
VIN See: Vehicle Identification Number............236
Voice Control....................................................57
W
Warning Lamps and Indicators.................70 Airbag readiness................................................... 70
Anti-Lock Braking System................................ 70
360
Taurus (CPH) Police, Canada/United States of America, enUSA, Edition date: 201708, Second Printing Index
