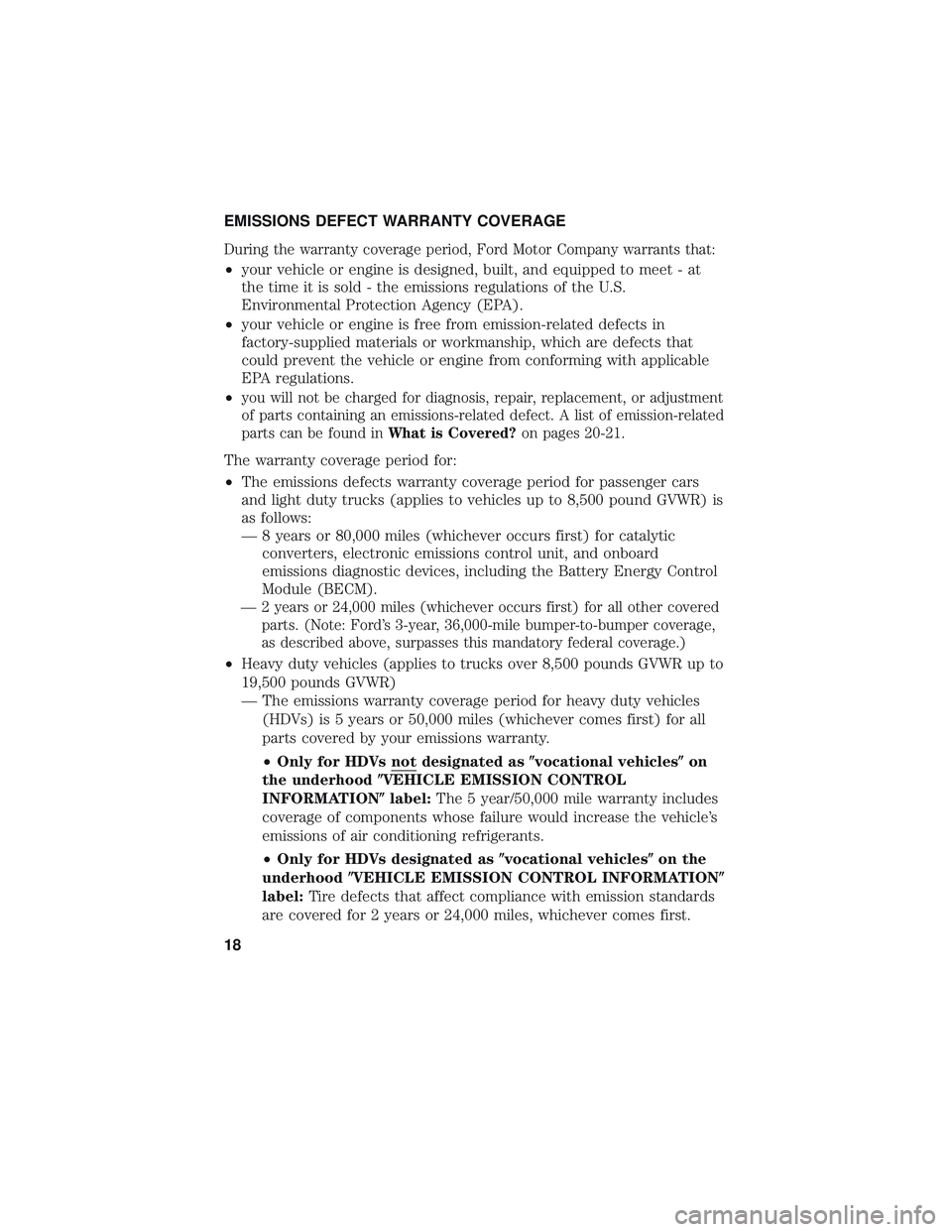

EMISSIONS DEFECT WARRANTY COVERAGE
During the warranty coverage period, Ford Motor Company warrants that:
•your vehicle or engine is designed, built, and equipped to meet - at
the time it is sold - the emissions regulations of the U.S.
Environmental Protection Agency (EPA).
• your vehicle or engine is free from emission-related defects in
factory-supplied materials or workmanship, which are defects that
could prevent the vehicle or engine from conforming with applicable
EPA regulations.
•
you will not be charged for diagnosis, repair, replacement, or adjustment
of parts containing an emissions-related defect. A list of emission-related
parts can be found in What is Covered?on pages 20-21.
The warranty coverage period for:
•The emissions defects warranty coverage period for passenger cars
and light duty trucks (applies to vehicles up to 8,500 pound GVWR) is
as follows:
— 8 years or 80,000 miles (whichever occurs first) for catalytic
converters, electronic emissions control unit, and onboard
emissions diagnostic devices, including the Battery Energy Control
Module (BECM).
—
2 years or 24,000 miles (whichever occurs first) for all other covered parts. (Note: Ford’s 3-year, 36,000-mile bumper-to-bumper coverage,
as described above, surpasses this mandatory federal coverage.)
• Heavy duty vehicles (applies to trucks over 8,500 pounds GVWR up to
19,500 pounds GVWR)
— The emissions warranty coverage period for heavy duty vehicles
(HDVs) is 5 years or 50,000 miles (whichever comes first) for all
parts covered by your emissions warranty.
•Only for HDVs not designated as vocational vehicleson
the underhoodVEHICLE EMISSION CONTROL
INFORMATION label:The 5 year/50,000 mile warranty includes
coverage of components whose failure would increase the vehicle’s
emissions of air conditioning refrigerants.
• Only for HDVs designated as vocational vehicleson the
underhood VEHICLE EMISSION CONTROL INFORMATION
label: Tire defects that affect compliance with emission standards
are covered for 2 years or 24,000 miles, whichever comes first.
18

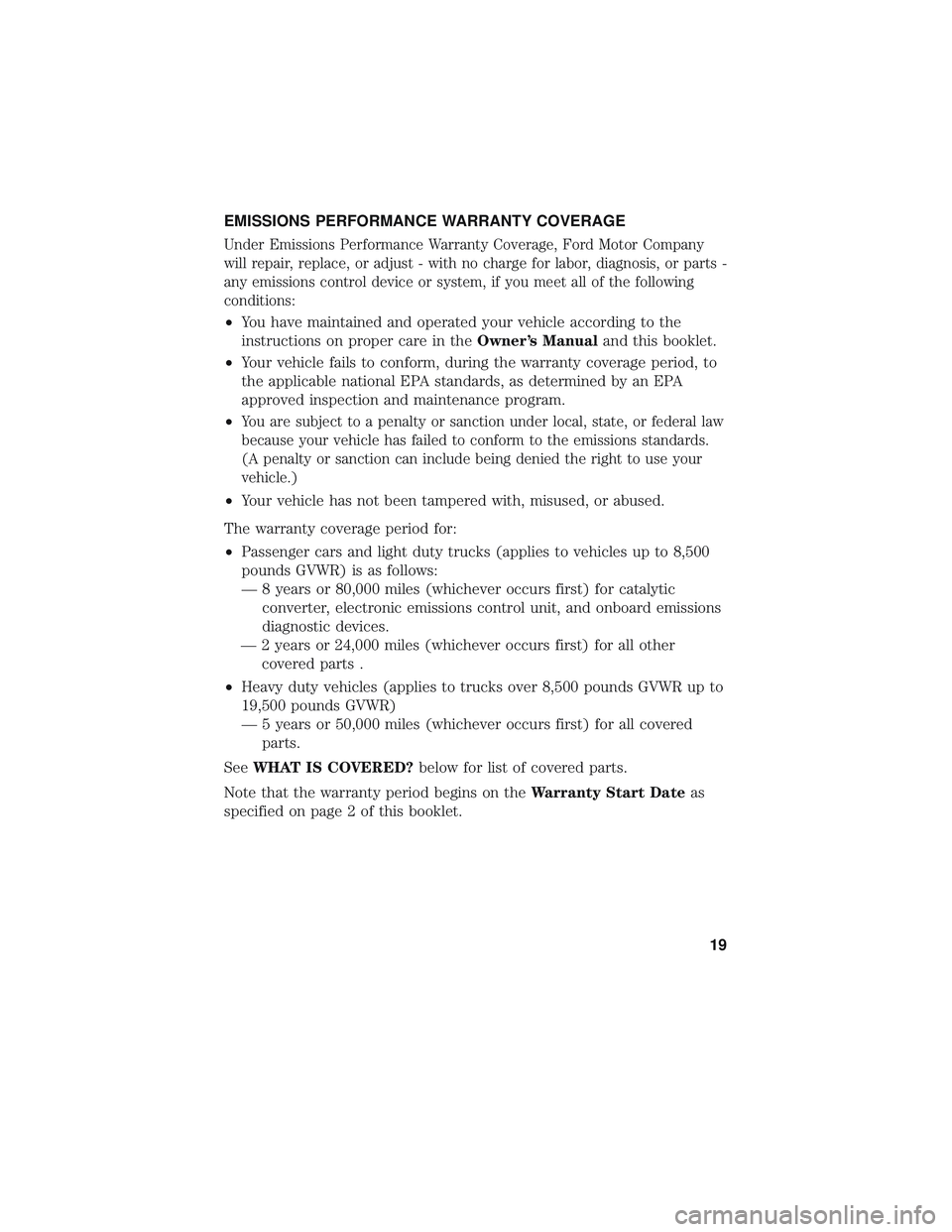

EMISSIONS PERFORMANCE WARRANTY COVERAGE
Under Emissions Performance Warranty Coverage, Ford Motor Company
will repair, replace, or adjust - with no charge for labor, diagnosis, or parts -
any emissions control device or system, if you meet all of the following
conditions:
•You have maintained and operated your vehicle according to the
instructions on proper care in the Owner’s Manualand this booklet.
• Your vehicle fails to conform, during the warranty coverage period, to
the applicable national EPA standards, as determined by an EPA
approved inspection and maintenance program.
•
You are subject to a penalty or sanction under local, state, or federal law
because your vehicle has failed to conform to the emissions standards.
(A penalty or sanction can include being denied the right to use your
vehicle.)
• Your vehicle has not been tampered with, misused, or abused.
The warranty coverage period for:
• Passenger cars and light duty trucks (applies to vehicles up to 8,500
pounds GVWR) is as follows:
— 8 years or 80,000 miles (whichever occurs first) for catalytic
converter, electronic emissions control unit, and onboard emissions
diagnostic devices.
— 2 years or 24,000 miles (whichever occurs first) for all other covered parts .
• Heavy duty vehicles (applies to trucks over 8,500 pounds GVWR up to
19,500 pounds GVWR)
— 5 years or 50,000 miles (whichever occurs first) for all covered
parts.
See WHAT IS COVERED? below for list of covered parts.
Note that the warranty period begins on the Warranty Start Dateas
specified on page 2 of this booklet.
19

WHAT IS COVERED?
For your vehicle if these parts contain an emissions-related defect, they
are covered by both the Emissions Defect Warranty and the Emissions
Performance Warranty.
•Air Flow Sensor
• Air/Fuel Feedback Control
System and Sensors
• Air Induction System
• Catalytic Converters (including
Selective Catalytic Reduction
and Diesel Oxidation Catalysts)
• Cold Start Enrichment System
(diesel only)
• Controls for Deceleration
(diesel only)
• Diesel Exhaust Fluid System
• Diesel Particulate Filter
• Electronic Ignition System
(diesel only)
• Electronic Engine Control
Sensors and Switches
• Powertrain Control Module
(PCM)/Engine Control Module
(ECM)*
• Evaporative Emission Control
System
• Exhaust Gas Recirculation
(EGR) System
• Exhaust Manifold
• Exhaust Pipe
(Manifold to Catalyst)
• Fuel Filler Tube and Seal
(non-diesel only) •
Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank (non-diesel only)
• Fuel Tank Pressure Control
Valve
• Heating Elements of Side
Mirrors and Back Windows
(3.0L Diesel F-150 only)
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assembly -
Engine Charger
• Malfunction Indicator Lamp
(MIL)/On-Board Diagnostic
(OBD) System
• PCV system and Oil Filler Cap
• Secondary Air Injection System
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module
(TCM) and Solenoids
• Turbocharger Assembly
• Vacuum Distribution System
* Includes hardware and emissions related software changes only
20

EXPLANATION OF CALIFORNIA EMISSIONS WARRANTIES
Your Warranty Rights and Obligations
The California Air Resources Board and Ford Motor Company are
pleased to explain the emission control system warranty on your
2018-model vehicle. In California, new motor vehicles must be designed,
built, and equipped to meet the State’s stringent anti-smog standards.
Ford must warrant the emission control system on your vehicle for the
periods of time listed on pages 24-25, provided there has been no abuse,
neglect, or improper maintenance of your vehicle.
Your emission control system may include parts such as the fuel injection
system, the ignition system, catalytic converter, and the engine
computer. Also included may be hoses, belts, connectors, and other
emissions-related assemblies.
Where a warrantable condition exists, Ford Motor Company will repair
your vehicle at no cost to you including diagnosis, parts, and labor.
Manufacturer’s Warranty Coverage
For Vehicles Eligible for California Emission Warranty Coverage
If Gross Vehicle Weight Rating is 14,000 lbs. or less:
For 3 years or 50,000 miles (whichever first occurs):
1. If your vehicle fails a Smog Check inspection, all necessary repairs and
adjustments will be made by Ford to ensure that your vehicle passes the
inspection. This is your emission control system PERFORMANCE WARRANTY.
2. If any emissions-related part on your vehicle is defective, the part will
be repaired or replaced by Ford. This is your short-term emission control
system DEFECTS WARRANTY.
For 7 years or 70,000 miles (whichever first occurs):
If an emissions-related part listed on pages 27 and 29 with coverage for 7
years or 70,000 miles is defective or if its failure causes your vehicle to fail
a Smog Check inspection, the part will be repaired or replaced by Ford.
This is your long-term emission control system DEFECTS WARRANTY.
If Gross Vehicle Weight rating is over 14,000 lbs.:
For 5 years or 50,000 miles (gasoline powered engines and vehicles) or
5 years or 100,000 miles (diesel powered engines and vehicles)
(whichever first occurs):
If an emissions-related part on your vehicle is defective, the part will be
repaired or replaced by Ford. This is your emission control system
DEFECTS WARRANTY.
24

WHAT IS COVERED?
If the parts on the following list contains a defect that affects emissions,
they are covered by the Defects Warranties.
•Air Flow Sensor
• Air/Fuel Feedback Control
System and Sensors
• Air Induction System
• Catalytic Converters (including
Selective Catalytic Reduction
and Diesel Oxidation Catalysts)
• Cold Start Enrichment System
(diesel only)
• Controls for Deceleration
(diesel only)
• Diesel Exhaust Fluid System
• Diesel Particulate Filter
• Electronic Ignition System
(diesel only)
• Electronic Engine Control
Sensors and Switches
• Powertrain Control Module
(PCM)/Engine Control Module
(ECM)*
• Evaporative Emission Control
System
• Exhaust Gas Recirculation
(EGR) System
• Exhaust Manifold
• Exhaust Pipe (Manifold to
Catalyst)
• Fuel Filler Tube and Seal
(non-diesel only) •
Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank (non-diesel only)
• Fuel Tank Pressure Control
Valve
• Heating Elements of Side
Mirrors and Back Windows
(3.0L Diesel F-150 only)
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assembly - Engine
Charger
• Malfunction Indicator Lamp
(MIL)/On-Board Diagnostic
(OBD) System
• PCV System and Oil Filler Cap
• Secondary Air Injection System
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module
(TCM) and Solenoids
• Turbocharger Assembly
• Vacuum Distribution System
* Includes hardware and emissions related software changes only
26

COVERAGE FOR 2018 MODEL VEHICLES (GVWR OF 14,000 LBS. OR LESS) UNDER LONG TERM DEFECTS WARRANTY(Coverage for up to 7 years/70,000 miles, whichever first occurs)
Part Name
1.0L Fiesta
1.0L Focus
1.0L Ecosport
1.5 Fusion
1.5L Escape
1.6L Fiesta
2.0L Fusion
2.0L Focus
2.0L Ecosport
2.0L Taurus
2.0L Escape
2.0L Edge
2.3L Focus
2.3L Mustang
2.3L Explorer
2.5L Fusion
2.5L Escape
2.5L Transit Connect
2.7L Fusion
2.7L Edge
2.7L F-150
3.0L F-150 Diesel
3.2L Transit Diesel
3.3L F-150
3.5L Taurus
3.5L Edge
3.5L Flex
3.5L Explorer
3.5L Expedition
3.5L F-150
3.5L Transit
3.7L Taurus
3.7L Explorer
3.7L Transit
5.0L Mustang
5.0L F-150
5.2L Mustang
6.2L Econoline
6.2L F-Superduty
6.7L F-Superduty Diesel
6.8L Econoline
6.8L F-Superduty
6.8L Strip Chassis
Catalytic Converter X X X X X X X X XXXXXXXXXXXXXXXX XXX XXXXXXXXXXXXXXX
DEF Tank XX
Reductant Pump Assembly XXX
Catalyst and Particulate Filter Assembly XXX
Cylinder Head Temperature Sensor XX
Tube Air Cooler Inlet/Outlet XXTurbocharger Control Valve (Supercharger Bypass Actuator)
X
Cam Timing Assembly XXXXXXXX XXXXXXX XXXX XX XXX XXXXXXXXXXX XXX
Engine Variable Timing Assembly XXX
Engine Variable Camshaft Timing Solenoid XXXX
Crankshaft Position Sensor (CKP) XX X
Variable Camshaft Timing Assembly X X X X X X X X XXXXXXXXXX XX XXX XX XXXXXX
PCV Valve (Part of Rocker Cover Assembly) XXX X X X
Turbo to Manifold Gasket X
Charge Air Cooler Duct XX
Turbocharger XXXXXXXX(3) X XXXXXX XXXXX X(3) X X(3) X X X X
Charge Air Cooler X X(3) X X(3)
Valve Body XXX
Transmission Control Module Assembly X
Transmission Solenoid Assembly XXX X X
Fuel Tank XXXXXXXX XXXXXXXXXXXXX XX XXX XXXXXXXXXX XXX
Fuel Tank Filler Kit XX
EVAP Fuel Vapor Return Tube XX
Fuel Tube Supply X(3) X(3)
Fuel Supply Manifold Assembly XX X X XXXXXX XX XX X
Sensor to Rail Fuel Line X
Fuel Delivery Module XXX XX X X
Fuel Pump to Fuel Rail Tube X(3) X X(3)
Fuel Tube XX
Fuel Pump Assembly XX X X X
Turbocharger Control Solenoid X XX X(3) X X(3) X X
Intake Manifold XXXX X XX XXXXX XX
Exhaust Manifold XX XXX X X X X X X X XXXX X XX
Exhaust Manifold Outlet Pipe X
Resonator Assembly X
Intake Manifold Gasket X
Exhaust Manifold Gasket X XXXXXXXX XX XX XXX X
EGR out pipe gasket XX
27
