Note:: Data, e.g. the Vehicle IdentificationNumber (VIN), SIM Card ID, and data planusage, is shared between Ford and thevehicle network carrier to provide theVehicle Hotspot service in accordance withyour vehicle network carrier agreement,coverage and availability, and may be usedto enable a seamless transition from an oldto new embedded modem and to confirmany updates are successfully delivered.
Note:: For your convenience data usagemay be available for monitoring underSettings but may not reflect actual orcurrent usage. The vehicle network carrieris responsible for providing informationabout your account. Please contact thevehicle network carrier for more information.
Note:: Ford may need to update operatingsystem software on your vehicle, includingsecurity updates and bug fixes, to keepconnected services current, like VehicleHotspot, without prior notice to you.
Note:If you do not have an active vehiclehotspot data plan, open your web browserand go to a website using the HTTP protocolto be automatically redirected to the vehiclenetwork carrier landing page where you canpurchase data. Websites using HTTPS willnot automatically redirect.
Ambient Lighting (If Equipped)
Tap a color once to active ambient lighting.This sets the color to the highest intensity.
You can drag the colors up and down toincrease or decrease the intensity.
To switch ambient lighting off, press theactive color once or drag the active colorall the way down to zero intensity.
Vehicle
Note:Your vehicle may not have all ofthese features.
You can select the following features toupdate their settings.
Door Keypad Code (If equipped)
Select this button to add or erase apersonal door keypad code. To add orerase a personal code, you first need toenter the five-digit factory set code. Youcan find this code on the owner's walletcard in the glove box or from yourauthorized dealer.
Camera Settings
To make adjustments using the touchscreen, select:
Action and DescriptionMessage
Camera Settings
Then select from the following:
When the reverse sensing system detects an object, it displays red,yellow and green highlights at the top of the image.Enhanced ParkAids
You can enable or disable this option using the slider.Rear CameraDelay
You can find more information on the rear-view camera system in the parking aids chapterof your owner manual.
365EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingSYNC™ 3

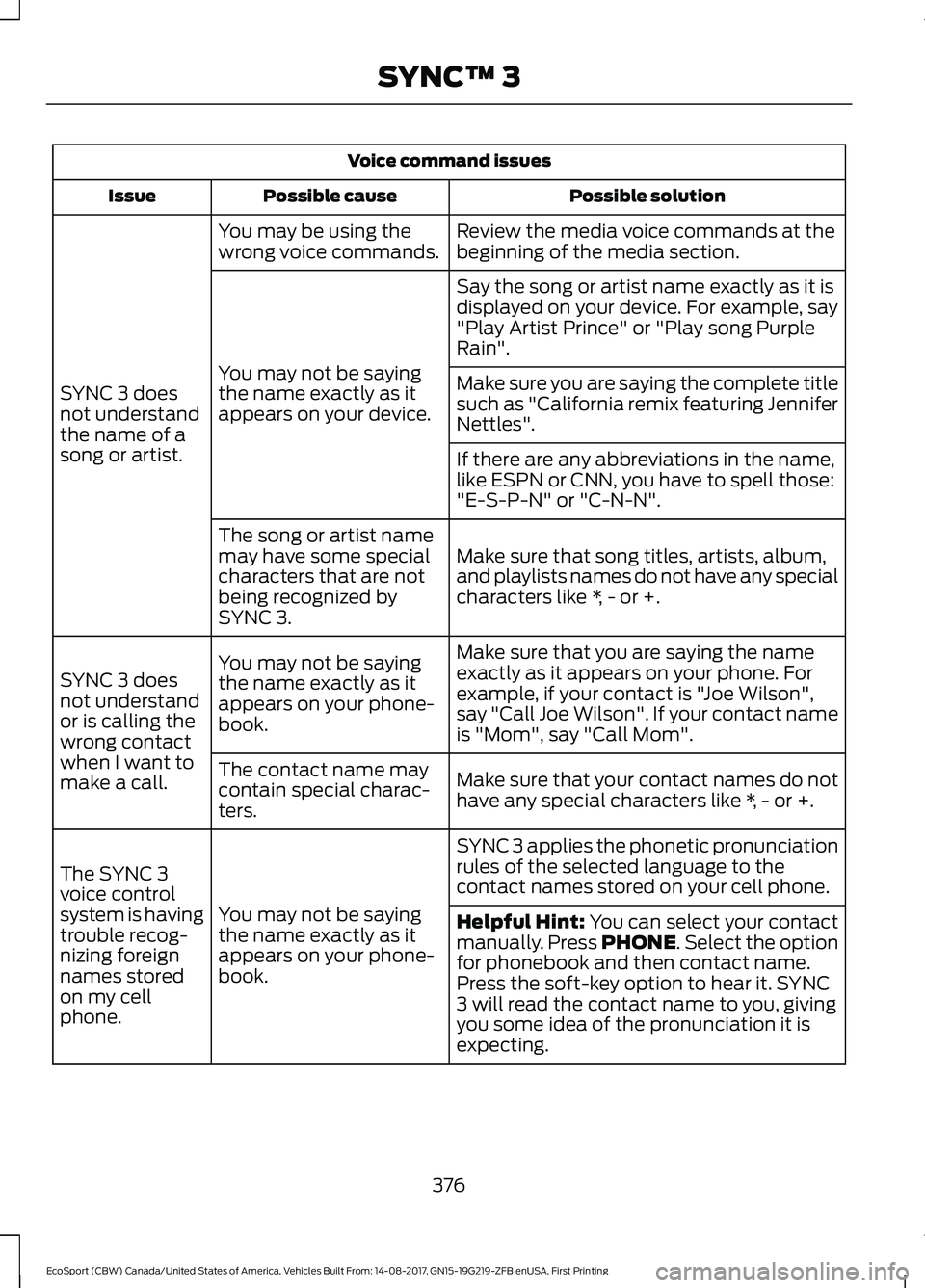

Voice command issues
Possible solutionPossible causeIssue
Review the media voice commands at thebeginning of the media section.You may be using thewrong voice commands.
SYNC 3 doesnot understandthe name of asong or artist.
Say the song or artist name exactly as it isdisplayed on your device. For example, say"Play Artist Prince" or "Play song PurpleRain".
You may not be sayingthe name exactly as itappears on your device.
Make sure you are saying the complete titlesuch as "California remix featuring JenniferNettles".
If there are any abbreviations in the name,like ESPN or CNN, you have to spell those:"E-S-P-N" or "C-N-N".
Make sure that song titles, artists, album,and playlists names do not have any specialcharacters like *, - or +.
The song or artist namemay have some specialcharacters that are notbeing recognized bySYNC 3.
Make sure that you are saying the nameexactly as it appears on your phone. Forexample, if your contact is "Joe Wilson",say "Call Joe Wilson". If your contact nameis "Mom", say "Call Mom".
You may not be sayingthe name exactly as itappears on your phone-book.
SYNC 3 doesnot understandor is calling thewrong contactwhen I want tomake a call.Make sure that your contact names do nothave any special characters like *, - or +.
The contact name maycontain special charac-ters.
SYNC 3 applies the phonetic pronunciationrules of the selected language to thecontact names stored on your cell phone.
You may not be sayingthe name exactly as itappears on your phone-book.
The SYNC 3voice controlsystem is havingtrouble recog-nizing foreignnames storedon my cellphone.
Helpful Hint: You can select your contactmanually. Press PHONE. Select the optionfor phonebook and then contact name.Press the soft-key option to hear it. SYNC3 will read the contact name to you, givingyou some idea of the pronunciation it isexpecting.
376EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingSYNC™ 3

For a complete listing of the accessoriesthat are available for your vehicle, pleasecontact your authorized dealer or visit theonline store web site:
Web Address (United States)
www.Accessories.Ford.com
Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replaceany properly authorized dealer-installedFord Original Accessory found to bedefective in factory-supplied materials orworkmanship during the warranty period,as well as any component damaged by thedefective accessories.
Ford Motor Company will warrant yourFord accessory through the warranty thatprovides the greatest benefit:
•24 months, unlimited mileage.
•The remainder of your new vehiclelimited warranty.
Contact an authorized dealer for detailsand a copy of the warranty.
Exterior Style
•Front and Rear Splash guards.
Interior Style
•Floor mats.
Lifestyle
•Cargo area protector.
•Cargo net*.
•Cargo organizer.
•Trailer towing accessories.
Peace of Mind
•Keyless entry keypad.
•Remote start.
*Ford Licensed Accessories. The accessorymanufacturer designs, develops andtherefore warrants Ford LicensedAccessories, and does not design or testthese accessories to Ford Motor Companyengineering requirements. Contact anauthorized Ford dealer for themanufacturer’s limited warranty detailsand request a copy of the Ford LicensedAccessories product limited warranty fromthe accessory manufacturer.
For maximum vehicle performance, keepthe following information in mind whenadding accessories or equipment to yourvehicle:
•When adding accessories, equipment,passengers and luggage to yourvehicle, do not exceed the total weightcapacity of the vehicle or of the frontor rear axle (GVWR or GAWR asindicated on the Safety ComplianceCertification label). Ask an authorizeddealer for specific weight information.
•The Federal CommunicationsCommission (FCC) and CanadianRadio TelecommunicationsCommission (CRTC) regulate the useof mobile communications systemsthat are equipped with radiotransmitters, for example, two-wayradios, telephones and theft alarms.Any such equipment installed in yourvehicle should comply with FederalCommunications Commission (FCC)and Canadian RadioTelecommunications Commission(CRTC) regulations and should beinstalled only by an authorized dealer.
379EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingAccessories

4
4WDSee: Four-Wheel Drive......................................142
A
A/CSee: Climate Control..........................................98About This Manual...........................................7ABSSee: Brakes...........................................................146ABS driving hintsSee: Hints on Driving With Anti-LockBrakes................................................................146Accessories....................................................379Exterior Style........................................................379Interior Style.........................................................379Lifestyle.................................................................379Peace of Mind......................................................379AccessoriesSee: Replacement PartsRecommendation............................................12Adjusting the Headlamps..........................216Horizontal Aim Adjustment.............................217Vertical Aim Adjustment..................................216Adjusting the Steering Wheel...................65Airbag Disposal...............................................44Air ConditioningSee: Climate Control..........................................98Air FilterSee: Changing the Engine Air Filter.............227Air Vents............................................................98Center Air Vents....................................................98Side Air Vents........................................................98AlarmSee: Anti-Theft Alarm........................................63Ambient Lighting............................................75Anti-Theft Alarm............................................63Alarm System........................................................63Arming the Alarm.................................................64Disarming the Alarm...........................................64Triggering the Alarm............................................63Appendices....................................................401Apps.................................................................350..................................................................................350SiriusXM Traffic and Travel Link...................352
Audible Warnings and Indicators.............84Automatic Transmission...................................84Headlamps On Warning Chime.....................84Key Outside Car....................................................84Low Fuel Reminder.............................................84Seatbelt Reminder..............................................84Audio Control..................................................65Seek, Next or Previous.......................................66Audio System................................................285General Information.........................................285Audio Unit - Vehicles With: SYNC3......................................................................288Adjusting the Volume......................................288Changing Radio Stations................................289Pausing or Playing Media...............................289Seek Down and Previous TrackButton...............................................................289Seek Up and Next Track Button..................289Sound Settings...................................................289Switching the Audio Unit On and Off........288Switching the Screen On and Off...............289Audio Unit - Vehicles With: SYNC.........285Adjusting the Volume......................................286Apps........................................................................287Changing Radio Stations................................286Pausing or Playing Media................................287Returning to the Previous Screen................287Scrolling Through the Menu Options.........287Seek Down and Previous TrackButton................................................................287Seek Up and Next Track Button...................287Selecting a Menu Option................................287Selecting Media.................................................286Selecting the Radio..........................................286Sound Settings...................................................287Switching the Audio Unit On and Off........286System Settings.................................................287Using a Cell Phone............................................288Autolamps..........................................................71Autolamps Delay..................................................72Windshield Wiper ActivatedHeadlamps.........................................................72Automatic Climate Control - VehiclesWith: Electronic AutomaticTemperature Control (EATC)...............100Adjusting the Blower Motor Speed.............100Adjusting the Temperature............................100Changing the Direction of Airflow...............100
435EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex

Side Repeater......................................................222Vanity lamp..........................................................225Changing a Fuse..........................................200Fuses......................................................................200Changing a Road Wheel...........................265Dissimilar Spare Wheel and Tire AssemblyInformation.....................................................265Installing a Road Wheel..................................269Jacking and Lifting Points..............................268Removing a Road Wheel................................268Vehicle Jack..........................................................267Vehicles With a Spare Wheel.......................266Changing the 12V Battery..........................213Remove and Reinstall the Battery...............214Changing the Engine Air Filter.................227Changing the Air Filter Element....................227Changing the Wiper Blades......................215Rear Window Wiper Blade..............................215Windshield Wiper Blades.................................215Checking MyKey System Status...............52MyKey Distance.....................................................52Number of Admin Keys......................................53Number of MyKeys...............................................52Checking the Wiper Blades.......................215Child Restraint and SeatbeltMaintenance.................................................34Child Restraint Positioning.........................25Child Safety.......................................................16General Information.............................................16Child Safety Locks.........................................26Rear Left-Hand Door..........................................26Rear Right-Hand Door........................................27Cleaning Leather Seats.............................233Cleaning Products.......................................229Cleaning the Engine.....................................231Cleaning the Exterior..................................230Cleaning the Headlamps................................230Exterior Chrome Parts.....................................230Exterior Plastic Parts.........................................231Stripes or Graphics.............................................231Underbody.............................................................231Under Hood...........................................................231Cleaning the Instrument Panel andInstrument Cluster Lens.........................233Cleaning the Interior....................................232Cleaning the Wheels..................................234Cleaning the Windows and WiperBlades............................................................232
Clearing All MyKeys.......................................52Climate Control..............................................98Principle of Operation........................................98Cold Weather Precautions........................178Coolant CheckSee: Engine Coolant Check...........................208Cool Box.............................................................117Crash Sensors and Airbag Indicator........43Creating a MyKey.............................................51Vehicles With a Key..............................................51Vehicles With Push-Button Start....................51Cross Traffic Alert.........................................159Blocked Sensors..................................................161Switching the System Off and On................161System Errors........................................................161System Lights, Messages and AudibleAlerts...................................................................161System Limitations.............................................161Using the Cross Traffic Alert System..........159Cruise Control.................................................66Principle of Operation.......................................156Cruise controlSee: Using Cruise Control................................156Customer Assistance.................................186
D
Data Recording..................................................9Event Data Recording..........................................10Service Data Recording........................................9Daytime Running Lamps.............................73Type 1 - Conventional (Non-Configurable)....................................................73Type 2 - Configurable..........................................73Direction Indicators........................................74Doors and Locks.............................................54Drive Belt Routing - 1.0LEcoBoost™.................................................228Drive Belt Routing - 2.0L...........................228Driver and Passenger Airbags....................37Children and Airbags..........................................38Proper Driver and Front Passenger SeatingAdjustment........................................................37Driver and Passenger Knee Airbags.........41Driving Aids.....................................................158Driving Hints....................................................178Driving Through Water................................178
437EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex

I
Ignition Switch................................................119Starting the Engine............................................120Switching the Ignition Off................................119Switching the Ignition On.................................119Switching the Ignition to AccessoryMode....................................................................119In California (U.S. Only)..............................187Information Display Control......................66Information Displays.....................................85General Information............................................85Information Messages.................................88Accessory Power..................................................89Airbag.......................................................................89Alarm........................................................................89Battery and Charging System.........................90Brake System........................................................90Engine........................................................................91Fuel System.............................................................91Hill Start Assist......................................................91Keyless Vehicle......................................................92Lighting....................................................................92Maintenance..........................................................92MyKey.......................................................................93Park Aid....................................................................94Park Brake...............................................................94Power Steering......................................................95Stability Control....................................................95Starting System ...................................................95Tire Pressure Monitoring System...................90Traction Control...................................................96Transmission.........................................................96Vehicle Settings....................................................97Installing Child Restraints.............................17Child Seats...............................................................17Using Lap and Shoulder Belts..........................18Using Lower Anchors and Tethers forCHildren (LATCH)...........................................20Using Tether Straps.............................................22Instrument Cluster........................................80Instrument Lighting Dimmer......................72Interior Lamps..................................................74Courtesy lamp........................................................74Reading lamps.......................................................74Vanity lamp.............................................................75Interior Mirror....................................................78Auto-Dimming Mirror..........................................78
Introduction.........................................................7
J
Jump Starting the Vehicle.........................183Connecting the Jumper Cables.....................183Jump Starting......................................................184Preparing Your Vehicle.....................................183Removing the Jumper Cables........................184
K
Keyless Entry....................................................57Disabled Keys........................................................58General Information............................................57Intelligent Access - Locking and Unlockingthe Doors with the Key Blade.....................58Locking Using Intelligent Access....................57Unlocking only Driver Door...............................58Unlocking Using Intelligent Access................57Keys and Remote Controls.........................45Principle of Operation........................................45
L
Lighting Control..............................................70Headlamp Flasher.................................................71High Beams..............................................................71Parking Lamps.......................................................70Lighting..............................................................70General Information............................................70Load CarriersSee: Roof Racks and Load Carriers.............164Load Carrying.................................................163Load Limit.......................................................165Special Loading Instructions for Owners ofPick-up Trucks and Utility-typeVehicles.............................................................170Vehicle Loading - with and without aTrailer..................................................................165Locking and Unlocking.................................54Autolock..................................................................54Autounlock.............................................................56Illuminated Entry..................................................56Illuminated Exit.....................................................56Locking and Unlocking the Doors with theKey........................................................................55Power Door Locks................................................54
440EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex

Remote Control....................................................54Smart Unlock.........................................................56Luggage Anchor Points..............................163Luggage Covers.............................................163Lug NutsSee: Changing a Road Wheel.......................265Lug Nuts..........................................................270
M
Maintenance.................................................202General Information.........................................202Manual Climate Control - Vehicles With:Electronic Manual TemperatureControl (EMTC)...........................................99Adjusting the Blower Motor Speed...............99Adjusting the Temperature..............................99Changing the Direction of Airflow.................99Switching Air Conditioning On andOff.........................................................................99Switching Climate Control On andOff.........................................................................99Switching Maximum Cooling On andOff.........................................................................99Switching Maximum Defrost On andOff.........................................................................99Switching Recirculated Air On andOff.........................................................................99Manual Seats.................................................106Adjusting the Height of the Driver’sSeat....................................................................108Adjusting the Lumbar Support......................107Moving the Seat Backward andForward.............................................................107Recline Adjustment...........................................108Message CenterSee: Information Displays.................................85MirrorsSee: Windows and Mirrors................................76Mobile Communications Equipment.......13Moonroof...........................................................78Bounce-Back.........................................................79Opening and Closing the Moonroof..............79Venting the Moonroof.........................................79Motorcraft Parts - 1.0LEcoBoost™..................................................275Motorcraft Parts - 2.0L..............................276
MyKey Troubleshooting...............................53All Vehicles..............................................................53MyKey™............................................................50Principle of Operation........................................50
N
Navigation......................................................340Destination Mode..............................................342Map Mode............................................................340Map search Mode..............................................347Navigation Map Updates...............................350Navigation Menu................................................348Route Guidance Mode.....................................345Waypoints............................................................350Normal Scheduled Maintenance..........386
O
Oil Change Indicator Reset......................207Resetting the Oil Life MonitoringSystem..............................................................207Oil CheckSee: Engine Oil Check......................................206Opening and Closing the Hood..............202Closing the Hood...............................................203Opening the Hood.............................................202Ordering Additional Owner'sLiterature.......................................................191Obtaining a French Owner’s Manual...........191
P
Parking Aids.....................................................151Principle of Operation........................................151Parking Brake..................................................147All Vehicles............................................................147Vehicles With AutomaticTransmission....................................................147Vehicles With Manual Transmission............147Passive Anti-Theft System..........................61Principle of Operation.........................................61SecuriLock®............................................................61PATSSee: Passive Anti-Theft System......................61Perchlorate.........................................................11
441EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex

Personal Safety System™..........................35How Does the Personal Safety SystemWork?..................................................................35Phone...............................................................334During a Phone Call..........................................338Making Calls.........................................................337Pairing Your Cell Phone for the FirstTime...................................................................334Phone Menu.........................................................335Receiving Calls....................................................338Smartphone Connectivity..............................339Text Messaging...................................................339Post-Crash Alert System...........................185Power Door LocksSee: Locking and Unlocking.............................54Power Seats...................................................108Adjust Four Way Position.................................110Adjust the Lumbar Support...........................109Adjust the Seat Back Recliner........................110Power Windows..............................................76Accessory Delay.....................................................77Bounce-Back..........................................................76One-Touch Down.................................................76One-Touch Up.......................................................76Window Lock..........................................................77Programming a MyKey.................................52Optional Settings.................................................52Protecting the Environment........................15PunctureSee: Changing a Road Wheel.......................265Push Button Ignition Switch.....................120Failure to Start.....................................................120Starting the Engine............................................120Stopping the Engine When the Vehicle isMoving.................................................................121Stopping the Engine with the VehicleStationary..........................................................121Switching the Ignition On (AccessoryMode)................................................................120
R
Rear Parking Aid.............................................151Rear Seats.........................................................111Flip and Fold Seat.................................................111Folding the Seatback Down............................112Lifting the Seat Cushion.....................................111
Rear Under Floor Storage..........................163Adjustable Load Floor.......................................163Rear View Camera........................................152Enhanced Park Aids...........................................155Using the Rear View Camera System.........153Rear View CameraSee: Rear View Camera....................................152Rear Window Wiper and Washers..........69Rear Window Washer.........................................69Rear Window Wiper............................................69Recommended Towing Weights.............172Refueling..........................................................130Refueling System Overview...........................130Refueling System Warning..............................132Refueling Your Vehicle......................................130Remote Control..............................................45Remote Control With a Folding KeyBlade....................................................................46Replacing the Battery.........................................46Removing a Headlamp...............................217Repairing Minor Paint Damage..............234Replacement PartsRecommendation........................................12Collision Repairs....................................................12Scheduled Maintenance and MechanicalRepairs..................................................................12Warranty on Replacement Parts.....................12Replacing a Lost Key or RemoteControl............................................................49Reporting Safety Defects (CanadaOnly)................................................................191Reporting Safety Defects (U.S.Only)................................................................191Roadside Assistance....................................181Vehicles Sold in Canada: Getting RoadsideAssistance........................................................182Vehicles Sold in Canada: RoadsideAssistance Program Coverage..................182Vehicles Sold in Canada: Using RoadsideAssistance........................................................182Vehicles Sold in the United States: GettingRoadside Assistance.....................................181Vehicles Sold in the United States: UsingRoadside Assistance.....................................181Roadside Emergencies................................181Roof Racks and Load Carriers.................164Adjusting the Crossbar.....................................164
442EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex
