2018 FORD C-MAY HYBRID relay

Protected components
Fuse amp rating
Fuse or relay number
Cooling fan module.
50A Midi
F1
Electric water pump.
50A Midi
F2
Body control module supply 1.
50A Midi
F3
Body control module supply 2.
50A Midi
F4
Not used.
—
F5
Not used.
—
F6
Anti-lock brake system pump.
40A 1
F7
Anti-lock brake system valve.
30A 1
F8
Vacuum pump.
40A 1
F9
Heater blower motor.
40A 1
F10
Engine management.
30A 1
F11
Not used.
—
F12
Powertrain control module relay.
25A 1
F13
Rear wiper.
20A 1
F14
Body control module KL30 supply.
30A 1
F15
Body control module 15 feed.
20A 1
F16
Not used (spare).
20A 1
F17
Front wiper motor.
20A 1
F18
Anti-lock brake system.
5A 2
F19
Electronic stability program module.
Horn.
15A 2
F20
Stop light switch.
5A 2
F21
Vacuum pump monitoring.
5A 2
F22
202
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Engine control module 15.
5A 2
F23
Powertrain control module 15.
Transmission oil pump 15.
Relay coils.
5A 2
F24
Light switch module.
Motor electronic cooling pump.
10A 2
F25
Electronic power assist steering module
15.
5A 2
F26
Mass air flow sensor.
5A 2
F27
Powertrain control module.
15A 2
F28
Electronic air conditioning compressor.
10A 2
F29
Positive temperature coefficient heater.
Engine control module.
10A 2
F30
Powertrain control module.
Not used (spare).
5A 2
F31
Vehicle power 2.
20A 2
F32
Vehicle power 4.
15A 2
F33
Injectors.
10A 2
F34
Vehicle power 3.
10A 2
F35
Vehicle power 1.
20A 2
F36
Vacuum pump.
Micro relay
R1
Horn.
Micro relay
R2
Hybrid powertrain control.
Micro relay
R3
Front wiper.
Micro relay
R4
Vacuum pump.
Micro relay
R5
Front and rear wiper high-low.
Micro relay
R6
Not used.
—
R7
203
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Ignition feed.
Power relay
R8
Not used.
—
R9
Not used.
—
R10
Not used.
—
R11
Cooling fan.
Power relay
R12
Heater blower.
Mini relay
R13
Engine control relay.
Mini relay
R14
1 Cartridge fuse.
2 Mini fuse.
Passenger Compartment Fuse
Panel
The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it.
204
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Fuel pump supply.
20A
F56
Not used.
—
F57
Not used (spare).
5A
F58
Passive anti-theft system.
5A
F59
Interior light.
10A
F60
Driver door switch pack.
Glove box illumination.
Overhead console switch bank.
205

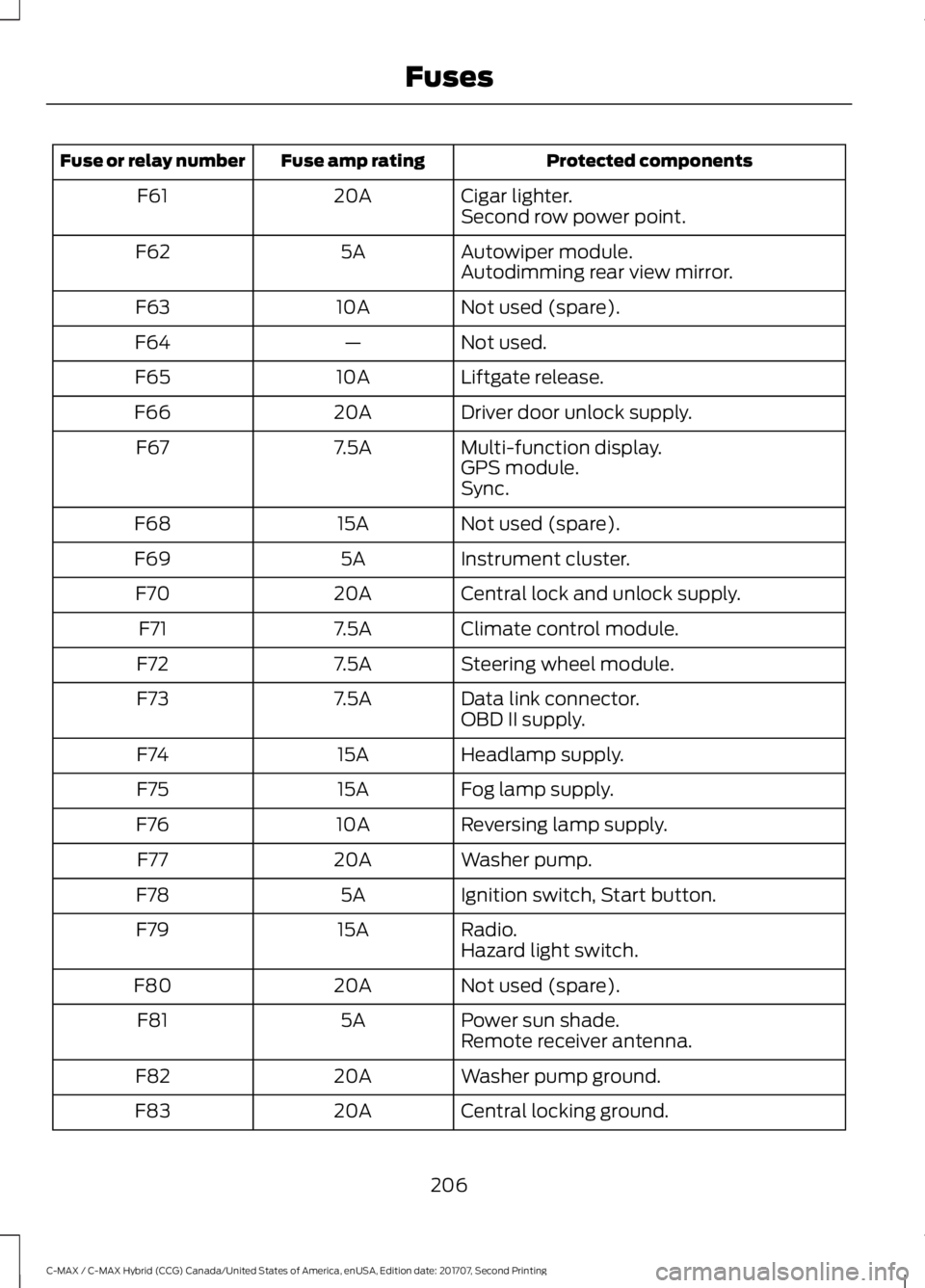

C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing FusesE129926

Protected components
Fuse amp rating
Fuse or relay number
Cigar lighter.
20A
F61
Second row power point.
Autowiper module.
5A
F62
Autodimming rear view mirror.
Not used (spare).
10A
F63
Not used.
—
F64
Liftgate release.
10A
F65
Driver door unlock supply.
20A
F66
Multi-function display.
7.5A
F67
GPS module.
Sync.
Not used (spare).
15A
F68
Instrument cluster.
5A
F69
Central lock and unlock supply.
20A
F70
Climate control module.
7.5A
F71
Steering wheel module.
7.5A
F72
Data link connector.
7.5A
F73
OBD II supply.
Headlamp supply.
15A
F74
Fog lamp supply.
15A
F75
Reversing lamp supply.
10A
F76
Washer pump.
20A
F77
Ignition switch, Start button.
5A
F78
Radio.
15A
F79
Hazard light switch.
Not used (spare).
20A
F80
Power sun shade.
5A
F81
Remote receiver antenna.
Washer pump ground.
20A
F82
Central locking ground.
20A
F83
206
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Drive door unlock ground.
20A
F84
Electronic 15 feed.
7.5A
F85
Restraints control module.
10A
F86
Passenger air bag deactivation indicator.
Not used (spare).
15A
F87
Not used (spare).
25A
F88
Not used.
—
F89
Luggage Compartment Fuse Panel
The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses. Protected components
Fuse amp rating
Fuse or relay number
Hands-free liftgate entry module.
5A 1
F1
Keyless vehicle module.
10A 1
F2
Keyless vehicle door handles.
5A 1
F3
Door control unit front left.
25A 1
F4
207
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing FusesE129927

Protected components
Fuse amp rating
Fuse or relay number
Door control unit front right.
25A 1
F5
Door control unit rear left.
25A 1
F6
Door control unit rear right.
25A 1
F7
Passenger seat motor.
25A 1
F8
Driver seat motor.
25A 1
F9
Heated rear window.
25A 1
F10
Ignition relay.
5A 1
F11
Battery electronics control module.
15A 1
F12
Not used.
—
F13
Not used (spare).
10A 1
F14
Not used.
—
F15
Not used.
—
F16
Battery electronics control module.
10A 1
F17
Battery electronics control module — fan.
15A 1
F18
Not used (spare).
15A 1
F19
Not used.
—
F20
Smart datalink connector.
15A 1
F21
Active noise cancellation.
10A 1
F22
Not used.
—
F23
DC/AC power converter.
30A 2
F24
Power liftgate.
25A 2
F25
Not used (spare).
40A 2
F26
208
C-MAX / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, Edition date: 201707, Second Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Luggage compartment outlet.
20A 2
F27
Not used.
—
F28
Blind spot detection.
5A 1
F29
Parking aid module.
5A 1
F30
Rear view camera.
5A 1
F31
DC/AC power converter.
5A 1
F32
Not used.
—
F33
Driver seat heater.
20A 1
F34
Passenger seat heater.
20A 1
F35
Not used.
—
F36
Power sun shade.
20A 1
F37
Not used.
—
F38
Not used.
—
F39
Not used.
—
F40
Not used.
—
F41
Not used.
—
F42
Not used.
—
F43
Not used.
—
F44
Not used.
-
F45
Fuel system.
10A 1
F46
Rear 15 relay.
Power relay
R1
Heated rear window.
Mini relay
R2
Not used (spare).
Micro relay
R3
Not used.
—
R4
209
