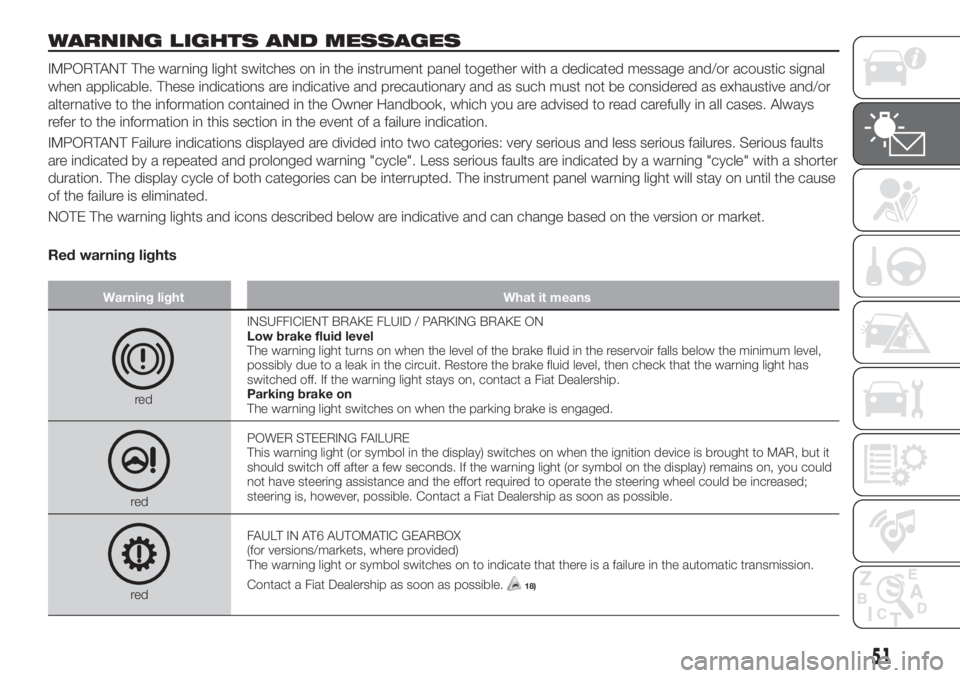

WARNING LIGHTS AND MESSAGES
IMPORTANT The warning light switches on in the instrument panel together with a dedicated message and/or acoustic signal
when applicable. These indications are indicative and precautionary and as such must not be considered as exhaustive and/or
alternative to the information contained in the Owner Handbook, which you are advised to read carefully in all cases. Always
refer to the information in this section in the event of a failure indication.
IMPORTANT Failure indications displayed are divided into two categories: very serious and less serious failures. Serious faults
are indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with a shorter
duration. The display cycle of both categories can be interrupted. The instrument panel warning light will stay on until the cause
of the failure is eliminated.
NOTE The warning lights and icons described below are indicative and can change based on the version or market.
Red warning lights
Warning light What it means
redINSUFFICIENT BRAKE FLUID / PARKING BRAKE ON
Low brake fluid level
The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level,
possibly due to a leak in the circuit. Restore the brake fluid level, then check that the warning light has
switched off. If the warning light stays on, contact a Fiat Dealership.
Parking brake on
The warning light switches on when the parking brake is engaged.
redPOWER STEERING FAILURE
This warning light (or symbol in the display) switches on when the ignition device is brought to MAR, but it
should switch off after a few seconds. If the warning light (or symbol on the display) remains on, you could
not have steering assistance and the effort required to operate the steering wheel could be increased;
steering is, however, possible. Contact a Fiat Dealership as soon as possible.
redFAULT IN AT6 AUTOMATIC GEARBOX
(for versions/markets, where provided)
The warning light or symbol switches on to indicate that there is a failure in the automatic transmission.
Contact a Fiat Dealership as soon as possible.18)
51
INDEX
ABS (system)...............68
Active safety systems...........68
Airbag
Front airbags..............96
Side airbags.............100
Airbag (SRS supplementary
restraint system)............96
Automatic climate control
system..................29
Automatic light control..........20
Automatic transmission.....106 ,145
AUX source................223
Battery..................170
Battery recharging............172
Bluetooth® source...........222
Bodywork (cleaning and
maintenance).............177
Bonnet....................32
Boot.....................34
Brake lights (bulb replacement). . . .126
Carrying children safely.........84
Changing a wheel............134
Checking levels..............161
Child protection systems........84
Child safety device............13
Climate control system..........26
CO2 emissions..............202
Control buttons............46,47Control panel and on-board
instruments...............41
Controls
Controls on the front panel. . . .217
Cornering lights..............21
Courtesy lights...............22
Daytime running lights (DRL)......20
Daytime running lights (DRL)
(bulb replacement)..........125
Demanding use of the car.......160
Dimensions................190
Dipped headlights.............20
Dipped headlights (bulb
replacement)..............124
Direction indicators............22
Display....................46
Doors.....................12
Driving assistance systems.......71
DTC (system)................68
Electric power steering.........33
Electric windows..............31
Electronic Cruise Control........111
Emergency starting...........141
Engine...................182
................181
Engine compartment..........161
Engine compartment (washing). . . .178
Engine oil (consumption)........169
Engine oil (level check).........169EOBD system...............50
ERM (system)................70
ESC (system)................68
External lights...............20
Fiat Code (system)............12
Fix&Go Automatic kit..........138
Fluids and lubricants..........196
Fog lights..................21
Fog lights (bulb replacement).....124
Front ceiling light..............23
Front seat electric heating........15
Front seats
(manual adjustments).........14
Fuel consumption............200
Fuel cut-off system...........142
Full Brake Control (system).......71
Fuse boxes................128
Fuses (replacement)...........128
GSI (Gear Shift Indicator)........46
Hazard warning lights.........121
Emergency braking.........121
Headlight alignment adjustment....22
Headlight alignment corrector.....22
Headlights (cleaning)..........178
Headrests..................17
HHC (system)................69
i-Size child restraint systems......90
