2018 FIAT 500C service indicator

SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures, and E85 fuel usage will influence
when the “Change Oil” or “Oil Change Required” message
is displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
your authorized dealer, the message can be reset by
referring to the steps described under “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information. NOTE: Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or
350 hours of engine run time, whichever comes first. The
350 hours of engine run or idle time is generally only a
concern for fleet customers.
Severe Duty All Models
Change Engine Oil at 4,000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment or is
operated predominantly at idle or only very low engine
RPM’s. This type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look for unusual
wear or damage.
Check the fluid levels of the coolant reservoir and brake
master cylinder, and fill as needed.
Check function of all interior and exterior lights. 8SERVICING AND MAINTENANCE 231

DEALER SERVICE
An authorized dealer has the qualified service personnel,
special tools, and equipment to perform all service opera-
tions in an expert manner. Service Manuals are available
which include detailed service information for your ve-
hicle. Refer to these Service Manuals before attempting any
procedure yourself.
NOTE: Intentional tampering with emissions control sys-
tems may void your warranty and could result in civil
penalties being assessed against you.
WARNING!You can be badly injured working on or around a
motor vehicle. Only do service work for which you
have the knowledge and the proper equipment. If you
have any doubt about your ability to perform a service
job, take your vehicle to a competent mechanic.
Engine Oil
Change Engine Oil
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to the “Maintenance Plan” for further information. NOTE: Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km), twelve months or 350
hours of engine run time, whichever comes first. The 350
hours of engine run or idle time is generally only a concern
for fleet customers.
Engine Oil Selection — 1.4L LA Engine
For best performance and maximum protection under all
types of operating conditions, the manufacturer only rec-
ommends engine oils that are API Certified and meet the
requirements of FCA Material Standard FPW9.55535-G1.
American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has
been certified by the American Pe-
troleum Institute (API). The manu-
facturer only recommends API Cer-
tified engine oils.
This symbol certifies 0W-20, 5W-20,
0W-30, 5W-30 and 10W-30 engine
oils.238 SERVICING AND MAINTENANCE

Consult an authorized tire dealer for tire repairs and
additional information.
Damaged Run Flat tires, or Run Flat tires that have
experienced a loss of pressure should be replaced immedi-
ately with another Run Flat tire of identical size and service
description (Load Index and Speed Symbol).
Run Flat Tires — If Equipped
Run Flat tires allow you the capability to drive 50 miles
(80 km) at 50 mph (80 km/h) after a rapid loss of inflation
pressure. This rapid loss of inflation is referred to as the
Run Flat mode. A Run Flat mode occurs when the tire
inflation pressure is of/or below 14 psi (96 kPa). Once a
Run Flat tire reaches the run flat mode it has limited
driving capabilities and needs to be replaced immediately.
A Run Flat tire is not repairable.
It is not recommended driving a vehicle loaded at full
capacity or to tow a trailer while a tire is in the run flat
mode.
See the tire pressure monitoring section for more informa-
tion. Tire Spinning
When stuck in mud, sand, snow, or ice conditions, do not
spin your vehicle’s wheels above 30 mph (48 km/h) or for
longer than 30 seconds continuously without stopping.
Refer to “Freeing A Stuck Vehicle” in “In Case Of Emer-
gency” for further information.
WARNING!Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause tire damage or
failure. A tire could explode and injure someone. Do
not spin your vehicle’s wheels faster than 30 mph
(48 km/h) for more than 30 seconds continuously when
you are stuck, and do not let anyone near a spinning
wheel, no matter what the speed.

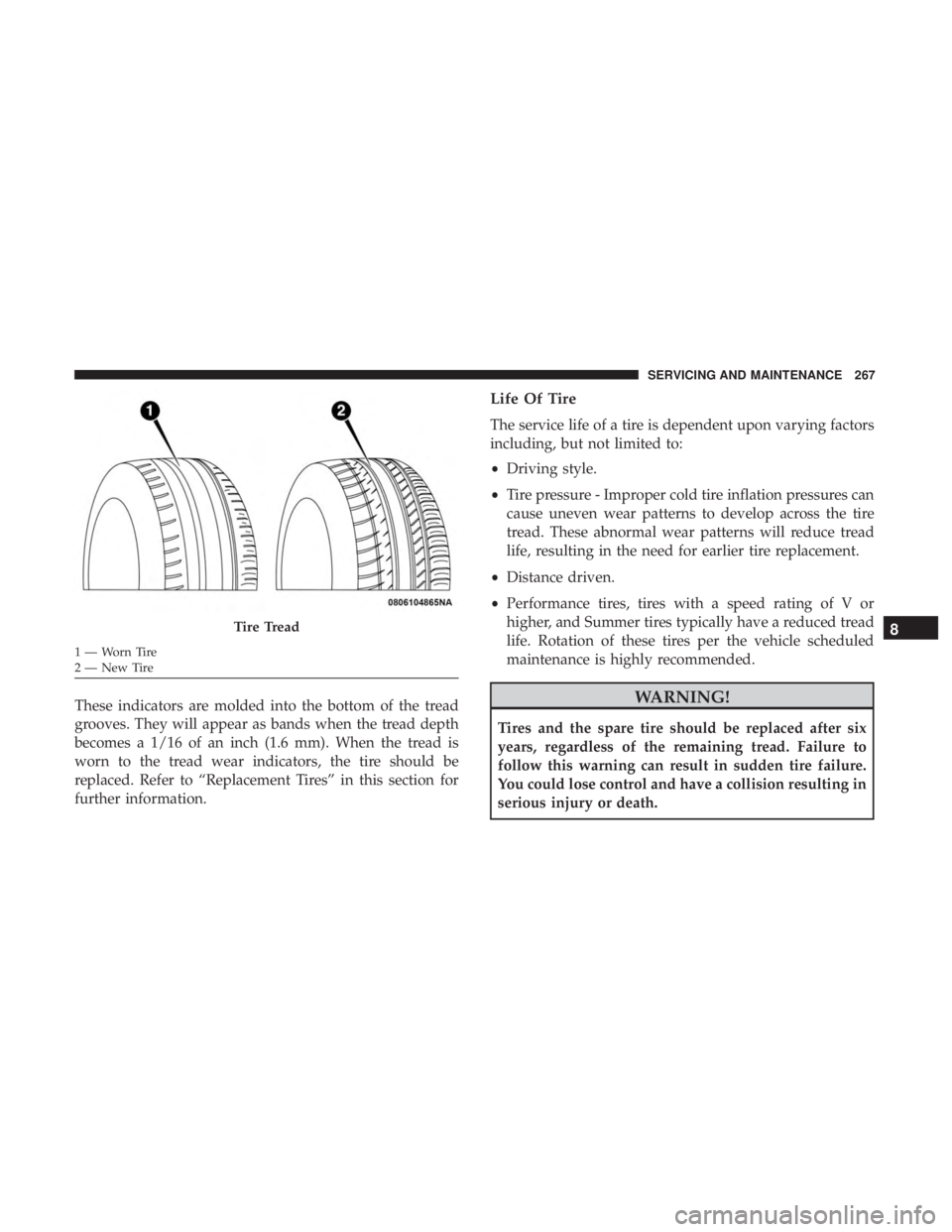

Tread Wear Indicators
Tread wear indicators are in the original equipment tires to
help you in determining when your tires should be re-
placed.266 SERVICING AND MAINTENANCE

These indicators are molded into the bottom of the tread
grooves. They will appear as bands when the tread depth
becomes a 1/16 of an inch (1.6 mm). When the tread is
worn to the tread wear indicators, the tire should be
replaced. Refer to “Replacement Tires” in this section for
further information. Life Of Tire
The service life of a tire is dependent upon varying factors
including, but not limited to:
• Driving style.
• Tire pressure - Improper cold tire inflation pressures can
cause uneven wear patterns to develop across the tire
tread. These abnormal wear patterns will reduce tread
life, resulting in the need for earlier tire replacement.
• Distance driven.
• Performance tires, tires with a speed rating of V or
higher, and Summer tires typically have a reduced tread
life. Rotation of these tires per the vehicle scheduled
maintenance is highly recommended.
WARNING!Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have a collision resulting in
serious injury or death.Tire Tread1—WornTire
2—NewTire
8SERVICING AND MAINTENANCE 267

Malfunction Indicator (Check Engine) ...........89
Park ............................... .39, 94
Passing ............................. .37, 38
Seat Belt Reminder ........................87
Security Alarm ...........................22
Service ............................... .197
Traction Control ........................ .105
Turn Signal ..............................40
Turn Signals ...................... .37, 94, 157
Warning (Instrument Cluster Description) ........86
Warning Instrument Cluster Descriptions ........94
Loading Vehicle ........................... .188
Tires................................. .259
Locks
Power Door .............................25
Lubrication, Body ......................... .244
Lug Nuts/Bolts ........................... .285
Maintenance Free Battery .................... .237
Maintenance Schedule ...................... .231
Maintenance Schedules ..................... .231
Malfunction Indicator Light (Check Engine) ..... .89, 96
Manual, Service ........................... .320
Manual Transmission ................... .165, 254
Fluid Level Check ....................... .254 Frequency Of Fluid Change ................ .254
Lubricant Selection ................... .254, 293
Memory Seat ..............................29
Methanol ............................... .288
Mirrors ..................................34
Automatic Dimming ................... .34, 35
Electric Powered ..........................36
Heated ............................. .34, 37
Outside ................................34
Rearview ...............................34
Modifications/Alterations, Vehicle ................5
Monitor, Tire Pressure System ................. .106
Mopar Parts ............................. .319
MP3 Control ............................. .308
Multi-Function Control Lever ............... .37, 38
New Vehicle Break-In Period ................. .163
Occupant Restraints ......................... 1 13
Octane Rating, Gasoline (Fuel) ................ .287
Oil Change Indicator .........................82
Oil Change Indicator, Reset ....................82
Oil, Engine ....................... .238, 290, 291
Capacity .......................... .290, 291
Change Interval ........................ .238328 INDEX

Inflation Pressure ....................... .264
Jacking ............................... .255
Life Of Tires ........................... .267
Load Capacity ...................... .259, 260
Pressure Monitoring System (TPMS) ............91
Pressure Monitor System (TPMS) ............ .106
Quality Grading ........................ .276
Radial ............................... .265
Replacement ........................... .268
Rotation .............................. .275
Safety ............................ .256, 263
Snow Tires ............................ .270
Spare Tires ......................... .270, 272
Spinning .............................. .266
Tread Wear Indicators .................... .266
Wheel Nut Torque ....................... .285
Tire Safety Information ...................... .256
Tire Service Kit ............. .204, 205, 206, 208, 210,
211, 212, 213, 214, 216, 218, 219
To Open Hood .............................63
Towing ................................. .189
Disabled Vehicle ........................ .226
Recreational ........................... .190
Towing Behind A Motorhome ................. .190
Traction ................................ .191 Traction Control .......................... .101
Trailer Towing ............................ .189
Transmission
Automatic ......................... .168, 254
Manual ............................... .165
Transporting Pets ......................... .153
Tread Wear Indicators ...................... .266
Turn Signals ......................... .37, 40, 94
Uconnect
Uconnect Settings ....................... .297
Uniform Tire Quality Grades ................. .276
Unleaded Gasoline ........................ .287
Untwisting Pr ocedur e, Seat Belt ................119
USB................................... .308
Vehicle Identification Number (VIN) ............ .284
Vehicle Loading ....................... .188, 260
Vehicle Modifications/Alterations .................5
Vehicle Security Alarm ........................22
Vehicle Storage ......................... .55, 277
Voice Recognition System (VR) ................ .309
Warning Lights (Instrument Cluster Descriptions) ....88
Warnings And Cautions .......................5332 INDEX
