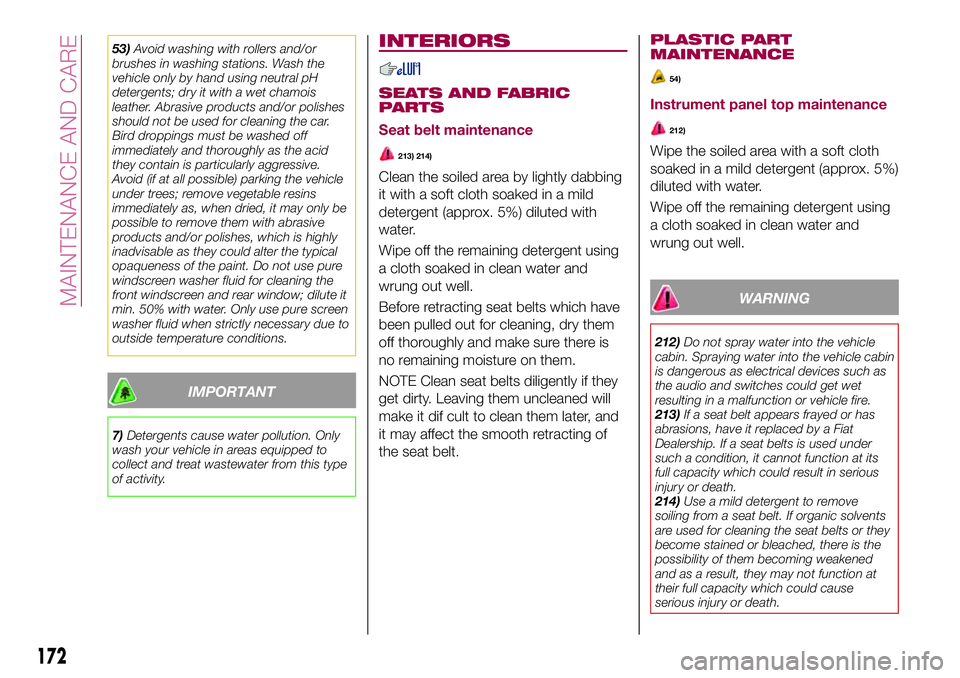

53)Avoid washing with rollers and/or
brushes in washing stations. Wash the
vehicle only by hand using neutral pH
detergents; dry it with a wet chamois
leather. Abrasive products and/or polishes
should not be used for cleaning the car.
Bird droppings must be washed off
immediately and thoroughly as the acid
they contain is particularly aggressive.
Avoid (if at all possible) parking the vehicle
under trees; remove vegetable resins
immediately as, when dried, it may only be
possible to remove them with abrasive
products and/or polishes, which is highly
inadvisable as they could alter the typical
opaqueness of the paint. Do not use pure
windscreen washer fluid for cleaning the
front windscreen and rear window; dilute it
min. 50% with water. Only use pure screen
washer fluid when strictly necessary due to
outside temperature conditions.
IMPORTANT
7)Detergents cause water pollution. Only
wash your vehicle in areas equipped to
collect and treat wastewater from this type
of activity.
INTERIORS
SEATS AND FABRIC
PARTS
Seat belt maintenance
213) 214)
Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
NOTE Clean seat belts diligently if they
get dirty. Leaving them uncleaned will
make it dif cult to clean them later, and
it may affect the smooth retracting of
the seat belt.
PLASTIC PART
MAINTENANCE
54)
Instrument panel top maintenance
212)
Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx. 5%)
diluted with water.
Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
WARNING
212)Do not spray water into the vehicle
cabin. Spraying water into the vehicle cabin
is dangerous as electrical devices such as
the audio and switches could get wet
resulting in a malfunction or vehicle fire.
213)If a seat belt appears frayed or has
abrasions, have it replaced by a Fiat
Dealership. If a seat belts is used under
such a condition, it cannot function at its
full capacity which could result in serious
injury or death.
214)Use a mild detergent to remove
soiling from a seat belt. If organic solvents
are used for cleaning the seat belts or they
become stained or bleached, there is the
possibility of them becoming weakened
and as a result, they may not function at
their full capacity which could cause
serious injury or death.
172
MAINTENANCE AND CARE

Lubricant Characteristics SpecificationOriginal fluids and
lubricantsApplications
Lubricants and greases
for drive transmissionSAE 75W-90 grade. API
GL4 specification9.55550-MZ11TUTELA
TRANSMISSION
GEAR SYNTH LL
Contractual Technical
Reference N° F004.C16Manual transmission oil
JWS 3309, type T-IV.9.55550-AV1TUTELA
TRANSMISSION GI/V
Contractual Technical
Reference N° F333.I05Automatic transmission
oil
Long Life synthetic
lubricant for differentials.9.55550-DA14TUTELA
TRANSMISSION
HYPOIDE LL
Contractual Technical
Reference N° F006.C16Rear axle with limited
sleep differential oil
Brake fluid and clutch
fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS-90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Windscreen window
washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS-90043PETRONAS
DURANCE SC 35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
IMPORTANT
56)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
184
TECHNICAL SPECIFICATIONS

Keyless Entry System...........9
Keys......................9
Lane change signals...........27
Load limiter (pretensioner)........82
Maintaining the finish.........171
Manual climate control system.....34
Manual transmission..........114
Message indicated on display.....68
Mirrors....................22
Multimedia.................189
Navigation................201
Occupant protection systems.....78
Odometer/Trip meter...........51
Outside mirrors...............22
Owner maintenance precautions . . .157
Paintwork (preserving).........170
Parking...................112
Parking brake...............113
Parking Sensor System.........121
Passenger Air Bag............98
Passenger occupant classification
system.................103
Performance...............185
Periodic checks (scheduled
servicing)................158
Power mirrors...............23
Power window lock switch.......39
Power windows..............38Prescriptions for handling the
vehicle at the end of its life.....188
Pretensioners................82
Radio 3”.................191
Radio 7”..................196
Read this carefully..............2
Rear camera (ParkView rear
backup camera)...........125
Rear fog lights...............26
Refuelling procedure..........123
Refuelling the vehicle..........123
Replacing a bulb.............131
Replacing a tire..............168
Replacing exterior light bulbs.....134
Replacing fuses.............139
Rims and tires..............177
Rims and tires provided........179
SBA system (Seat Belt Alert)......81
Scheduled servicing...........157
Scheduled servicing plan.......159
Seat belt precautions...........79
Seat belt pretensioner and load
limiting systems.............82
Seat Belt Pretensioners.........98
Seat belts..................79
Seat belts (fastening/unfastening)}.......................79
Seats.....................19
Seats (manual adjustment).......19
Seats and fabric parts (cleaning) . . .172Shift-lock override (automatic
gearbox)................116
Shift-lock system (automatic
gearbox)................116
Side Air Bags................98
Snow chains...............169
Speed limiter...............120
Starting the engine.........11,112
Steering wheel...............22
Supplementary restraint system
(SRS) - Air bag.............96
Symbols....................3
TCS (Traction Control System).....70
Theft deterrent system..........15
Tips, controls and general
information...............190
Tire service kit..............146
Tires rotation (recommendations) . .169
Tool storage................146
Towing the vehicle............153
Towing trailers..............128
TPMS (Tire Pressure Monitoring
System)..................74
Turn signals.................27
Turning the engine off...........13
Vehicle security alarm..........15
Warning lights and messages.....54
Weights..................180
Wheel and tire specifications.....177
Wheels and tires.............168
INDEX

Window and headlight washer
fluid (level check)...........165
Windscreen washer............31
Windscreen wipers............30
Windscreen wipers/washer . . . . . . .30
