2018 FIAT 124 SPIDER engine

CLOSING
54)
Proceed as follows:
check under the hood area to make
certain all filler caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed;
lift the hood, grasp the padded area
on the support rod, and secure the
support rod from its locking device.
Verify that the support rod is secured in
the clip before closing the hood;
lower the hood slowly to a height of
about 20 cm above its closed position
and then let it drop.
IMPORTANT When closing the hood,
do not push it excessively such as by
applying your weight. Otherwise, the
hood could be deformed.
WARNING
51)Perform these operations only when
the car is stationary.
52)The bonnet may drop suddenly if the
supporting rod is not positioned correctly.
53)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the parking brake is engaged.
54)Always check that the bonnet is closed
and securely locked. A bonnet that is not
closed and securely locked is dangerous
as it could fly open while the vehicle is
moving and block the driver's vision which
could result in a serious accident.
55)With active bonnet: do not pull the
bonnet's release handle after the active
bonnet has activated. Pulling the release
handle while the active bonnet is operating
is dangerous as it will raise the bonnet
further and obstruct vision. In addition, the
bonnet cannot be lowered manually,
therefore do not attempt to forcefully push
the bonnet back down. Otherwise, it could
deform the bonnet or cause injury. If the
active bonnet has activated, always consult
an expert repairer, contact a Fiat
Dealership immediately.
CONVERTIBLE TOP
(SOFT TOP)
LOWERING THE
CONVERTIBLE TOP
IMPORTANT Do not sit on the folded
convertible top. Otherwise, the
convertible top could be damaged or
you may fall off and be injured.
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
make sure there are no objects
which have been placed in the area
where the convertible top is to be
retracted;
with the lock release button 1
fig. 41 depressed forward (red mark
2 visible), pull back the top latch lever 3
fig. 42 to unlock it;
4007030201-123-002
4104110102-L36-006
43

remove the striker 4 from the anchor
5 fig. 43;
IMPORTANT If the power windows do
not go down automatically, fully open
the windows.
standing outside of the vehicle, hold
the convertible top along the front edge
6 and pull it toward the vehicle rear;
IMPORTANT To lower the convertible
top from inside the vehicle, use the
convertible top's handles 6 fig. 44.
move the convertible top rearward
and fold it while pressing the rear glass
lightly with your hand;
with the back end of the convertible
top pressed, press the front end until a
latch sound is heard fig. 45. Lightly rock
the retracted convertible top to make
sure it is securely locked.
RAISING THE
CONVERTIBLE TOP
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
pull up the unlock lever 1 to
disengage the lock fig. 46;
standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front;
4204110102-L21-001
4304110102-L22-002
4404110102-123-002
4504110102-126-001
4604110103-121-004
44
GETTING TO KNOW YOUR VEHICLE

CONTROL PANEL AND INSTRUMENTS
1. Odometer/Trip meter and Trip computer button/Dashboard illumination - 2. Tachometer - 3. Speedometer - 4. Automatic
transmission info display - 5. Odometer/Trip computer info/Engine coolant temperature gauge/Fuel gauge/Outside
temperature/Speed limiter/Cruise Control/INFO switch display
5005020100-121-001
49

RIGHT-HAND DRIVE VERSIONS
1. Odometer/Trip meter and Trip computer button/Dashboard illumination - 2. Tachometer - 3. Speedometer - 4. Automatic
transmission info display - 5. Odometer/Trip computer info/Engine coolant temperature gauge/Fuel gauge/Outside
temperature/Adjustable speed limiter/Cruise Control/INFO switch display
5105020100-667-888
50
KNOWING THE INSTRUMENT PANEL

54
KNOWING THE INSTRUMENT PANEL
IMPORTANT The indication of the
warning light in the instrument panel
is indicative and precautionary
and as such must not be
considered as exhaustive and/or
alternative to the information contained
in the Owner Handbook, which you are
advised to read carefully in all cases.
Always refer to the information in this
chapter in the event of a failure
indication.
IMPORTANTThe display cycle of
both categories can be interrupted. The
instrument panel warning light will stay
on until the cause of the failure is
eliminated.
Vehicles with Radio 7”
The warning contents can be verified
on the audio system.
Proceed as follows:
if the warning light is turned on,
select
icon on the home screen to
display the application screen;
select “Warning Guidance”to
display the current warnings;
select the applicable warning to view
the warning details.
For the following warning/indicator
lights:
Master warning light;
Brake system warning light;
ABS warning light;
Charging system warning light;
Engine oil warning light;
Check engine light;
High engine coolant temperature
warning light;
AND MESSAGESWARNING LIGHTSMAINTENANCE
MONITOR
(where provided)
Proceed as follows:
select the iconon the home
screen to display the “Applications”
screen;
select “Maintenance” to display the
maintenance list screen;
switch the tab and select the setting
item you want to change: “Scheduled”,
“Tire rotation”, “Oil Change”.
Reset method

The light turns on when the ignition is
switched on for an operation check,
and turns off a few seconds later or
when the engine is started. If the light
does not turn on or remains turned on,
have the vehicle inspected at Fiat
Dealership.
Only for “Brake system warning
light”: the light turns on continuously
when the parking brake is applied.
55

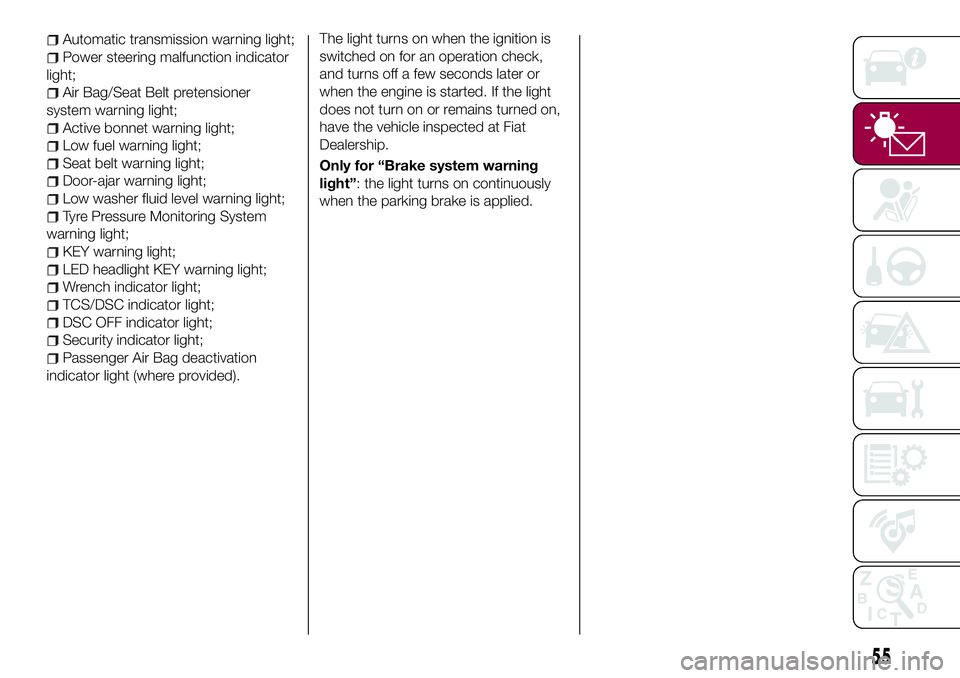

Automatic transmission warning light;
Power steering malfunction indicator
light;
Air Bag/Seat Belt pretensioner
system warning light;
Active bonnet warning light;
Low fuel warning light;
Seat belt warning light;
Door-ajar warning light;
Low washer fluid level warning light;
Tyre Pressure Monitoring System
warning light;
KEY warning light;
LED headlight KEY warning light;
Wrench indicator light;
TCS/DSC indicator light;
DSC OFF indicator light;
Security indicator light;
Passenger Air Bag deactivation
indicator light (where provided).

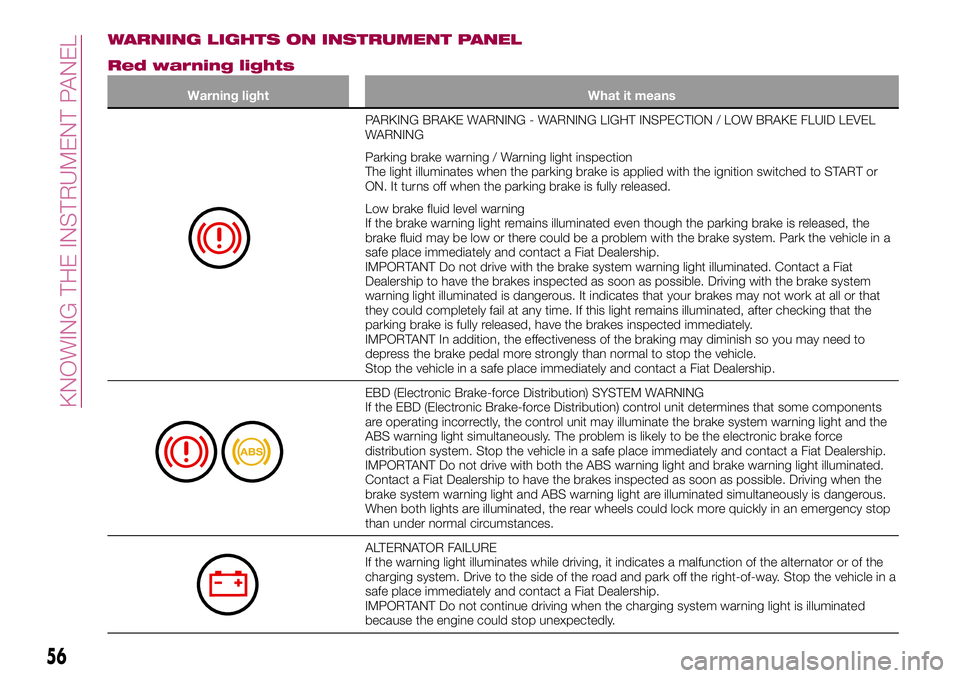

WARNING LIGHTS ON INSTRUMENT PANEL
Red warning lights
Warning light What it means
PARKING BRAKE WARNING - WARNING LIGHT INSPECTION / LOW BRAKE FLUID LEVEL
WARNING
Parking brake warning / Warning light inspection
The light illuminates when the parking brake is applied with the ignition switched to START or
ON. It turns off when the parking brake is fully released.
Low brake fluid level warning
If the brake warning light remains illuminated even though the parking brake is released, the
brake fluid may be low or there could be a problem with the brake system. Park the vehicle in a
safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not drive with the brake system warning light illuminated. Contact a Fiat
Dealership to have the brakes inspected as soon as possible. Driving with the brake system
warning light illuminated is dangerous. It indicates that your brakes may not work at all or that
they could completely fail at any time. If this light remains illuminated, after checking that the
parking brake is fully released, have the brakes inspected immediately.
IMPORTANT In addition, the effectiveness of the braking may diminish so you may need to
depress the brake pedal more strongly than normal to stop the vehicle.
Stop the vehicle in a safe place immediately and contact a Fiat Dealership.
EBD (Electronic Brake-force Distribution) SYSTEM WARNING
If the EBD (Electronic Brake-force Distribution) control unit determines that some components
are operating incorrectly, the control unit may illuminate the brake system warning light and the
ABS warning light simultaneously. The problem is likely to be the electronic brake force
distribution system. Stop the vehicle in a safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not drive with both the ABS warning light and brake warning light illuminated.
Contact a Fiat Dealership to have the brakes inspected as soon as possible. Driving when the
brake system warning light and ABS warning light are illuminated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock more quickly in an emergency stop
than under normal circumstances.
ALTERNATOR FAILURE
If the warning light illuminates while driving, it indicates a malfunction of the alternator or of the
charging system. Drive to the side of the road and park off the right-of-way. Stop the vehicle in a
safe place immediately and contact a Fiat Dealership.
IMPORTANT Do not continue driving when the charging system warning light is illuminated
because the engine could stop unexpectedly.
56
KNOWING THE INSTRUMENT PANEL

Warning light What it means
LOW ENGINE OIL PRESSURE
This warning light indicates low engine oil pressure.
IMPORTANT Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
If the light illuminates or the warning indication is displayed while driving:
drive to the side of the road and park off the right-of-way on level ground;
turn off the engine and wait 5 minutes for the oil to drain back into the sump;
inspect the engine oil level. If it's low, add the appropriate amount of engine oil while being
careful not to overfill;
start the engine and check the warning light.IMPORTANT Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
If the light remains illuminated even though the oil level is normal or after adding oil, stop the
engine immediately and contact a Fiat Dealership.
DOOR-AJAR WARNING LIGHT
The light turns on if any door is not closed securely.
Close the door securely.
