2018 DODGE DURANGO SRT spare tire

When rotating tires with a directional tread pattern, observe the arrows
molded on the sidewall which show the direction the tire should turn.
Care must be taken to maintain the proper turning direction.
Some Tire Pressure Monitoring Systems (TPMS) may not recognize
that a tire has been moved to a different position on your vehicle. Make
certain that your TPMS system is reset, if necessary, so as to correctly
identify the location of each tire on your vehicle. Refer to your vehicle
owner ’s manual or your vehicle dealer.
Determine whether rotated tires require tire inflation adjustment as front
and rear position tire pressure may vary according to the vehicle
manufacturer ’s specification due to the actual load on that wheel
position. Some vehicles may have different sized tires mounted on the
front and rear axles, and these different sized tires have rotation
restrictions. Always check the vehicle owner ’s manual for the proper
rotation recommendations.
Full-size Spare
Full-size spare tires (not temporary spares) of the same size and construc-
tion should be used in a five (5) tire rotation. Always check the inflation
pressure of the full-size spare immediately before incorporating it into
rotation. Follow the vehicle manufacturer ’s recommended pattern for
rotation, or if not available, see a qualified tire technician.
Replacement of Two (2) Tires
It is recommended that all four (4) tires are replaced at the same time.
However, when only two tires are replaced, the new tires should be put
on the rear. The new tires, with deeper tread, may provide better grip and
water evacuation in wet driving conditions.
CUSTOMIZATION OF TIRES, WHEELS, OR SUSPENSION ON
SUVS AND LIGHT TRUCKS
Due to their size, weight and higher center of gravity, vehicles such as
SUVs and light trucks do not have the same handling characteristics as
automobiles. Because of these differing characteristics, failure to operate
your SUV/truck in a proper and safe manner can increase the likelihood
of vehicle rollover. Modifications to your SUV/truck tire size, tire type,
wheels or suspension can change its handling characteristics and further
increase the likelihood of vehicle rollover. Whether your SUV/truck has
the original equipment configuration for tires, wheels and suspension or
whether any of these items have been modified, always drive safely,
MICHELIN
178

sidewall of the tire. DO NOT MOUNT ZP TIRES WITH THE SH-M
DESIGNATION ON STANDARD WHEELS. IN SUCH APPLICATIONS,
THE TIRES MAY BECOME UNSERVICEABLE AT LOW OR ZERO
PRESSURE, CAUSING SERIOUS PERSONAL INJURY OR DEATH.
SPECIAL MOUNTING INSTRUCTIONS FOR MICHELIN® TRX™
TIRES
The MICHELIN® TRX™ tire is a tubeless tire that must only be mounted
on special wheels (TR or JM type) with millimetric seat diameter. If TRX
tires are mounted on standard wheels, they will not retain air due to an
air escape feature designed into the bead area of these tires.
Do not try to override this feature by mounting TRX tires with tubes.
The MICHELIN® TRX tire must be used on all wheel positions.
TEMPORARY TYPE SPARE TIRES
When using any temporary type spare tire, be sure to follow the vehicle
manufacturer ’s instructions.
READING THE DOT
DOT XXXX XXXX XXX (prior to August 2000)
DOT XXXX XXXX XXX (1990-1999)
DOT XXXX XXXX XXXX (after July 2000)
THE DOT
The “DOT” symbol certifies tire manufacturer ’s compliance with U.S.
Department of Transportation tire safety standards. Next to the symbol is
the tire identification or “serial number”. The first two characters identify
the plant where the tire was manufactured. The next two characters
reflect the tire size. The following one to four digits may be used at the
tire manufacturer ’s option as a descriptive code. The last three characters
are numbers identifying the week and year of manufacture. (Example:
“O25” means second week of the year of decade, eg.: 1995, 1985, etc.) For
the 1990-1999 decade MICHELIN® brand tires are marked with a triangle
pointing to the last three numeric characters. Tires produced after July
2000 have an additional digit to identify a given decade. For example,
2800 means the tire was produced during the 28th week of 2000; 0201
during the 2nd week of 2001. If the last digits of your DOT number
contains three numeric characters and is not marked with a triangle,
consult a qualified tire technician to determine the year of manufacture.
MICHELIN
182

SERVICE LIFE FOR PASSENGER CAR AND LIGHT TRUCK
TIRES INCLUDING SPARE TIRES
The following recommendation applies to passenger car and light truck
tires. Tires are composed of various types of material and rubber
compounds, having performance properties essential to the proper
functioning of the tire itself. These component properties evolve over
time. For each tire, this evolution depends upon many factors such as
weather, storage conditions, and conditions of use (load, speed, inflation
pressure, maintenance etc.) to which the tire is subjected throughout its
life. This service-related evolution varies widely so that accurately
predicting the serviceable life of any specific tire in advance is not
possible.
That is why, in addition to regular inspections and inflation pressure
maintenance by consumers, it is recommended to have passenger car and
light truck tires, including spare tires, inspected regularly by a qualified
tire specialist, such as a tire dealer, who will assess the tire’s suitability for
continued service. Tires which have been in use for 5 years or more
should continue to be inspected by a specialist at least annually. Con-
sumers are strongly encouraged to be aware not only of their tires’ visual
condition and inflation pressure but also of any change in dynamic
performance such as increased air loss, noise or vibration, which could be
an indication that the tires need to be removed from service to prevent
tire failure. It is impossible to predict when tires should be replaced based
on their calendar age alone. However the older a tire the greater the
chance that it will need to be replaced due to the service-related evolution
or other conditions found upon inspection or detected during use.
While most tires will need replacement before they achieve 10 years, it is
recommended that any tires in service 10 years or more from the date of
manufacture, including spare tires, be replaced with new tires as a simple
precaution even if such tires appear serviceable and even if they have not
reached the legal wear limit. For tires that were on an original equipment
vehicle (i.e., acquired by the consumer on a new vehicle), follow the
vehicle manufacturer ’s tire replacement recommendations, when speci-
fied (but not to exceed 10 years).
The date when a tire was manufactured is located on the sidewall of each
tire. Consumers should locate the Department of Transportation or DOT
code on the tire which begins with DOT and ends with the week and year
of manufacture. For example, a DOT code ending with “2204” indicates
a tire made in the 22nd week (May) of 2004.
MICHELIN
183

REMEMBER... TO AVOID DAMAGE TO YOUR TIRES AND
POSSIBLE ACCIDENT:
•CHECK TIRE PRESSURE AT LEAST ONCE EACH MONTH WHEN
TIRES ARE COLD AND BEFORE LONG TRIPS.
•DO NOT UNDERINFLATE/OVERINFLATE.
•DO NOT OVERLOAD.
•DRIVE AT MODERATE SPEEDS, OBSERVE LEGAL LIMITS.
•AVOID DRIVING OVER POTHOLES, OBSTACLES, CURBS OR
EDGES OF PAVEMENT.
•AVOID EXCESSIVE WHEEL SPINNING.
•IF YOU SEE ANY DAMAGE TO A TIRE, REPLACE WITH THE
SPARE AND VISIT ANY MICHELIN® TIRE RETAILER AT ONCE.
•IF YOU HAVE ANY QUESTIONS. CONTACT YOUR MICHELIN
TIRE RETAILER.
FAILURE TO OBSERVE ANY OF THE RECOMMENDED PRECAU-
TIONS CONTAINED IN THIS OWNER’S MANUAL CAN LEAD TO
ERRATIC VEHICLE BEHAVIOR AND/OR TIRE DAMAGE, POSSI-
BLY RESULTING IN AN ACCIDENT.
If you see any damage to your tires or wheels, contact your local
participating Michelin® tire retailer listed in the Yellow Pages, or visit
our web site listed below for dealer locations. If further assistance is
required, contact:
IN USA1-800-847-3435or write:
Michelin North America, Inc.
Attention: Consumer Care Department
Post Office Box 19001
Greenville, SC 29602-9001
or visit:www.michelinman.com.
IN CANADA1-888-871-4444or write:
Michelin North America (Canada) Inc.
3020 Jacques-Bureau Avenue
Laval, Quebec
H7P 6G2
or visit:www.michelin.ca. MICHELIN
184

ROADSIDE ASSISTANCE
Patterns sold after May 1st 2014 by NEXEN TIRE in the United States and
Canada are eligible for a free 24/7/365 Roadside Assistance for a period
of 36 months from the purchase date. Upon purchasing Nexen tires, the
consumer will receive an activation card from the tire shop. An online
registration needs to be completed in order to have access to a toll free
phone number to call in case of a flat tire. A qualified professional will
change your flat tire with your spare tire free of charge. If a working spare
is not available, towing will be provided free of charge to the nearest
NEXEN TIRE dealer or authorized place of repair.
*Nexen Tire reserves the right to change the terms and conditions of all
warranties at any time.
TIRE CARE AND MAINTENANCE GUIDE
Tire failure can result in serious damage and/or personal injury. To
reduce the risk of tire failure we recommend the following:
•Maintain proper inflation pressure and do not use at under inflation or
over inflation. Pressure should be set at the level recommended by
vehicle manufacturer.
•Wheel alignment and balancing should be checked at regular intervals.
•Do not overload. The maximum load carrying capacity is molded on
the sidewall of the tire.
•Do not spin your tires excessively and avoid driving over curbs,
potholes, obstacles and edges of pavement.
•Never drive on smooth (bald) tires. By law, tires must be replaced
when 2/32of tread depth remained, as indicated by tread wear
indicator molded in the tread grooves.
•Check your tires frequently for any scrapes, cuts, foreign objects,
separations or bulges. If damage is found, do not attempt to dismount
a tire yourself. Change damaged tire with the spare and contact your
local authorized NEXEN TIRE dealer immediately.
•Do not drive in excess of speed limits allowed by law or the maximum
speed justified by driving conditions.
•To achieve proper even wear and gain maximum tread life, tire
rotation at regular intervals is required.
NEXEN TIRE
191

TO MAINTAIN PROPER VEHICLE DYNAMICS AND LOAD CARRY-
ING CAPACITY, REPLACEMENT TIRES MUST ALWAYS HAVE A
LOAD INDEX AND SPEED SYMBOL EQUAL TO OR GREATER THAN
THOSE FITTED AS ORIGINAL EQUIPMENT.
When making plus size fitments, you should consult with the dealer
regarding any suspension or braking system modifications which may be
recommended for the vehicle.
9. Tire Inspection
As a minimum, tires (including the spare tire) should be examined and air
pressure checked monthly and always prior to long trips. They should also
be examined if you strike any unusual object on the road. Tires showing
bulges, cracks, cuts, penetrations or uneven wear must be dismounted and
examined by an authorized Pirelli tire dealer and replaced if necessary.
Pirelli tires have treadwear indicators in the tread grooves, which show up
when the tread has worn to 2/32” remaining. At this point, your tires must
be replaced because they are illegal and dangerous.
The mere passage of time (age) does not cause tires to deteriorate, but
rather exposure to outside forces. Such outside forces can include, but are
not limited to: road hazards, punctures, improper repairs, misalignment,
under inflated operation, over inflated operation, excessive heat caused
by over deflected operation, excessive exposure to ozone, improper
storage conditions, etc. Tire companies can only have an impact on a few
of these exposures. Tire companies add antiozinants and anti-oxidants
(anti-degradation compounds) to minimize degradation. Pirelli believes
that since there is no way to accurately predict what outside forces a tire
will be exposed to there is no scientifically supportable age limit that can
be set for tires.
To avoid cosmetic damage, use a mild soap solution to clean sidewalls
and rinse off with low-pressure tap water. Never apply cleaners or
dressings to enhance sidewall appearance to avoid removal of antioxi-
dants, which are intended to prevent ozone degradation. The removal of
anti-oxidants may degrade the rubber and can lead to sidewall cracking.
Use of high-pressure sprayers may cause sidewall damage.
WARNING!
Driving on a damaged tire is dangerous, as the tire can suddenly fail,
which can lead to an accident and serious personal injury or death.
PIRELLI TIRES
212

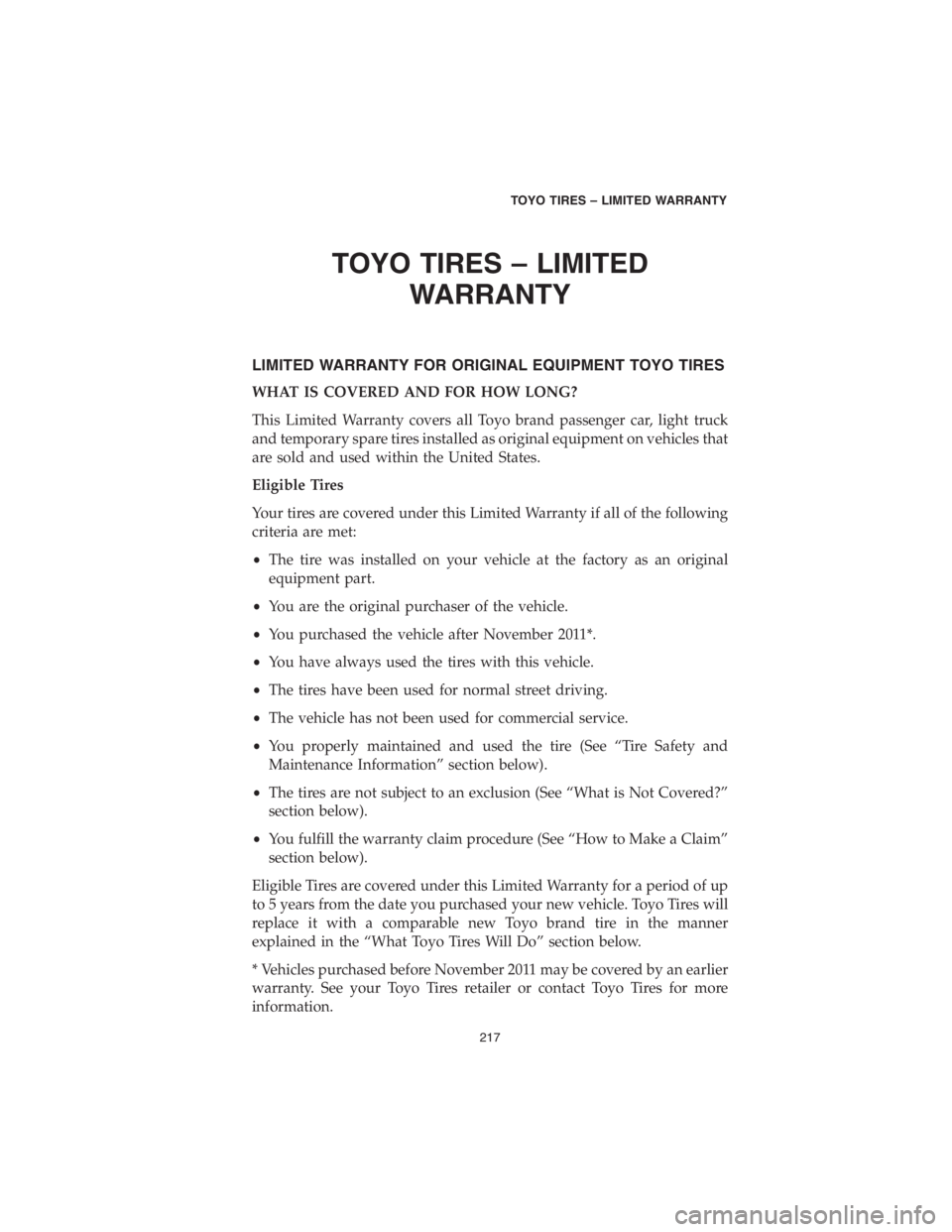

TOYO TIRES – LIMITED
WARRANTY
LIMITED WARRANTY FOR ORIGINAL EQUIPMENT TOYO TIRES
WHAT IS COVERED AND FOR HOW LONG?
This Limited Warranty covers all Toyo brand passenger car, light truck
and temporary spare tires installed as original equipment on vehicles that
are sold and used within the United States.
Eligible Tires
Your tires are covered under this Limited Warranty if all of the following
criteria are met:
•The tire was installed on your vehicle at the factory as an original
equipment part.
•You are the original purchaser of the vehicle.
•You purchased the vehicle after November 2011*.
•You have always used the tires with this vehicle.
•The tires have been used for normal street driving.
•The vehicle has not been used for commercial service.
•You properly maintained and used the tire (See “Tire Safety and
Maintenance Information” section below).
•The tires are not subject to an exclusion (See “What is Not Covered?”
section below).
•You fulfill the warranty claim procedure (See “How to Make a Claim”
section below).
Eligible Tires are covered under this Limited Warranty for a period of up
to 5 years from the date you purchased your new vehicle. Toyo Tires will
replace it with a comparable new Toyo brand tire in the manner
explained in the “What Toyo Tires Will Do” section below.
* Vehicles purchased before November 2011 may be covered by an earlier
warranty. See your Toyo Tires retailer or contact Toyo Tires for more
information.
TOYO TIRES – LIMITED WARRANTY
217

Failure to meet conditions of this Limited Warranty, not limited to:
•Any tire that is not an Eligible Tire.
•Any tire for which mileage and tire rotation records are not available
or verifiable.
•Any tire not presented and available for Toyo Tires’ inspection.
•Any tire worn beyond the treadwear indicators (less than 2/32” of
remaining tread).
•Uniformity issues after the first 25% of treadwear.
Temporary spare tires that are used at speeds over 50 miles per hour.
Nothing in this Limited Warranty is intended to be a representation that
tire failures cannot occur.
WHAT TOYO TIRES WILL DO
For every Eligible Tire, Toyo Tires will do the following:
Regular OE Tires
1. If less than 25% Worn: Toyo Tires will replace, free of charge, any
Eligible Tire when the original usable tread is worn by 25% or less, and
within 5 years from the date you purchased the vehicle new. If you
cannot provide a copy of the new vehicle registration or vehicle
purchase receipt, the manufacture date of the tire, as indicated by the
tire DOT code, will be used instead to determine if a tire is within the
warranty period. Tire mounting and balancing costs are covered by
Toyo Tires.You are responsible for taxes and all other costs, fees and
expenses.
2. If more than 25% Worn: Toyo Tires will replace any Eligible Tire when
the original usable tread is worn by more than 25%, and within 5 years
from the date you purchased the vehicle new. If you cannot provide a
copy of the new vehicle registration or vehicle purchase receipt, the
manufacture date of the tire, as indicated by the tire DOT code, will be
used instead to determine if a tire is within the warranty period.Yo u
are responsible for the pro-rated cost of a replacement tire, mount-
ing and balancing costs, taxes and all other costs, fees and expenses.
TOYO TIRES – LIMITED WARRANTY
219
