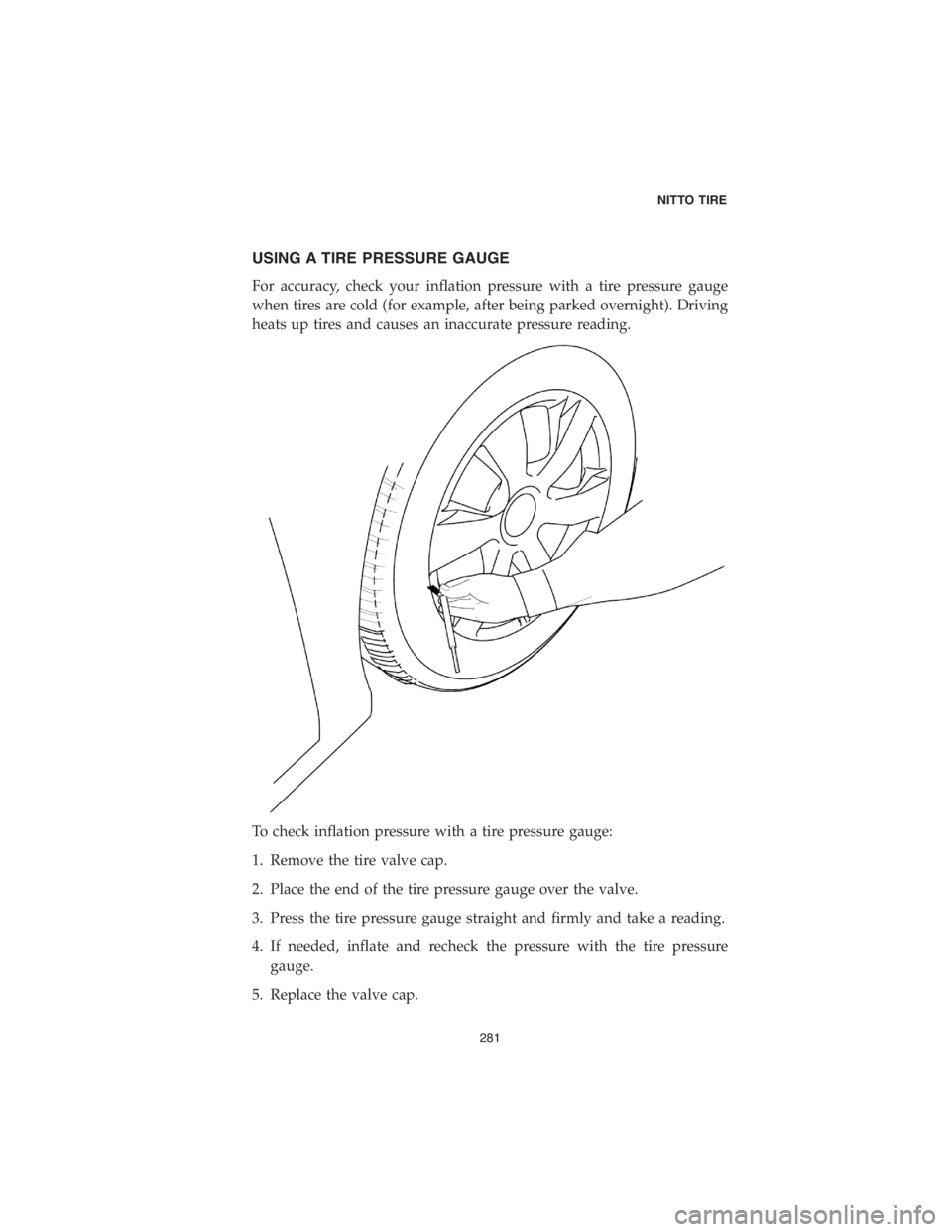

USING A TIRE PRESSURE GAUGE
For accuracy, check your inflation pressure with a tire pressure gauge
when tires are cold (for example, after being parked overnight). Driving
heats up tires and causes an inaccurate pressure reading.
To check inflation pressure with a tire pressure gauge:
1. Remove the tire valve cap.
2. Place the end of the tire pressure gauge over the valve.
3. Press the tire pressure gauge straight and firmly and take a reading.
4. If needed, inflate and recheck the pressure with the tire pressure
gauge.
5. Replace the valve cap.
NITTO TIRE
281

RECOMMENDATIONS FOR SAFE TIRE INFLATION
•If you must inflate your tires when they are hot, add 4 pounds per
square inch (4 psi) (28 kPa) above the recommended inflation pressure
specification. Recheck the inflation pressure when the tires are cold
and adjust to the recommended inflation pressure shown on the
vehicle’s Tire Information Placard.
•Never release air or nitrogen from a hot tire in order to reach the
recommended cold tire pressure. Normal driving causes tires to run
hotter and inflation pressure to increase. If you release pressure when
your tires are hot, you may dangerously underinflate your tires. If your
tires lose more than 1 pound per square inch (1 psi) per month, the tire,
the valve, or the wheel may be damaged. Consult your authorized
Nitto dealer for an inspection.
•Over-inflation can cause the tire to be more susceptible to impact
damage.
•Over-inflation or underinflation may adversely affect vehicle
handling.
•Remember to check your spare tire. Consult your vehicle Owner ’s
Manual for the correct inflation pressure and use of a “temporary use”
spare tire. The inflation pressure specified for a spare tire is typically
different from that specified for your regular tires.
•Use valve caps to keep valve cores clean and clear of debris and to help
guard against air leakage.
WARNING!
Never inflate a tire unless it is secured to the vehicle or a tire
mounting machine. Inflating an unsecured tire is dangerous. If the
tire bursts, it could be propelled into the air with explosive force
and cause serious personal injury or death.
NITTO TIRE
282

VEHICLES EQUIPPED WITH TIRE PRESSURE MONITORING
SYSTEMS (TPMS)
Even if your vehicle is equipped with a tire pressure
monitoring system, you should check your tire pres-
sure at least once per month when the tires are cold
(for example, after being parked overnight). Tire pres-
sure warning systems are not a substitute for regular
tire pressure maintenance.
WARNING!
If your vehicle is equipped with TPMS, read the vehicle Owner ’s
Manual regarding its operation. Some TPMS systems do not alert you
until the tires are significantly underinflated, which could result in
permanent tire damage and possible sudden tire failure. In the event
that your TPMS malfunction indicator lamp is displayed, you should
immediately pull over to a safe parking area and check your tires.
IDENTIFYING DAMAGED TIRES
•If your tire strikes a road hazard at any speed, internal tire damage
could result, which may lead to sudden tire failure and loss of vehicle
control. Tire failure may even occur miles after the initial impact.
Impact damage from such hazards may not be visible on the outside of
the tire. Have your Nitto dealer dismount the tire and inspect it for
damage. A tire may not have visible signs of damage on the tire surface
or the interior.
•If the impact was sufficient to bend the wheel flange, internal tire
damage may have occurred, compromising the safety and integrity of
the tire. Such impact damage may result in a sudden tire failure many
weeks or months later. Tire replacement is highly recommended as a
safety precaution.
•Indications of impact damage include, but are not limited to, a bubble
or a blister on the outside of the tire.
•Have your dealer inspect your tires if you see anything unusual or if
cuts, cracks, splitting, or bruises in the tread and sidewall areas are
visible. Bumps or bulges may indicate a serious and dangerous
separation within the tire body. Have your tire inspected by a qualified
tire service person. It may be necessary to have the tire removed from
the wheel for a complete inspection.
NITTO TIRE
283

WARNING!(Continued)
Certain vehicle performance parameters, including ride comfort and
handling, may be affected by substitute tire sizes. In some cases,
particularly for SUVs and light trucks, a failure to follow the vehicle
manufacturer ’s recommendations for tire replacement could
adversely affect the safe handling of the vehicle, possibly resulting
in a loss of vehicle control leading to personal injury or death.
The following procedures concerning replacement tires must be fol-
lowed:
•Confirm that the load-carrying capacity is greater than or equal to the
load-carrying capacity of the OE tire size at the pressure indicated on
the vehicle Tire Information Placard.
•Carefully note any differences between recommendations for front and
rear axle positions regarding the tire size and/ or inflation pressure.
•The speed rating must be equal to or greater than what is specified by
the vehicle manufacturer if the speed capability of the vehicle is to be
maintained.
•Tires should be mounted on approved wheel widths. If changing tire
sizes, check to make sure the wheel has adequate load and inflation
pressure capacity.
•Body and chassis clearance must be checked on the vehicle’s front and
rear axles.
In addition to the above, light truck tire replacements should take into
consideration the following:
•Proper spacing between dual tires is necessary for optimum tire
performance. If chains are used, particular care must be taken to assure
adequate clearance between loaded tires to avoid damage from the
chains. The allowable outside diameter difference between a tire and
its dual mate is ¼” (6.4 mm) for light truck tires.
CONSIDERATIONS IN PLUS SIZING
Always refer to and follow the vehicle manufacturer ’s replacement tire
recommendations. In some cases, a vehicle manufacturer may specifically
advise against the application of replacement tires that are not of the
original size or type.
NITTO TIRE
289

TIRE AND WHEEL MATCHING AND MOUNTING
WARNING!
Any attempt to mount a tire on a wheel with a different diameter
will result in an explosion of the tire/wheel assembly that could
cause severe personal injury or death.
Prior to mounting any tire, always check the wheel identification
stamp to verify the correct wheel diameter. Always check the tire
size molded onto the sidewall.
Never exceed 40 psi when seating the tire beads onto the wheel.
Always stand well clear of any tire mounting operation. This is
especially important when the service operator inflates the tire. If
the tire has been improperly mounted, it could burst with explosive
force causing serious personal injury or death.
A new valve stem must be installed on the wheel each time a
worn-out passenger or light truck tire is replaced.
Removing and replacing tires on wheels can be dangerous.
Attempting to mount tires with improper tools or procedures could
result in a tire explosion, causing serious personal injury or death.
This is a job for your authorized Nitto dealer or other qualified tire
service location only.
Serious personal injury or death can result from:
•Failure to select the proper tire and wheel. The tire must match the
width and diameter requirements of the wheel. When mounting
truck type radial tires use only wheels approved for radial tires.
•Failure to inspect both the tire and wheel. The wheel must be free
of cracks, dents, chips, and rust. The tire must be free of bead
damage, cuts, and punctures.
•Failure to follow proper procedures. For proper mounting proce-
dures, consult the Rubber Manufacturers Association’s publication
“Care and Service of Automobile and Light Truck Tires” (ref.:
www.rma.org).
•Exceeding the maximum bead seating pressure of 40 psi. Be
absolutely certain beads are fully seated before adjusting the
inflation pressure to the level recommended for vehicle operation.
Never put flammable substances in the tire/wheel assemblies at any
time. Never put any flammable substance into a tire/wheel assembly
and attempt to ignite it in order to seat the beads.
NITTO TIRE
290

WARNING!(Continued)
Pull over to a safe area as soon as possible and inspect the tires for
signs of bulges, blisters, or separations. Seek roadside assistance or
change the damaged tire with your spare tire.
If you experience a blowout or a sudden tire failure, the following
information should be helpful:
•When the tire failure occurs, you may hear a loud noise, or feel a
vibration, and/or the vehicle may pull toward the side of the failed
tire. Do not abruptly brake or turn.
•Maintain steady pressure on the accelerator pedal.
•Hold the steering wheel firmly and steer to maintain your lane
position.
•Find a safe place to pull off the road and allow the vehicle to gradually
decelerate. Apply light braking as required to stop safely.
•Gradually pull over to the shoulder and come to a stop. Look for a
damaged tire on your vehicle.
•Seek roadside assistance or change the damaged tire with your spare
tire.
•Have all of your tires and the vehicle thoroughly inspected by a tire
professional.
TIRE ROTATION
The purpose for rotating tires is to achieve more uniform wear for all tires
on a vehicle. Your tires should be thoroughly examined on a lift by a tire
dealer for any abnormalities. If tires show uneven treadwear, ask the
service person to check and/or correct any vehicle wheel alignment or
other mechanical problem before rotation.
The following rotation patterns are acceptable. Please refer to your
vehicle Owner ’s Manual for rotation advice.
NITTO TIRE
296

Full-size spare tires (not temporary spares) of the same size, construction,
and speed rating may be used in a five-tire rotation pattern.
After rotation, check the inflation pressure of all the tires. The front and
rear tire pressures may vary according to the vehicle manufacturer ’s
specifications.
Remember to follow your vehicle Owner ’s Manual for tire rotation
intervals. Your Limited Warranty recommends Nitto brand tires to be
rotated as follows:
•Every 3,500 miles or less for high performance (low profile) tires.
•
Every 7,500 miles or less for standard passenger and light truck tires.
NITTO TIRE
297

More frequent rotation or a thorough vehicle inspection may be necessary
if, upon inspection, irregular or erratic treadwear is beginning to appear.
It is important to remember the following:
•These tire rotation recommendations do not take into account different
tire and construction types mixed on the vehicle.
•Some tires cannot be rotated in the manner described. Such tires
include unidirectional tires. Unidirectional tread patterns must be
rotated front-to-rear only so that the direction of revolution does not
change.
•Some vehicles are designed with different tire sizes on the front and
rear axles. Normally, such combinations will not allow rotation. Prior
to rotating, consult the vehicle Owner ’s Manual.
•For vehicles with dual rear wheels, see the vehicle Owner ’s Manual for
the vehicle manufacturer ’s procedures. If your vehicle Owner ’s
Manual is not available, please contact the vehicle manufacturer.
•Some vehicles are equipped with wheels that limit the choice of
rotation pattern. Consult the vehicle Owner ’s Manual.
•Do not include temporary spare tires in the rotation pattern. However,
if your spare tire is the same size and type as a road tire (for LT tires
of the same size, type, and load rating), it should be included in the tire
rotation process. The proper procedure is to use the vehicle manufac-
turer ’s recommended tire rotation procedures, or if not available, to
use the appropriate rotation pattern shown, inserting the spare in the
right rear position. Place the tire that would have gone to the right rear
in the spare tire storage position as the new spare.
•Important! After rotation, adjust the pressure of the individual tires to
the vehicle manufacturer ’s recommendation or the inflation pressure
recommended by Nitto for an optional fitment according to the tire’s
new location on the vehicle.
•Do not mix speed-rated tires on the same axle. Higher speed-rated tires
must remain on the rear axle. Consult your authorized Nitto dealer.
TIRE SPEED RATING
All Nitto passenger and light truck tires have a maximum speed rating
based on size and type. Tires must never be operated in excess of their
rated speed limit! Consult your tire dealer or contact Nitto at
NITTO TIRE
298
