DS5_en_Chap03_confort_ed01-2015
F Switch off the demisting/defrosting of the rear screen and door mirrors
as soon as appropriate, as lower
current consumption results in
reduced fuel consumption.

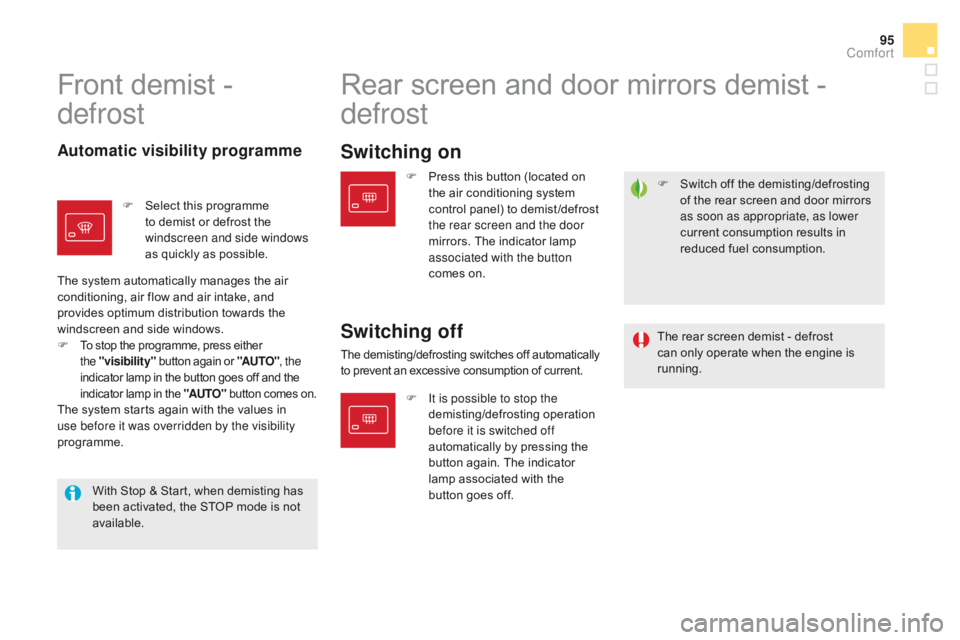

Front demist -
defrost Rear screen and door mirrors demist
-
defrost
F It is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again. The indicator
lamp associated with the
button goes off.
Automatic visibility programmeSwitching on
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
Switching off
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
F Select this programme to demist or defrost the
windscreen and side windows
as quickly as possible.
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
F

To stop the programme, press either
the " visibility" button again or "AUTO" , the
indicator lamp in the button goes off and the
indicator lamp in the "AUTO" button comes on.
The system starts again with the values in
use before it was overridden by the visibility
programme. F

P
ress this button (located on
the air conditioning system
control panel) to demist /defrost
the rear screen and the door
mirrors. The indicator lamp
associated with the button
comes on.
The rear screen demist - defrost
can only operate when the engine is
running.
comfort

99
DS5_en_Chap04_conduite_ed01-2015
Starting-switching off the engine
F Insert the electronic key in the reader.
F P ress the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
Starting using
the electronic key Starting with the "Keyless
Entry and Starting"
system
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to turn
the steering wheel slightly while pressing
the "START/STOP" button to assist
unlocking of the steering; a message
warns you when this is needed.
With a manual gearbox
, put the gear lever in neutral.
With an electronic gearbox , put the gear lever in N.
With an automatic gearbox , put the gear lever in P or N.
For
d iesel vehicles, in
temperatures below zero the
engine will not start until the
preheater warning lamp has gone off.
If this warning lamp comes on after
pressing "START/STOP", you should
hold the brake or clutch pedal down
until the warning lamp goes off and
do not press the START/STOP button
again.
F

W

ith the electronic key inside the vehicle
(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). The "Keyless Entry and Starting" device
must be in the recognition zone.
For safety reasons, do not leave
this
zone with the vehicle running.
driving

DS5_en_Chap04_conduite_ed01-2015
Switching off using the
electronic key
F Immobilise the vehicle.
Electronic key left in the reader
If the electronic key is left in the reader,
on opening the driver's door a message
appears to warn you.
Stopping with the "Keyless
Entry and Starting"
system
F Immobilise the vehicle.If the vehicle is not immobilised, the
engine will not stop.
Switching the ignition on
(without starting)
F With the electronic key inside the vehicle, press the " S TA R T/
STOP " button.
T

he engine stops and the
steering column locks.
F

P
ress the "
START/STOP " button
T
he engine stops and the
steering column locks.
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
F

R

emove the electronic key from the reader. F

P

ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P

ress the button again to switch
off the ignition and so allow the
vehicle to be locked.
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
Switching off the engine leads to a loss
of braking assistance.

101
DS5_en_Chap04_conduite_ed01-2015
Emergency starting with the
"Keyless Entry and Starting"
system
When the electronic key is in the recognition
zone and your vehicle does not start after
pressing the "START/STOP" button:
F
I
nsert the electronic key in the reader.
F

P
ress the brake pedal on vehicles with an
automatic or electronic gearbox, or fully
declutch with a manual gearbox.
F

P
ress the "START/STOP" button.
T

he engine starts. In the event of an emergency only, the engine
can be switched of without conditions. To do
this, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, a
message appears in the instrument panel.
Emergency switch-offElectronic key not recognised by
the "Keyless Entry and Starting"
system
F Press and hold the "START/STOP"
button for about 3 seconds if you want to
force switching off the engine (note that
restarting will not be possible without
the
key).
driving

11 7
DS5_en_Chap04_conduite_ed01-2015
You must press the brake pedal when
starting the engine.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N
.
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that the
parking brake is applied.
Stopping the vehicle
With the ignition on, the flashing of
this warning lamp, accompanied by
an audible signal and a message
in the instrument panel screen,
indicates a malfunction of the
gearbox.
Before switching off the engine, you can
choose to:
-

m

ove to position N to engage neutral,
-

l

eave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you should apply the parking
brake to immobilise the vehicle, unless it is
programmed in automatic mode.
Operating fault
Sport setting
F After selection of manual or
automated mode, press the
S
button to switch on the Sport
setting, which provides a more
dynamic driving style.
S

appears alongside the gear
engaged in the instrument panel
screen.
F

P

ress the S button again to switch it off.
S


then disappears from the instrument
panel screen.
The Sport setting is switched off every time the
ignition is switched off. Have it checked by CITROËN or a qualified
workshop.
driving

121
DS5_en_Chap04_conduite_ed01-2015
Stop & Start
Operation
Going into engine STOP
mode
The "E cO" warning lamp comes on
in the instrument panel and the engine
goes into standby automatically:
-

w

ith a manual gearbox, at speeds below
12 mph (20 km/h) or vehicle stationary with
the BlueHDi 115 and 120 versions, when
you place the gear lever in neutral and you
release the clutch pedal,
-

w

ith an electronic gearbox, at speeds
below 5 mph (8 km/h), when you press
the brake pedal or put the gear lever in
position


N,
-

w

ith an automatic gearbox, vehicle
stationary, when you press the brake pedal
or put the gear lever in position N .If your vehicle is fitted with the
system, a time counter calculates
the sum of the periods in STOP
mode during a journey. It resets itself
to zero every time the ignition is
switched on with the START/STOP
button.
Never refuel with the engine in STOP
mode; you must switch off the ignition
with the START/STOP button. For your comfort, during parking
maoeuvres, STOP mode is not
available for a few seconds after
coming out of reverse gear.
STOP mode does not affect the
functionality of the vehicle, such as for
example, braking, power steering...
The Stop & Start
system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The

engine restarts automatically - START mode - as soon as you want to move off. The restart takes place instantly, quickly and silently.
Per fect for urban use, the Stop & Start system reduces fuel consumption and exhaust emissions as well as the noise level when
stationary.
driving

DS5_en_Chap04_conduite_ed01-2015
Special cases: STOP mode not
available
STOP mode is not invoked when:
- t he vehicle is on a steep slop (rising or
falling),
-

t
he driver's door is open,
-

t
he driver's seat belt is not fastened,
-

t
he vehicle has not exceeded 6 mph
(10
km/h) since the last engine start using
the START/STOP button,
-

t
he electric parking brake is applied or
being applied,
-

t
he engine is needed to maintain a
comfortable temperature in the passenger
compartment,
-

d
emisting is active,
-

s
ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.
In this case, the "E
c
O
" warning lamp
flashes for a few seconds then goes
of f.
This operation is perfectly normal.
Going into engine START
mode
The "EcO" warning lamp goes off
and the engine starts automatically:
-

w

ith a manual gearbox , when you fully
depress the clutch pedal,
-

w

ith an electronic gearbox:
●

g

ear lever in position A or M , when you
release the brake pedal,
●

o

r gear lever in position N and brake
pedal released, when you place the gear
lever in position A or M ,
●

o

r when you engage reverse.
-

w

ith an automatic gearbox:
●

g

ear lever in position d or M, when you
release the brake pedal,
●

o

r gear lever in position N and brake
pedal released, when you place the gear
lever in position
d or M,
●

o

r when you engage reverse. As a safety measure or to maintain comfort
levels in the vehicle, START mode is invoked
automatically when:
-

y
ou open the driver's door,
-

y
ou unfasten the driver's seat belt,
-

t
he speed of the vehicle exceeds 15 mph
(25 km/h) with a manual gearbox
(2 mph (3 km/h) with the BlueHDi 115 and
120 versions), 7 mph (11 km/h) with an
electronic gearbox or 2 mph (3 km/h) with
an automatic gearbox.
-

t
he electric parking brake is being applied,
-

s
ome special conditions (battery charge,
engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Special cases: START invoked
automatically
In this case the "EcO " warning lamp
flashes for a few seconds, then goes
of f.
This operation is perfectly normal.

123
DS5_en_Chap04_conduite_ed01-2015
The system is reactivated automatically
at every start using the START/STOP
button.
Reactivation
With the Touch screen tablet system
With the control switch on the
dashboard
If the system has been deactivated
in STOP mode, the engine restarts
immediately.
deactivation
When driving on flooded roads, it is
strongly recommended that the system
be deactivated.
Refer to the "A few driving
recommendations" section.
With the Touch screen tablet system
With the control switch on the
dashboard
F At any time, press the "EcO OFF" control
switch to deactivate the system.
This is confirmed by the illumination of
the indicator lamp in the control switch,
accompanied by the display of a message.
F

Sel
ect the "
dr
iving" menu.
F

I
n the page, press the "E
cO
O

FF" button for Stop & Start. F

P
ress the "E
cO O
FF" control switch again.
The system is active again; this is confirmed by
the indicator lamp in the control switch going
off, accompanied by the display of a message.
F
Sel
ect the "
dr
iving" menu.
The system is active again; this is confirmed by
the indicator lamp in the button going off.
The indicator lamp for this button comes on. F

I
n the page, press the "E
cO
O

FF" button for Stop & Start
again.
driving
