2018 CITROEN DS4 service indicator

11
Customisable colour
instrument panel – Type 2
Dials and display screens
1.Rev counter (x 1,000 rpm).
2. Gear efficiency indicator or gear selector
position and gear for an automatic
gearbox.
3. Speedometer (mph or km/h).
4. Central screen.
Control buttons
A.Dials COLOUR: customisation of the
background colour of the dials.
B. Screens COLOUR: customisation of the
background colour of the screens.
C. Lighting dimmer (in night mode).
D. Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset the ser vice indicator or the trip
mileage recorder.
Type 2 instrument panel
central screen and controls
Display zones
5.Fuel gauge and associated low fuel level
warning lamp.
6. Trip distance recorder (miles or km).
7. Ser vice spanner (if a ser vice is due or
missed),
Total distance recorder (miles or km).
1.Cruise control or speed limiter settings.
2. Engine oil level indicator*.
Service indicator.
Range indicators (miles or km) related
to the AdBlue and the SCR system
(BlueHDi).
Trip computer.
Current audio source playing.
Repeat of the navigation instruction.
Repeat of the vehicle's speed.
Alert or information messages can also be
displayed temporarily.
*
D

epending on version.
01
Instruments

17
Warning/indicator lampStateCause Action/Observations
Service On temporarily,
accompanied by a
message. One or more minor faults have been
detected for which there is no specific
warning lamp. Identify the cause of fault by means of the message
displayed in the screen:
You can deal with some problems yourself, such as
a
door open or a discharged remote control battery.
For any other problems, such as a fault with the tyre
under-inflation detection system, contact the dealer
network or a qualified workshop.
Fixed, accompanied
by a message. One or more major faults have been
detected for which there is no specific
warning lamp. Identify the cause of the fault using the message
displayed in the screen; you must then contact the
dealer network or a qualified workshop.
Fixed, associated with
the flashing and then
fixed display of the
service spanner. The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Engine
diagnostic
system Flashing.
The engine management system has
a fault. The catalytic converter may be destroyed.
Have it checked in the dealer network or by a
qualified workshop.
Fixed. The emission control system has a
fault. The warning lamp should go off when the engine is
started.
If it does not go off, contact the dealer network or a
qualified workshop without delay.
01
Instruments

19
Warning/indicator lampStateCause Action/Observations
Power steering Fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked in the dealer network or by a qualified
workshop.
Under-inflation Fixed. The pressure in one or more of the
tyres is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked in the dealer network or by
a


qualified workshop.
Airbags Temporarily on. This warning lamp comes on for a
few seconds when you turn on the
ignition, then goes off. This warning lamp should go off when the engine is
started.
If it does not go off, contact the dealer network or a
qualified workshop.
Fixed. One of the airbag or seat belt
pyrotechnic pretensioner systems has
a fault. Have them checked in the dealer network or by a
qualified workshop.
01
Instruments

20
Warning/indicator lampStateCause Action/Observations
AdBlue
®
(BlueHDi Diesel) Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range. The remaining driving range is
between 370 miles and 1,500 miles
(600 km and 2,400 km).
Have the AdBlue
® tank topped up as soon as possible:
go to a member of the dealer network or a qualified
workshop, or carry out this operation yourself.
+ Flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.The remaining driving range is
between 0 and 370 miles (0 and
6 0 0


k m). You must top up the AdBlue
® tank to avoid a
breakdown : go to a member of the dealer network
or a qualified workshop, or carry out this operation
yourself.
Flashing, associated
with the SERVICE
warning lamp,
accompanied by an
audible signal and a
message indicating
that starting is
prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top up the
AdBlue® tank: go to the dealer network or a qualified
workshop, or carry out this operation yourself.
It is essential to add at least 4 litres of AdBlue
® to the
corresponding tank.
For topping-up or for more information on AdBlue
®, refer to the corresponding section.
01
Instruments

21

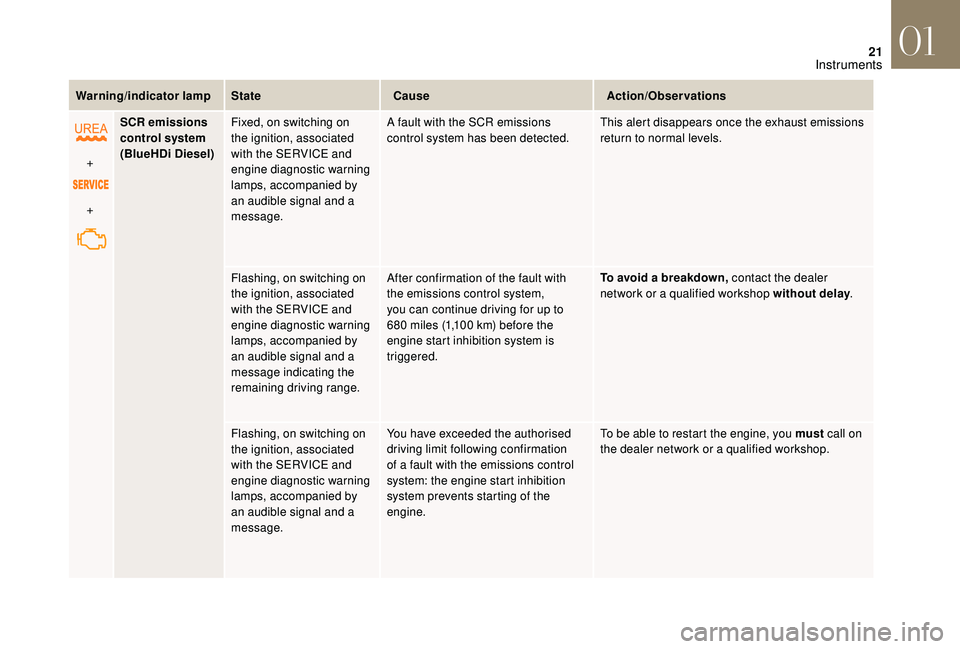

Warning/indicator lampState Cause Action/Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
Fixed, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with
the emissions control system,
you can continue driving for up to
680
miles (1,100 km) before the
engine start inhibition system is
triggered. To avoid a breakdown, contact the dealer
network or a qualified workshop without delay
.
Flashing, on switching on
the ignition, associated
with the SERVICE and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine start inhibition
system prevents starting of the
engine.
To be able to restart the engine, you must
call on
the dealer network or a qualified workshop.
01
Instruments

30
Indicators
Service indicator
Warning/indicator lamp StateCause Action/Observations
Service spanner Fixed, temporary when
the ignition is switched
on. When between 620 miles (1,000 km)
and 1,860 miles (3,000 km) remain
before the next ser vice is due. The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he distance recorder displays a line showing the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining
(in
kilometres or miles) as well as the period before
the next ser vice is due.
The service spanner disappears after a few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched on. Less than 620 miles (1,000 km)
remain before the next ser vice is due. The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is due.
The ser vice spanner remains on to show that a ser vice
is required very soon.
The alert may be triggered close to the due date.
01
Instruments

31
Warning/indicator lamp StateCause Action/Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. Service is overdue.
The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due.
The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Service warning lamp.Ser vice is overdue for Diesel BlueHDi
versions.
The ser vice indicator is displayed for a few seconds in
the instrument panel. Depending on the version:
-

t
he total distance recorder displays a line showing
the distance travelled since ser vice was due.
The
value is preceded by the "-" sign.
-

a
n alert message indicates that ser vice is overdue.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
The distance indicated (in kilometres or miles) is calculated according to the mileage covered and the time elapsed since the last ser vice.
01
Instruments

32
Resetting the service indicator
After each service, the service indicator must
be reset to zero.
If you have carried out the ser vice on your
vehicle yourself:
F
s
witch off the ignition,
F

p
ress and hold the trip distance recorder
reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the screen indicates " =0" and the
spanner disappears, release the button.
Following this step, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the reset
to be taken into account.
Recalling the servicing information
(type 2 instrument panel)
You can access the ser vicing information at
any time.
F

B
riefly press the trip distance recorder reset
button.
The ser vicing information is displayed for
a few seconds in the central screen of the
type 2 instrument panel.
Engine oil level indicator
(Depending on version)
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds upon setting ignition on, at the same
time as the servicing information. The level read will only be correct if
the vehicle is on level ground and the
engine has been stopped for more than
30


minutes.
Oil level correct
Low oil level
This is indicated by the flashing of "
OIL" or the
display of a message, accompanied by the
Service warning lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels
and, in particular, the oil level, refer to the
corresponding section.
01
