C5_en_Chap09_caracteristiques-techniques_ed01-2016

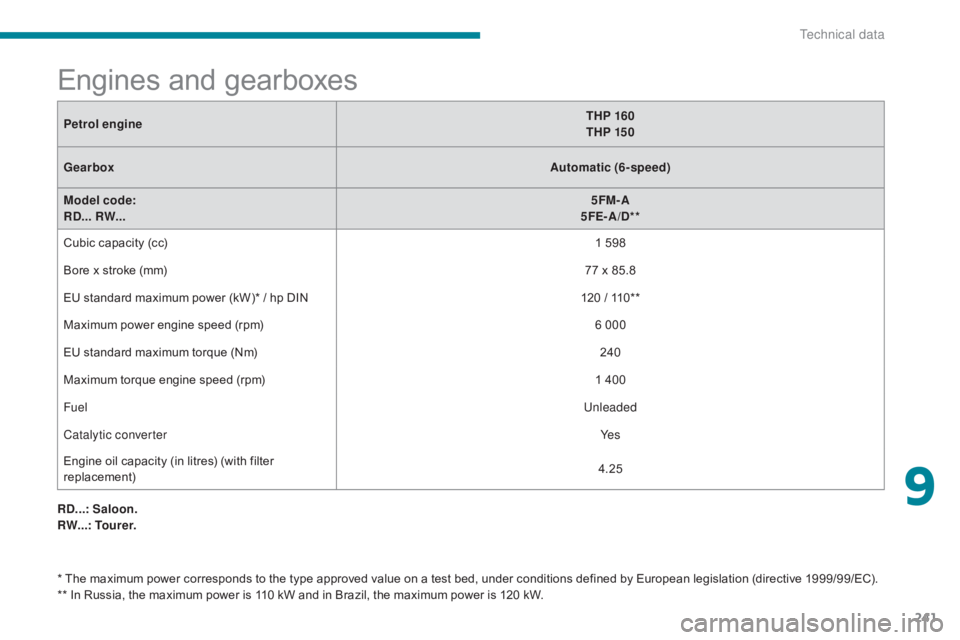

Engines and gearboxes
Petrol engineTHP 160
THP 15 0
Gearbox Automatic (6-speed)
Model code:
RD... RW... 5FM-A

5FE-A /D**
Cubic capacity (cc) 1 598
Bore x stroke (mm) 77 x 85.8
EU standard maximum power (kW)* / hp DIN 120 / 110**
Maximum power engine speed (rpm) 6 000
EU standard maximum torque (Nm) 240
Maximum torque engine speed (rpm) 1 400
Fuel Unleaded
Catalytic converter Ye s
Engine oil capacity (in litres) (with filter
replacement) 4.25
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation (directive 1999/99/EC).
** In Russia, the maximum power is 110 kW and in Brazil, the maximum power is 120 kW. RD... : Saloon.
RW...: Tourer.
9
Technical data

242
C5_en_Chap09_caracteristiques-techniques_ed01-2016
Weights and towed loads (in kg)
Petrol engineTHP 160
THP 15 0
Gearbox Automatic (6-speed)
Model code RD 5FM-A
RD 5FE-A /D RW 5FM-A
RW 5FE-A/D
Body SaloonTourer
Unladen weight 1 5151 534
Kerb weight 1 5901 609
Gross vehicle weight (GV W) 2 0262 200
Gross train weight (GTW) 2 5262 700
Braked trailer (within GTW limit)
-

o
n a 10% or 12% slope 500
500
Braked trailer* (with load transfer within GTW
limit) 710
790
Unbraked trailer 500500
Recommended nose weight 6974
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the exterior temperature is
higher than 37 °C, limit the weight towed. *

T
he weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

243
C5_en_Chap09_caracteristiques-techniques_ed01-2016
RD...: Saloon.
RW...: Tourer.
*

T
he maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
Engines and gearboxes
Diesel engine BlueHDi 150 S&SBlueHDi 180 S&S
Gearbox Manual (6-speed)EAT6 automatic (6-speed)
Model code:
RD... RW... AHR- M/S
AHW-T/S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
EU standard maximum power (kW)* 11 013 3
Maximum power engine speed (rpm) 4 0003 750
EU standard maximum torque (Nm) 370400
Maximum torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter (FAP) Ye sYe s
Engine oil capacity (in litres) (with filter
replacement) 5 .1
5 .1
.../S : model fitted with Stop & Star t.
9
Technical data

244
C5_en_Chap09_caracteristiques-techniques_ed01-2016

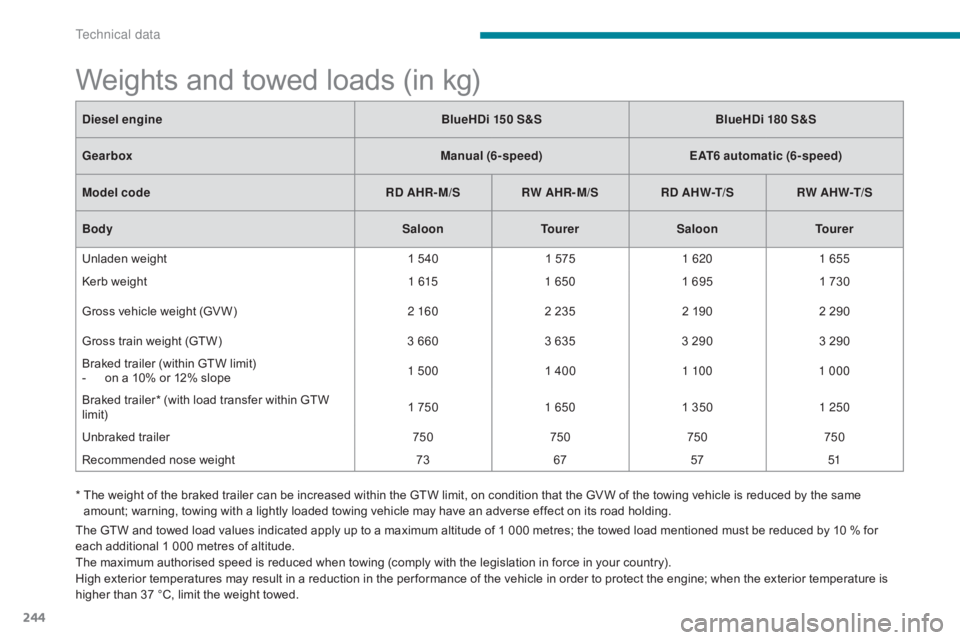

Diesel engineBlueHDi 15 0 S&S BlueHDi 180 S&S
Gearbox Manual (6-speed)EAT6 automatic (6-speed)
Model code RD AHR- M/SRW AHR- M/S RD AHW-T/SRW AHW-T/S
Body SaloonTourerSaloon Tourer
Unladen weight 1 5401 5751 620 1 655
Kerb weight 1 6151 650 1 695 1 730
Gross vehicle weight (GV W) 2 1602 235 2 1902 290
Gross train weight (GTW) 3 6603 6353 290 3 290
Braked trailer (within GTW limit)
-

o
n a 10% or 12% slope 1 500
1 400 1 10 01 000
Braked trailer* (with load transfer within GTW
limit) 1 750
1 650 1 350 1 250
Unbraked trailer 750750750750
Recommended nose weight 736757 51
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the exterior temperature is
higher than 37 °C, limit the weight towed. *

T
he weight of the braked trailer can be increased within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (in kg)
Technical data

245
C5_en_Chap09_caracteristiques-techniques_ed01-2016
Dimensions (in mm)
Exterior (Saloon)
A2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
1 458**
* Without roof bars.
** With metal spring suspension.
9
Technical data

246
C5_en_Chap09_caracteristiques-techniques_ed01-2016
Interior (Saloon)
A1 030
B 1 115
C 566
D 504
E 1 040
F 1 705
Technical data
