Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18

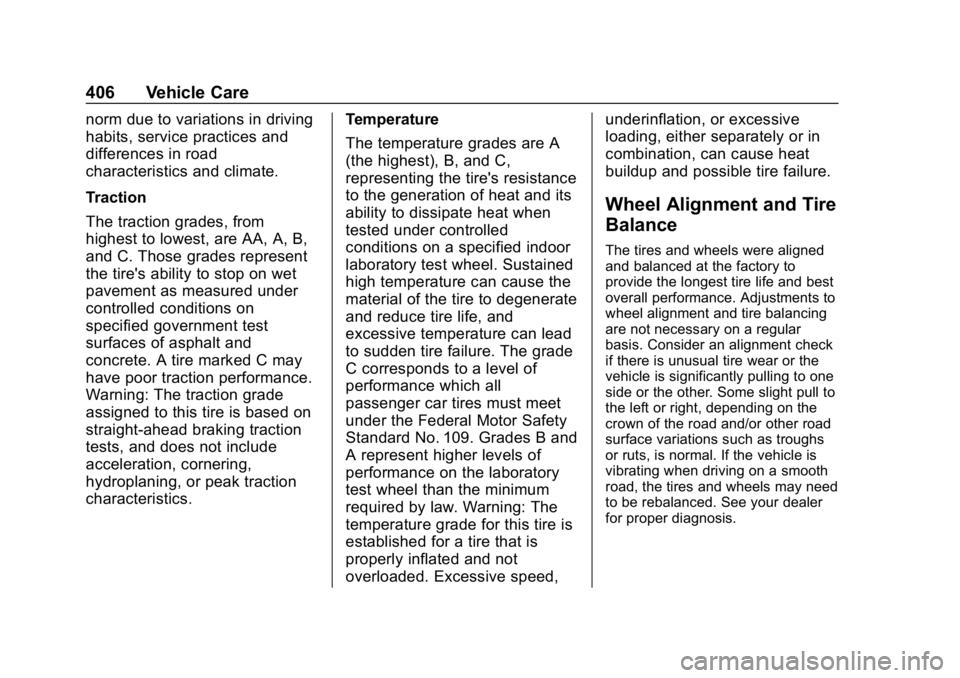

406 Vehicle Care
norm due to variations in driving
habits, service practices and
differences in road
characteristics and climate.
Traction
The traction grades, from
highest to lowest, are AA, A, B,
and C. Those grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and
concrete. A tire marked C may
have poor traction performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction
tests, and does not include
acceleration, cornering,
hydroplaning, or peak traction
characteristics.Temperature
The temperature grades are A
(the highest), B, and C,
representing the tire's resistance
to the generation of heat and its
ability to dissipate heat when
tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained
high temperature can cause the
material of the tire to degenerate
and reduce tire life, and
excessive temperature can lead
to sudden tire failure. The grade
C corresponds to a level of
performance which all
passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and
A represent higher levels of
performance on the laboratory
test wheel than the minimum
required by law. Warning: The
temperature grade for this tire is
established for a tire that is
properly inflated and not
overloaded. Excessive speed,underinflation, or excessive
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned
and balanced at the factory to
provide the longest tire life and best
overall performance. Adjustments to
wheel alignment and tire balancing
are not necessary on a regular
basis. Consider an alignment check
if there is unusual tire wear or the
vehicle is significantly pulling to one
side or the other. Some slight pull to
the left or right, depending on the
crown of the road and/or other road
surface variations such as troughs
or ruts, is normal. If the vehicle is
vibrating when driving on a smooth
road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
408 Vehicle Care
Tire Chains
{Warning
If the vehicle has dual wheels or
265/65R18, P265/65R18,
P275/55R20, LT265/70R17,
LT265/70R18, LT265/60R20,
LT275/65R18, P285/50R20,
285/45R22, or P285/45R22 size
tires, do not use tire chains. They
can damage the vehicle because
there is not enough clearance.
Tire chains used on a vehicle
without the proper amount of
clearance can cause damage to
the brakes, suspension, or other
vehicle parts. The area damaged
by the tire chains could cause you
to lose control of the vehicle and
you or others may be injured in a
crash.
Use another type of traction
device only if its manufacturer
recommends it for use on the
vehicle and tire size combination(Continued)
Warning (Continued)
and road conditions. Follow that
manufacturer's instructions. To
help avoid damage to the vehicle,
drive slowly, readjust, or remove
the device if it is contacting the
vehicle, and do not spin the
vehicle's wheels.
If you do find traction devices that
will fit, install them on the rear
tires.
Caution
If the vehicle does not have dual
wheels and has a tire size other
than 265/65R18, P265/65R18,
P275/55R20, LT265/70R17,
LT265/70R18, LT265/60R20,
LT275/65R18, P285/50R20,
285/45R22, or P285/45R22, use
tire chains only where legal and
only when you must. Use chains
that are the proper size for the(Continued)
Caution (Continued)
tires. Install them on the tires of
the rear axle. Do not use chains
on the tires of the front axle.
Tighten them as tightly as
possible with the ends securely
fastened. Drive slowly and follow
the chain manufacturer's
instructions. If you can hear the
chains contacting the vehicle,
stop and retighten them. If the
contact continues, slow down
until it stops. Driving too fast or
spinning the wheels with chains
on will damage the vehicle.
If a Tire Goes Flat
It is unusual for a tire to blowout
while driving, especially if the tires
are maintained properly. If air goes
out of a tire, it is much more likely to
leak out slowly. But if there ever is a
blowout, here are a few tips about
what to expect and what to do:

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
Index 489
California (cont'd)Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 336
California
Proposition
65 Warning . . . . . . . . . .336, 362, 421, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 457
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 256
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . 43
Winter Driving . . . . . . . . . . . . . . . . 237
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . 126
Cargo Lamp . . . . . . . . . . . . . . . . . . . . 177
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 125
Center High-Mounted Stoplamp (CHMSL) and
Cargo Lamp . . . . . . . . . . . . . . . . . . . 375
Center Seat . . . . . . . . . . . . . . . . . . . . . 59
Chains, Tire . . . . . . . . . . . . . . . . . . . . 408
Charging
Wireless . . . . . . . . . . . . . . . . . . . . . . 134
Charging System Light . . . . . . . . . 147 Check
Engine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 147
Ignition Transmission Lock . . . 368
Child Restraints Infants and Young Children . . . . . 94
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 99
Older Children . . . . . . . . . . . . . . . . . . 92
Securing . . . . . . . . . . . . . 111, 114, 115
Systems . . . . . . . . . . . . . . . . . . . . . . . . 96
Circuit Breakers . . . . . . . . . . . . . . . . 376
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 430
Interior Care . . . . . . . . . . . . . . . . . . 436
Climate Control
Systems . . . . . . . . . . . . . . . . . 216, 218
Air Conditioning . . . . . . . . . 216, 218
Dual Automatic . . . . . . . . . . . . . . . 220
Heating . . . . . . . . . . . . . . . . . . 216, 218
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Cluster, Instrument . . . . . . . . . . . . . 137
Clutch, Hydraulic . . . . . . . . . . . . . . . 351
Collision Damage Repair . . . . . . . 468
Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . 124
Compass . . . . . . . . . . . . . . . . . . . . . . . 131 Connections
OnStar . . . . . . . . . . . . . . . . . . . . . . . 478
Control Hill Descent . . . . . . . . . . . . . . . . . . 277
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 276
Control Light
Hill Descent . . . . . . . . . . . . . . . . . . 151
Control of a Vehicle . . . . . . . . . . . . . 228
Convex Mirrors . . . . . . . . . . . . . . . . . . 47
Coolant Engine Temperature Gauge . . 142
Cooling . . . . . . . . . . . . . . .216, 218, 220
Cooling System . . . . . . . . . . . . . . . . . 352
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 467
Cruise Control . . . . . . . . . . . . . . . . . . 279 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Cupholders . . . . . . . . . . . . . . . . . . . . . 125
Customer Assistance . . . . . . . . . . . 464 Offices . . . . . . . . . . . . . . . . . . . . . . . . 463
Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . 464
Customer Information Service Publications
Ordering Information . . . . . . . . 470
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 461

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
Index 493
Lamps (cont'd)Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 180
Malfunction Indicator
(Check Engine) . . . . . . . . . . . . . 147
On Reminder . . . . . . . . . . . . . . . . . 154
Reading . . . . . . . . . . . . . . . . . . . . . . 178
Taillamps . . . . . . . . . . . . . . . . . . . . . 373
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . 288
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Lane Keep Assist (LKA) . . . . . . . . 290
Lane Keep Assist Light . . . . . . . . . 151
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 75
Lap-Shoulder Belt . . . . . . . . . . . . . . . 71
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . . 111
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 99
LED Lighting . . . . . . . . . . . . . . . . . . . . 371
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . 179
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Illumination Control . . . . . . . . . . . 177
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 371 Lights
Airbag On-Off . . . . . . . . . . . . . . . . . 144
Airbag Readiness . . . . . . . . . . . . . 144
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 150
Brake System Warning . . . . . . . 149
Charging System . . . . . . . . . . . . . 147
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 147
Cruise Control . . . . . . . . . . . . . . . . 154
Flash-to-Pass . . . . . . . . . . . . . . . . . 174
Four-Wheel-Drive . . . . . . . . . . . . . 150
Front Fog Lamp . . . . . . . . . . . . . . 154
High-Beam On . . . . . . . . . . . . . . . . 154
High/Low Beam Changer . . . . . 173
Hill Descent Control . . . . . . . . . . 151
Lane Departure Warning . . . . . . 151
Lane Keep Assist . . . . . . . . . . . . . 151
Low Fuel Warning . . . . . . . . . . . . 153
Seat Belt Reminders . . . . . . . . . . 143
Security . . . . . . . . . . . . . . . . . . . . . . 153
StabiliTrak OFF . . . . . . . . . . . . . . . 152
Tire Pressure . . . . . . . . . . . . . . . . . 153
Tow/Haul Mode . . . . . . . . . . . . . . . 150
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 152
Traction Off . . . . . . . . . . . . . . . . . . . 152 Locking Rear Axle . . . . . . . . . . . . . . 278
Locks
Automatic Door . . . . . . . . . . . . . . . . . 41
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Lockout Protection . . . . . . . . . . . . . . 42
Power Door . . . . . . . . . . . . . . . . . . . . . 41
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Loss of Control . . . . . . . . . . . . . . . . . 230
Low Fuel Warning Light . . . . . . . . . 153
Low-Profile Tires . . . . . . . . . . . . . . . . 385
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 99
Lumbar Adjustment . . . . . . . . . . . . . . 60 Front Seats . . . . . . . . . . . . . . . . . . . . . 60
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 455
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . 448
Maintenance Schedule . . . . . . . . . 443 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 451
Transfer Case . . . . . . . . . . . . . . . . 265
Malfunction Indicator Lamp . . . . . 147
Manual Mirrors . . . . . . . . . . . . . . . . . . 47
Manual Mode . . . . . . . . . . . . . . . . . . . 260

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
Index 497
Steering (cont'd)Wheel Adjustment . . . . . . . . . . . . 129
Wheel Controls . . . . . . . . . . . . . . . 129
Steps
Power Assist . . . . . . . . . . . . . . . . . . . 43
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . 373
Storage Areas Center Console . . . . . . . . . . . . . . . 125
Floor Console . . . . . . . . . . . . . . . . 126
Glove Box . . . . . . . . . . . . . . . . . . . . 124
Instrument Panel . . . . . . . . . . . . . 124
Sunglasses . . . . . . . . . . . . . . . . . . . 125
Storage Compartments . . . . . . . . . 124
Struts
Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 238
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 55
Sunglass Storage . . . . . . . . . . . . . . . 125
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Switches Airbag On-Off . . . . . . . . . . . . . . . . . . . 84
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System
Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 285
Infotainment . . . . . . . . . . . . . 181, 474
Noise Control . . . . . . . . . . . . . . . . . 366 Systems
Driver Assistance . . . . . . . . . . . . . 281
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 140
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Taillamps . . . . . . . . . . . . . . . . . . . . . . . 373
Bulb Replacement . . . . . . . . . . . . 373
Text Telephone (TTY) Users . . . . 464
Theft-Deterrent Systems . . . . . . . . . 46 Immobilizer . . . . . . . . . . . . . . . . . . . . . 46
Throttle, Adjustable . . . . . . . . . . . . . 247
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
All-Season . . . . . . . . . . . . . . . . . . . . 384
All-Terrain . . . . . . . . . . . . . . . . . . . . 386
Buying New Tires . . . . . . . . . . . . . 403
Chains . . . . . . . . . . . . . . . . . . . . . . . . 408
Changing . . . . . . . . . . . . . . . . . . . . . 410
Designations . . . . . . . . . . . . . . . . . 388
Different Size . . . . . . . . . . . . . . . . . 404
Full-Size Spare . . . . . . . . . . . . . . . 420
If a Tire Goes Flat . . . . . . . . . . . . 408
Inspection . . . . . . . . . . . . . . . . . . . . 399
Low Profile . . . . . . . . . . . . . . . . . . . 385
Pressure . . . . . . . . . . . . . . . . . 392, 394
Pressure Light . . . . . . . . . . . . . . . . 153
Pressure Monitor Operation . . 395 Tires (cont'd)
Pressure Monitor System . . . . . 394
Rotation . . . . . . . . . . . . . . . . . . . . . . 400
Sidewall Labeling . . . . . . . . . . . . . 386
Terminology and Definitions . . 390
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 405
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 406
Wheel Replacement . . . . . . . . . . 407
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . 402
Winter . . . . . . . . . . . . . . . . . . . . . . . . 385
Tow/Haul Mode . . . . . . . . . . . . . . . . . 262
Tow/Haul Mode Light . . . . . . . . . . . 150
Towing
Driving Characteristics . . . . . . . . 296
Equipment . . . . . . . . . . . . . . . . . . . . 318
General Information . . . . . . . . . . 296
Recreational Vehicle . . . . . . . . . . 425
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 300
Trailer Sway Control (TSC) . . . 327
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 425
Traction Control System (TCS)/StabiliTrak Light . . . . . . . . . . . . . 152
Off Light . . . . . . . . . . . . . . . . . . . . . . 152

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
498 Index
Traction Control/ElectronicStability Control . . . . . . . . . . . . . . . 276
Trademarks and License Agreements . . . . . . . . . . . . . . . . . . . 210
Trailer Sway Control (TSC) . . . . . . . . . . 327
Tow Mirrors . . . . . . . . . . . . . . . . . . . . . 48
Towing . . . . . . . . . . . . . . . . . . . . . . . . 300
Transfer Case . . . . . . . . . . . . . . . . . . 265
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 257
Fluid, Automatic . . . . . . . . . 347, 350
Fluid, Manual . . . . . . . . . . . . . . . . . 350
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . 467
Trip Odometer . . . . . . . . . . . . . . . . . . 140
Truck-Camper Loading
Information . . . . . . . . . . . . . . . . . . . . 245
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 175
Turn Signal
Bulb Replacement . . . . . . . . . . . . 373
U
Uniform Tire Quality Grading . . . 405
Universal Remote System . . . . . . 168Operation . . . . . . . . . . . . . . . . . . . . . 170
Programming . . . . . . . . . . . . . . . . . 168 Updates
Software . . . . . . . . . . . . . . . . . . . . . . 185
USB Port . . . . . . . . . . . . . . . . . . . . . . . 190
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 44
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 228
Identification Number (VIN) . . . 456
Load Limits . . . . . . . . . . . . . . . . . . . 239
Messages . . . . . . . . . . . . . . . . . . . . 159
Personalization . . . . . . . . . . . . . . . 160
Remote Start . . . . . . . . . . . . . . . . . . . 39
Security . . . . . . . . . . . . . . . . . . . . . . . . 44
Speed Messages . . . . . . . . . . . . . 160
Towing . . . . . . . . . . . . . . . . . . . . . . . . 425
Vehicle Ahead Indicator . . . . . . . . 152
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . 392
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 473
Ventilation, Air . . . . . . . . . . . . . . . . . . 223
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Voice Recognition . . . . . . . . . . . . . . 197
Voltage Devices and Wiring . . . . 375
Voltmeter Gauge . . . . . . . . . . . . . . . 143
W
Warning Brake System Light . . . . . . . . . . . 149
Caution and Danger . . . . . . . . . . . . . 3
Lane Departure (LDW) . . . . . . . 288
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 136
Warnings Hazard Flashers . . . . . . . . . . . . . . 175
Washer Fluid . . . . . . . . . . . . . . . . . . . 359
Wheels
Alignment and Tire Balance . . 406
Different Size . . . . . . . . . . . . . . . . . 404
Replacement . . . . . . . . . . . . . . . . . 407
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Where to Put the Restraint . . . . . . 98
Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . 478
Windows . . . . . . . . . . . . . . . . . . . . . . . . 52 Manual . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Windshield Replacement . . . . . . . . . . . . . . . . . 369
Wiper/Washer . . . . . . . . . . . . . . . . 130
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . 237
Winter Tires . . . . . . . . . . . . . . . . . . . . 385
