Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
216 Driving and Operating
.Prevent ignition key removal
unless the shift lever is in
P (Park) with the shift lever
button fully released.
. Prevent movement of the shift
lever out of P (Park) unless the
ignition on and the brake pedal
is applied.
The shift lock release is always
functional except in the case of an
uncharged or low voltage (less than
9-volt) battery.
If the vehicle has an uncharged
battery or a battery with low voltage,
try charging or jump starting the
battery. See Jump Starting - North
America 0333.
To shift out of P (Park): 1. Apply the brake pedal.
2. Turn the ignition on.
3. Press the shift lever button.
4. Move the shift lever to the desired position.
If still unable to shift out of P (Park):
1. Fully release the shift lever button. 2. Hold the brake pedal down and
press the shift lever button
again.
3. Move the shift lever to the desired position.
If the shift lever still cannot be
moved from P (Park), see your
dealer.
This vehicle may have the Seat Belt
Assurance System, which may
prevent the vehicle from shifting out
of P (Park). See Seat Belts069.
Parking (Manual
Transmission)
If the vehicle has a manual
transmission, before getting out of
the vehicle, move the shift lever into
R (Reverse) if parking on a downhill
slope. On a level surface or an
uphill slope, use 1 (First) gear.
Firmly apply the parking brake. See
Parking Brake 0229. Turn the
wheels toward the curb for a
downhill slope, or away from the
curb for an uphill slope. Once the
shift lever has been placed into gear with the clutch pedal pressed in,
turn the ignition off, and release the
clutch.
Parking over Things
That Burn
{Warning
Things that can burn could touch
hot exhaust parts under the
vehicle and ignite. Do not park
over papers, leaves, dry grass,
or other things that can burn.
Extended Parking
It is better not to park with the
vehicle running. If the vehicle is left
while running, follow the proper
steps to be sure the vehicle will not
move and there is adequate
ventilation.
See
Shifting Into Park (Automatic
Transmission) 0215 andEngine
Exhaust 0217.
For vehicles with pushbutton start,
if the vehicle is left parked while
running and the Remote Keyless

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

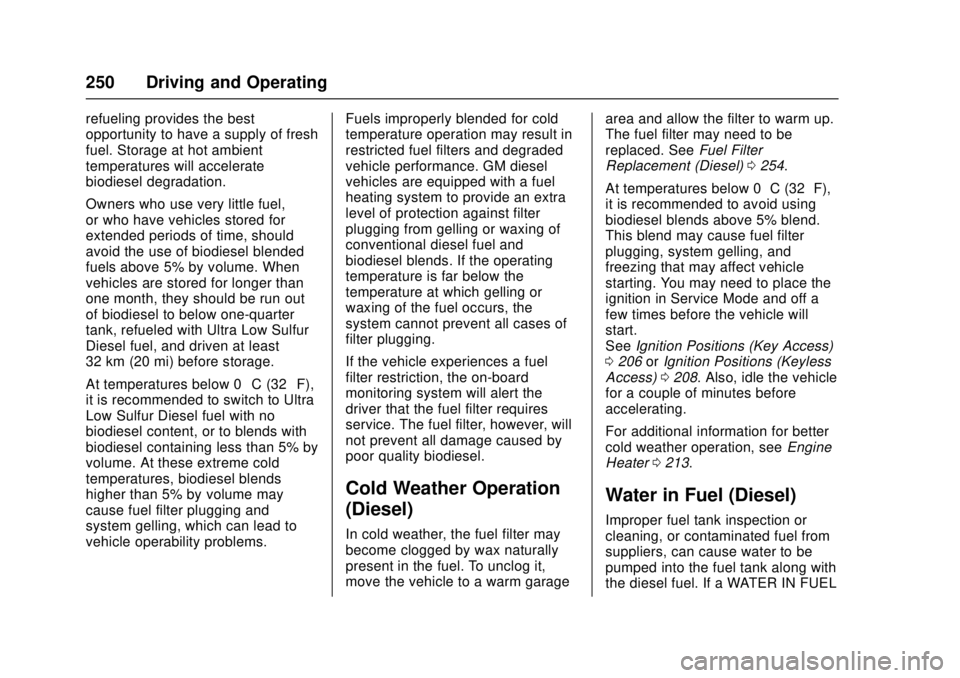

250 Driving and Operating
refueling provides the best
opportunity to have a supply of fresh
fuel. Storage at hot ambient
temperatures will accelerate
biodiesel degradation.
Owners who use very little fuel,
or who have vehicles stored for
extended periods of time, should
avoid the use of biodiesel blended
fuels above 5% by volume. When
vehicles are stored for longer than
one month, they should be run out
of biodiesel to below one-quarter
tank, refueled with Ultra Low Sulfur
Diesel fuel, and driven at least
32 km (20 mi) before storage.
At temperatures below 0 °C (32 °F),
it is recommended to switch to Ultra
Low Sulfur Diesel fuel with no
biodiesel content, or to blends with
biodiesel containing less than 5% by
volume. At these extreme cold
temperatures, biodiesel blends
higher than 5% by volume may
cause fuel filter plugging and
system gelling, which can lead to
vehicle operability problems.Fuels improperly blended for cold
temperature operation may result in
restricted fuel filters and degraded
vehicle performance. GM diesel
vehicles are equipped with a fuel
heating system to provide an extra
level of protection against filter
plugging from gelling or waxing of
conventional diesel fuel and
biodiesel blends. If the operating
temperature is far below the
temperature at which gelling or
waxing of the fuel occurs, the
system cannot prevent all cases of
filter plugging.
If the vehicle experiences a fuel
filter restriction, the on-board
monitoring system will alert the
driver that the fuel filter requires
service. The fuel filter, however, will
not prevent all damage caused by
poor quality biodiesel.
Cold Weather Operation
(Diesel)
In cold weather, the fuel filter may
become clogged by wax naturally
present in the fuel. To unclog it,
move the vehicle to a warm garagearea and allow the filter to warm up.
The fuel filter may need to be
replaced. See
Fuel Filter
Replacement (Diesel) 0254.
At temperatures below 0 °C (32 °F),
it is recommended to avoid using
biodiesel blends above 5% blend.
This blend may cause fuel filter
plugging, system gelling, and
freezing that may affect vehicle
starting. You may need to place the
ignition in Service Mode and off a
few times before the vehicle will
start.
See Ignition Positions (Key Access)
0 206 orIgnition Positions (Keyless
Access) 0208. Also, idle the vehicle
for a couple of minutes before
accelerating.
For additional information for better
cold weather operation, see Engine
Heater 0213.
Water in Fuel (Diesel)
Improper fuel tank inspection or
cleaning, or contaminated fuel from
suppliers, can cause water to be
pumped into the fuel tank along with
the diesel fuel. If a WATER IN FUEL

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
260 Vehicle Care
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty.Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see
Adding Equipment to the
Airbag-Equipped Vehicle 086.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner ’s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 376.
This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 085.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Vehicle Care 269
change is not necessary for up to a
year. The engine oil and filter must
be changed at least once a year
and, at this time, the system must
be reset. Your dealer has trained
service people who will perform this
work and reset the system. It is also
important to check the oil regularly
over the course of an oil drain
interval and keep it at the proper
level.
If the system is ever reset
accidentally, the oil must be
changed at 5 000 km (3,000 mi)
since the last oil change.
Remember to reset the oil life
system whenever the oil is changed.
How to Reset the Engine Oil
Life System
Reset the system whenever the
engine oil is changed so that the
system can calculate the next
engine oil change. To reset the
system:Resetting the Oil Life System
(Base Level Cluster)
1. Display the REMAINING OIL LIFE on the DIC.
See Driver Information Center
(DIC) (Base) 0138 orDriver
Information Center (DIC)
(Uplevel) 0141.
2. Press and hold SET/CLR on the turn signal lever while the
Oil Life display is active. The
oil life will change to 100%.
Resetting the Oil Life System
(Uplevel Cluster) 1. Display the REMAINING OIL LIFE on the DIC.
See Driver Information Center
(DIC) (Base) 0138 orDriver
Information Center (DIC)
(Uplevel) 0141.
2. Press and hold
Von the DIC
while the Oil Life display is
active. The oil life will change
to 100%. The oil life system can also be reset
as follows:
1. Turn the ignition on with the engine off.
See Ignition Positions (Key
Access) 0206 orIgnition
Positions (Keyless Access)
0 208.
2. Fully press and release the accelerator pedal three times
within five seconds.
The system is reset when the
CHANGE ENGINE OIL SOON
message goes off.
If the CHANGE ENGINE OIL SOON
message comes back on when the
vehicle is started, the engine oil life
system has not been reset. Repeat
the procedure.Automatic Transmission
Fluid
How to Check Automatic
Transmission Fluid
It is not necessary to check the
transmission fluid level.
A transmission fluid leak is the only

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
310 Vehicle Care
matched to the tire/wheel positions,
using a TPMS relearn tool, in the
following order: driver side front tire,
passenger side front tire, passenger
side rear tire, and driver side rear.
See your dealer for service or to
purchase a relearn tool. A TPMS
relearn tool can also be purchased.
See Tire Pressure Monitor Sensor
Activation Tool at
www.gmtoolsandequipment.com or
call 1-800-GM TOOLS
(1-800-468-6657).
There are two minutes to match the
first tire/wheel position, and
five minutes overall to match all four
tire/wheel positions. If it takes
longer, the matching process stops
and must be restarted.
The TPMS sensor matching
process is:1. Set the parking brake.
2. Turn the ignition on without starting the vehicle or place the
vehicle in Service Mode.
See Ignition Positions (Key
Access) 0206 orIgnition
Positions (Keyless Access)
0 208. 3. Uplevel DIC Only: Make sure
the Tire Pressure info page
option is turned on. The info
pages on the DIC can be
turned on and off through the
Options menu.
See Driver Information Center
(DIC) (Base) 0138 orDriver
Information Center (DIC)
(Uplevel) 0141.
4. If the vehicle has an uplevel DIC, use the DIC controls on
the right side of the steering
wheel to scroll to the Tire
Pressure screen under the DIC
info page.
If the vehicle has a base level
DIC, press MENU to select the
Vehicle Information Menu in
the DIC. Use the thumbwheel
to scroll to the Tire Pressure
Menu item screen.
5. If the vehicle has an uplevel DIC, press and hold the
V
(Set/Reset) button in the center
of the DIC controls.
If the vehicle has a base level
DIC, press SET/CLR to begin
the sensor matching process. A message requesting
acceptance of the process may
display.
If the vehicle has a base level
DIC, press SET/CLR again to
confirm the selection.
The horn sounds twice to
signal the receiver is in relearn
mode and the TIRE
LEARNING ACTIVE message
displays on the DIC screen.
6. Start with the driver side front tire.
7. Place the relearn tool against the tire sidewall, near the valve
stem. Then press the button to
activate the TPMS sensor.
A horn chirp confirms that the
sensor identification code has
been matched to this tire and
wheel position.
8. Proceed to the passenger side front tire, and repeat the
procedure in Step 7.
9. Proceed to the passenger side rear tire, and repeat the
procedure in Step 7.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Index 397
I
Ignition Positions . . . . . . . . . . 206, 208
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . . . 281
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 53
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 133
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 89
Infotainment . . . . . . . . . . . . . . . . . . . . 161
Infotainment System . . . . . . . . . . . . 380
Instrument Cluster . . . . . . . . . . . . . . 120
Instrument Panel Overview . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . 55
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 333
K
Keyless EntryRemote (RKE) System . . . . . 34, 36
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
L
Labeling, Tire Sidewall . . . . . . . . . . 300
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 158
Daytime Running (DRL) . . . . . . 155 Lamps (cont'd)
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 158
Exterior Controls . . . . . . . . . . . . . . 153
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 160
License Plate . . . . . . . . . . . . . . . . . 289
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 130
On Reminder . . . . . . . . . . . . . . . . . 137
Reading . . . . . . . . . . . . . . . . . . . . . . 158
Taillamps and Back-up . . . . . . . 286
Lane Change Alert (LCA) . . . . . . . 240
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 242
Lane Keep Assist (LKA) . . . . . . . . 242
Lane Keep Assist Light . . . . . . . . . 133
Lap-Shoulder Belt . . . . . . . . . . . . . . . 71
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 101
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 94
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 159
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Illumination Control . . . . . . . . . . . 158 Lights
Airbag Readiness . . . . . . . . . . . . . 128
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 132
Brake System Warning . . . . . . . 132
Charging System . . . . . . . . . . . . . 130
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 130
Cruise Control . . . . . . . . . . . . . . . . 137
Diesel Exhaust Fluid (DEF) . . . 136
Door Ajar . . . . . . . . . . . . . . . . . . . . . 137
Engine Oil Pressure . . . . . . . . . . 135
Flash-to-Pass . . . . . . . . . . . . . . . . . 155
Front Fog Lamp . . . . . . . . . . . . . . 137
High-Beam On . . . . . . . . . . . . . . . . 137
High/Low Beam Changer . . . . . 155
Lane Keep Assist . . . . . . . . . . . . . 133
Low Fuel Warning . . . . . . . . . . . . 136
Seat Belt Reminders . . . . . . . . . . 128
Security . . . . . . . . . . . . . . . . . . . . . . 136
StabiliTrak OFF . . . . . . . . . . . . . . . 134
Tire Pressure . . . . . . . . . . . . . . . . . 135
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 134
Traction Off . . . . . . . . . . . . . . . . . . . 134
Up-Shift . . . . . . . . . . . . . . . . . . . . . . 133
Wait to Start . . . . . . . . . . . . . . . . . . 135

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Index 399
Parking (cont'd)Brake and P (Park)
Mechanism Check . . . . . . . . . . 281
Extended . . . . . . . . . . . . . . . . . . . . . 216
Over Things That Burn . . . . . . . 216
Parking Assist . . . . . . . . . . . . . . . . . . 236
Parking or Backing Assistance Systems . . . . . . . . . . 236
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . 129
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Passenger Sensing System . . . . . 81
Perchlorate Materials Requirements, California . . . . . . 260
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 145
Phone
Apple CarPlay andAndroid Auto . . . . . . . . . . . . . . . . 181
Bluetooth . . . . . . . . . . . . . . . . 176, 177
Hands-Free . . . . . . . . . . . . . . . . . . . 181
Port
USB . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 46
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Outlets . . . . . . . . . . . . . . . . . . . . . . . .115 Power (cont'd)
Protection, Battery . . . . . . . . . . . . 160
Retained Accessory (RAP) . . . 215
Seat Adjustment . . . . . . . . . . . . . . . . 63
Windows . . . . . . . . . . . . . . . . . . . . . . . 56
Pregnancy, Using Seat Belts . . . . 73
Privacy Vehicle Data Recording . . . . . . . 379
Program
Courtesy Transportation . . . . . . 373
Proposition 65 Warning,
California . . . . . . . . . . . .259, 279, 333, Back Cover
R
Radio Frequency Statement . . . . 377
Radio Reception . . . . . . . . . . . . . . . . 168
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . 166
Satellite . . . . . . . . . . . . . . . . . . . . . . . 167
Reading Lamps . . . . . . . . . . . . . . . . . 158
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 66 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 68
Rear Vision Camera (RVC) . . . . . 236
Rear Window Washer/Wiper . . . . 112
Rearview Mirrors . . . . . . . . . . . . . . . . 55 Automatic Dimming . . . . . . . . . . . . . 55
Reclining Seatbacks . . . . . . . . . . . . . 63 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . 359
Records Maintenance . . . . . . . . . . . . . . . . . . 362
Recreational Vehicle Towing . . . . 336
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . 371
Remote Keyless Entry (RKE) System . . . . . . . . . . 33, 34, 36
Remote Vehicle Start . . . . . . . . . . . . 42
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 87
Maintenance . . . . . . . . . . . . . . . . . . 360
Replacing Airbag System . . . . . . . . 87
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . 101
Replacing Seat Belt System Parts after a Crash . . . . . . . . . . . . . 75
Reporting Safety Defects Canadian Government . . . . . . . . 378
General Motors . . . . . . . . . . . . . . . 378
U.S. Government . . . . . . . . . . . . . 377
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 93
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . . 215
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 199
