2018 BUICK LACROSSE engine coolant

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
256 Vehicle Care
FusesUsage
48 Engine boost/Left cooling fan
49 DC DC battery 2/AWD
50 –
51 –
52 –
53 –
54 –
55 –
56 –
57 Transmission auxiliary pump
58 TRCM
59 High-beam headlamps
60 Cooling fan
61 –
62 –
63 –
65 A/C HEV Fuses
Usage
67 –
68 –
69 Right HID low-beam headlamps
70 Left HID low-beam headlamps
72 Starter pinion
74 Starter motor
75 Engine control module
76 Powertrain –off
engine
77 –
78 Horn
79 Washer pump
81 Transmission control module/ Engine
control module
82 –
83 Ignition coils
84 Coil Fuses
Usage
85 Engine control module switch 2
86 Engine control module switch 1
87 SAI reaction pump
88 Aeroshutter
89 Headlamp washer
91 –
92 TPIM motor generator unit pump
93 Headlamp leveling
95 SAI reaction solenoid
96 Fuel heater
97 –
99 Coolant pump
Relays Usage
4 AC DC inverter
20 Rear defogger
25 Front wiper control
31 Run/Crank

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
312 Service and Maintenance
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0237.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0272.
. Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0234 and
Engine Oil Life System 0237.
. Check engine coolant level. See
Cooling System 0239.
. Check windshield washer fluid
level. See Washer Fluid 0245. .
Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0300. Replace worn or
damaged wiper blades. See
Wiper Blade Replacement
0 249.
. Check tire inflation pressures.
See Tire Pressure 0266.
. Inspect tire wear. See Tire
Inspection 0272.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 238.
. Inspect brake system. See
Exterior Care 0300.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0300.
. Check restraint system
components. See Safety System
Check 067.
. Visually inspect fuel system for
damage or leaks. .
Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0300.
. Check starter switch. See Starter
Switch Check 0248.
. Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for
signs of wear, cracks, or other
damage. Check the hold open
ability of the strut. If the hold
open is low, service the gas
strut. See Gas Strut(s) 0249.
. Inspect sunroof track and seal,
if equipped. See Sunroof049.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
Service and Maintenance 319

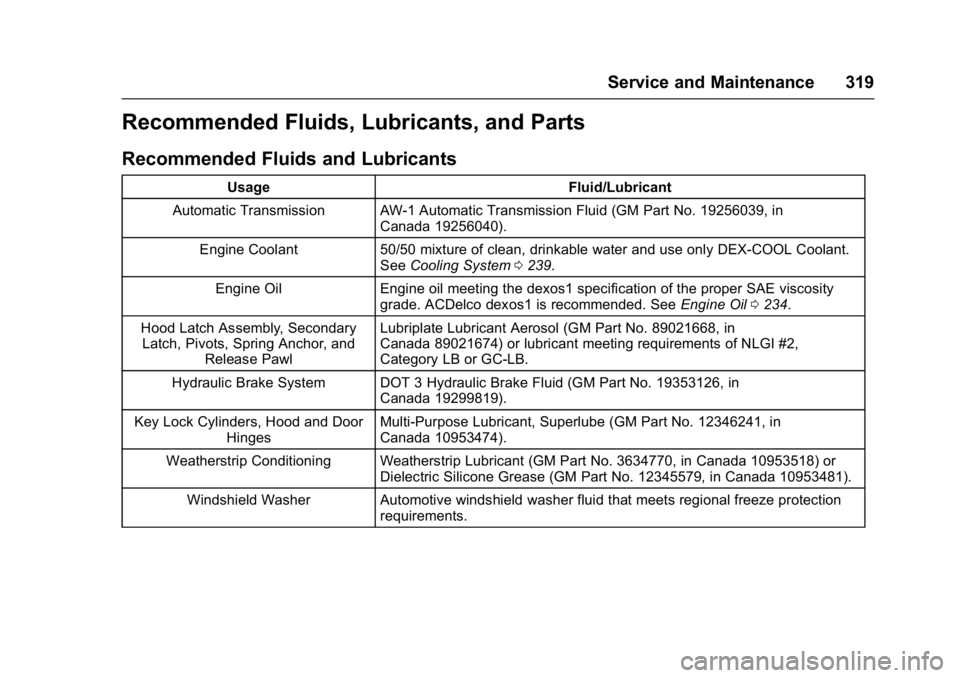

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
UsageFluid/Lubricant
Automatic Transmission AW-1 Automatic Transmission Fluid (GM Part No. 19256039, in Canada 19256040).
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See Cooling System 0239.
Engine Oil Engine oil meeting the dexos1 specification of the proper SAE viscosity
grade. ACDelco dexos1 is recommended. See Engine Oil0234.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and
Release Pawl Lubriplate Lubricant Aerosol (GM Part No. 89021668, in
Canada 89021674) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19353126, in Canada 19299819).
Key Lock Cylinders, Hood and Door Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or Dielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
352 Index
CheckEngine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . .117
Child Restraints Infants and Young Children . . . . . 82
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 87
Older Children . . . . . . . . . . . . . . . . . . 81
Securing . . . . . . . . . . . . . . . . . . . . 94, 96
Systems . . . . . . . . . . . . . . . . . . . . . . . . 85
Circuit Breakers . . . . . . . . . . . . . . . . 253
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . 300
Interior Care . . . . . . . . . . . . . . . . . . 305
Climate Control Systems Dual Automatic . . . . . . . . . . . . . . . 152
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Cluster, Instrument . . . . . . . . . . . . . 110
Collision Damage Repair . . . . . . . 332
Compact Spare Tire . . . . . . . . . . . . 292
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Compass . . . . . . . . . . . . . . . . . . . . . . . 106
Compressor Kit, Tire Sealant . . . 280
Connections OnStar . . . . . . . . . . . . . . . . . . . . . . . 341 Control
Traction and Electronic
Stability . . . . . . . . . . . . . . . . . . . . . 190
Control of a Vehicle . . . . . . . . . . . . . 161
Convenience Net . . . . . . . . . . . . . . . 102
Convex Mirrors . . . . . . . . . . . . . . . . . . 44
Coolant Engine Temperature Gauge . . .114
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 122
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . 152
Cooling System . . . . . . . . . . . . . . . . . 239
Courtesy Transportation
Program . . . . . . . . . . . . . . . . . . . . . . . 331
Cruise Control . . . . . . . . . . . . . . . . . . 193 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Cruise Control, Adaptive . . . . . . . . 195
Cupholders . . . . . . . . . . . . . . . . . . . . . 100
Customer Assistance . . . . . . . . . . . 328 Offices . . . . . . . . . . . . . . . . . . . . . . . . 327
Text Telephone (TTY)Users . . . . . . . . . . . . . . . . . . . . . . . 328
Customer Information Service PublicationsOrdering Information . . . . . . . . 334
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 325D
Damage Repair, Collision . . . . . . . 332
Danger, Warning, and Caution . . . . 2
Data CollectionInfotainment System . . . . . . . . . . 338
OnStar . . . . . . . . . . . . . . . . . . . . . . . 337
Data Recorders, Event . . . . . . . . . 337
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 145
Defensive Driving . . . . . . . . . . . . . . . 161
Delayed Locking . . . . . . . . . . . . . . . . . 38
Diagnostics
OnStar . . . . . . . . . . . . . . . . . . . . . . . 343
Distracted Driving . . . . . . . . . . . . . . . 160
Dome Lamps . . . . . . . . . . . . . . . . . . . 148
Door
Ajar Light . . . . . . . . . . . . . . . . . . . . . 125
Delayed Locking . . . . . . . . . . . . . . . . 38
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Power Locks . . . . . . . . . . . . . . . . . . . . 38
Drive Belt Routing, Engine . . . . . . 324
Drive Systems All-Wheel Drive . . . . . . . . . . 187, 248
Driver Assistance Systems . . . . . 203
Driver Efficiency Gauge . . . . . . . . 114
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 126

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
Index 353
DrivingAssistance Systems . . . . . . . . . . 207
Characteristics and
Towing Tips . . . . . . . . . . . . . . . . . 221
Defensive . . . . . . . . . . . . . . . . . . . . . 161
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 161
For Better Fuel Economy . . . . . . . 26
Hill and Mountain Roads . . . . . . 164
If the Vehicle is Stuck . . . . . . . . . 166
Loss of Control . . . . . . . . . . . . . . . 163
Off-Road Recovery . . . . . . . . . . . 162
Vehicle Load Limits . . . . . . . . . . . 166
Wet Roads . . . . . . . . . . . . . . . . . . . 163
Winter . . . . . . . . . . . . . . . . . . . . . . . . 165
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . 152
E
Electric Parking Brake . . . . . . . . . . 188
Electric Parking Brake Light . . . . 119
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 226
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 254
Fuses and Circuit Breakers . . . 253
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 257
Overload . . . . . . . . . . . . . . . . . . . . . 253 Emergency
OnStar . . . . . . . . . . . . . . . . . . . . . . . 340
Energy Information . . . . . . . . . . . . . 126
Engine Air Cleaner/Filter . . . . . . . . . . . . . 238
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . .117
Compartment Overview . . . . . . . 231
Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . .114
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . 122
Cooling System . . . . . . . . . . . . . . . 239
Drive Belt Routing . . . . . . . . . . . . 324
Exhaust . . . . . . . . . . . . . . . . . . . . . . 180
Heater . . . . . . . . . . . . . . . . . . . . . . . . 175
Oil Life System . . . . . . . . . . . . . . . 237
Oil Pressure Light . . . . . . . . . . . . 123
Overheated Protection Operating Mode . . . . . . . . . . . . . 244
Overheating . . . . . . . . . . . . . . . . . . 243
Power Messages . . . . . . . . . . . . . 132
Running While Parked . . . . . . . . 180
Starting . . . . . . . . . . . . . . . . . . . . . . . 172
Entry Lighting . . . . . . . . . . . . . . . . . . . 149
Equipment, Towing . . . . . . . . . . . . . 225
Event Data Recorders . . . . . . . . . . 337
Exit Lighting . . . . . . . . . . . . . . . . . . . . 149 Extended Parking . . . . . . . . . . . . . . . 179
Extender, Seat Belt . . . . . . . . . . . . . . 67
Exterior Lamp Controls . . . . . . . . . 144
Exterior Lamps Off Reminder . . . 145
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 150
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 11
Filter, Engine Air Cleaner . . . . . . . . . . . 238
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 145
Flashers, Hazard Warning . . . . . . 146
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 279 Changing . . . . . . . . . . . . . . . . . . . . . 287
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 308
Fluid
Automatic Transmission . . . . . . 238
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 246
Washer . . . . . . . . . . . . . . . . . . . . . . . 245
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 147
Folding Mirrors . . . . . . . . . . . . . . . . . . 45
Forward Automatic Braking . . . . . 210
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 208
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 335

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
354 Index
Front Fog LampLight . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . 211
Front Seats Heated and Ventilated . . . . . . . . . . 58
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Additives . . . . . . . . . . . . . . . . . . . . . 219
Economy Driving . . . . . . . . . . . . . . . 26
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 220
Filling the Tank . . . . . . . . . . . . . . . 219
Foreign Countries . . . . . . . . . . . . 219
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .113
Low Fuel Warning Light . . . . . . . 123
Requirements, California . . . . . 218
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 254
Fuses and Circuit Breakers . . . 253
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 257
G
Garage Door Opener . . . . . . . . . . . 140Programming . . . . . . . . . . . . . . . . . 140
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 249
Gauges Driver Efficiency . . . . . . . . . . . . . . .114 Gauges (cont'd)
Engine Coolant
Temperature . . . . . . . . . . . . . . . . .114
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Odometer . . . . . . . . . . . . . . . . . . . . . .112
Speedometer . . . . . . . . . . . . . . . . . .112
Tachometer . . . . . . . . . . . . . . . . . . . .112
Warning Lights and Indicators . . . . . . . . . . . . . . . . . . . 109
General Information Service and Maintenance . . . . . 310
Towing . . . . . . . . . . . . . . . . . . . . . . . . 221
Vehicle Care . . . . . . . . . . . . . . . . . . 228
Glove Box . . . . . . . . . . . . . . . . . . . . . . 100
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 329
H
Hazard Warning Flashers . . . . . . . 146
Head Restraints . . . . . . . . . . . . . . . . . 52
Head-up Display . . . . . . . . . . . . . . . . 129
HeadlampsAdaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . 146
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 251
Automatic . . . . . . . . . . . . . . . . . . . . . 145
Bulb Replacement . . . . . . . . . . . . 251
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 145 Headlamps (cont'd)
Flash-to-Pass . . . . . . . . . . . . . . . . . 145
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 251
High-Beam On Light . . . . . . . . . . 124
High/Low Beam Changer . . . . . 145
Lamps On Reminder . . . . . . . . . 124
Heated Steering Wheel . . . . . . . . . . . . . . . 104
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Heated Mirrors . . . . . . . . . . . . . . . . . . . 45
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 175
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 152
High-Beam On Light . . . . . . . . . . . . 124
High-Speed Operation . . . . . . . . . . 267
Hill and Mountain Roads . . . . . . . . 164
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 63
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
I
Ignition Positions . . . . . . . . . . . . . . . 170
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 43

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-10999169) -
2018 - crc - 3/28/17
Index 355
IndicatorVehicle Ahead . . . . . . . . . . . . . . . . 121
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 82
Information Energy . . . . . . . . . . . . . . . . . . . . . . . 126
Infotainment . . . . . . . . . . . . . . . . . . . . 151
Infotainment System . . . . . . . . . . . . 338
Instrument Cluster . . . . . . . . . . . . . . 110
Interior Rearview Mirrors . . . . . . . . . 46
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . 293, 294
K
Keyless EntryRemote (RKE) System . . . . . . . . . 28
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
L
Labeling, Tire Sidewall . . . . . . . . . . 261
Lamps Daytime Running (DRL) . . . . . . 145
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 148
Exterior Controls . . . . . . . . . . . . . . 144
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 145 Lamps (cont'd)
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 150
License Plate . . . . . . . . . . . . . . . . . 252
Malfunction Indicator
(Check Engine) . . . . . . . . . . . . . .117
On Reminder . . . . . . . . . . . . . . . . . 124
Reading . . . . . . . . . . . . . . . . . . . . . . 148
Sun Visor . . . . . . . . . . . . . . . . . . . . . 149
Lane Change Alert (LCA) . . . . . . . 214
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 215
Lane Keep Assist (LKA) . . . . . . . . 216
Lane Keep Assist Light . . . . . . . . . 120
Lap-Shoulder Belt . . . . . . . . . . . . . . . 64
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . . . 94
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 87
LED Lighting . . . . . . . . . . . . . . . . . . . . 251
Lighting Adaptive Forward . . . . . . . . . . . . . 146
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 149
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Illumination Control . . . . . . . . . . . 148
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 251 Lights
Adaptive Forward Lighting
(AFL) Light . . . . . . . . . . . . . . . . . . 124
Airbag Readiness . . . . . . . . . . . . . .115
Antilock Brake System (ABS) Warning . . . . . . . . . . . . . . 120
Brake System Warning . . . . . . . .119
Charging System . . . . . . . . . . . . . .117
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . .117
Cruise Control . . . . . . . . . . . . . . . . 125
Door Ajar . . . . . . . . . . . . . . . . . . . . . 125
Electric Parking Brake . . . . . . . . .119
Engine Coolant
Temperature Warning . . . . . . . 122
Engine Oil Pressure . . . . . . . . . . 123
Flash-to-Pass . . . . . . . . . . . . . . . . . 145
Front Fog Lamp . . . . . . . . . . . . . . 124
High-Beam On . . . . . . . . . . . . . . . . 124
High/Low Beam Changer . . . . . 145
Lane Keep Assist . . . . . . . . . . . . . 120
Low Fuel Warning . . . . . . . . . . . . 123
Seat Belt Reminders . . . . . . . . . . .115
Security . . . . . . . . . . . . . . . . . . . . . . 124
Service Electric Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . 120
StabiliTrak OFF . . . . . . . . . . . . . . . 121
Tire Pressure . . . . . . . . . . . . . . . . . 122
