2018 AUDI Q7 stop start

a co ...... N r--. N ...... 0
0
:E ' Audi connect at this location *: Requirement: you
must have selected a destination from the re­
sults list . Allows yo u to search for items in the vi­
cinity of the selected location, such as
Travel in­
formation.
Online traffic data* :
the on line traffic informa­
tion
r::;, page 219 can be switched on or off .
Add destination to contact : see r::;, page 211.
Store as favorite : see r::;, page 211.
Voice guidance : see r::;,page 212.
Navigation settings: seer::;, page 211.
(D Tips
Information on online traffic data* can also
be found online at www.audiusa.com.
Personal route
assistance
Applies to: vehicles with navigation system and personal
route assistance
Your MMI con learn the routes you drive fre­
quently and, depending on the current vehicle
position, suggest route guidance (for example,
your doily commute to work and back).
Fig. 188 Example : d isplay of personal routes in the "Enter
desti natio n" me nu
Fig. 189 Info rmation on perso nal route
Navigation
"Press the !NAV/MAPI button repeatedly until
the
Enter destination menu is displayed
r::;, page 203, fig . 185.
" Select: right control button > Navigation set-
tings > Personal route assistance.
When the function is switched on~. the MMI re­
cords the frequently-driven routes regardless of
whether a destination was entered and reached
or not.
As long as route guidance is not active, your per­
sonal routes are listed in the
Enter destination
menu under the home address and indicated with
the symbol
(D r::;, fig. 188. When personal route
ass istance is switched on, this symbol is dis­
played in the Navigation menu and in the Info­
tainment system display status line at the same
time .
The distance to the destination and the calculat­
ed arrival time are also displayed for your person­
al routes. Without starting route guidance, your
MMI monitors the traffic conditions for your per­
sonal routes and shows possible traffic incidents
for the possible routes to be driven in the Info­
tainment system display@r::;,
fig. 188.
A message will be displayed if there is a large
traffic incident (more than 12 minute delay) re­
gardless of which men u is selected
r::;, fig . 189.
Select and confirm one of the following options:
-Start route guidance : the MMI starts the route
guidance for the personal ro ut e displayed and
searches for a faster route if available.
- Ignore this route and this message : the dis­
played destination w ith all applicable personal
routes is no longer factored into the cur rent
trip . No more messages are shown for the dis­
played destination. The disp layed destination
with all applicable personal routes will be fac­
tored into the trip aga in only after stopping the
veh icle and switching the ign ition on again .
-Ignore all messages : all personal routes are no
longer factored into the current trip. No more
messages are displayed. Messages for personal
routes when there is increased traff ic w ill ap­
pea r again after the vehicle is stopped and the
ign ition is switched on again . .,.
209

a co ...... N r--. N ...... 0
0

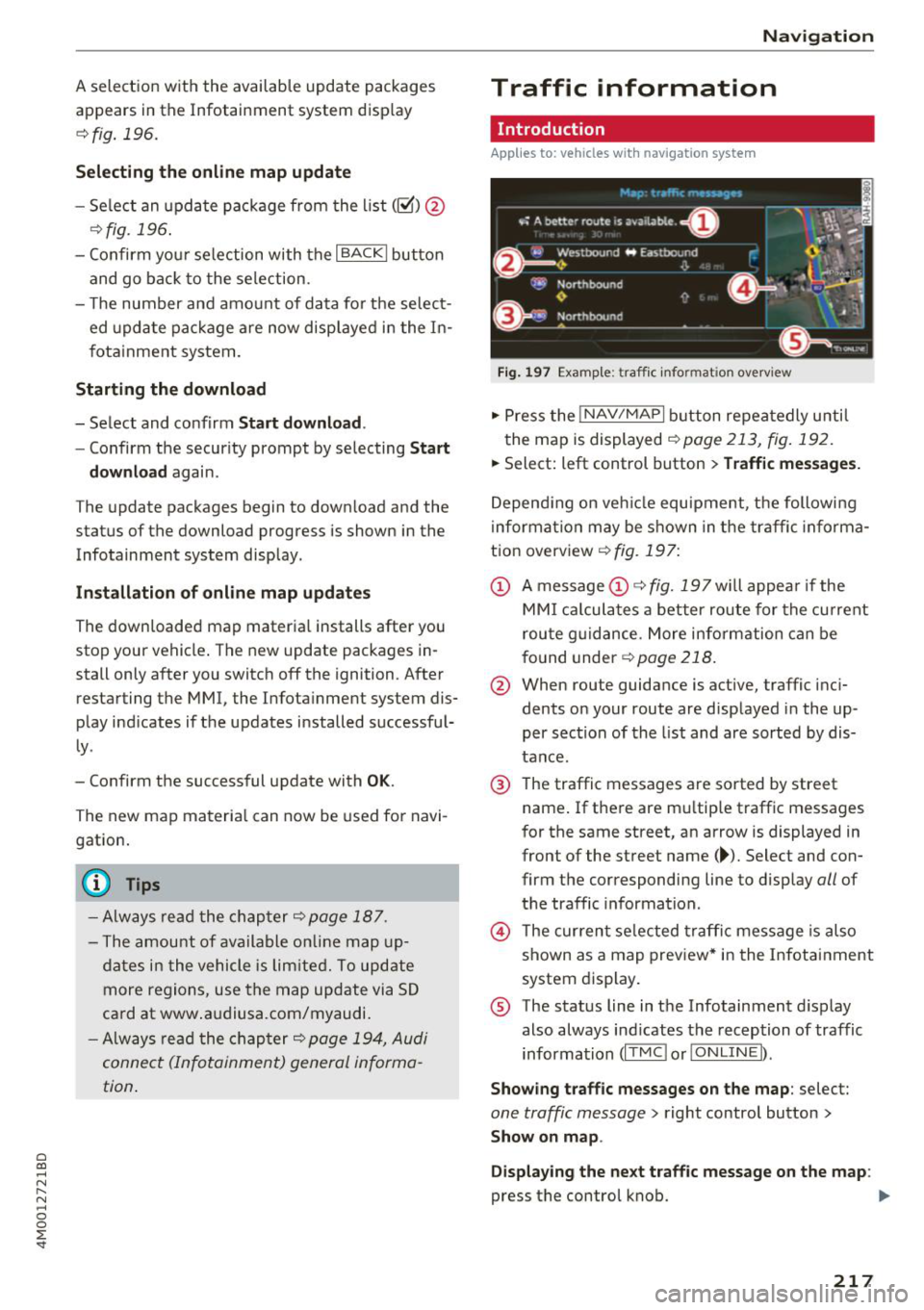

:E ' A selection with the available update packages
appears in the Infota inment system disp lay
¢ fig . 196.
Selecting th e onlin e map upda te
- Se lect an update package from the list(~)@
<=>fig. 196.
-Confirm you r se lection with the I BACK I button
and go back to the selection.
- The number and amount of data fo r th e select­
ed update package are now disp layed in the I n­
fotainment system .
Starting the download
-Se lect and confirm Start downlo ad .
- Confirm the secur ity prompt by selecting S tart
download
again .
T he update pack ages begin to down load and the
status of the download progres s is shown in the
Infotainment system display .
Install ation of onlin e map update s
The downloaded map mater ia l installs after you
stop your vehicl e. T he new update packages in­
stall only after you switch off the ignition . After
restarting the MMI , the Infota inment system dis­
play ind icates if the updates installed successful­
ly .
- Confirm the successful update with
OK .
The new map materia l can now be used for navi­
gation.
(D Tips
- Always read the chap ter ~ page 18 7 .
- The amou nt of available on line map up-
dates in the vehicle is lim ited. To update
more regions, use the map update via SD
card at www .audiusa.com/myaudi.
- Always read the chap ter ¢
page 194, Audi
connect (Infotainment) general informa ­
tion . Na
viga tion
Traffic information
Introduction
Applies to: veh icles w ith navigation system
Fig . 1 97 Example: traffic info rm ation overv iew
.,. Press the INAV /MAPI button repea tedly u nti l
the map is displayed
~ page 213, fig. 192.
.,. Select: left control button > Traffic mes sage s.
Depending on veh icle equipment, the following
i nforma tion may be shown in the traffic informa ­
tion overview ¢
fig. 197:
CD A message CD ¢ fig. 197wi ll appea r if the
MM I ca lculates a better route for the cu rrent
rou te g uidance. More information can be
f o und under
¢ page 218.
@ When route guidance is active, traffic inci­
dents on your route are displayed in the up ­
per section of the list and are sorted by dis­
tance.
@ T he traffic messages are sorted by street
name . If there are mu ltip le traffic messages
for the same street, an arrow is displayed in
front of the st reet name (~ ). Select and con­
firm the corresponding line to disp lay
all of
t h e traffic information .
@ The cur rent se lected traffi c message is also
shown as a map preview* i n the Infotainment
system display .
® The status line in t he Infotainment d isplay
also always ind icates the reception of traffic
information (IT MC !orlO NLIN EI).
Show ing tra ffic messages on the map : select:
one traffic message > right control button >
Show on map .
Di splaying the ne xt t raffi c message o n the map :
press the control knob. ..,.
217

a co ...... N r--. N ...... 0
0
:E ' U Please refill with at least x qt (l) AdBlue/
DEF at the next refueling. Range x mi (km)
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instr ument cluster. Fill the Ad Blue.
U Refill with at least x qt (I) Ad Blue/DEF. No
engine start in x mi (km). See owner's manual
This message appears when there is only enough
Ad Blue left to drive the distance indicated in the
instrument cluster. Fill the Ad Blue. Otherwise
the engine will not start again if you stop i t once
the distance indicated has been driven.
• Refill with at least x qt (I) Ad Blue/DEF. Un­
able to start engine. See owner's manual
This message appears when the AdBlue tank is
empty. Fill the AdBlue. Otherwise you will not be
ab le to start the engine again once yo u stop it .
The Ad Blue must be refilled when the amount in
the tank has reached the minimum level
c::, page 315, Preparation.
Incorrect filling/system malfunction
A message appears if the Ad Blue tank was filled
with a fluid other than AdBlue and the system
has detected that the tank was filled incorrectly,
or if there is a system malfunction .
II AdBlue/DEF: malfunction! No engine start
in x mi (km). See owner's manual
This message appears when it is only possible to
drive the distance indicated in the instrument
cluster . Drive to the nearest authorized Audi
dealer or authori zed Audi Service Facility to have
the ma lfunction corrected. Otherwise the engine
will not start again if you stop it once the dis­
tance indicated has been driven .
• AdBlue/DEF: malfunction! Unable to start
engine. See owner's manual
This message appears if the system has detected
that the tank was filled incorrectly or that there is a malfunction . Drive immediately to the near­
est authori zed Aud i dealer or authori zed Audi
Service Facility to have the malfunction correct ­
ed . Othe rwise you will not be able to start the en­
g ine again once you stop it.
Checking and Filling
Preparation
Applies to: veh icles w ith selective catalytic reduction
Fig . 258 Right rear s ide o f th e ve hicle: removing th e Ad B l­
u e cap
T he Ad Blue tank opening is located near the die­
sel tank opening. Add at least the amount of
AdBlue shown in the instrument cluster display.
This is the minimum amount required to ensure
the system detects the refilling and to start the engine. You can add a maximum of 6.3 gallons
(24 liters) .
Requirement: the request to add Ad Blue must
appear in the instrument cluster display.
.. Park the vehicle on a level surface.
.. Switch the ignit ion
off .
.. Open the tank filler door c::>poge 312.
.. Turn the tank filler neck cap to the left to re­
move
¢fig. 258.
.. Refill Ad Blue using a pump nozzle c::;, page 316,
a canister c;,page 316 or a bottle c;,page 317 .
A WARNING
f-
AdBlue can irritate the skin, eyes and respira-
tory system .
If there is contact with the fluid,
flush immed iately with plenty of water. Con­
sult a physician if necessary.
(D Note
-Only use Ad Blue that conforms to the
standard ISO 22241-1. Do not mix any addi­
ti ves with the Ad Blue and do not dilute it
w ith water.
- Do not add Ad Blue to the diesel tank or add
diesel fuel to the Ad Blue tank . Do not start
the engine under any circumstances if the
wrong fuel is filled in the ta nk. There is a
315

Cl a:, ...... N
" N ...... 0
0
::r ' Refilling AdBlue using a bottle
Applies to: vehicles with selective catalytic reduction
.,. Remove the cap from the refill bottle ¢&, in
Preparation on page 315,
¢ @ in Preparation
on page 315.
.,. Position the bottle on the filler tube and turn
the bottle clockwise unti l it stops turning .
.,. Press lightly against the bottom of the bottle
to empty it. Continue pressing the bottom of
the bottle until it is empty or until fluid stops
flowing into the tank .
.,. Turn the bottle to the left without press ing on
the bottom .
.,. Remove the bottle and seal the filler neck
¢ page 317, Completing AdBlue refill .
({D Note
Onl y use refi ll bottles t hat are approved for
your veh icle. Using othe r systems can ca use
Ad Blue to leak.
(j) Tips
- You can obta in refi ll bottles from an autho r­
iz ed Audi dealer or author ized Audi Se rvice
Fac ility.
- A pe rm itted refill bott le conta ins approx i­
ma tely O.S gallons ( 1.9 lite rs) of Ad B lue.
Completing AdBlue refill
Applies to: vehicles with selective catalytic reduction
Closing th e fill er n eck
.,. Turn the Ad Blue cap to t he r igh t on the filler
tube unti l the cap clic ks into p lace ¢
A in
Preparation on page 315,
¢ @ in Pr eparation
on page 315 .
.,. Close the fuel filler door and then press on the
left side until it lat ches.
After filling
The vehicle must be driven so that the system
r e cognizes that the Ad Blue was refilled. This can
take sev era l minutes .
.,. If there was no Ad Blue left in the t ank and a
range of O mi (0 km) was shown in the display,
switch the ignition on for about 30 seconds be ­
fore starting the engine .
Check ing and F illing
(D Tips
Ad B lue in the tank can freeze at very low tem ­
peratures . If thi s happens, the system will
not detect that the Ad Blue was refilled and it
will continue to inform you of the low Ad B lue
l evel. The message turns off as soon as the
ta nk thaws out aga in .
Emissions control
systems
Catalytic converter
Applies to: vehicles with gasoline engines
T he veh icle may only be d riven w ith un leaded
gasol ine , otherwise the cata lyti c converte r will be
dest royed.
Never dr ive u ntil the ta nk is completely empty .
T he ir regu lar supply of fuel that resu lts from that
can cause eng ine misfires. Uncomb usted fue l will
en ter the exha ust system , which can cause over­
heating and damage to the cata lytic converter.
Di esel particulate filt er
Applies to: vehicles with diesel particulate filter
T he diesel part iculate filte r filte rs nearly all of
the soot pa rt icles out of the exhaus t. The filter
cleans itself a utomat ica lly unde r no rma l dr iving
cond it io ns. If the fi lter canno t be cleaned auto­
matically, for examp le if only s ho rt distances are
u su a lly driven, t he fi lter will become clogged
with soot.
Indicator light (diesel particulate filter )
Applies to: vehicles with diesel particulate filter
II Particulate filter: cl ean by driving . See own­
er 's manual
The diesel part icu late filter requ ires regenera­
t ion. To support the filter's self-cleaning func­
t ion:
Drive for approximately 15 minutes at 37 mph
(60 km/h) or above in the "S" selecto r leve r pos i­
t ion. Keep the engine speed at a minim um of
2,000 RPM . The temperat ure increase that will
r esul t from this ca n bu rn off the soot in the filter.
T he ind icator light will turn off when the cleaning
has completed successfully . .,.
317

Checking and Filling
If the indicator light does not turn off, drive im­
mediately to an authorized Audi dea ler or author­
ized Audi Service Fac ility to have the malfunction
corrected.
A WARNING
The temperature of the exhaust system is
high, both whe n driving and after stopping
the engine .
- Never touch the exhaust ta il pipes once they
have become hot. This could result in burns .
- Do not park you r vehicle over flammable
materials such as g rass or leaves because
the h igh temperat ure of the emiss ions con­
t rol sys tem cou ld start a f ire.
- Do not apply underbody p rotectant in the
exha ust system a rea, because this increases
the risk of fire.
- Applies to: vehicles wi th diesel particulate
filte r: always adjus t your speed to the
weathe r, road, te rra in and traffic con ditio ns
dur ing diesel partic ulate fi lter regene ration.
Yo u should never disobey tra ffic laws in or­
der to fo llow dr iv ing recommendations.
(D Tips
Applies to: ve hicles with diesel particulate filter
- Due to the high temperatures that occur
d uring diesel pa rticu late filter regenerat ion,
the radiator fan may continue runn ing after
the engine stops, even if the engine did not reach its operat ing temperatu re.
- Noises, odors and increased speeds may oc­
cur d uring the regeneration.
- Always use the co rrect engine oil and fuel to
ens ure that the serv ice life of the d iesel par­
ticulate filter is not reduced.
318
On Board Diagnostic
System (OBD)
The On-Board Diagnostic System monitors the
engine and transmission components that influ­
ence emissions.
Fig. 260 Footwe ll on left s ide of t he ve hicle : con necti on
port fo r the O n-Boa rd D iagnostic Sys tem (OBD)
On -Board Diagnostic System
Engine data can be read out a t the On-Board Di­
agnost ic System connection port using a specia l
testing device
c::> fig. 260 .
Indicator light
If thP ¢'4 ind icator light blink s or turns on , the re
i s a ma lfunction that is causing poor emissions
quality a nd that cou ld damage the catalytic con­
verter .
D rive slowly to an authorized Audi dealer or au­
thorized Audi Serv ice Facility to have the mal­
funct ion corrected .
The ind icator light can a lso turn on if the fuel fill­
er cap is not closed correctly
c::> page 312 .
A WARNING
Incorrect use of the co nnect ion port for the
On-Board D iagnost ic System can cause mal­
f u nct ions, wh ich can t hen resul t in accidents
and se rious inj uries.
- Only allow an a utho rized Aud i dea le r or au­
thorized A udi Se rvice Fa cility to read out the
e ngine da ta.
-

Cl a:, ...... N
" N ...... 0
0
::r - Adding engine oil
Fig. 264 Engine compa rtment : en gin e oil fille r opening
cover
Observe the safety p recautions r=:> .&. in Working
in the engine compartment on page
319 .
"'Turn the eng ine off.
"' Open the hood
r=:> page 320.
"'Unscrew the cap~ for the eng ine oi l filler
opening
r=;, fig. 264.
"' Carefully add 0.5 quart (0.5 liter) of the correct
oi l
r=;, page 321.
"'Close the engine oil filler opening cap.
"' Close the hood.
"' Restart the ignition after two mi nutes and read
the current o il level in the Infotainment system
r=:> page 322 , Checking the engine oil level.
"' Add more oil if necessa ry .
.8, WARNING
- Whe n add ing o il, do not let oil d rip on to hot
engine components . This increases the risk
of a fire.
- Yo u m ust seal the cap on the oil fi lle r open ­
ing correctly so that oil does not leak out
onto the hot engine and exhaust system
when the eng ine is running, because this is
a fire hazard.
- Always clean skin thoroug hly if it comes into
contact with engine oil.
- Engine oil is poisonous and must be kept
out of reach of c hil d ren .
- Store the engine oi l securely in the original
container.
(Q) Note
- If the message Ill Plea se redu ce oil level
appea rs, there is too much oil in the engine
Ch eck ing and F illing
and there is a risk of catalyt ic converter and
engine damage . Do not start the engine.
Contact an authorized A udi dealer or au ­
thori zed Audi Service Fac ility to have excess
eng ine oi l extracted if necessary.
- Your Limited New Vehicle Warranty does not cover damage or malfunctions due to
failure to fo llow recommended mainte­
nance and use requ irements as set fort h in
the Audi Ow ne r's Manua l and War ranty
&
Ma intenance booklet.
- Use only a h igh quality engine o il that ex­
press ly complies with the Audi o il quality
s tandard spec if ied for yo ur vehicle's eng ine.
Us ing any othe r oi l can c ause ser io us eng ine
damage.
- Do not mix a ny addit ional lubr ican ts into
t he engine oil. Damage caused by such add i­
t ives is no t covered by the warranty .
@ For the sake of the environment
-Oil sho uld neve r en ter the sewer system or
c ome in to con tact w ith the ground.
- Pay attent ion to lega l requirements when
disposing of empty o il conta iners.
Changing the engine oil
We recommend that have your oil changed by an
authorized Audi dealer or a qualified service sta­ tion.
Befo re you check anything in the engine compart­
ment,
a lwa ys read and heed all WARNINGS r=;, &.
in Working in the engine compartment on
page
319.
T he eng ine o il must be changed according to the
i nterva ls spec ified in your War ranty
& Ma inte­
nance booklet . This is ve ry importa nt because the
l u brica ting proper ties of oil dim inish g radua lly
during norma l vehicle use .
U nder some c ircumstances the engine oil s hou ld
be c hanged more freq uent ly. Cha nge o il more of­
ten if you dr ive mostly s hort d istances, operate
the vehicle in dusty areas or under p redominantly
stop-and -go traffic conditions, or have your ve hi­
cle where temperatures remain be low free zing
for extended periods.
323

Wheels
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's re­
sponsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function indicator is combined with the low tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended. TPMS malfunctions
may occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly . Always check the
TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure
that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
If the tire pressure monitoring indicator
appears
Applies to: vehicles with Tire Pressure Monitoring System in­
dic ato r
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or if there is a system malfunction.
Using the ABS sensors, the tire pressure monitor ­
ing system compares the tire tread circumfer­
ence and vibration characteristics of the individu­
al tires . If the pressure changes in one or more
tires, this is indicated in the instrument cluster
display with an indicator light
RI] and a message.
If only one tire is affected , the location of that
tire will be indicated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressures
348
change (switching between partial and full load
pressure) or after changing or replacing a tire on
your vehicle ~
page 349. The tire pressure moni­
toring system only monitors the tire pressure you have stored. Refer to the tire pressure label for
the recommended tire pressure for your vehicle
~ page 340, fig . 272.
Tire tread circumference and vibration character­
istics can change and cause a tire pressure warn­
ing if:
- the tire pressure in one or more tires is too low
- the tires have structural damage
- the tire was replaced or the tire pressure was
changed and it was not stored
~ page 349
- tires that are only partially used are replaced
with new tires
Indicator lights
RI] -loss of pressure in at least one tire~,& .
Check the tires and replace or repair if necessary.
Check/correct the pressures of all four tires and
store the pressure again in the Infotainment sys­
tem
~ page 349.
m (Tire Pressure Monitoring System) Tire
pressure: malfunction! See owner's manual.
If
m appears after switching the ignition on or
while driving and the
RI] indicator light in the in­
strument cluster blinks for approximately one
minute and then stays on, there is system mal­
function. Try to store the correct tire pressures
~ page 349. In some cases, you must drive for
several minutes after storing the pressures until
the indicator light turns off . If the indicator light
does turn off or turns on again after a short peri­
od of time, drive to an authorized Audi dealer or
authorized Audi Service Facility immediately to
have the malfunction corrected.
& WARNING
- If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or braking maneu­
vers. Stop as soon as possible and check the
tires and their pressure.

Cl a:, ...... N
" N ...... 0
0
::r ' Care and cleaning
General information
Regular, proper ca re helps to maintain your ve hi­
cle's value. It can a lso be a requirement when
submitting warranty claims fo r cor rosion damage
and pa int defects on the body.
The requ ired cleaning and care p roducts can be
obtained from an authorized Audi dea le r or au ­
thor iz ed Se rvice Facility . Read and follow the in ­
structions for use on the packaging .
A WARNING
-Us ing clea ning and ca re products inco rrectly
can be dangero us to your hea lth .
- Always store clean ing and ca re prod ucts out
of reach of chi ldren to reduce the r isk of po i­
soning .
@ For the sake of the environment
- Prefe rab ly purchase env ironmenta lly-friend­
l y cleaning prod ucts.
- Do not d ispose o f leftove r clea ning and ca re
p roducts with house hold t rash.
Car washes
T he longer that deposits s uch as insects, bird
d roppings, tree sap or road salt remain on the ve­
h icle, the more the surface can be damaged. High
temperatures such as those ca used by sun light
in crease the damag ing effect .
Before washing, r inse off heavy depos its with
p le nty of water.
St ubborn deposits s uch as bird d roppings or tree
sap are best removed with plenty of wate r and a
m icr ofibe r cloth.
A lso, wash t he un derside of yo ur vehicle once
road sa lt stops being used for the seaso n.
Pressure washers
When washing your ve hicle wit h a pressu re wash­
e r, al ways fo llow the operating instr uctions pro ­
v ided wi th t he p ress ure washer. This is espe cially
i mportant in rega rd to the p ressure and sp raying
d istance . Do not aim the sp ray directly at the
Care and cleaning
seals on the side w indows, doo rs, lid s or the s un ­
r oof * or at tires, r ubber hoses, insulat ing mater i­
al, sensors* or camera lenses* . Keep a distance of
at least 16 in (40 cm).
D o not remove snow and ice with a p ressure
washe r.
Never use cone nozz les o r high press ure no zzles .
T he wate r temperatu re mus t not be above 140 °F
(60 °() .
Automatic car washe s
Spray off the vehicle befo re washing.
Make s ure that the w indows and roo f* are closed
and the windsh ie ld wipers are off . Follow instruc ­
tions from the car wash ope rato r, especially if
the re are accesso ries attached to your vehicle.
If possible, use car washes that do not have
brushes .
Washing by hand
Clean the ve hicle starting from t he top and wor k­
in g down using a soft sponge o r clea ning br ush.
U se solven t-free cleaning p ro duc ts.
Washing vehicles with matte finish paint by
hand
To avo id da mag ing the p aint w hen w ashi ng, fi rs t
r emove dust and large p art icl es from you r vehi ­
cl e. Insects, grease spots and finger prints are
best removed w ith a s pecial cleane r fo r matte
f inish paint.
Apply t he p rodu ct using a microf iber cloth . To
avo id damag ing t he pa in t surface, do no t use too
much pressure.
Rinse t he ve hicl e thoroug hly w ith w ate r. T hen
cl ea n usi ng a neutra l shampoo an d a soft mi cro­
f iber cloth .
R inse t he ve hicle thoroug hly aga in and let it air
dry. Remove any wate r residue using a chamois.
,&. WARNING
--
- Only was h the veh icle w hen the ig nition i s
off and follow t he i nstr uctions from the car
351
