The engine oil consumption may be up to 0.5 quart/600 m iles (0.5 liter/1,000 km), de­
pending on driving style and operating condi­
tions. Consumption may be higher during the
first 3,000 miles (5,000 km). The engine oil
level must be checked regularly . It would be
best to check each time you refuel your vehi­
cle and before long dr ives.
Changing the engine oil
We recommend that have your oil changed by an
authorized Audi dealer or a qualified service sta­
tion.
Before you check anyth ing in the eng ine compart­
ment,
alw ays r ea d and heed all WARNINGS Q .&.
in Working in the engine compartment on
page 155.
The engine oil must be changed according to the
intervals specified in your Warranty
& Mainte­
n ance booklet. This is very important because the
l ubri cat ing propert ies of o il diminish gradually
d ur ing normal vehicle use.
Under some c ircumstances the eng ine o il should
be changed more frequently . Change oil more of­
ten if yo u drive mostly short distances, ope rate
the vehicle in d usty areas or under predominant ly
stop-and -go traffic conditions, or have your vehi­
cle where temperatures remain below freezing
for extended periods.
Detergent additives in the oil will make fresh oil
l ook da rk after the engine has been running for a
short time. This is normal and is not a reason to
change the oil more often than recommended.
Because of the problem of p roper disposal, along
with the special tools and necessa ry expertise re­
qu ired, we strong ly recommend that you have
Ch eck ing and Filling
your oi l changed by an authorized Audi dealer or
a qualified service station .
If yo u choo se to ch ange yo ur oil your self, please
note the follow ing important info rmation:
A WARNING
=
To reduce the risk of persona l injury if you
must change the engine oil in your vehicle
yourself:
- Wear eye protect ion .
-
-To redu ce the r is k of burns from hot eng ine
oil, let the engine cool down to the touch.
- W hen remov ing the oil d rain plug w ith your
fingers, stay as far away as possib le. Always
keep your forearm parallel to the ground to
he lp prevent hot oil from running down your
arm.
- Drain the oil into a container designed for
this purpose, one la rge enough to hold at
least the tota l amount of oil in your engine.
- Engine oil is poisonous. Keep it well out of
the reach of children.
- Continuous contact with used engine oil is
harmful to your skin. Always protect your
skin by washing oil off thoroughly with soap
and water.
(D Note
Never mix oil additives with your engine oil.
These additives can damage your engine and
adverse ly affect yo ur Audi Limited New Vehi­
cle Warranty.
@ For the sa ke of the environment
- Before chang ing your oi l, first make sure
you know where you can properly d ispose of
the used oil.
- Always dispose of used engine o il properly.
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle used engine o il by tak ing it to a used
eng ine oil collection fac ility in your area, or
contact a service station .
161

Check ing and F illing
Cooling system
Coolant
The engine coo ling system is filled with a mixture
of pur ified wate r and coolan t addit ive at the fa c­
t ory . T his coo la nt must not be not changed .
The coolant leve l is monito red throug h the . in­
d icator light
¢ page 12. Howeve r, we do recom­
mend occasionally chec king the coo la nt level
manually.
If you must add coolant, use a m ixt ure of wa ter
a nd coo lant add it ive. Mixing the coolant additive
with d istilled water is recommended.
Coolant additive
The coolant additive is made of ant i-freezing and
corros ion protection agents. Only use the fo llow­
ing coolant add it ives. These addit ives may be
m ixed w it h each other.
Coolant additive Specification
G13
TL 774 J
G12++ TL 774 G
The amount of coo lant add itive that needs to be
mixed wit h water depends on the climate where
the vehicle will be operated . If the coolant addi ­
tive percentage is too low, the coolant can free ze
and damage the engine.
Coolant Freeze protec-
additive tion
Warm min . 40% m in. -13 °F
reg ions max . 45% (
- 25 °C)
Co ld min. 50% max. -40 °F
reg ions max. 55% (-40 °C)
CJ) Note
- Befo re the start of winter, have an author­
i zed Audi dealer or authorized A udi Service
Fac ility check if the coolant additive in yo ur
vehicle matc hes the percentage approp riate
for the climate . Th is is especially important
whe n driving in co lde r clima tes.
- If the approp riate coolant additive is not
available in an emergency, do no t add any
other addi tive . You cou ld damage the en-
162
gine . If this h appens, on ly use wa ter and re ­
store the correct m ixt ure ratio with t he
specified coo lant ad ditive as soon as poss i­
ble.
- Only refill w ith new coolant .
- Radiator sealant mus t not be mixed wi th
the coolant .
Adding coolant
Fig. 140 En gine co mpar tm ent: coo la nt expans io n ta nk
cove r
Observe the safety precautions¢ page 155,
Working in the engine compartment .
Checking the eng ine c oolant level
.,. Park the vehicle on a level surface .
.,. Sw itch the ignit ion off.
-"' -"' •
"" co a,
.,. Read the coolant level on the coolant expansion
tank ¢
page 158 , fig. 137. T he coolant leve l
must be betwee n the markings when the en­
gi ne i n cold . When t he e ng ine is warm it can be
slightly above the uppe r mar king .
Adding coolant
Requirement: there must be a residual amount of
coolant in the expansion ta nk
¢ (D .
.,. Let the engine coo l down.
.,. Place a clot h over the coolant expansion tan k
cap and unscrew the cap counterclockw ise
¢ .&._ .
.,. Add coo lant m ixed in the cor rect rat io
c;, page 162 up to t he up per ma rk ing .
.,. Make sure that the fluid level remains stab le.
Add mo re coolan t if necess ary.
.,. Close the cap sec urely .
Coo lant loss usually ind icates there is a lea k. Im-
med iate ly dr ive you r ve hicl e to a n author ized .,.

a
co
...... N r-,. N
"" 0 0 ::, co
Audi dealer or authorized Audi Service Facility
and have the cooling system inspected. If the
cooling system is not leaking, a loss can come
from the coolant boiling through overheating
and being pushed out of the cooling system.
A WARNING
- The cooling system is under pressure . Do
not open the coolant expansion tank cap
when the engine is hot . This increases the
risk of burns .
- The coolant additive and the coolant can be
dangerous to your health. For this reason,
keep the coolant in the original container
and away from children. There is a risk of
poisoning.
- When working in the engine compartment,
remember that the radiator fan can switch
on even if the ignition is switched off, which
increases the risk of injury.
CD Note
-
Do not add coolant if the expansion tank is
empty . Air could enter the cooling system and
damage the engine.
If this is the case, do not
continue driving. See an authorized Audi deal­
er or authorized Audi Service Facility for assis­
tance.
Brake fluid
Fig. 141 Eng ine compartment: cap on brake flu id reservoir
Observe the safety precautions ¢ page 155,
Working in the engine compartment .
Checking the brake fluid level
~ Read the brake fluid Level on the brake fluid
reservoir ~
page 158, fig . 13 7. The brake fluid
Checking and Filling
Level must be between the MIN and MAX mark­
ings
~ A .
The brake fluid Level is monitored automatically.
Changing the brake fluid
Have the brake fluid changed regularly by an au­
thorized Audi dealer or authorized Audi Service Facility .
A WARNING
- If the brake fluid level is below the MIN
marking, it can impair the braking effect
and driving safety, which increase the risk of
an accident. Do not continue driving. See an
authorized Audi dealer or authorized A udi
Service Facility for assistance.
- If the brake fluid is old, bubbles may form
in the brake system during heavy braking .
This would impair braking performance and driving safety, which increases the risk of an
accident .
- To ensure the brake system functions cor­
rectly, only use brake fluids that comply
with VW standard 501 14 or
FMVSS-116 DOT 4.
CD Note
- If the brake flu id level is above the MAX
marking, brake fluid may Leak out over the
edge of the reservoir and result in damage
to the vehicle.
- Do not get any brake fluid on the vehicle
paint, because it will corrode the paint.
Battery
General warnings about batteries
Because of the complex power supp ly, all work
on batteries such as disconnecting, replacing,
etc. should
only be performed by an authorized
Audi dealer or authorized Audi Service Facility
¢ .&,.
The term "vehicle battery " refers to the 12 Volt
battery in your vehicle.
163
...

Checking and Filling
Detailed warning s for the vehicle b atter y:
®
Wear eye protection .
A
Battery acid is high ly corrosive . Wear pro-
tective gloves and eye pro tect ion.
@
F ire, spark s, open flame an d smok ing are
forb idden .
~
A highly explosive mix ture of gases can
form when charging batteries.
®
Keep c hildren away from battery acid and
ba tteries .
A WARNING
All work on the battery or electrical system in
your vehicle can result in injuries, chemical
burns, accidents or burns. Because of this, all
work must be performed
onl y by an author­
i z ed Aud i dealer or authorized Audi Serv ice
Facility.
A WARNING
California Proposit ion 65 Warning :
- Battery posts, termina ls and related acces­
sories contain lead and lead compounds,
chem icals known to the State of California
to cause cancer and reproductive problems .
Wash hands after handling .
(D Note
Protect the vehicle battery against freezing if
the vehicle wilt be parked for long periods of
time so that it is not destroyed by "freezing"
9 page 164, Charging the vehicle battery .
Charging the vehicle battery
Fig . 14 2 Eng ine co mpartment: con nect ors fo r a c har ger
and jump start cab les
164
Observe the safety precautions 9 pag e 155,
Working in the eng ine compartm ent.
Requirement: only use chargers with a maximum
ch arg ing curr ent of 30 amps /14 .8 V olt s.
The ve­
hicle battery cables remain connected .
The battery is located in the engine compart­
ment . T he ground po int
0 i s always located on
the veh icle body .
.,. Read the wa rnings
9 .&. in General warnings
about batteries on page 164
and 9 ,&. .
.,. Switch off the ig nitio n and all electrica l equ ip-
men t.
.,. Open the hood
9 page 157 .
.,. Fold th e battery cover upward 9 fig. 142.
.,. Clamp the terminal clamps on the charger cor­
rectly onto the ground point
O and the pos it ive
termin al(v .
.,. Now insert the power cable for the charging de ­
vice into the socket and switch the device on .
.,. At the end of the charging p rocess, switch the
charger off and pull the power cable ou t of the
socket.
.,. Now remove the charging device term inal
clamps.
.,. Close the batt ery cov er.
.,. Close the hood
¢ page 15 7.
A WARNING
- A high ly explosive mixture of gases can form
when charg ing batteries . Only charge the
veh icle battery in we ll-ventilated areas .
- A drained vehicle battery can freeze at tem­
peratures around 32 QF (0 QC). A frozen or
thawed vehicle battery must not be charged
and must not be used anymo re . T he battery
housing can crack and batte ry a cid can leak
out if ice forms, which increases the risk of
an explosion and chemical burns. Contact an
authorized Audi dealer or authorized Audi
Service Facility for more information.
- Do not connect or disconnect the charging
cable wh ile charging because this increases
the risk of an explosion .

0 co ......
"' ,....
"' ...... 0 0 :::,
00
@ Tips
- Only charge the vehicle battery through the
connections in the engine compartment.
- Read all of the manufacturer's instructions
for the charger before charging the vehicle
battery.
Windshield washer system
Fig. 143 Engine compartment: windshield washer fluid
reservoir
Observe the safety precautions q page 155,
Working in the engine compartment.
M N ~ N
"' a) ID
The windshield washer fluid reservoir W contains
the cleaning solution for the windshield and the rear w indow
q page 158, fig . 137,. The reservoir
capacity can be found in
qpage 210.
To reduce the risk of lime scale deposits on the
spray nozzles, use clean water with low amounts
of calc ium . Always add window cleaner to the wa­
ter. When the outside temperatures a re cold, an
anti-freezing agent should be added to the water
so that it does not freeze.
- The concent ration of anti-freezing agent
must be adjusted to the vehicle operating
conditions in the respective climate. A con­
cent ration that is too high can lead to vehi­
cle damage.
- Never add radiator anti-freeze or other addi­
tives to the washer fluid.
- Do not use a glass cleaner that contains
paint solvents, because this could damage
the paint .
Checking and Filling
Service interval display
The service interval display detects when your ve­
hicle is due for service .
The service interval display works in two stages:
-Inspection or oil change reminder : after a cer-
tain distance is driven, a message appears in
t he instrument cluster display every time the
ignition is switched on. The remaining distance
or time is displayed br iefly.
- Inspection or oil change due: if your vehicle
has reached an inspection or oil change interval
or both intervals at the same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and inspection due!
appears briefly af­
ter sw itching the ignition on.
Checking service intervals
You can check the remaining distance or time un ­
ti l the next oi l change or next inspection .
- Select: the
I CARI function button > (Car) Sys­
tems*
control button > Servicing & checks >
Service intervals .
Resetting the indicator
An autho rized Aud i dea ler or a uthorized Audi
Service Facility will reset the service in terva l dis­
play after performing service .
If you have changed the o il yourself, you must re­
set the oil change interval.
Perform the follow ing to reset the d isplay:
- Select: the
I CAR I function button > (Car) Sys­
tems *
control button > Servicing & checks >
Service intervals . Turn the control knob down­
ward to
Reset oil change interval and press the
control knob .
~ Note
-Only reset the oil change ind icator if the oil
was changed.
- Following the service intervals is crit ica l to
ma intaining the service life and value of
your vehicle, especially the engine . Even if
the mileage on the vehicle is low, do not ex­
ceed the time for the next service.
165

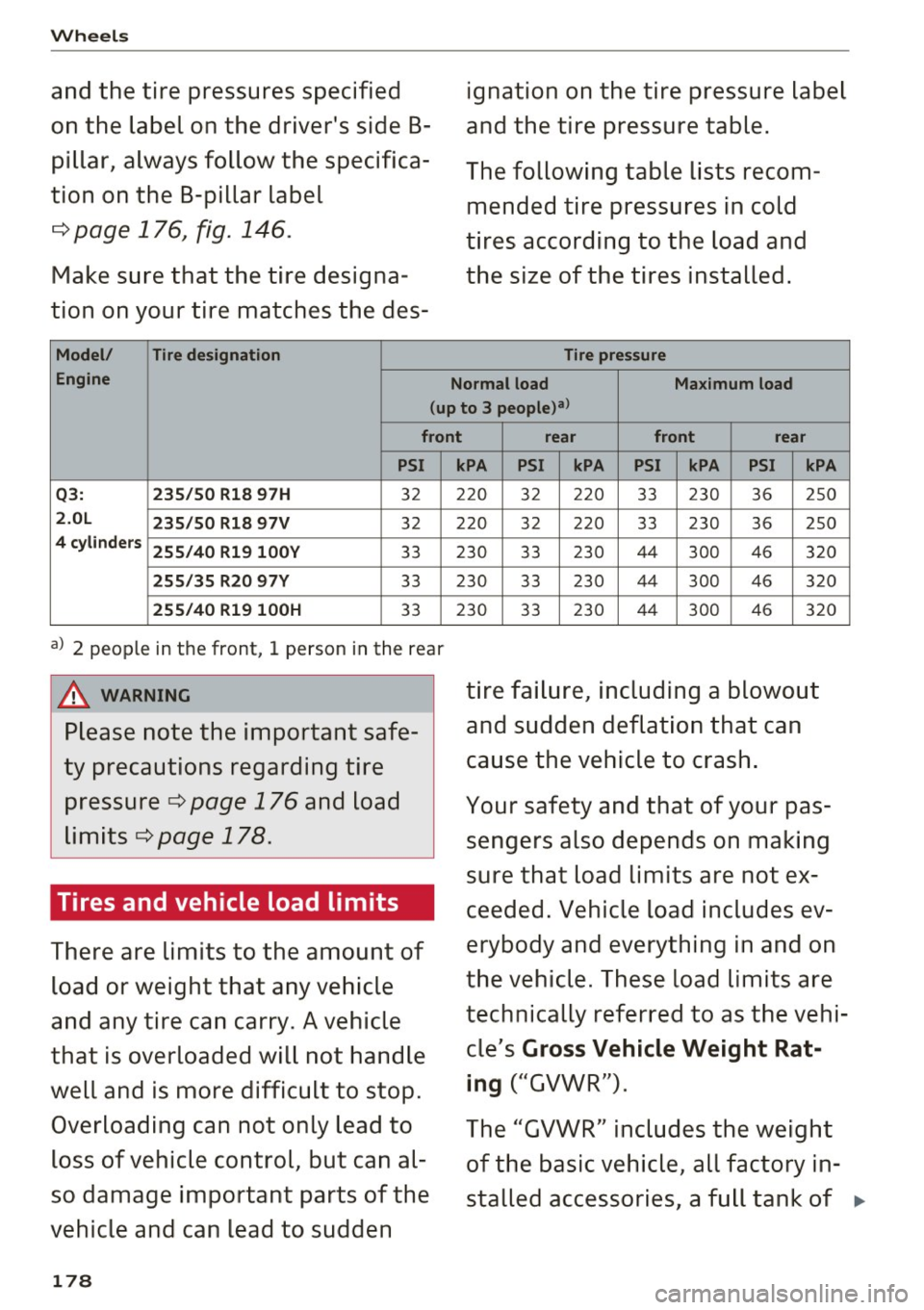

Wheels
and the tire pressures specified
on the label on the driver's side B­
pillar, always follow the specifica­
tion on the B-pillar label
¢ page 176, fig. 146.
Make sure that the tire designa­
tion on your tire matches the des-
Model/ Tire designation
Engine
ignation on the tire pressure label
and the tire pressure table.
The following table lists recom­ mended tire pressures in cold
tires according to the load and
the size of the tires installed.
Tire pressure
Normal load Maximum load
(up to 3 people)a)
front rear front rear
PSI
Q3: 235/50 Rl8 97H 32
2.0L
235/50 Rl8 97V 32
4 cylinders 255/40 Rl9 l00Y 33
255/35 R20 97Y 33
255/40 Rl9 l00H 33
a) 2 peop le in the front ; 1 perso n in the rear
.8, WARNING
Please note the important safe­
ty precautions regarding tire
pressure ¢
page 176 and load
limits ¢
page 178.
Tires and vehicle load limits
There are limits to the amount of
load or weight that any vehicle
and any tire can carry. A vehicle
that is overloaded will not handle
well and is more difficult to stop.
Overloading can not only lead to
loss of vehicle control, but can al­
so damage important parts of the
vehicle and can lead to sudden
178
kPA PSI kPA PSI kPA PSI kPA
220 32 220 33 230 36 250
220 3 2 22 0
33 230
36 250
230 33 230 44
300 46 320
230 33 230 44 300 4
6 320
230 33 230 44 300 46 320
tire failure, including a blowout
and sudden deflation that can
cause the vehicle to crash.
Your safety and that of your pas­
sengers also depends on making
sure that load limits are not ex­
ceeded. Vehicle load includes ev­
erybody and everything in and on
the vehicle. These load limits are
technically referred to as the vehi­
cle's
Gross Vehicle Weight Rat­
ing
("GVWR").
The "GVWR" includes the weight
of the basic vehicle, all factory in­
stalled accessories, a full tank of
11>

a
co
...... N r--. N
'"' 0 0 ::, co
Emergency assistance
General information
.. Park the vehicle as far as poss ible from moving
traffic in the event of a breakdown. In the event
of a flat tire, park the vehicle on a leve l surface .
It you are on a steep h ill, be especially careful.
.. Set the parking brake.
.. Switch the emergency flashe rs on .
.. Put on a reflective vest .
.. Set up the warn ing triang le, if available .
.. Have the passengers exi t the veh icle. They
sho uld move to a safe place, for example be­
hind a guard rail.
_& WARNING
Follow the steps given above. This is for your
protection and the for the safety of other d riv ­
ers.
Equipment
Vehicle tool kit
Fig. 1 48 Luggage compartmen t: ca rgo floor cover folded
upward
The vehicle tool kit is located in the luggage com­
partment under the cargo floor cover .
.. Push on the plast ic hand le a nd lift up the cargo
floor.
.. Open the cargo floor.
Completely ret ract the vehicle jac k arm before
sto ring the vehicle jack*.
Em ergen cy a ssis tanc e
_& WARNING
-Applies to: ve hicles with jack
Improper use of the veh icle jack can cause se­
rious pe rsonal injuries.
- Never use the screw driver hex head to
tighten wheel bolts, since the bolts cannot attain the necessa ry t ightening to rque if yo u
use the hex head, po ten tially causing an ac­
cident .
- The factory-supplied jack is intended only
for your ve hicl e mode l. Under no circum­
s tances shou ld it be used to lift heavy
vehicles o r other loads; you risk i njuring
yourse lf.
- Never start the engine when the vehicle is
raised, which cou ld cause an accident .
- Support the vehicle securely with appropri ­
ate stands if work is to be performed under ­
neath the vehicle; otherwise, there is a po­
tential risk for injury.
- Never use the jack supplied with your Audi
on another vehicle, particularly on a heavier
one. The jack is only su itable for use on the
veh icle it came with .
{!) Tips
The vehicle jack * in your vehicle is mainte ­
nance-free.
Replacing wheels
Preparation
You must complete the preparation before
changing a tire .
.. Read and follow the important safety precau-
tions
<=:> page 191.
.,. Set the park ing brake .
.,. Select the P selector lever posit ion.
.,. W hen tow ing a tra iler: disconnect the trailer
from yo ur vehicle .
.. Lay out the vehi cle too l kit ¢
page 191 and the
spare tire
<=:> page 197.
191

Emergency assistance
& WARNING
You or your passengers could be injured while changing a wheel if you do not follow these
safety precautions :
- If you have a flat ti re, move a safe d ista nee
off the road . Turn off the engine, turn the
emergency flashers on and use other warn·
ing devices to alert other motorists.
- Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully set the parking brake and block
the front and back of the wheel diagonally
opposite the wheel being changed with the
folding chocks or other objects. When one
front wheel is lifted off the ground, placing
the Automatic Transmission in "P" (Park)
will
not prevent the vehicle from moving.
- Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack .
- Always store the vehicle tool kit, the jack
and the replaced tire in the luggage com­
partment
c:> page 102 .
(D Tips
Obey all laws.
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the decorative wheel cover* or the
wheel bolt caps*. For more details see also
<=:>page 193.
2. Loosen the wheel bolts c:> page 193.
3. Locate the proper mounting point for the
jack and align the jack below that point
<=:>page 194.
4. Lift the car with the jack c:> page 194 .
5. Remove the wheel with the flat tire and then
install the
spare tire <=:>page 195.
6. Tighten all wheel bolts lightly.
7.
Lower the vehicle with the jack.
192
8. Use the wheel bolt wrench and firmly tighten
all wheel bolts in a crisscross pattern
<=:>page 193.
9. Replace the decorative wheel cover* or the
wheel bolt caps*.
& WARNING
Always read and follow all WARNINGS and in­
formation
c:> .&. in Raising the vehicle on
page 194
and <=:>page 196.
After changing a wheel
A wheel change is not complete without the do·
ing the following .
.,. Always store the vehicle tool kit, the jack* and
the replaced tire in the luggage compartment
c:>page 102.
.,. Check the tire pressure of the spare tire as soon
as possible .
.,. As soon as possible, have the
tightening tor·
ques
on all wheel bolts checked with a torque
wrench. The correct tightening torque is
10S ft lbs (140 Nm).
.,. Have the flat tire
replaced as soon as possible.
(D Tips
- If you notice that the wheel bolts are cor­
roded and difficult to turn while changing a
tire, they should be replaced before you check the tightening torque.
- Drive at reduced speed until you have the
tightening torques checked .
