2018 AUDI A3 SEDAN wipers

Table of contents
About this Owner's Manual. . . . . .
6
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cockpit overview . . . . . . . . . . . . . . . . . 8
Controls at a glance . . . . . . . . . . . . . . . . . . 8
Instrument cluster . . . . . . . . . . . . . . . . . . . 1 0
M ultif unction steering wheel pl us . . . . . . 13
Mu ltifunction steering wheel . . . . . . . . . . 16
Ve hicle functions . . . . . . . . . . . . . . . . . . . . 17
Indicator l ights . . . . . . . . . . . . . . . . . . . . . 20
Starting and driving . . . . . . . . . . . . . 31
Opening and closing . . . . . . . . . . . . . 31
Cent ral lock ing . . . . . . . . . . . . . . . . . . . . . . 31
L uggage compartment lid . . . . . . . . . . . . . 37
C hil d safety loc k . . . . . . . . . . . . . . . . . . . . . 39
P owe r w indows . . . . . . . . . . . . . . . . . . . . . 39
P ano rama g lass roo f . . . . . . . . . . . . . . . . . 4 0
Power top . . . . . . . . . . . . . . . . . . . . . . . . 42
Autom atic power top .. ..... ... .. .. .. .
Wind deflector ..... .. ..... ... .. .. .. . 42
4 5
Powe r top emergency operation . . . . . . . . 46
Lights and Vision . . . . . . . . . . . . . . . . . 4 9
Exterio r lighting . . . . . . . . . . . . . . . . . . . . . 49
Int erior lighting . . . . . . . . . . . . . . . . . . . . . 52
V1s1on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
W indshield wipers . . . . . . . . . . . . . . . . . . . 55
Dig ita l compass . . . . . . . . . . . . . . . . . . . . . 57
Seats and storage . . . . . . . . . . . . . . . . 59
Gene ral information . . . . . . . . . . . . . . . . . 59
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . 59
H ead restra ints . . . . . . . . . . . . . . . . . . . . . 61
P owe r so urces . . . . . . . . . . . . . . . . . . . . . . 62
S to ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
L ugg age compa rtment . . . . . . . . . . . . . . . 63
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Warm and cold . . . . . . . . . . . . . . . . . . . 68
Climate con trol system . . . . . . . . . . . . . . . 68
Driving .... .. .. ............. .... .. . 72
General informa tion . . . . . . . . . . . . . . . . . 72
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Starting and stopping the engine (veh icles with an ignition lock) . . . . . . . . . 75
2
Start ing and stopping the eng ine
(vehicles with convenience key) . . . . . . . . 7 6
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 7 8
Start ing the engine when there is a
malfunction . . . . . . . . . . . . . . . . . . . . . . . . 79
Start/Stop system . . . . . . . . . . . . . . . . . . . 79
E lectromechanical parking brake . . . . . . . 81
Start ing from a stop . . . . . . . . . . . . . . . . . 83
Automa tic tra nsmission . . . . . . . . . . . . . . 83
e-tron .......... .. .. ............... 9 2
P lug- in hybr id d rive . . . . . . . . . . . . . . . . . . 92
Refueling . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Charg ing . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4
Charging a t pub lic charging stations . . . . 106
Charging the battery with the Audi e -tron
c h arg ing system . . . . . . . . . . . . . . . . . . . . . 106
Ind icator lig hts and messages . . . . . . . . . 115
Charging unit cover emergency release . . 116
Climate contro l . . . . . . . . . . . . . . . . . . . . . 116
Cleaning/ma intenance information 117
Trailer towing . . . . . . . . . . . . . . . . . . . . 118
Drivi ng with a tra ile r . . . . . . . . . . . . . . . . . 118
Driver assistance . . . . . . . . . . . . . . . . . 120
Assistance systems . . . . . . . . . . . . . . 120
Speed warning system . . . . . . . . . . . . . . . . 120
Cru ise cont rol system . . . . . . . . . . . . . . . . 1 20
Lap time r . . . . . . . . . . . . . . . . . . . . . . . . . . 122
A udi ad aptive cruise cont ro l . . . . . . . . . . . 1 23
Audi pre sense . . . . . . . . . . . . . . . . . . . . . . 130
Audi active lane assist . . . . . . . . . . . . . . . . 133
Audi side assist . . . . . . . . . . . . . . . . . . . . . 136
Audi drive select . . . . . . . . . . . . . . . . . . . . . 140
Parking aid . . . . . . . . . . . . . . . . . . . . . . . 14 3
Genera l information . . . . . . . . . . . . . . . . . 143
Parking system plus . . . . . . . . . . . . . . . . . . 143
Rearv iew camera . . . . . . . . . . . . . . . . . . . . 145
Adjust ing the parking aid . . . . . . . . . . . . . 147
Error messages . . . . . . . . . . . . . . . . . . . . . 14 7
Intelligent Technology . . . . . . . . . . 148
E lectron ic Stab il izat ion Contro l (E5C) . . . . 148
B rakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
El ectromechanical steering . . . . . . . . . . . . 151
A ll w heel drive (quatt ro) . . . . . . . . . . . . . . 152

Cockpit overv ie w
22
Eng ine control*
¢ page 27
Engine control *
¢page28
Malfunction indicator lamp (MIL)
,I
¢page318
Eng ine speed limi tat io n*
¢page28
Eng ine oil level (MIN)*
¢page28
E ng ine oil sensor
¢ page28
Battery charge
¢page25
Tank system
¢page28
Was her fluid level
¢page28
Windshield wipers
¢page29
Remote con trol key*
¢ page 78
Dr iver's door*
¢ page29
Battery in remote cont rol key
¢ page32
Bulb failure ind icator*
¢ page29
Headlight range control system
¢page29
Adaptive lig ht*
¢page29
Light/rain sensor*
¢page29
Transmission
¢ page 89
Steer ing lock
¢ page26
Eng ine start system
¢ page26
Elec tromechanical steering
¢ page 151
Suspension control*
¢page 29
Power top *
¢page44
Active lane assist*
¢page 134
Side assis t*
¢ page 140
pre sense*
¢page 133
e-tron : system wa rning*
¢ page 96
e-tron : driving power*
¢ page 96, ¢ page 103
e-tron : ve hicle so und*
¢ page 96
e-tro n: cha rging sys tem*
¢ page 115
Other indicator lights
--------------Turn sig nals
¢ page 30
USA models:
Cruise control system*
¢page 120
Canada model s:
Cruise contro l system*
¢ page 120
Adaptive c ruise contro l*
¢ page 125
Adaptive cruise control *
<=>page 125
Adaptive cruise contro l*
<=> page 125
Adaptive cruise contro l*
<=> page 126

u. 00 .-< N l'­ N .-< 0 N > 00
washer system* when the ignition is sw itched off
~ page 328.
, Windshield wipers
If thE' 41 indicator light turns on, then there is a
windshie ld w iper malfunct ion. Dr ive to an au­
thor ized Audi dealer or author ized Audi Service
Faci lity immediately to have the malfunct ion cor ­
rected .
~ Driver's door*
a] Driver' s door : malfunction! Shift to P b efore
leaving vehi cle. See own er' s manual
There is a malfunction in the driver's door . Select
the P se lector lever position (automat ic t ransmis­
sion) to secure the vehicle.
Drive to an authorized Aud i dealer or authorized
Aud i Service Fac ility immediately to have the
malfunct ion corrected .
-: If t he II indicato r light turns on, a b ulb has
fa iled. The message ind icates the loca tion of the
bu lb .
Replace the bulb immediately.
Vehicle lights: s ystem fault!
There is a malfunction in the head lights or the
light switch . Drive to an authorized Audi dealer or
author ized Audi Service Facility immed iate ly to
have the ma lf u nction corrected .
A WARNING
-Ligh t bul bs are u nder press ure and can ex­
plode when bu lbs are replaced, which in­
cr eases the risk of in ju ry.
- Wi th HID headl ights (xenon headlights), the
hig h-voltage componen t must be handled
c o rr ectly. Ot herw ise, the re is a r isk of fata l
injury.
-
Coc kpit o ver view
i,0 Dynamic headlight range control
II Head light range control : malfunction! S ee
own er' s manual
The re is a malfunct ion in the dynam ic headl ight
r a nge control system , which may cause g la re fo r
othe r drive rs.
Drive to an authorized Audi dealer or authorized
Audi Service Fac ility immed iately to have the
malfu nction corrected .
go Audi adaptive light
Applies to: vehicles with Audi adaptive light
l!J Audi adaptive light : malfun ction! See own­
er 's manual
The re is a malfunct ion in the adaptive l ights . The
headlights st ill funct ion.
Drive to an au thorized Audi dealer or authorized
Audi Service Fac ility immed iate ly to have the
malfu nction corrected .
(i.D Light/rain sensor
Applies to: vehicles with light/rain sensor
£1 Automatic headlight s/wiper s: malfun ction!
S ee owner's manual
The light/rain sensor is malfunctioning .
The low beams remain sw itched on at all times
for safety reasons when the light switch is in t he
AUTO pos ition . You can cont inue to turn the
l ights on and off us ing the lig ht switch . You can
st ill contro l all w iper functions t hat are inde­
pendent of t he rain senso r.
Drive to an authorized Audi dealer or authorized
Audi Service Fac ility immed iate ly to have the
malfu nction corrected .
Q Suspension control
Applies to: vehicles with suspension control
If the fl ind icator light tu rns o n, then there is a
malfu nction in t he suspens ion con trol. Dr ive to
an a uthorized Aud i dea le r or a uth orized Audi
Service Facility immediate ly to have the ma lfunc ­
tion co rrected .
29

LL co .... N
" N .... 0 N > co
Windshield wipers
Switching the windshield wipers on
Fig. S6 Windshield wiper lever
Fig. S7 Rear window wiper• operatio n
t® I
a @
lll ®
Iii @
•®
Move the windshield wiper lever to the corre­
spond ing pos ition:
@ -Windshield wipers off
(D-Interval mode. To increase/decrease the wip­
er intervals, move the switch
@ to the left/right.
In vehicles with a rain sensor, the wipers turn on in the rain once the vehicle speed exceeds ap­
proximately 2 mph (4 km/h). The higher the sen­
sitivity of the rain sensor that is set (switch
@ to
the right), the earlier the w indshield w ipers react
to moisture on the windshield . You can deacti­
vate the rain sensor mode in the Infotainment
system, wh ich switches the intermittent mode
on. To do this, select :
I MENU I button> Vehicle>
left control button > Driver a ssistance > Rain
se nsor.
@ -Slow wiping
@ -Fast wiping
@-Single wipe. If you hold the lever in this posi­
tion longer, the wipers switch from slow wiping
to fast wiping.
Lights and Vision
®-Clean the windshield. To eliminate water
droplets, the windshield wipers perform one af­
terw ipe after several seconds while dr iv ing in
temperatures above 39 °F (4 °C). You can switch
this function off by moving the lever to position
@within 10 seconds of the afterwipe . The after ­
wipe function is react ivated the next time you
switch the ignition on .
Clean the headlights. The headlight washer sys­
tem operates only when the low beam headlights
are sw itched on . If you move the lever in position
®, the headlights will be cleaned in fixed inter­
vals.
Applies to: vehicles wi th rear window wiper
@ -Wipe the rear window. The rear wiper moves
about every 6 seconds .
The rear wiper automatically switches on when
the reverse gear is selected and the front wind­
sh ield wipers are on and running.
(j)-Clean the rear window . The number of wipes
depends on how long the lever is held in position
(j) .
A WARNING
-The rain sensor* is only intended to assist
the driver. The driver may still be responsi­
ble for manually switch ing the w ipers on
based on visibility conditions.
-The windsh ield may not be treated w ith wa­
ter-repelling windshield coating agents. Un­
favorable conditions, such as wetness, dark­
ness and when the sun is low, can cause in-
'
creased glare, which increases the r isk of an
accident. Wiper blade chatter is also possi­
ble.
-Properly functioning windshield wiper
b lades are required for a clear view and safe
driving¢ page 56, Replacing the front
wiper blades.
(D Note
- If there is frost, make sure the windshield
wiper blades are not frozen to the wind­
shield. Switching on the windshield wipers
when the blades are frozen to the wind­
shield can damage the wiper blades .
-
55

Lights and Vi sion
-The windshield wiper system must be
switched off (lever in position @) before us ­
i ng a car wash. This prevents the wipe rs
from sw itching on unintentionally and ca us­
i ng damage to the w indshie ld w iper system .
(D Tips
-The windshield wipe rs switch off w hen t he
i gnition is switched off. Yo u can act ivate the
windsh ield wipers after the ign ition is
switched back on by moving the windsh ield
wiper leve r to any pos it io n.
-Worn or dirty windshield wiper blades result
i n streak ing . This can affect the ra in se nsor
f u nct io n. Check yo ur windsh ield wiper
blades regularly.
-The washer fl uid nozzles in the w indshield
washer system are heated* a t low tempera­
tures whe n the ignition is on .
-When stop ping tempora rily, such as at a
traffic light, the speed of the windsh ie ld
wiper s automat ica lly re d uces by o ne leve l.
Cleaning the wiper blades
Clea n the w ipe r blades when you see wipe r
strea ks. Use a so ft clot h and a glass cleaner .
Windshield wiper
"' Place the windshield wipe r arms in the se rvice
pos it ion
<=> page 56.
"' Fo ld t he w indshield wipe r arms away from the
winds hield.
Rear window wiper
Applies to: vehicles with rear window wiper
"'Fold the wi per arm away from the rear w indow .
A WARNING
Dirty w indshield wi pe r blades can impair vi­
sio n, which incre ases the risk of an accident.
«1j) Note
If you see streaks aga in a fter cleaning the
w iper blades, the blades mus t be replaced
<=> page 56.
56
-
Replacing the front wiper blades
Fig. 58 Removin g windsh ie ld wiper bl ades
Windshield wiper service po sition /blade
replacement position
a, ... M 9
I
"' To br ing the w ipers into the service position,
tur n the ignition off and move t he w indsh ie ld
w iper lever into pos it ion
@ for at least two sec­
onds
c:> page 55, fig. 56.
"' To bring t he w indsh ie ld w ipers b ack to t he nor ­
ma l posi tion, switc h the ignition on and ho ld
the windshield wiper lever in position @ unti l
the windshi eld wipe rs go back to t he normal
position, or drive faster than 8 mph (12 km/h).
Removing the wiper blade
"' Fold th e w indsh ie ld w iper arm aw ay from t he
windshie ld.
"' Press the locking knob (D <=> fig . 58 on the wiper
blade. Ho ld the wipe r blade firmly.
"' Remove the w iper blade in the d irection of the
ar row.
Installing the wiper blade
"' Insert t he new wiper blade into the mount on
the wipe r
arm@ until you hear it latch into
place .
"'Place the wiper arm back on the winds hield.
"'Turn the service pos ition off .
A WARNING -
For safety reasons, the wi ndshield wipe r
b lades should be rep laced once o r twice eac h
ye ar.

LL co ..... N
" N ..... 0 N > co
(D Note
-Only fold the windshield wipers away when
they are in the service position. Otherwise,
you risk damaging the paint on the hood or
the windshield wiper motor.
- You should not drive your vehicle or press
the windshield wiper lever when the wiper arms are folded away from the windshield .
The windshield wipers would move back in­
to their orig inal position and could damage
the hood and windshield .
(D Tips
- You can also use the service position, for ex­
ample, if you want to protect the windsh ield
from icing by using a cover.
- You cannot activate the service position
when the hood is open .
Replacing rear wiper blade
Applies to: vehicles wit h rear w indow wiper
Fig. 59 Rea r window w iper: removing t he wiper b lade
Removing the wiper blade
.. Fold the wiper arm away from the rear window .
.. Hold the wiper blade below the center -arrow-
¢ fig. 59 and pull it out of the retainer . Hold
the windshield wiper arm securely wh ile doing
this.
Installing the wiper blade
.. Press the wiper blade mount into the retainer.
Securely hold the wiper arm at the upper plas­
t ic end .
Lights and Vision
.. Fold the window wiper arm back onto the rear
window.
A WARNING
For safety reasons, the windshield wiper
blades should be replaced once or twice each
year .
Digital compass
Switching the compass on and off
Appl ies to: veh icles w ith dig ital compass
Fig. 60 Rearview m irror: digital compass is sw itched on
gi N 0
> u.. m
.,. To turn the compass on or off, press the button
(D u nt il the compass d isplay in the mirror turns
on or off.
T he dig ital compass only works when the ignit ion
is turned on . The directions are indicated with ab­
brev iat ions:
N (north), NE (northeast), E (east),
SE (so utheast), S (so uth), SW (southwest), W
(west), NW (northwest) .
(j) Tips
To prevent inaccurate compass readings, do
not br ing any remote controls, electrical devi­
ces or metallic objects near the mirror.
57

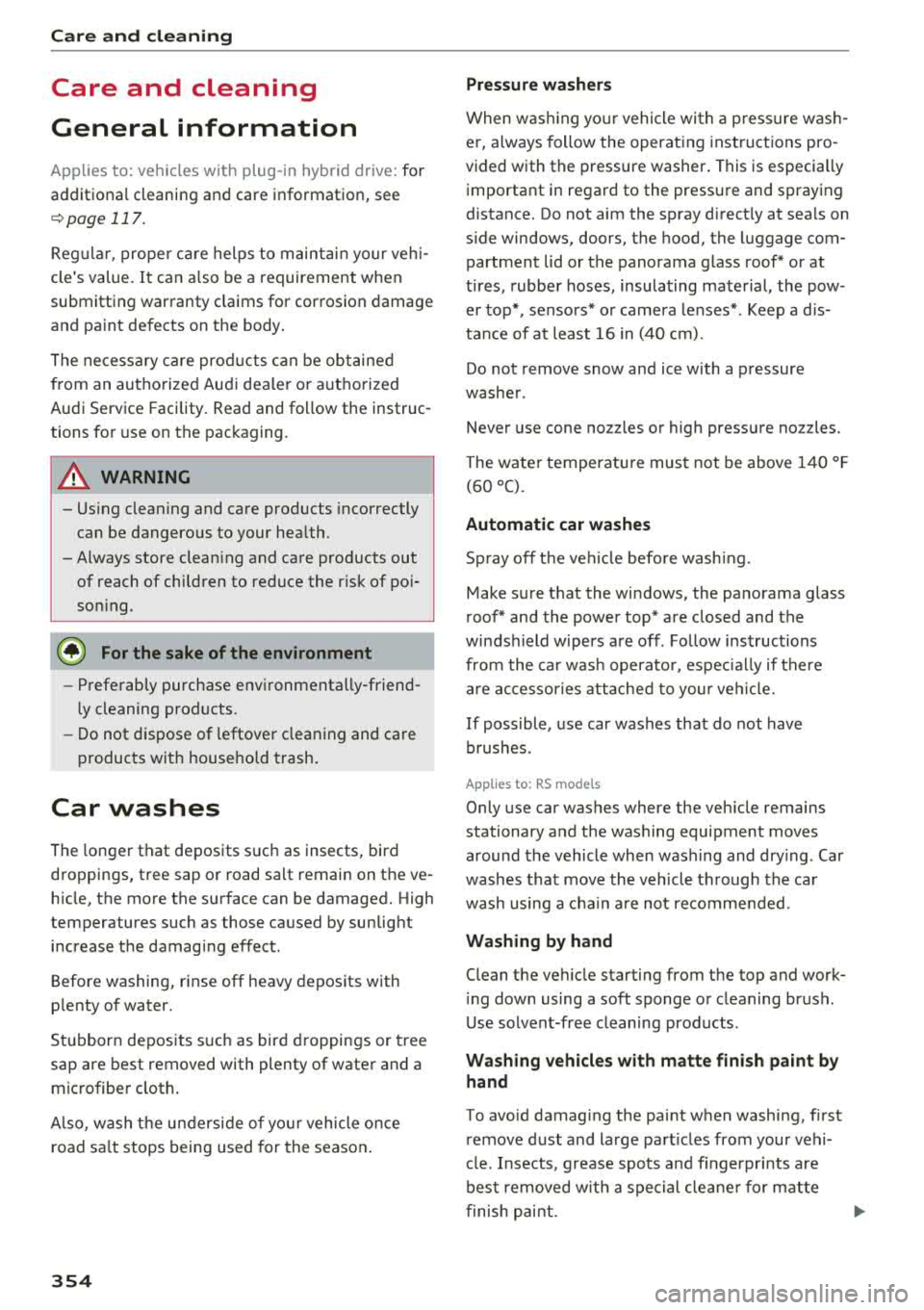

Care and cl eaning
Care and cleaning
General information
Applies to: vehicles with plug-in hybrid drive: for
additiona l cleaning and care information, see
¢ page 117.
Reg ula r, prope r ca re helps to maintai n your veh i­
cle's value. It can a lso be a requirement when
submitting warranty claims for corrosion damage
and paint defects on the body.
The ne cessary care prod ucts c an be ob tained
from an authorized Aud i dea ler o r authorized
Audi Service Facility. Read and follow the instruc ­
tions fo r use on the packaging.
A WARNING
- Us ing clean ing and ca re products incorrectly
can be dangero us to your hea lth.
- Always store clean ing and ca re products out
of reach of children to reduce the r is k of po i­
so ning.
@ For the sake of the environment
- Prefe rab ly purchase environmenta lly-friend ­
l y cleaning products.
- Do not dispose of leftove r cleaning and ca re
p roducts wit h house hold trash.
Car washes
The longer that deposits s uch as insects, bird
droppings, tree sap or road salt remain on the ve ­
h icle, the more the surface can be damaged. High
temperatures such as those caused by sunlight increase the damaging effect .
Before washing, rinse
off heavy deposits with
p lenty of water.
S tu bborn deposits s uch as bird d roppings or tree
sap are best removed with plenty of water and a
microfiber cloth.
A lso, wash t he u nderside of yo ur vehicle once
road sa lt stops being used for the season .
354
Pressure washers
When was hing yo ur vehicle wi th a press ure was h­
er, always follow the operat ing instruct ions pro ­
vided with the pressure washer . This is especia lly
important in regard to the pressure and spraying
distance. Do not aim the spray direct ly at sea ls on
s ide windows, doors, the hood, the luggage com­
partment lid or the panorama g lass roof * or at
tires, rubbe r hoses, insula ting material, the pow­
e r top*, senso rs* o r camera lenses* . Keep a d is­
tance of at least 16 in (40 cm).
Do not remove snow and ice with a p ressure
washer.
Never use cone nozzles o r high press ure nozzles.
The wate r temperatu re must not be above 140 °F
(60 °C).
Automatic car washes
Sp ray off the ve hicle befo re wash ing.
Make su re t hat the wi ndows, the pa norama g lass
roof* and the power top* are closed and the
winds hield wipers a re
off. Fo llow instructions
from the ca r was h operator, espec ia lly if there
a re acc esso ries attached to your ve hicle.
If possible, use car washes that do not have
brushes.
Applies to: RS models
Only use car washes where the veh icle remains
stationary and the washing equipment moves around the vehicle when wash ing and dry ing . Car
washes that move the veh icle t hrough the ca r
wash using a c ha in a re not re commended .
Washing by hand
Clean the ve hicle starting from t he top and work­
i ng down using a soft sponge or cleaning brus h.
U se solvent-free cleaning prod ucts .
Washing vehicles with matte finish paint by
hand
To avo id damaging the paint when washing, fi rs t
r emove d ust and la rge pa rt icles from your vehi­
cl e. Insects, grease spots a nd fingerpr ints are
best re moved w ith a spe cial cleane r fo r m atte
finish pai nt.

LL co .... N
" N .... 0 N > co
No. Equipment
F49 Clutch sensor (relay 1+2),
high-voltage
battery, power electronics
F52 Control module for suspension control
F53 Rear window defogger
The power seats* are protected via
circuit break­
ers
that automatically switch on after a few sec­
onds after the overload has been reduced.
Fuse assignment -engine compartment
Fig. 299 Engine compartme nt: fuse assignment
No. Equipment
Fl Electronic Stabilization Control (ESC)
F2 Electronic Stabilization Control (ESC)
F3 Engine control module
Eng ine components, engine cooling, aux-
F4 iliary heater co il relay (1+4+7), secondary
air inject ion pump relay
FS Engine components, fue
l tank system
(diesel), CNG cut-off va lve
F6 Brake light switch
F7 Eng
ine components, water pumps, tank
system (gasoline engine)
FB Heat oxygen sensor
Fuses and bulbs
No. Equipment
F9 Engine
components, exhaust door, glow
time control module (relay 6)
F lO Fuel control module, fuel pump
F ll Auxiliary
heater heating element 2, en-
gine components, secondary air pump
F12 Auxiliary
heater heating element 3, vac-
uum pump
F13 Automat ic transmission
F lS Horn
F16 Ign
it ion coil (relay 8), power and control
electronics
F17 E
lectroni c Stabilization Control (ESC), en-
gine control module (relay S)
F18 Terminal
30 (voltage reference), battery
monitoring
Fl9 Windshield wipers
F20 Anti-theft alarm system
F22 Terminal
SO diagnos is, engine control
module
F23 Starter
F24 Auxiliary
heater heating element 1, brake
booster
F 31 Vacuum pump, water pump, high pres-
sure pump, fuel injectors
F33 Brake
pressure reservoir, recuperation,
transmission fluid pump
F34 Brake booster
F 35 A/C function
relay
F37 Parking heater
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for
you.
It is becom ing increasingly more and more diffi­
cu lt to replace vehicle light bulbs since in many
cases, other parts of the car must first be re­
moved before you are ab le to get to the bulb.
This applies especially to the light bulbs in the
373
