Wheels
.,.Audi recommends that you use
Audi Original Tires. If you would like to use different tires, please
note that the tires may perform
differently even if they are the
same size
¢ 11:,. .
.,. If you would like to equip your
vehicle with a tire/rim combina­
tion that is different from what
was installed at the factory, con­
sult with an authorized Audi dealer or authorized Audi Service
Facility before making a pur­
chase¢ ,&.
Because the spare tire* is differ­
ent from the regular tires instal­
led on the vehicle (such as winter
tires or wide tires), only use the
spare tire* temporarily in case of
emergency and drive carefully
while it is in use. It should be re­
placed with a regular tire as soon
as possible.
Applies to: vehicles with all wheel
drive: all four wheels must be
equipped with tires that are the
same brand and have the same
construction and tread pattern so
that the drive system is not dam­
aged by different wheel speeds. For this reason, in case of emer­
gency, only use a spare tire* that
338
is the same circumference as the
regular tires.
~ WARNING -
-Only use tire/rim combina­ tions and suitable wheel bolts
that have been approved by
Audi. Otherwise, damage to
the vehicle and an accident could result.
-For technical reasons, it is not possible to use tires from oth­
er vehicles - in some cases,
you cannot even use tires from
the same vehicle model.
-Make sure that the tires you
select have enough clearance
to the vehicle. Replacement
tires should not be chosen simply based on the nominal
size, because tires with a dif­
ferent construction can differ
greatly even if they are the
same size. If there is not
enough clearance, the tires or
the vehicle can be damaged and this can reduce driving
safety and increase the risk of
an accident.
-Only use tires that are more than six years old when abso­
lutely necessary and drive
carefully when doing so.
...

Wheels
Wheel bolts and rims
Wheel bolts
Wheel bolts must be clean and loosen/tighten
easi ly.
Rims
Rims with a bolted rim ring* or with bolted wheel
covers* consist of multiple pieces . These compo­
nents were bolted together using special bolts
and a special procedure . You must not repair or
d isassemble
them ¢_&. .
_& WARNING
Wheel bolts that are tig htened or repaired in­
correctly can become loose and result in loss
of vehicle control, which increases the risk of
an accident. For the correct tightening specifi­
cation, see
q page 364, After changing a
wheel.
- Always keep the wheel bolts and the
threads in the wheel hub clean and free of
grease.
- Only use wheel bolts that fit the rim.
- Always have damaged rims repaired by an
authorized Audi dealer or authorized Audi
Service Facility. Never repair or disassemble
rims yourself, because this increases the risk
of an accident.
Winter tires
Winter tires significantly improve the vehicle 's
handling when driving in winter conditions . Be­
cause of their construction (width, compound,
tread pattern), summer tires provide less trac­
tion on ice and snow.
.,. Use winter tires on all four wheels .
.,. Only use winter tires that are approved for your
vehicle.
.,. Please note that the maximum permitted
speed may be lower with winter tires
¢ A in
General information on page 330.
An author­
ized Audi dealer or authorized Audi Service Fa­
cility can inform you about the maximum per­
mitted speed for your tires .
.. Check the tire pressure after installing wheels
¢page 341 .
346
The effectiveness of winter tires is reduced great­
ly when the tread is worn down to a depth of
0.157 inch (4 mm). The characteristics of winter
tires also decrease greatly as the tire ages, re­
gardless of the remaining tread.
@) For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free of snow and ice. Summer
tires cause less road noise, tire wear and fuel
consumption .
(D Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where winter tires are required, only
winter tires with the
& symbol may be per­
mitted.
Snow chains
Snow cha ins not only improve the driving in win­
ter road conditions, but also the braking.
.,. Only install snow chains on the front wheels.
This applies also to vehicles with all wheel
drive*.
.. Check and correct the seating of the snow
chains after driving a few feet, if necessary. Fol­
low the instructions from the manufacturer .
.. Note the maximum speed of 30 mph (SO km/
h). Note the local regulations.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authori zed Audi dealer or author­
ized Audi Service Facility to see if you may use
snow chains .
Use
fine-mesh snow chains. They must not add
more than 0.53 inch (13.5 mm) in height, includ­
ing the chain lock .
You must remove the snow chains on roads with­
out snow . Otherwise, you cou ld impair driving
ability and damage the tires .

Emergency assistance
-Before you change a wheel, be sure the
ground is level and firm. If necessary, use a
sturdy board under the jack.
-Always store the veh icle tool kit , the jac k
and the replaced tire in the luggage com­ partment
c:> page 255.
(D Tips
Obey all laws.
Changing a wheel
When you change a wheel, follow the sequence
described below step -by-step and in exactly that
order .
1. Remove the decorative wheel cover*. For
more details see also
c:> page 364, Decor a­
tive wheel covers
or c:> page 365, Wheels
with wheel bolt caps.
2 . Loosen the wheel bolts c:> page 365 .
3. Locate the proper mounting point for the
jack and align the jack below tha t point
c:> page 366 .
4. Raise the car w ith the jac k c:> page 366 .
5. Remove t he wheel with the flat tire an d t hen
ins tall
the spare c:> page 367.
6. Tighten all wheel bolts light ly .
7.
Lower the veh icle w ith the jack .
8. Use t he wheel bo lt wrench and
firmly t ighten
all whee l bolts
c:> page 365 .
9. Replace the decorative wheel cover* .
A WARNING
Always read and fo llow all WARNI NGS and in­
forma tion
c:> .& in Raising the vehicle on
pag e 366
an d c:> pag e 368 .
After changing a wheel
A wheel change is not complete without the do­
ing the following .
.,. Always store the vehicle tool kit, the jack * and
the replaced t ire in the luggage compartment
c:> pag e 255 .
.,. Check the tire pressure on the spare wheel im­
m ed iate ly aft er mo unt ing it.
364
.,. As soon as possib le, h ave the tightening tor­
ques
on a ll wheel bolts checked with a torq ue
w rench . The correct tighteni ng torq ue is
90 ft lb (120 Nm).
.,. Have the flat t ire replaced as soon as poss ib le .
(D Tips
-If you not ice that the wheel bo lts are cor­
roded and d ifficult to turn while c hanging a
t ire , th ey s hou ld be replaced before you
check the t igh tening torque.
-Dr ive at reduced speed until yo u have the
t igh tening torques checked .
- After chang ing a wheel, the tire p ressure in
all four tires must be checked/cor rected and
t h e tire pressure monito ring ind icator must
be stored in th e
MMI r:::;, pag e 349 .
Decorative wheel covers
Applies to: vehicles with decorative wheel covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig. 285 Chang ing a whee l: Remov ing t he wh eel cover
Removing
.,. In sert t he hook (p rov ided w ith the vehicle t ool
kit ) in t he hole in the w heel hu b cover.
.,. Pull off the decorative wheel cover c:> fig . 285 .

LL co .... N
" N .... 0 N > co

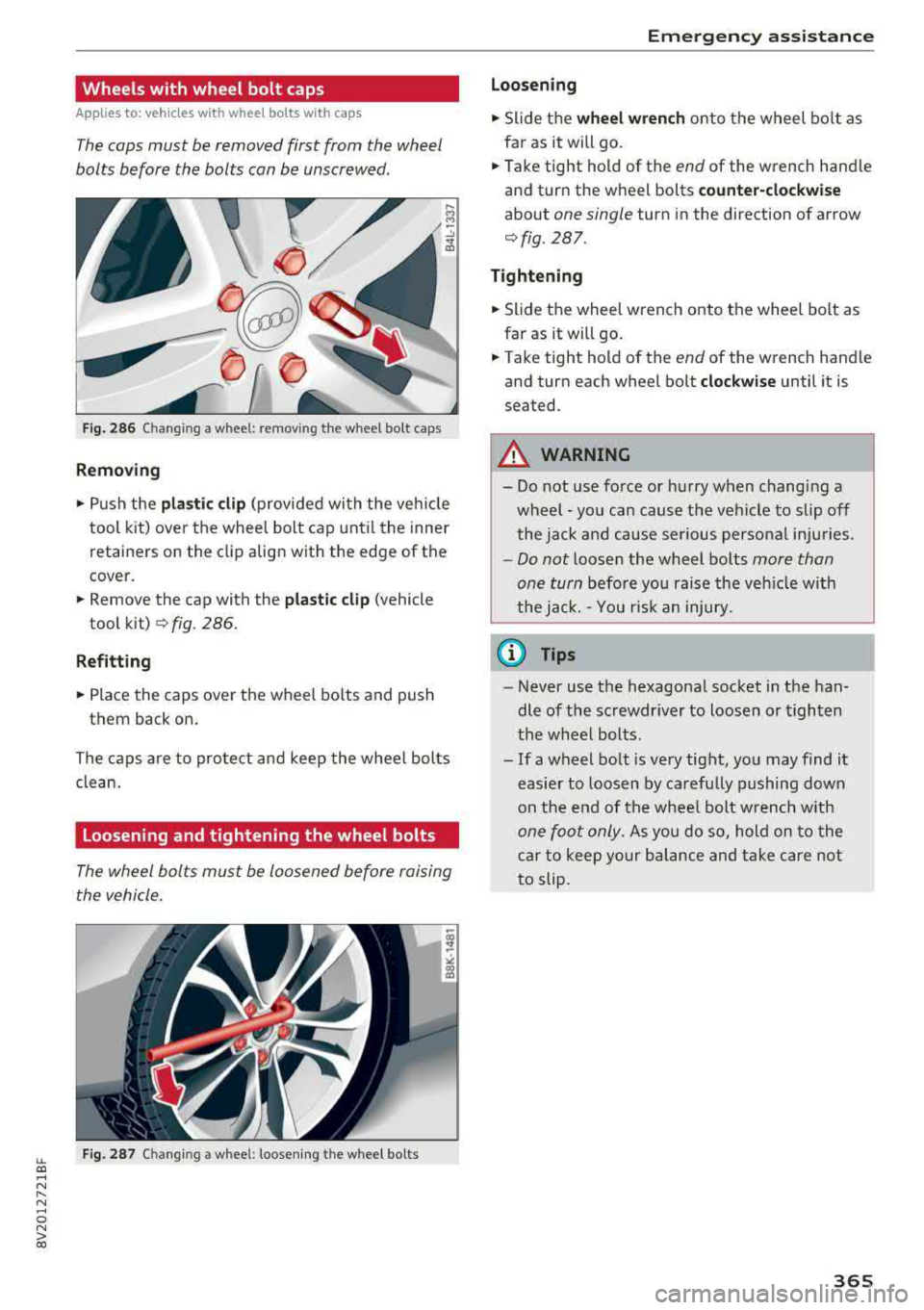

Wheels with wheel bolt caps
Applies to: ve hicles wit h whee l bo lts w ith ca ps
The cops must be removed first from the wheel
bolts before the bolts con be unscrewed.
Fi g. 286 Changing a wheel: removing the whee l bo lt caps
Removing
.,. Push the pla stic clip (provided wi th the veh icle
tool kit) over the wheel bolt cap unti l the inner
retainers on the clip align with the edge of the
cover.
.,. Remove the cap with the pla stic cli p (vehicle
tool kit)
¢ fig . 286.
Refitting
.,. Place the caps ove r the wheel bo lts and push
them back on.
The caps are to protect and keep the whee l bolts
clean.
Loosening and tightening the wheel bolts
The wheel bolts must be loosened before raising
the vehicle.
F ig. 287 C hanging a wheel: loosening the wheel bo lts
Em ergen cy as sis tanc e
Loosen ing
.,. Slide t he whe el wren ch onto the wheel bo lt as
fa r as it will go.
.,. Take tight hold of the end of the wrench hand le
and turn the wheel bolts
counter-clockwise
about one single turn in the direction of arrow
¢fig. 287.
Tightening
.,. Slide the wheel wrench onto the wheel bo lt as
far as it will go .
.,. Take tight hold of the end of the wrench hand le
and turn each wheel bolt
clo ckw ise until it is
seated.
A WARNING
-- Do not use force or hurry when changi ng a
wheel
-you can cause the vehicle to slip off
the jack and cause ser ious persona l inju ries .
-Do not loosen the wheel bolts more than
on e turn
befo re you raise the veh icle with
the jack.
-Y ou r is k an injury.
(D Tips
- Never use the hexagonal socket in the han­
dle of the screwdr iver to loosen or tighten
the whee l bolts.
- If a wheel bo lt is very tight, yo u may find it
easier to loosen by ca refully pushing dow n
on the e nd of the whee l bolt w rench with
one foot only. As you do so, hold on to the
car to keep yo ur balance and take care not
to slip.
365

LL co .... N
" N .... 0 N > co
-Do not raise the v ehicl e until you are sure
the jack is securely engaged .
- Passengers must not rema in in the vehicle
when it is jacked up.
- Make sure that passengers wait in a safe
p lace away from the vehicle and well away
from the road and traff ic.
- Make sure jack position is correct, adjust
as necessary and then cont inue to raise
the jack.
CD Note
Do not li ft the vehicle by the sill. Position the
vehicle jack on ly at the designated lifting
points on the sil l. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
Follow th ese instructions st ep-by-step for chang­
ing the wheel .
Fig . 2 90 Ch angin g a w hee l: u sin g th e screwdr ive r ha ndle
(with t he bla de remo ved} t o turn t he bolts
F ig. 291 C h anging a w hee l: ali gnm en t pi n in side the to p
h ol e
1l Appli es to veh icles with ceram ic br ake rot ors•: Use a sec ­
on d alig nme nt pin * (sto re d in t he s pare w hee l we ll mo ld­
ing} for the lo w er hole , fo ll o w ing the de scr ip tion for t he
firs t alig nmen t pin .
Em ergen cy as sis tanc e
After you have loosened all whe el bo lts and
raised the vehicle off the gro und, remove and re­
place the wheel as follows:
Removing the wheel
.,. Use the hexagonal socket in the screwdriver
handle
t o comp letely remove the topmost
wheel bo lt and set i t aside on a
clean su rface
r=> fig. 290.
.,. Screw the threaded end of the alignment pin
from the too l kit hand-tight into the empty bo lt
hole
c> fig . 2911>.
.,. Then remove the other wheel bolts as descr ibed
above .
.,. Take off the whee l leaving the alignment p in in
the bolt hole
~ 0-
Putting on the comp act spare wheel
.,. Lift the spare wheel and carefully slide it over
the alignment p in to guide it in
place r=>@.
.,. Use the hexagonal socket in the screwdr iver
ha ndle to screw in and t igh ten all wheel bolts
slightly .
.,. Remove the alignmen t pin and insert and t igh t­
en the remaining wheel bo lt s light ly like the
rest .
.,. Tu rn the jack hand le counter-clockwise to lowe r
the vehicle until the jack is fully released .
.,. Use the wheel bolt wrench to tighten a ll wheel
bolts firmly
c> page 365 . Tighten them cross­
wise,
from one bo lt to the (approx imately) op ­
posite one , to keep the wheel centered .
CD Note
When removing or installing the wheel , the
r im could h it the brake rotor and damage the
r otor. Work carefully and have a second per­
son help you.
@ Tips
Never use the hexagonal socket in the handle
of the sc rewdrive r to loosen or t ighten the
whee l bolts.
367

Emergency assistance
-Pull th e revers ible blade from the sc rew driv ­
e r before you use the he xag onal socket in
the handle t o turn the w heel bo lts .
- W hen mounting ti res w ith
unidirectional
tread design
make sure the t read pattern is
po inted the r igh t way
c> page 36 8.
-The wheel bolts should be clea n and easy to
turn . C heck for di rt and c orros io n on t he
mating surfaces o f both the wheel an d the
hu b. Remove all dirt from t hese surfaces be­
fo re r emo untin g the wheel.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mount ed with th eir tread pattern pointed in the
right direction .
Using a spare tire with a tread pattern
intended for use in a specific direction
W hen using a spare ti re with a tread patte rn in­
tended fo r use in a spec ific d ir e ction, please note
t he following:
- The direct ion of rotat io n is marked by an a rrow
o n the side of the tire.
- If the spare tire has to be installed in the incor­
r ect d irection, use the spare tire only tempora­
r ily s ince the t ire w ill not be ab le to achieve its
o pti mum p erf ormance c harac ter istics wi th re­
gard to a quaplaning, noise and wea r.
- We recommen d that you pay particular atten ­
t ion to this fac t during wet weathe r and that
yo u adju st yo ur spe ed to match roa d condi­
tio ns.
- Replace t he flat t ire with a new one and have i t
in stall ed on yo ur vehicle as soon as possible to
r e stor e th e han dling adv antage s of a un id ir e c­
ti on al ti re.
Notes on wheel changing
Please read the info rmation c> page 33 7 if you
are going to use a spare tire which is different
from the tires on yo ur vehicle .
Afte r you change a tire:
-Check the tire pressure on the spare immedi­
ately after installation.
368
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or a
qualified service station.
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of
90 ft lbs (120 Nm).
- If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire ,
they should be replaced before you check the
tightening torque .
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi­
ble. Remount the wheel cover.
Until then, drive with extra care and at reduced
speeds.
A WARNING
- If you are goi ng t o equip yo ur vehicle with
t ires or r ims which diffe r from those which
wer e fac to ry install ed, th en be su re to read
t he infor matio n
c> pag e 33 7.
- Always mak e sure th e damag ed wheel or
e ve n a fl at tire and th e jack and to ol kit ar e
pr op erl y se cure d in t he l uggage com part­
me nt a nd are no t loos e in the pass eng er
c omp artment.
- In a n ac cide nt or sudde n maneuver they
co uld fly forw ard, i njuring a nyon e in the ve­
h icle.
- Alway s store damage d wheel, j ack a nd too ls
secure ly in the lu g gage compa rt ment. O th­
erwise, in an a cci den t or sudden maneuve r
they cou ld fly forwar d, cau sing injury to pas­
sen gers in the veh icle.
-

Index Out of service . . . . . . . . . . . . . . . . . . . . . . .
359
Ra1s1ng . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379
Specifications . . . . . . . . . . . . . . . . . . . . . . . 381
Transporting (plug-in hybrid drive) . . . . . . 102
Veh icle battery . . . . . . . . . . . . . . . . . . . . . . . 326
Charge level . . . . . . . . . . . . . . . . . . . . . . . . 152
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
Vehicle care.. .. .. ............. .. .. .. . 354
Vehicle control modules. . . . . . . . . . . . . . . . 152
Vehicle jack . . . . . . . . . . . . . . . . . . . . . . 360, 366
Vehicle sound . . . . . . . . . . . . . . . . . . . . . . . . . 94
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . 360
Version information . . . . . . . . . . . . . . . . . . . 246
VIEW but ton . . . . . . . . . . . . . . . . . . . . . . . . . . 13
V IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 381
Voice guidance
refer to Multifunction
steer ing wheel . . . . . . . . . . . . . . . . .
13, 15, 16
Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Voice recognition system . . . . . . . . . . . . . . . 170
Commands . . . . . . . . . . . . . . . . . . . . . . . . . 171
External . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 5
Multifunction steering wheel . . . . . . . . . . .
15
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
vv
Warming up . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Warning/Indicator lights
Airbag system . . . . . . . . . . . . . . . . . . . . . .
281
Warning lights
refer to Indicator lights . . . . . . . . . . . . . . . . 20
Warranty coverages . . . . . . . . . . . . . . . . . . . 383
Wash ing matte finish paint . . . . . . . . . . . . . 354
Weights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
What happens if you wear your safety belt too
loose? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
265
What happens to unbelted occupants? . . . . 261
What impairs driving safety? . . . . . . . . . . . . 249
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 346
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Glossary of tire and load ing terminology . 333
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 363
400
T ire pressure monitoring system . . . . . . . 350
Tires and vehicle load limits . . . . . . . . . . . 343
Wheel wrench . . . . . . . . . . . . . . . . . . . . . . . . 360
When must a safety belt be replaced? . . . . 263
When must the airbag system be inspected? 281
Where are lower anchorages located? . . . . 309
Wi-Fi
Audi music stream . . . . . . . . . . . . . . . . . . .
227
Audio player . . . . . . . . . . . . . . . . . . . . . . . . 227
Online media . . . . . . . . . . . . . . . . . . . . . . . 228
also refer to Wi-Fi . . . . . . . . . . . . . . . . . . . 227
Wind deflector . . . . . . . . . . . . . . . . . . . . . . . . 45
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Window regulators . . . . . . . . . . . . . . . . . . . . . 39
Windows
Cleaning/removing ice . . . . . . . . . . . . . . . .
356
Windshield washer system . . . . . . . . . . 55, 328
Reservoir capacity . . . . . . . . . . . . . . . . . . . 382
Windshield wipers . . . . . . . . . . . . . . . . . . . . . 55
Replacing wiper blades . . . . . . . . . . . . . . . . 56
Winter operation
Car washes . . . . . . . . . . . . . . . . . . . . . . . . .
354
Cooling system . . . . . . . . . . . . . . . . . . . . . . 324
Defrosting windows (automatic climate con­
trol system) . . . . . . . . . . . . . . . . . . . . . . . . .
70
Removing ice from windows . . . . . . . . . . . 356
Seat heating (automatic climate control sys-
tem) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
70
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 346
Steering wheel heating . . . . . . . . . . . . . . . . 71
Windshield washer system . . . . . . . . . . . . 328
Winter tires . . . . . . . . . . . . . . . . . . . . . . . . 346
X
Xenon headlights . . . . . . . . . . . . . . . . . . 49, 373
z
Zoom (map) . . . . . . . . . . . . . . . . . . . . . . . . . 210
