Follow Me Home/Headlight Delay
When this feature is selected, the driver can choose to
have the headlights remain on for a preset period of
time after the engine is turned OFF.
Activation
Remove the key or turn the ignition to the STOP
(OFF/LOCK) position, and pull the multifunction lever
toward the steering wheel within two minutes. Each
time the lever is pulled, the activation of the lights will
be extended by 30 seconds. The activation of the lights
can be extended to a maximum of 210 seconds.
Deactivation
Pull the multifunction lever toward the steering wheel
and hold it for more than two seconds.
Turn Signals
Move the multifunction lever up or down and the
arrows on each side of the instrument cluster flash to
show proper operation of the front and rear turn signal
lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective
outside light bulb. If an indicator fails to light when the
lever is moved, it would suggest that the indicator bulb
is defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
five times then automatically turn off.
INTERIOR LIGHTS
Interior Light
The interior light is located in the headliner in between
the sun visors. The interior light can be set to three
different positions (off/left position, center position,
on/right position).
Using the interior light lens, push the lens to the right
from its center position and the lights are always on.
Push the lens to the left from its center position and the
lights are always off. Leave the lens in the center
position, and the light is turned on and off when the
doors are opened or closed.
32 GETTING TO KNOW YOUR VEHICLE

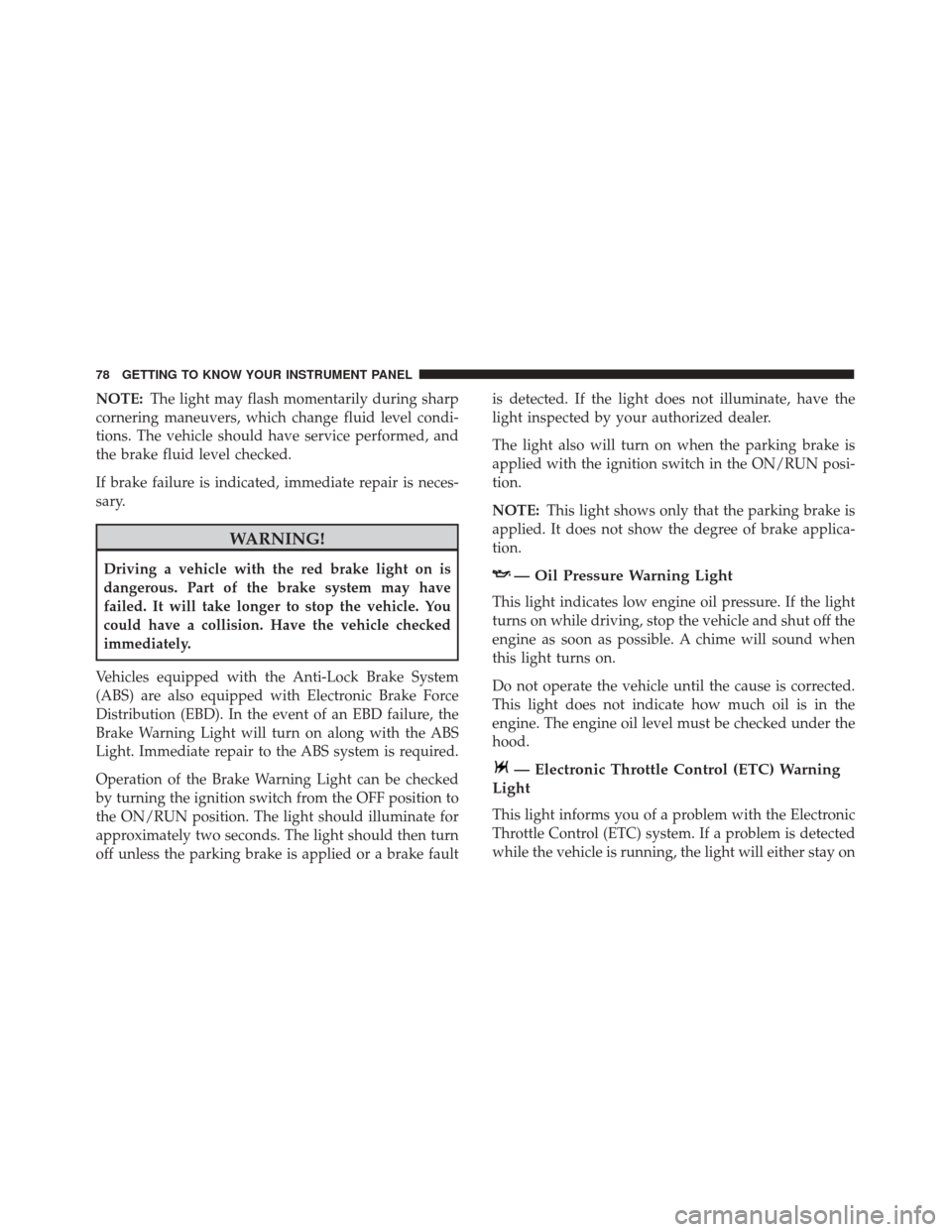

NOTE:The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is neces-
sary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have
failed. It will take longer to stop the vehicle. You
could have a collision. Have the vehicle checked
immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS) are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked
by turning the ignition switch from the OFF position to
the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn
off unless the parking brake is applied or a brake fault is detected. If the light does not illuminate, have the
light inspected by your authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition switch in the ON/RUN posi-
tion.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake applica-
tion.— Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light
turns on while driving, stop the vehicle and shut off the
engine as soon as possible. A chime will sound when
this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the
engine. The engine oil level must be checked under the
hood.
— Electronic Throttle Control (ETC) Warning
Light
This light informs you of a problem with the Electronic
Throttle Control (ETC) system. If a problem is detected
while the vehicle is running, the light will either stay on
78 GETTING TO KNOW YOUR INSTRUMENT PANEL

or flash depending on the nature of the problem. Cycle
the ignition when the vehicle is safely and completely
stopped and the transmission is placed in the PARK
position. The light should turn off. If the light remains
on with the vehicle running, your vehicle will usually
be drivable; however, see an authorized dealer for
service as soon as possible.
If the light continues to flash when the vehicle is
running, immediate service is required and you may
experience reduced performance, an elevated/rough
idle, or engine stall and your vehicle may require
towing. The light will come on when the ignition is
placed in the ON/RUN or MAR/ON/RUN position
and remain on briefly as a bulb check. If the light does
not come on during starting, have the system checked
by an authorized dealer.
— Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb
check when the ignition is placed in the ON/RUN or
MAR/ON/RUN position. If the light is either not on
during startup, stays on, or turns on while driving, have
the system inspected at an authorized dealer as soon as
possible. This light will illuminate with a single chime
when a fault with the Air Bag Warning Light has beendetected, it will stay on until the fault is cleared. If the
light comes on intermittently or remains on while
driving, have an authorized dealer service the vehicle
immediately.
— Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN or
MAR/ON/RUN position, if the driver ’s seat belt is
unbuckled, a chime will sound and the light will turn
on. When driving, if the driver or front passenger seat
belt remains unbuckled, the Seat Belt Reminder Light
will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraints Systems” in
“Safety” for further information.
— Transmission Fault Warning Light
This light will illuminate (together with a message in
the instrument cluster display and a buzzer) to indicate
a transmission fault. Contact your authorized dealer if
the message remains after restarting the engine.
— Battery Charge Warning Light — If
Equipped
This light illuminates when the battery is not charging
properly. If it stays on while the engine is running, there
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 79

may be a malfunction with the charging system. Con-
tact your authorized dealer as soon as possible. This
indicates a possible problem with the electrical system
or a related component.
— Engine Coolant Temperature Warning Light
This light warns of an overheated engine condition. If
the engine coolant temperature is too high, this indica-
tor will illuminate and a single chime will sound. If the
temperature reaches the upper limit, a continuous
chime will be sound for four minutes or until the engine
is able to cool: whichever comes first.
If the light turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off.
Also, shift the transmission into NEUTRAL and idle the
vehicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “In Case
Of Emergency” for further information.
Yellow Warning Lights
— Tire Pressure Monitoring System (TPMS)
Warning Light
The warning light switches on and a message is dis-
played to indicate that the tire pressure is lower than the recommended value and/or that slow pressure loss
is occurring. In these cases, optimal tire duration and
fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned
above, the display will show the indications corre-
sponding to each tire in sequence.
CAUTION!
Do not continue driving with one or more flat tires
as handling may be compromised. Stop the vehicle,
avoiding sharp braking and steering. If a tire punc-
ture occurs, repair immediately using the dedicated
tire repair kit and contact your authorized dealer as
soon as possible.
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label. (If
your vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation pres-
sure label, you should determine the proper tire infla-
tion pressure for those tires.)
80 GETTING TO KNOW YOUR INSTRUMENT PANEL

CAUTION!(Continued)
sensor to become inoperable. After using an after-
market tire sealant it is recommended that you take
your vehicle to your authorized dealer to have your
sensor function checked.
— Anti-Lock Brake (ABS) Warning Light
This light monitors the Anti-Lock Brake System (ABS).
The light will turn on when the ignition is placed in the
ON/RUN or MAR/ON/RUN position and may stay
on for as long as four seconds.
If the ABS light remains on or turns on while driving,
then the Anti-Lock portion of the brake system is not
functioning and service is required. However, the con-
ventional brake system will continue to operate nor-
mally if the brake warning light is not on.
If the ABS light is on, the brake system should be
serviced as soon as possible to restore the benefits of
Anti-Lock Brakes. If the ABS light does not turn on
when the ignition is placed in the ON/RUN or MAR/
ON/RUN position, have the light inspected by an
authorized dealer.
— Electronic Stability Control (ESC) Warning
Light — If Equipped
The “ESC Indicator Light” in the instrument cluster will
come on when the ignition is placed in the ON/RUN or
MAR/ON/RUN position, and when ESC is activated. It
should go out with the engine running. If the “ESC
Indicator Light” comes on continuously with the engine
running, a malfunction has been detected in the ESC
system. If this light remains on after several ignition
cycles, and the vehicle has been driven several miles
(kilometers) at speeds greater than 30 mph (48 km/h),
see your authorized dealer as soon as possible to have
the problem diagnosed and corrected.
•
The “ESC Off Indicator Light” and the “ESC Indicator
Light” come on momentarily each time the ignition is
placed in the ON/RUN or MAR/ON/RUN position.
• Each time the ignition is turned to ON/RUN or
MAR/ON/RUN, the ESC system will be on, even if
it was turned off previously.
• The ESC system will make buzzing or clicking
sounds when it is active. This is normal; the sounds
will stop when ESC becomes inactive.
• This light will come on when the vehicle is in an ESC
event.
82 GETTING TO KNOW YOUR INSTRUMENT PANEL

— Electronic Stability Control (ESC) Off
Warning Light — If Equipped
This light indicates the Electronic Stability Control
(ESC) is off.
Each time the ignition is turned to ON/RUN or ACC/
ON/RUN, the ESC system will be on, even if it was
turned off previously.
— Engine Check/Malfunction Indicator
Warning Light (MIL)
The Engine Check/Malfunction Indicator Light (MIL) is
a part of an Onboard Diagnostic System called OBD II
that monitors engine and automatic transmission con-
trol systems. The light will illuminate when the ignition
is in the ON/RUN position before engine start. If the
bulb does not come on when turning the ignition switch
from OFF to ON/RUN, have the condition checked
promptly.
Certain conditions, such as a loose or missing gas cap,
poor quality fuel, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
stays on through several typical driving styles. In most
situations, the vehicle will drive normally and will not
require towing. When the engine is running, the MIL may flash to alert
serious conditions that could lead to immediate loss of
power or severe catalytic converter damage. The vehicle
should be serviced as soon as possible if this occurs.
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in nor-
mal operating conditions. This can cause a fire if
you drive slowly or park over flammable sub-
stances such as dry plants, wood, cardboard, etc.
This could result in death or serious injury to the
driver, occupants or others.
CAUTION!
Prolonged driving with the Malfunction Indicator
Light (MIL) on could cause damage to the vehicle
control system. It also could affect fuel economy
and driveability. If the MIL is flashing, severe
catalytic converter damage and power loss will soon
occur. Immediate service is required.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 83

— Generic Warning Light
The Generic Warning Light will illuminate if there is an
Engine Oil Pressure Sensor Failure.
— Passenger Air Bag Indicator Light
This light should come and remain on for four to eight
seconds as a bulb check when the ignition is first turned
to the AVV/START or MAR/ON/RUN position. If the
light stays on, or comes on while driving it may indicate
a problem with a passenger air bag system, if the light
flickers it may indicate an air bag warning light failure.
Have an authorized dealer service the air bag system
immediately.
Green Indicator Lights
— Turn Signal Indicator Lights
The turn signal arrows will flash independently when
left or right turn signals are selected. Turn signals can be
activated when the multifunction lever is moved down
(left) or up (right).
— Park/Headlight On Indicator Light
This indicator will illuminate when the park lights or
headlights are turned on.
— Cruise Control Set Indicator Light — If
Equipped
This light will turn on when the speed control is set to
the desired speed. Refer to “Speed Control” in “Starting
And Operating” for further information.
— Door Mirror Defrost Indicator Light
This indicator will illuminate when the Door Mirror
Defrost button on the instrument panel is pushed to the
on position.
Blue Indicator Lights
— High Beam Indicator Light
This indicator shows that the high beam headlights are
on. With the low beams activated, push the multifunc-
tion lever forward (toward the front of the vehicle) to
turn on the high beams. Pull the multifunction lever
rearward (toward the rear of the vehicle) to turn off the
high beams. If the high beams are off, pull the lever
toward you for a temporary high beam on, flash to
pass scenario.
84 GETTING TO KNOW YOUR INSTRUMENT PANEL

WARNING!
•ONLY an authorized service technician should
connect equipment to the OBD II connection port
in order to diagnose or service your vehicle.
• If unauthorized equipment is connected to the
OBD II connection port, such as a driver-behavior
tracking device, it may:
• Be possible that vehicle systems, including
safety related systems, could be impaired or a
loss of vehicle control could occur that may
result in an accident involving serious injury or
death.
• Access, or allow others to access, information
stored in your vehicle systems, including per-
sonal information.
For further information, refer to “Cybersecurity” in the
“Multimedia” section.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control sys-
tem. Failure to pass could prevent vehicle registration. For states that require an Inspection and Main-
tenance (I/M), this check verifies the “Malfunc-
tion Indicator Light (MIL)” is functioning and is
not on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery
replacement. If the OBD II system should be deter-
mined not ready for the I/M test, your vehicle may fail
the test.
86 GETTING TO KNOW YOUR INSTRUMENT PANEL
