2018 Acura TLX bluetooth

338
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To delete a voice tag
1. Press the SETTINGS button.
2. Rotate to select Bluetooth/Phone
Settings , then press .
u Repeat the procedure to select Edit
Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, rotate to
select Edit, then press .
4. Rotate to select Voice Tag, then press
.
u From the pop-up menu, rotate to
select Clear, then press .
5. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
■To delete a speed dial
1. Press the SETTINGS button.
2. Rotate to select Bluetooth/Phone
Settings , then press .
u Repeat the procedure to select Edit
Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, rotate to
select Delete , then press .
4. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
18 ACURA TLX-31TZ36300.book 338 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Continued339
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say “Call” and the voice tag
name, “Call by name” and the phonebook name, or
“Call” and the phone number.
The maximum range be tween your phone and
vehicles is 30 fe et (10 meters).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls ca nnot be made with
HandsFreeLink ® and are only made from Apple
CarPlay.
18 ACURA TLX-31TZ36300.book 339 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuBluetooth ® HandsFreeLink ®u HFL Menus
340
Features
■To make a call using the imported
phonebook
1. Press the PHONE button.
2. Rotate to select Phonebook, then
press .
3. Rotate to select a contact name, then
press .
u The phonebook is stored alphabetically.
4. Rotate to select a number, then press
.
u Dialing starts automatically.1To make a call using the imported phonebook
You can call a stored voice-tagged speed dial
number, phonebook name, or number using voice
commands.
2 Speed Dial P. 336
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
18 ACURA TLX-31TZ36300.book 340 ページ ２０１７年２月２１日　火曜日　午後２時３２分

341
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To make a call using a phone number
1. Press the PHONE button.
2. Rotate to select Dial, then press .
3. Select a number.
u Use the keyboard on the On Demand
Multi-Use Display
TM for entering
numbers.
4. Select .
■To make a call using redial
1. Press the PHONE button.
2. Rotate to select Redial, then press .
u Dialing starts automatically.
18 ACURA TLX-31TZ36300.book 341 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuBluetooth ® HandsFreeLink ®u HFL Menus
342
Features

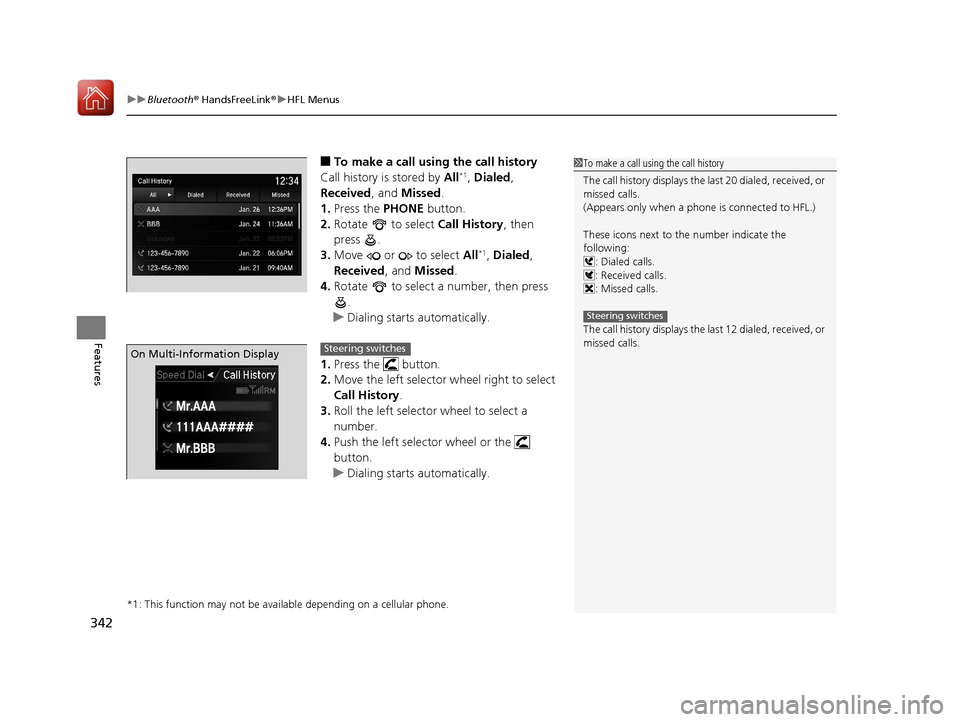

■To make a call using the call history
Call history is stored by All*1, Dialed ,
Received, and Missed.
1. Press the PHONE button.
2. Rotate to select Call History, then
press .
3. Move or to select All
*1, Dialed ,
Received , and Missed .
4. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel right to select
Call History .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.
*1: This function may not be avai lable depending on a cellular phone.
1To make a call using the call history
The call history disp lays the last 20 dialed, received, or
missed calls.
(Appears only when a phone is connected to HFL.)
These icons next to the number indicate the
following:
: Dialed calls.
: Received calls.
: Missed calls.
The call history disp lays the last 12 dialed, received, or
missed calls.
Steering switches
On Multi-Information DisplaySteering switches
18 ACURA TLX-31TZ36300.book 342 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Continued343
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call using a speed dial entry
1. Press the PHONE button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel left to select
Speed Dial .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.1To make a call using a speed dial entry
Rotate to select More Speed Dials to view
another paired phone’s spee d dial list. You can make
a call from that list using the currently connected
phone.
When a voice tag is stored, press the button to
call the number using the voice tag.
2 Speed Dial P. 336
Any voice-tagged speed di al entry, phonebook name
or number can be dialed by voice from any screen.
Press the button and follow the prompts.
The speed dial displays the 20 speed dial entries.
Steering switches
On Multi-Information DisplaySteering switches
18 ACURA TLX-31TZ36300.book 343 ページ ２０１７年２月２１日　火曜日　午後２時３２分

uuBluetooth ® HandsFreeLink ®u HFL Menus
344
Features
When there is an incoming call, an audible
notification sounds (i f activated) and the
Incoming Call screen appears.
Press the button to answer the call.
Press the button to decline or end the
call.
■Receiving a Call1 Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Ignore the incoming call if you do not want to answer
it.
Press the button if you want to hang up the
current call.
Information Screen
On Demand Multi-Use Display
TM
18 ACURA TLX-31TZ36300.book 344 ページ ２０１７年２月２１日　火曜日　午後２時３２分

Continued345
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
The following options are available during a call.
Phone Call Active - Transfer to Mobile :
Transfer a call from HFL to your phone.
Mute : Mute your voice.
Transfer to Mobile: Transfer a call from HFL
to your phone.
Touch Tones : Send numbers during a call.
This is useful when you call a menu-driven
phone system.
The available options are shown on the On
Demand Multi-Use Display
TM.
Select the option.
u The Mute icon is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call1Options During a Call
Touch Tones : Available on some phones.
Information Screen
On Demand Multi-Use DisplayTM
Mute Icon
Information Screen
On Demand Multi-Use DisplayTM
18 ACURA TLX-31TZ36300.book 345 ページ ２０１７年２月２１日　火曜日　午後２時３２分
